dry powder blender blending machine
3 year ago

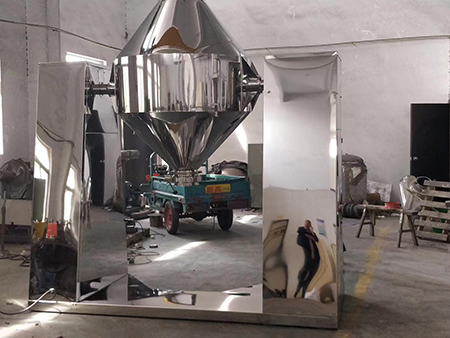

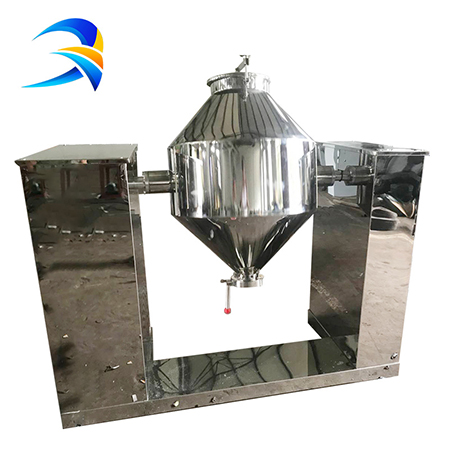

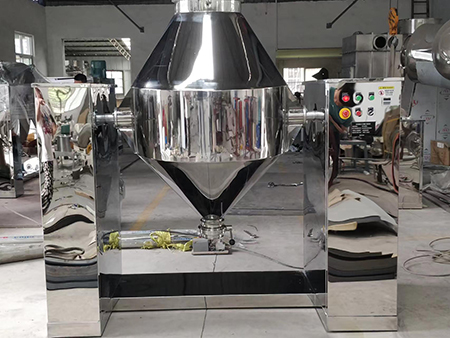

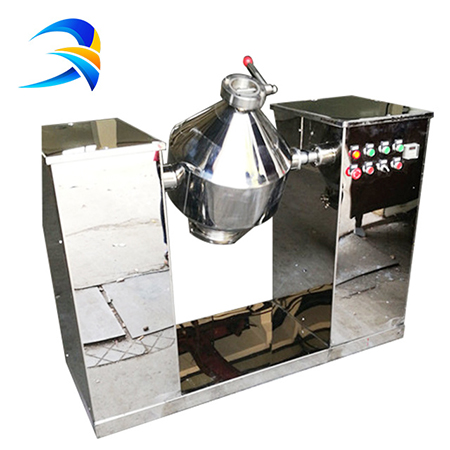

This machine adopts inside and outside rotary stirring, high uniformity. Mixing bucket can be tilted at any Angle to facilitate discharging and cleaning needs. With automatic timing device, can be set 0~60 minutes automatic stop. Using stainless steel butterfly valve discharge, no dust leakage and flying phenomenon. Using the principle of gravity diffusion mixing, the pressure feed to the material is small, will not produce shear crushing of the material. The cylinder is made of high quality stainless steel, the inner and outer walls are polished, no pollution to the material in the mixing process, low power consumption, easy cleaning. Easy to operate, easy to clean, suitable for G.M.P food and pharmaceutical factory. Large volume mixers can be configured with vacuum feeding system to improve work efficiency and working environment.
Technical data
|
Model
|
180
|
300
|
500
|
1000
|
1500
|
2000
|
2500
|
|
Full volume(m3)
|
0.18
|
0.3
|
0.5
|
1.0
|
1.5
|
2.0
|
2.5
|
|
Capacity(kg/time)
|
50
|
80
|
150
|
250
|
400
|
500
|
650
|
|
Mixing time(r/min)
|
4-8
|
6-10
|
6-10
|
6-10
|
6-10
|
6-10
|
6-10
|
|
Cylinder speed(rpm)
|
15
|
15
|
12
|
12
|
12
|
12
|
12
|
|
Motor Power(kw)
|
1.1
|
1.1
|
2.2
|
4
|
5.5
|
7.5
|
11
|
|
Weight(kg)
|
320
|
450
|
700
|
960
|
1200
|
1600
|
2100
|
|
Gross rotation speed(m)
|
1850
|
1850
|
1950
|
2460
|
2540
|
3590
|
3650
|
|
Overall size (mm)
|
1400*800*1850
|
1685*800*1850
|
2200*1040*1940
|
2600*1600*2700
|
2960*1700*2900
|
3160*1900*3500
|
3386*1900*3560
|
Related products
V SHAPE MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.V-shaped mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
3D SWING MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.Three-dimensional swing mixing, the best mixing effect and the highest uniformity.
CH TROUGH SHAPE MIXER
1.Horizontal trough mixer, suitable for mixing powdery or pasty materials.
2.By driving of mechanism of the mixer, the S stir paddle turns the target material to and fro to mix it evenly.
WLDH HORIZONTAL RIBBON MIXER
1.Suitable for high-volume mixing of materials in the pharmaceutical, food, chemical industries.
2.The spiral ribbon is made of two layers. The inner ribbon makes the material move outwards,while the external ribbon makes the material move inwards which forms a good circulation of material.
