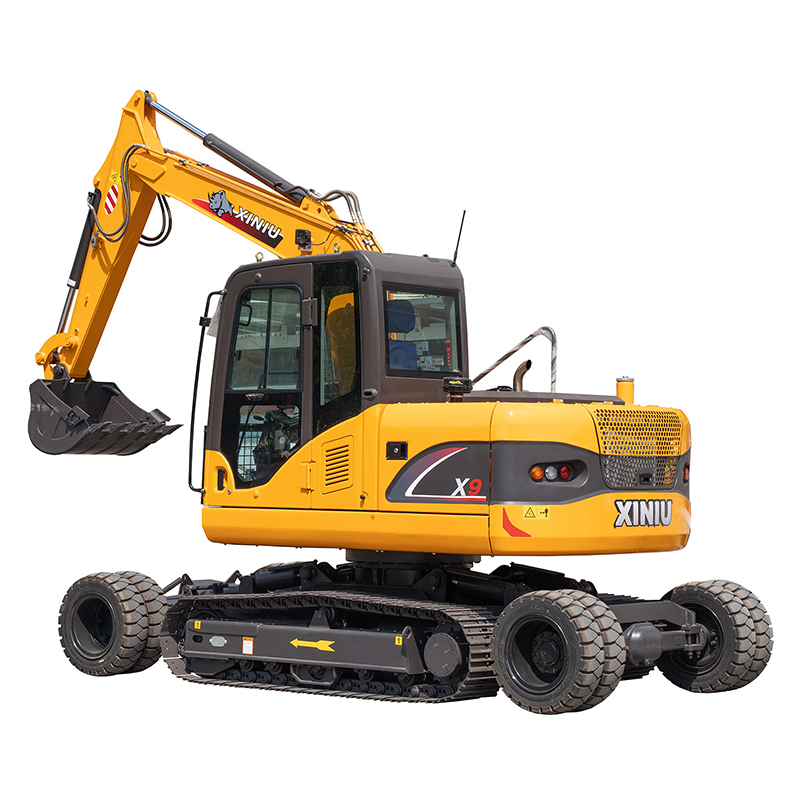

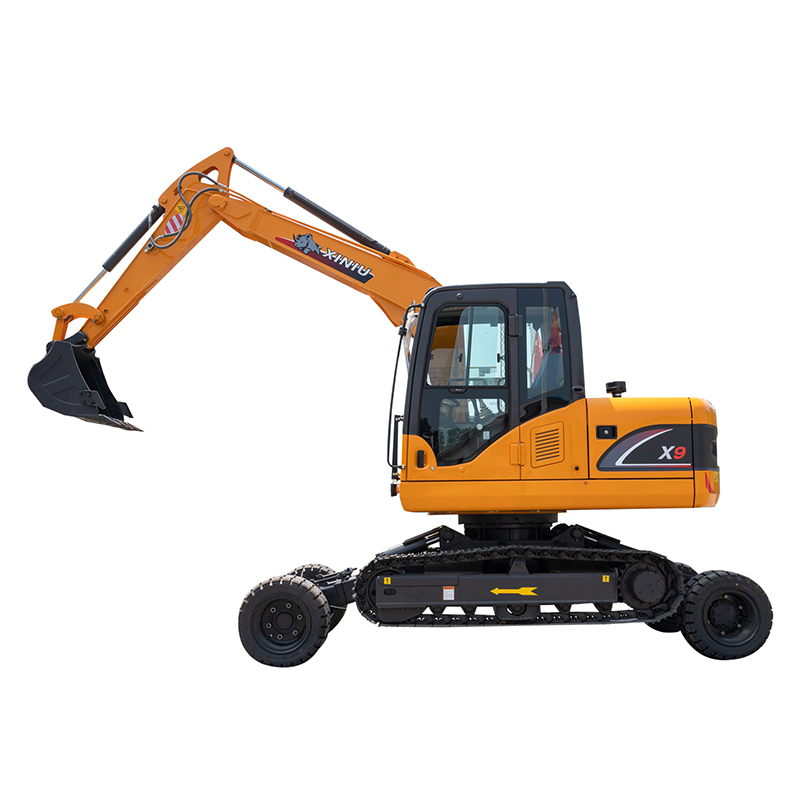

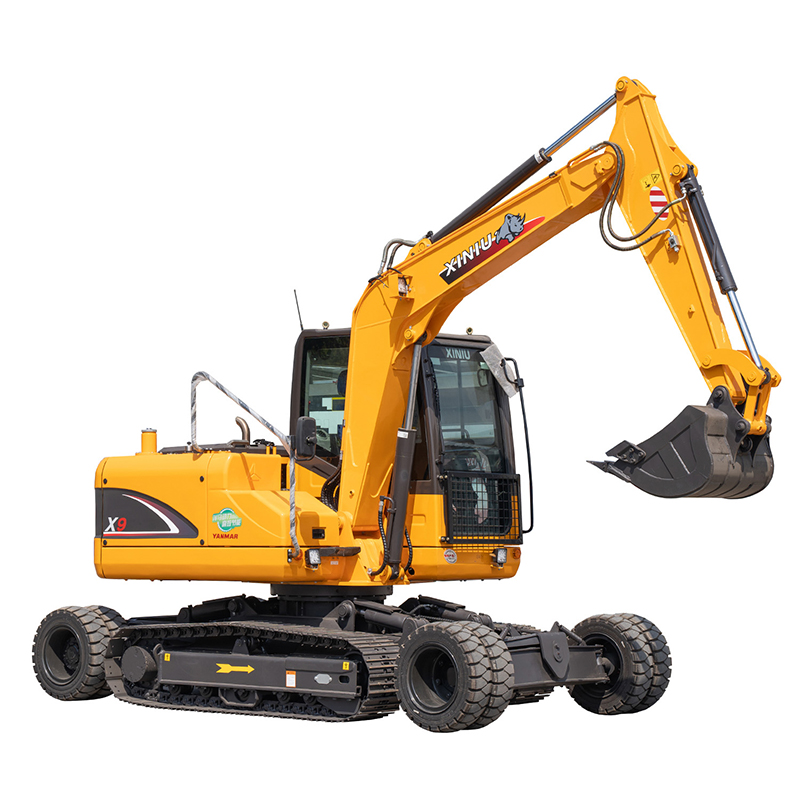

Wheel-Crawler Excavator X9 Amphibious type with Patent Design and Yanmar Engine
Wheel-Crawler Excavator X9, with CE ISO certificates. New design, patent products, running on the wheel, working on the crawler, wheel and crawler is easy to change each other, one city transport, no need the truck again, very convenient, with good market now.
X9 Wheel-crawler excavator is with national invention patent which is totally researched and developed by our company. Convenient moving, fast travelling speed, quick transferring from wheels to track walking. The front tire axle can be quickly disassembled when required.
Yanmar Engine
-- Using imported engine, stable and durable, this engine features low noise, low vibration, and easy maintenances for main parts.
Wheel excavator / wheel crawler excavator / X9 X120

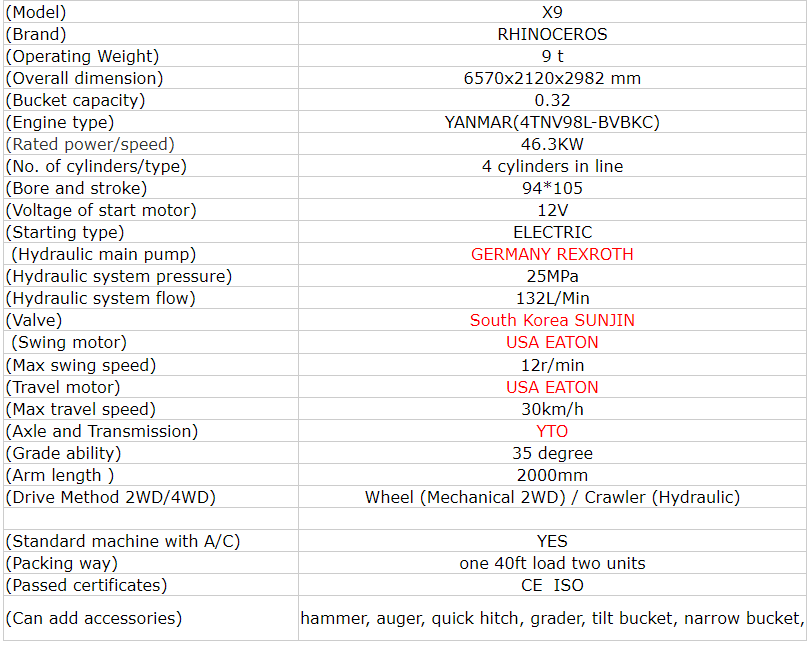

| (Model) | X9 |
| (Brand) | RHINOCEROS |
| (Operating Weight) | 9 t |
| (Overall dimension) | 6570x2120x2982 mm |
| (Bucket capacity) | 0.32 |
| (Engine type) | YANMAR(4TNV98L-BVBKC) |
| (Rated power/speed) | 46.3KW |
| (No. of cylinders/type) | 4 cylinders in line |
| (Bore and stroke) | 94*105 |
| (Voltage of start motor) | 12V |
| (Starting type) | ELECTRIC |
| (Hydraulic main pump) | GERMANY REXROTH |
| (Hydraulic system pressure) | 25MPa |
| (Hydraulic system flow) | 132L/Min |
| (Valve) | South Korea SUNJIN |
| (Swing motor) | USA EATON |
| (Max swing speed) | 12r/min |
| (Travel motor) | USA EATON |
| (Max travel speed) | 30km/h |
| (Axle and Transmission) | YTO |
| (Gear) | Forward 1 2 3 4 ; Reverse 1 2 |
| (Bucket Digging Force) | 56Kn |
| (Arm Digging Force) | 36Kn |
| (Grade ability) | 35 degree |
| (Arm length ) | 2000mm |
| (Drive Method 2WD/4WD) | Wheel (Mechanical 2WD) / Crawler (Hydraulic) |
| (light) | All LED lights |
| (Max Digging Height) | 7130mm |
| (Max Dumping Height) | 5220mm |
| (Max Digging Depth) | 3772mm |
| (Max Digging Radius) | 6880mm |
| (Standard machine with A/C) | YES |
| (Packing way) | one 40ft load two units |
| (Passed certificates) | CE ISO |
| (Can add accessories) | hammer, auger, quick hitch, grader, tilt bucket, narrow bucket, |
Contact us:
FAQ
1: Are you factory or trading company?
A: Here we are factory since the year 1995, brand is XINIU/Rhinoceros, focus in producing small size excavators.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .
