Air Compressor Auto Drain Valve 1/2'' 24V 220V
Brando is a Air Compressor Auto Drain Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The air compressor Auto Drain Valve is suitable for a wide range of compressed air applications including compressors, receivers, filters and refrigerated air dryers.
The COMBO auto drain valve combines an adjustable electronic timer controlled drain, a ball valve and a mesh strainer into one compact easy to install package.
The OPTIMUM auto drain valve with an easily adjustable electronic timer, a Direct Acting Solenoid Valve, a large orifice and options for a brass or stainless steel body, this drain provides reliable compact condensate removal.
Technical data of Timer Auto Drain Valve:
|
BRANDO Model
|
BADV01
|
BADV02
|
|
Port Size
|
1/8'', 1/4'', 3/8'', 1/2''
|
|
|
Valve Type
|
OPTIMUM
|
COMBO
|
|
Operation Type
|
2/2 Way, Direct Acting
|
|
|
Power Connection
|
DIN 43650 Form A
|
|
|
Voltages
|
24VDC, 110VAC, 220VAC
|
|
|
Body Material
|
Brass, Stainless Steel (For High Pressure)
|
|
|
Seal Material
|
FKM
|
|
|
Protection Class
|
IP65
|
|
|
Timer Cycle Range (ON / OFF)
|
0.5 to 10 seconds / 0.5 to 45 minutes
|
|
|
Timer Cycle Indication
|
Bright LED illumination
|
|
|
Test Feature
|
Yes
|
|
|
Pressure Range
|
0 - 230 PSI
|
|
|
Medium Temperature
|
34 - 131 ℉
|
|

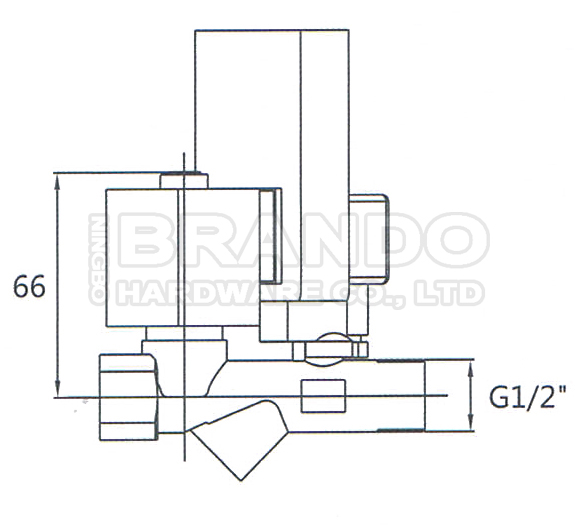

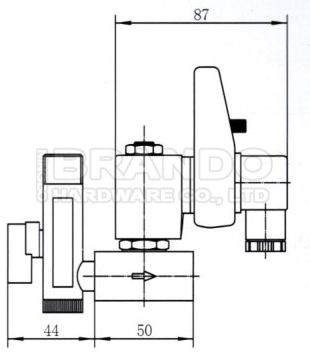

Dimension of Air Compressor Automatic Drain Valve:
 |
 |
| OPTIMUM | COMBO |

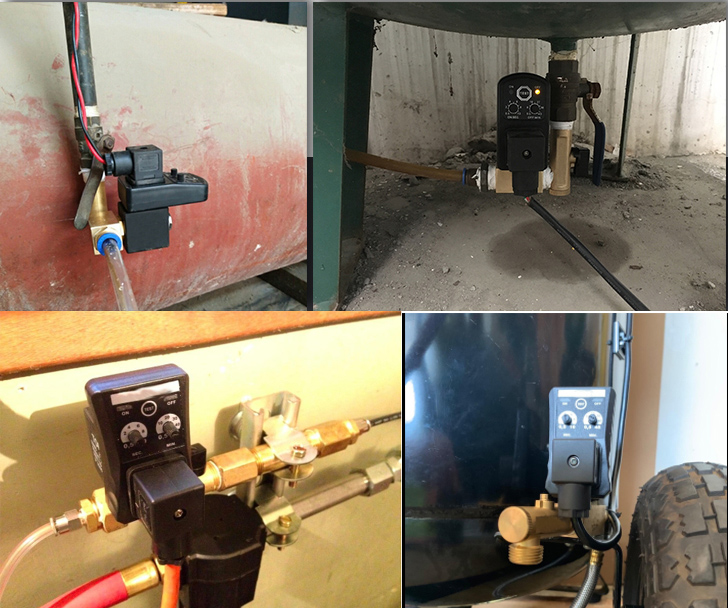

Application of Air Compressor Auto Drain Valve:
BRANDO factory production video of solenoid valve:

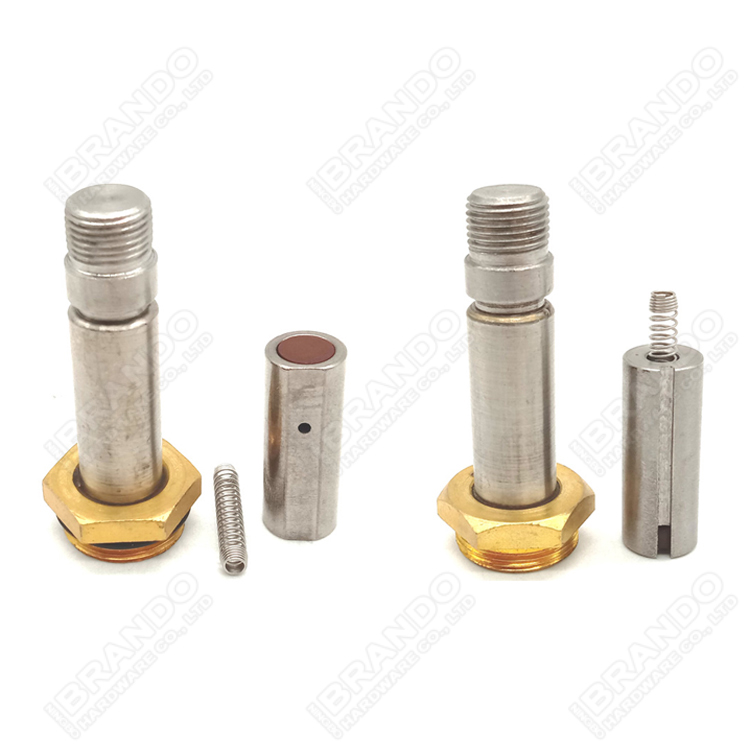

Spare Parts for Auto Drain Valve:
 |
 |
 |
 |

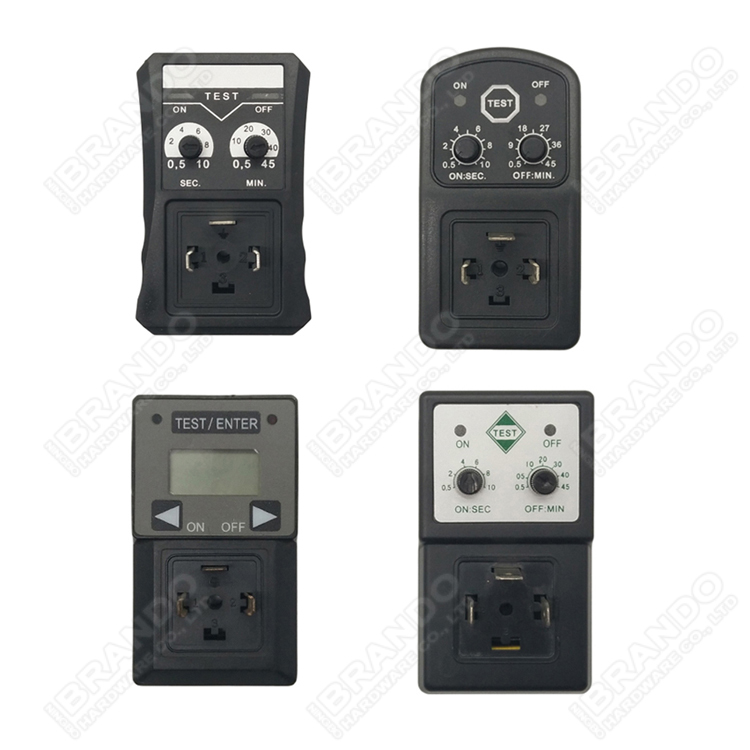

| Auto Drain Valves | Solenoid Valve Timer | Solenoid Valve Coil | Solenoid Valve Armature |
More Air Compressor Solenoid Valve for you to choose:
 |
 |
 |
 |
| 6014 | 6014 FLNSCH | 0400 | 5404 |
 |
 |
 |
 |
|
VXD23 |
VXD23-B | VXD22 |
0927 & 0955 Series |
