Blue Polyamide PA6 Bar Nylon Plastic PA6 Rod
Description:
Nylon 6: This material has the most superior comprehensive properties, including mechanical strength, stiffness, toughness, mechanical shock absorption and wear resistance. These characteristics, coupled with good electrical insulation and chemical resistance, make nylon 6 a "universal grade" material for the manufacture of mechanical structural parts and maintainable parts.
Nylon series are the most important engineering plastics. This product is widely used, covering almost every field, and is the most widely used variety among the five major engineering plastics.
Main Properties:
High mechanical strength, stiffness, hardness, toughness, good aging resistance, good mechanical damping ability, good sliding properties, excellent wear resistance, good machining performance, when used for precise and effective control, no creeping phenomenon, anti-wear Good performance and good dimensional stability.
Application:
Widely used in chemical machinery, anti-corrosion equipment, gears and parts bad materials. Wear-resistant parts, transmission structure parts, household appliances parts, automobile manufacturing parts, screw preventive mechanical parts, chemical machinery parts, chemical equipment, etc.
Size:
DIA: 15--250mm, Standard Length: 1M or 2M (other length can be customized), Brand Name: AHD
|
Item name |
PA6 Nylon rod |
|
Type: |
extruded |
|
Diameter: |
15--250mm |
|
Length: |
1000mm or 2000mm |
|
Density: |
1.2 g/cm³ |
|
Color: |
White, black, blue |
|
Brand name: |
AHD |
|
Material: |
100% virgin material |
|
Sample: |
FREE |
Nylon Plate Date sheet:
|
Item |
PA6 rod |
|
Color: |
White,black, blue |
|
Proportion: |
1.15g/cm³ |
|
Heat resistance (continuous): |
85℃ |
|
Heat resistance (short-term): |
160℃ |
|
Melting point |
220℃ |
|
Linear thermal expansion coefficient (average 23~100℃): |
90×10-6 m/(m.k) |
|
Average 23--150℃ |
105×10-6 m/(m.k) |
|
Flammability(UI94): |
HB |
|
Tensile modulus of elasticity: |
3250MPa |
|
Dipping into water at 23℃ for 24h |
86% |
|
Dipping into water at 23℃ |
9% |
|
Bending tensile stress/ Tensile stress off shock |
76/- Mpa |
|
Breaking tensile strain |
˃50% |
|
Compressive stress of normal strain-1%/2%: |
24/46 MPa |
|
Pendulum gap impact test |
5.5 KJ/m2 |
|
Rockwell hardness: |
M85 |
|
Dielectric strength: |
25 kv/mm |
|
Volume resistance: |
10 14Ω×cm |
|
Surface resistance: |
10 13Ω |
|
Relative dielectric constant-100HZ/1MHz: |
3.9/3.3 |
|
Critical tracking index(CTI) |
600 |
|
Bonding capacity: |
+ |
|
Food contact: |
+ |
|
Acid resistance: |
- |
|
Alkali resistance |
+ |
|
Carbonated water resistance: |
+/0 |
|
Aromatic compound resistance: |
+/0 |
|
Ketone resistance: |
+ |

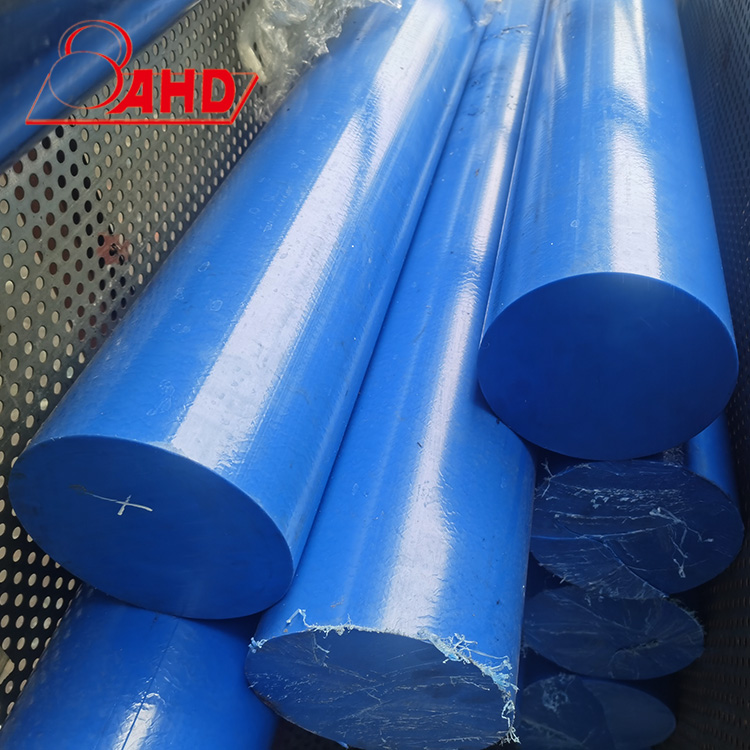

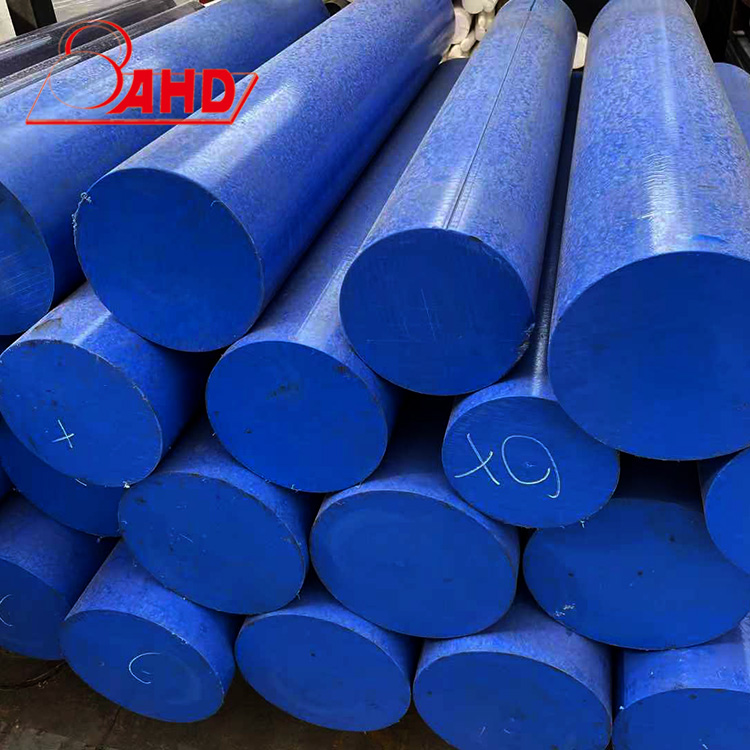

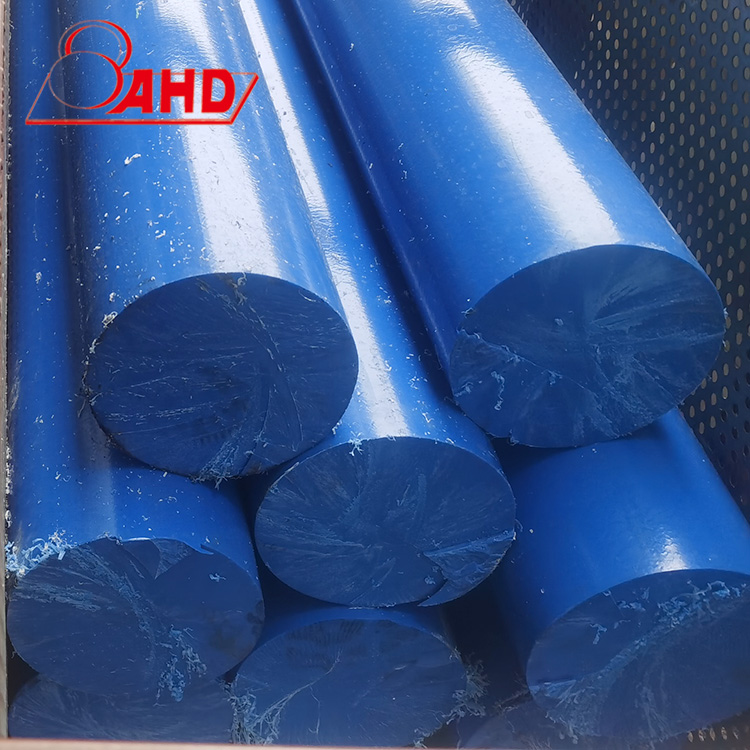

Goods Photos:
Factory information:
Anheda Plastics Group is located in the Shenzhen Special Economic Zone, adjacent to Hong Kong, with convenient transportation by sea, land and air.Since its establishment, the company has put quality first, and adheres to the tenet of [Science and Technology, Cultivation of More Talents, Technology Development and Growth, and Innovation of Technical Talents". Our company is growing and developing step by step, and its economic strength is constantly improving, and its competitive advantage continues to stand out. We always abide by the business philosophy of "Quality First, Customer First", and customer satisfaction is our driving force.Mainly produce the PA6 Sheet , Abs Plastic Sheet or other products.
Products Ranges: HDPE SHEET AND ROD, POM SHEET AND ROD, ABS SHEET AND ROD, PU SHEET AND ROD, PP SHEET AND ROD, PU SHEET AND ROD, PA6 SHEET AND ROD, PC SHEET AND ROD
