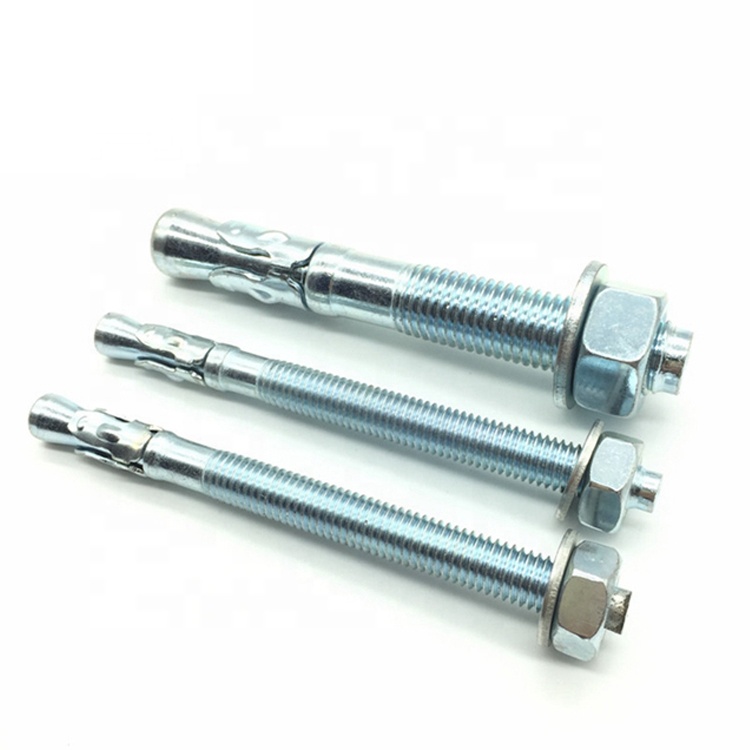

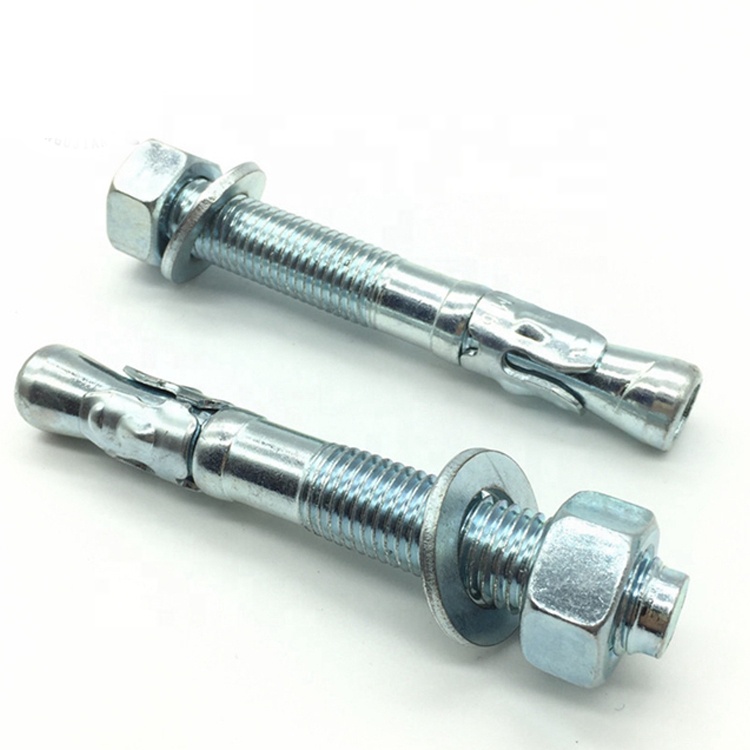

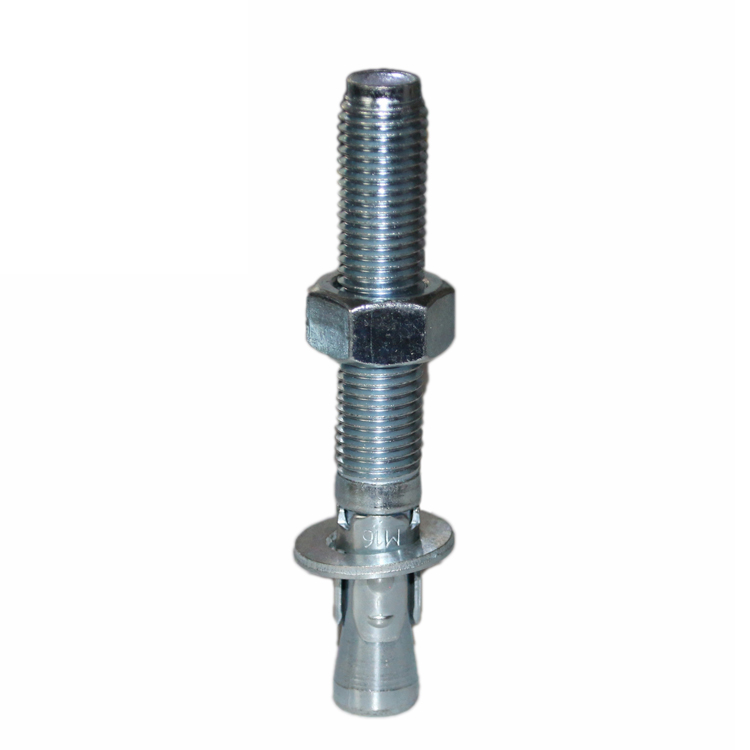

DIN ANSI standard wedge anchor expansion bolt m6 to m241
4 year ago
Product details
Product Description
Features
*Not easy to loose, solid and strong.
* The special expansion part and anchoring force is stronger.
*Environmental zinc layer is more consistent with environment.
*Widely recognized expansive parts in the world.
*Not easy to loose, solid and strong.
* The special expansion part and anchoring force is stronger.
*Environmental zinc layer is more consistent with environment.
*Widely recognized expansive parts in the world.
Application Area
Suitable for concrete and dense natural stone, metal structures, metal profiles, floor plates, support plates, brackets, railings,windows, curtain walls, machines, beams, beams, brackets, etc.
Suitable for concrete and dense natural stone, metal structures, metal profiles, floor plates, support plates, brackets, railings,windows, curtain walls, machines, beams, beams, brackets, etc.
|
Parameter
|
Electroplate>5MM / Hot dip>50MM
|
|
Standard
|
DIN ANSI BS
|
|
Material
|
Carbon steel
|
|
Size
|
DIN Standard: M6 M8 M10 M12 M14 M16 M18 M20 M24
ANSI Standard: 1/2 1/4 3/4 3/8 5/8 5/16 1” |
|
Length
|
40mm-400mm
|
|
Surface treatment
|
Electric Galvanized: WZP(White Zinc Plated) YZP（Yellow Zinc Plated)
|
|
Mark
|
According to customer's requirement.
|
|
Delivery time
|
If in stock, we can ship them within 7 days after receiving your payment. If out of stock, it is need 20-35 days to produce after
confirmed every details. |
ISO9001 2015 Certificate

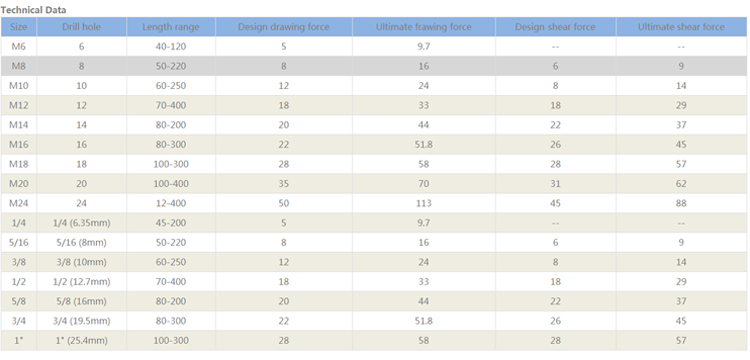

Specification
|
DIN571 Standard Specification
|
|
|
|
|
|
|
||||||
|
Thread
|
Drill Hole
(mm)
|
Length Range
(mm)
|
Design Drawing
Force(KN)
|
Ultimate Drawing
Force(KN)
|
Design Shear
Force(KN)
|
Ultimate Shear
Force(KN)
|
||||||
|
|
(mm)
|
(mm)
|
Force(KN)
|
Force(KN)
|
Force(KN)
|
Force(KN)
|
||||||
|
M6
|
6
|
40-120
|
5
|
9.7
|
--
|
--
|
||||||
|
M8
|
8
|
50-220
|
8
|
16
|
6
|
9
|
||||||
|
M10
|
10
|
60-250
|
12
|
24
|
8
|
14
|
||||||
|
M12
|
12
|
70-400
|
18
|
33
|
18
|
29
|
||||||
|
M14
|
14
|
80-200
|
20
|
44
|
22
|
37
|
||||||
|
M16
|
16
|
80-300
|
22
|
51.8
|
26
|
45
|
||||||
|
M18
|
18
|
100-300
|
28
|
58
|
28
|
57
|
||||||
|
M20
|
20
|
100-400
|
35
|
70
|
31
|
62
|
||||||
|
M24
|
24
|
120-400
|
50
|
113
|
45
|
88
|
||||||
|
ANSI Standard Specification
|
|
|
|
|
|
|
||||||
|
Thread
|
Drill Hole
(mm)
|
Length Range
(mm)
|
Design Drawing
Force(KN)
|
Ultimate Drawing
Force(KN)
|
Design Shear
Force(KN)
|
Ultimate Shear
Force(KN)
|
||||||
|
|
(mm)
|
(mm)
|
Force(KN)
|
Force(KN)
|
Force(KN)
|
Force(KN)
|
||||||
|
1/4
|
1/4(6.35mm)
|
≈45-120
|
5
|
9.7
|
--
|
--
|
||||||
|
5/16
|
5/16(8mm)
|
≈50-145
|
8
|
16
|
6
|
9
|
||||||
|
3/8
|
3/8(10mm)
|
≈60-200
|
12
|
24
|
8
|
14
|
||||||
|
1/2
|
1/2(12.7mm)
|
≈70-305
|
18
|
33
|
18
|
29
|
||||||
|
5/8
|
5/8(16mm)
|
≈80-305
|
22
|
51.8
|
26
|
45
|
||||||
|
3/4
|
3/4(19.5mm)
|
≈95-305
|
35
|
70
|
31
|
62
|
||||||
|
1
|
1(25.4mm)
|
≈125-405
|
50
|
113
|
45
|
88
|
||||||
Packing & Delivery
By default, our company uses the ordinary packaging, that is corrugated carton and white box. there are no any other words except the specifications and quantities on the packaging. if you have special need, we can customize the packaging mark for you. and we can provide fumigated pallets.
Company Profie
Hebei Qianmu Fastener Manufacturing Limited Company was founded in 2017, the registered capital is 3 million. Our factory locates in YongNian China, research and development, sales in one integrated manufacturing comprehensive enterprise.
Since the beginning of this century, the company has been engaged in fastener manufacturing industry, and has won widespread favor and approval registered "Hebei Qianmu Fastener Manufacturing Co., Ltd." in 2017, With many years of production and manufacturing experience, with its own galvanized factory and production factory, The implementation of multi-links strictly control, ensure the excellent quality, The annual output can be 10000 tons, ensure timely delivery.
Now our main products include Wedge Anchor, Sleeve Anchor, Chemical anchor, Wood Screw, Drop in Anchor, 3/4 Fix Bolt, thread rod, nut, washer, bolt, etc.
Since the beginning of this century, the company has been engaged in fastener manufacturing industry, and has won widespread favor and approval registered "Hebei Qianmu Fastener Manufacturing Co., Ltd." in 2017, With many years of production and manufacturing experience, with its own galvanized factory and production factory, The implementation of multi-links strictly control, ensure the excellent quality, The annual output can be 10000 tons, ensure timely delivery.
Now our main products include Wedge Anchor, Sleeve Anchor, Chemical anchor, Wood Screw, Drop in Anchor, 3/4 Fix Bolt, thread rod, nut, washer, bolt, etc.
FAQ
Q: Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
Q: What is the price term?
FOB, CIF, CFR, EXW are acceptable.
1 Experience
More than 10 years of Anchor and Fasteners experience. Passing the identification The National Construction Engineering Quality Supervision and Inspection Center.
2 Certificates and test
1>Factory QC inspection;
2>The third party testing.
3 Location
1> Factory located in Hebei Handan
4 Quality
The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing. We have Testing Machine, allow the third party testing, guarantee product high quality and beautiful appearance.
5 Delivery Time
Rapid response and efficient work efficiency. Even within 7 days after receiving your payment.
6 After-sales services
Customer Service - 24hours standby,critical listening your every suggestion and feedback ASAP.
Perfect after-sale service.
