Automatic block making machine

QT4-15 Type Block Making Machine

Introduction

1. It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.

2. Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.

3. The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The brick machine(Cement brick machine) can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.

Main  Technical  Parameter

Overall Dimension:7100*1600*2610mm

Rated pressure :16Mpa

Main vibration form :Plat form vibration

Vibration frenquency :4600r/min

Pallet Size :1020*550*35 mm

Molding Cycle:15s

Overall power :27.5KW

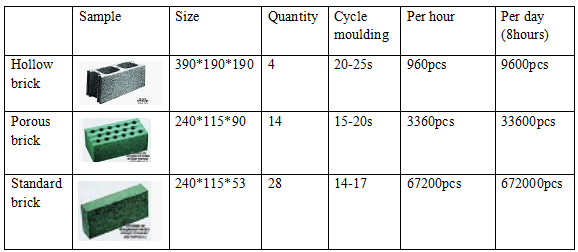

Productivity

QUOTATION OF QT4-15
