VX2120 Solenoid Valve
5 year ago
SMC Type Solenoid Valve VX2120-01 For Air Water Oil Steam
Product Description:
The VX2 series is 2 port direct solenoid valve for general purpose air, medium vacuum and water. Available body materials include brass or stainless steel with port size up to 1/2 inch.NBR seal is used as standard and FKM or EPDM is optional. Flow rate ranges from Cv of 0.23 to 2.21.
1. IP65 enclosure
2. Normally Closed and Normally Open type available, Class B coil
3. Body material: brass, stainless steel
4. Working pressure range: 0 to 1 MPa
Technical Data of VX Series Solenoid Valve:
|
Model
|
VX2112-01
|
VX2112-02
|
VX2120-01
|
VX2120-02
|
VX2260-03
|
VX2360-03
|
VX2360-04
|
|
Orifice Size
|
2mm
|
2mm
|
3mm
|
3mm
|
10mm
|
10mm
|
10mm
|
|
Port Size
|
1/8''
|
1/4''
|
1/8''
|
1/4''
|
3/8''
|
3/8''
|
1/2''
|
|
Medium
|
Water, Oil, Gas, Steam
|
||||||
|
Action
|
Direct Acting
|
||||||
|
NC/NO
|
Normally Open
|
Normally Closed
|
|||||
|
Body Material
|
Brass, Stainless Steel
|
||||||
|
Seal Material
|
NBR, FKM
|
||||||
|
Pressure
Range
|
0 to 1.0Mpa
|
||||||
|
Temp. Range
|
NBR: (-5 to +80℃), FKM: (-5 to +150℃)
|
||||||

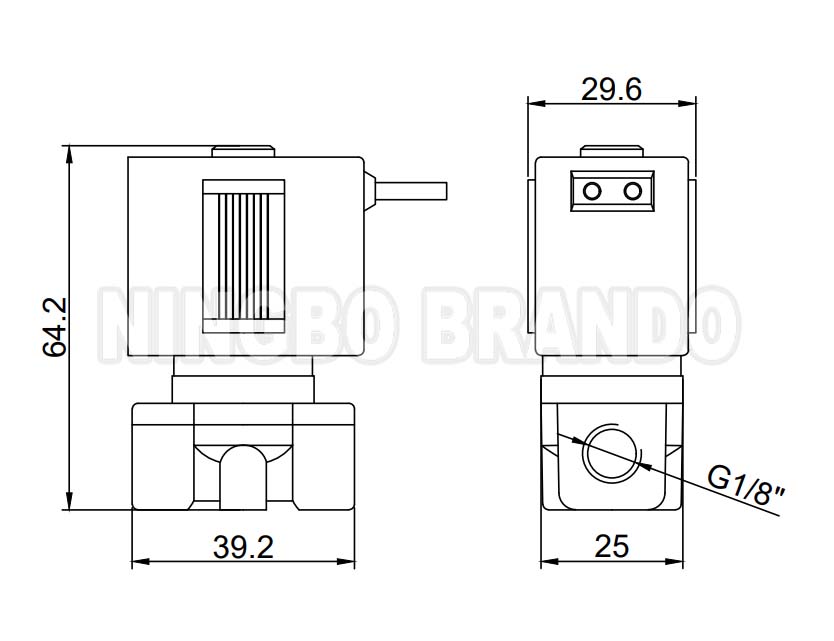

Dimension of VX2120 Solenoid Valve:
Production Video of Pneumatic Solenoid Valve:
Packing & Shipping:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
