3D Welded Mesh Fence – V‑Beam Security Panel for Perimeter Protection & Industrial Sites
Wire Ø3.0–5.0mm | Mesh 200×50 / 50×100mm | Height 0.63–2.43m | HDG / PVC / Powder Coated | V‑Beam Reinforcement
ISO 9001:2015 30+ Years Manufacturing 72,000m² Factory SGS Audited
HEBEI CONQUER HARDWARE WIRE MESH CO.,LTD (ANJIA Group) manufactures 3D welded mesh fence panels — also known as V‑beam fence or curved wire mesh fence — from a 72,000m² ISO 9001:2015 certified facility. Each panel is welded from low‑carbon steel wire and formed with vertical V‑beam corrugations that increase bending resistance by 30–50% compared to flat welded panels. This allows wider post spacing without compromising rigidity.
Related products: chain link fence | temporary fence panels | 358 anti‑climb security fence | welded wire mesh

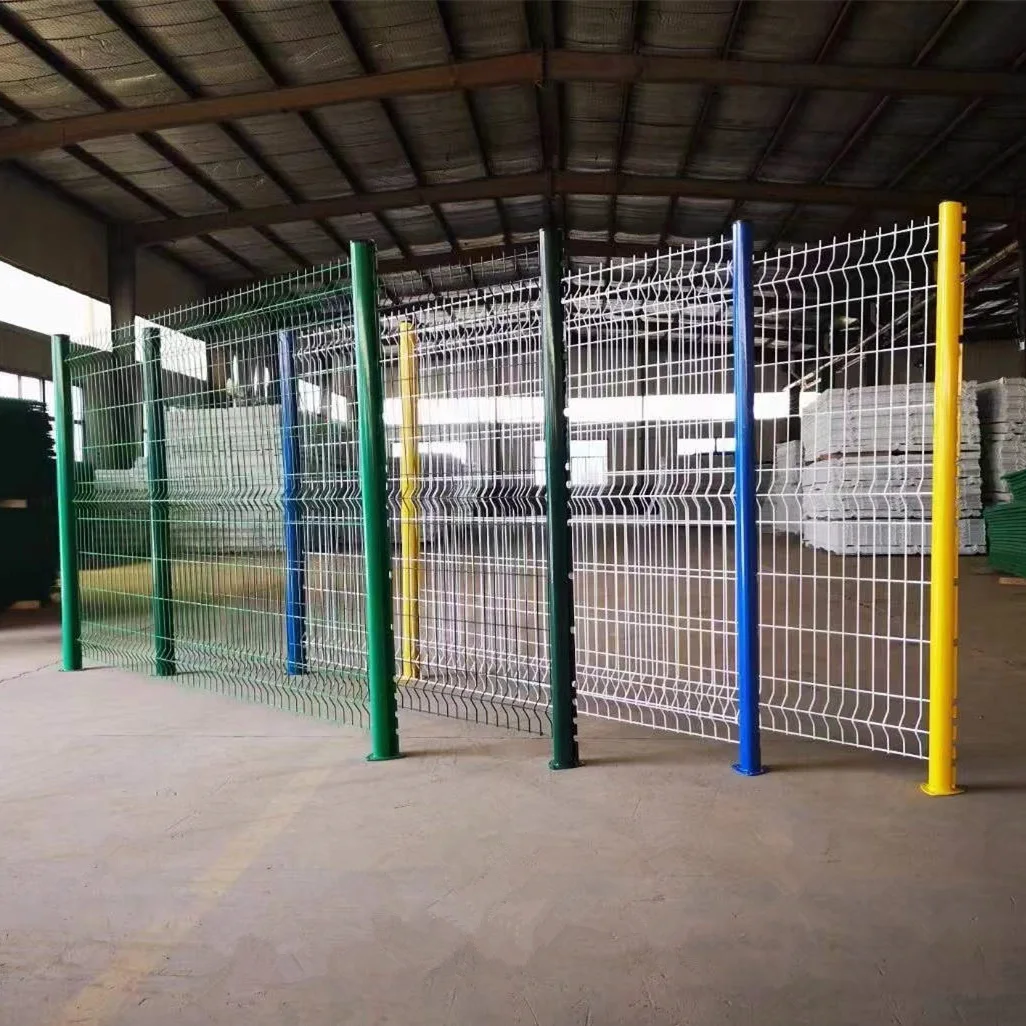

3D V‑Beam Panel – HDG Finish
3D Curved Panel – PVC Coated Detail

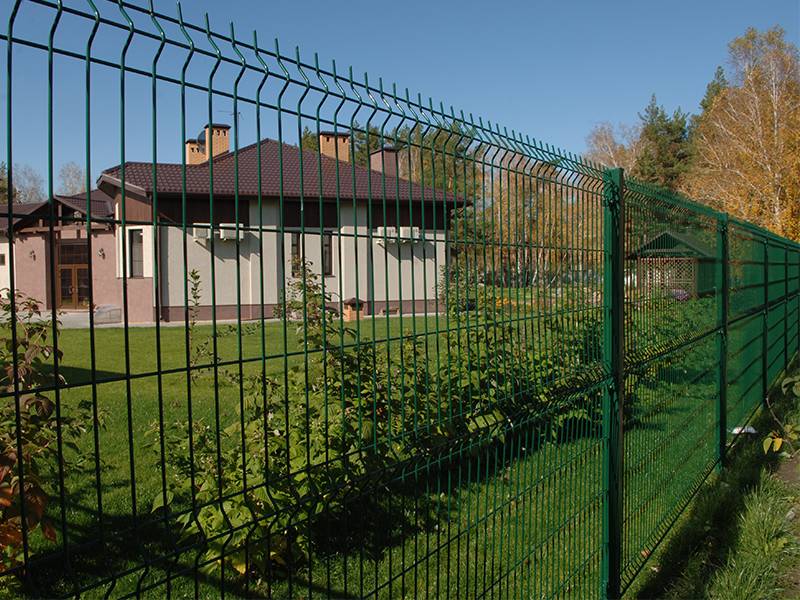

3D Panel Installation – Square Posts

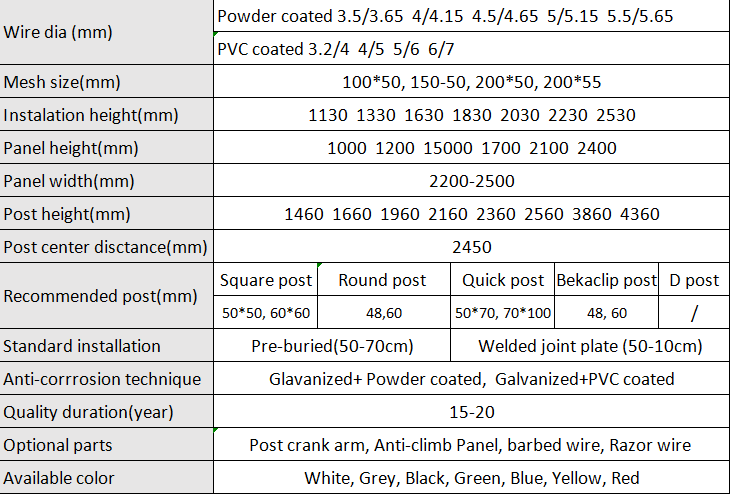

Technical Specifications
| Parameter |
Standard Range |
| Base Material |
Low‑carbon steel wire (Q195/Q235) |
| Wire Diameter |
3.0mm – 5.0mm |
| Mesh Opening |
200×50mm, 200×55mm, 50×100mm, 50×150mm |
| Panel Height |
0.63m – 2.43m |
| Panel Width |
2.0m / 2.5m (standard) |
| V‑Beam Depth |
40mm – 80mm (3–4 corrugations per panel) |
| Post Type |
Square 40×40, 50×50, 60×60mm; Round Ø48mm |
| Post Wall Thickness |
1.5mm – 2.5mm |
| Surface Finish |
HDG (≥55μm); HDG+PVC; HDG+Powder Coated |
| Accessories |
Clamps, security bolts, post caps, tension bands |
| Packing |
Steel pallet + plastic film wrap; custom OEM packing |
| Standards Met |
ISO 9001:2015, ISO 14001, SGS |
Coating & Finish Options
Hot‑Dip Galvanized (HDG): ≥55μm zinc coating, conforming to EN ISO 1461. Standard for industrial perimeters and dry climates.
HDG + PVC Coated: PVC layer over galvanized wire, available in RAL 6005 green, RAL 7016 grey. Extra corrosion protection for urban and landscape applications.
HDG + Powder Coated: Polyester powder baked finish for uniform colour and UV resistance.
Typical Applications
Industrial Compounds · Perimeter Security · Airport & Port Fencing · Highway & Road Barriers · Public Parks & Schools · Residential Gardens · Commercial Estates · Utility Enclosures

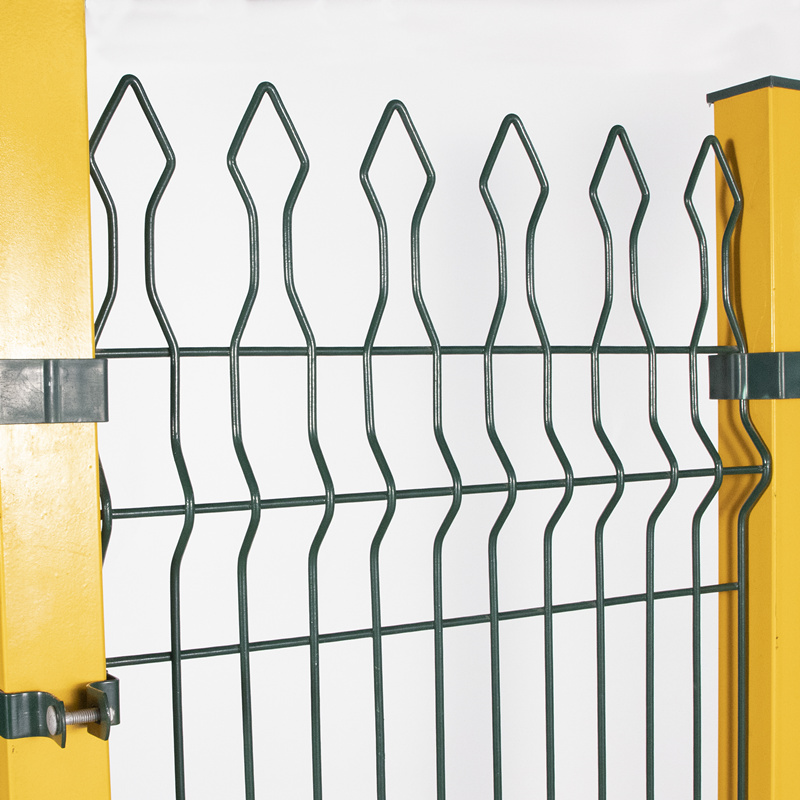

Garden Fence – PVC Coated with Posts

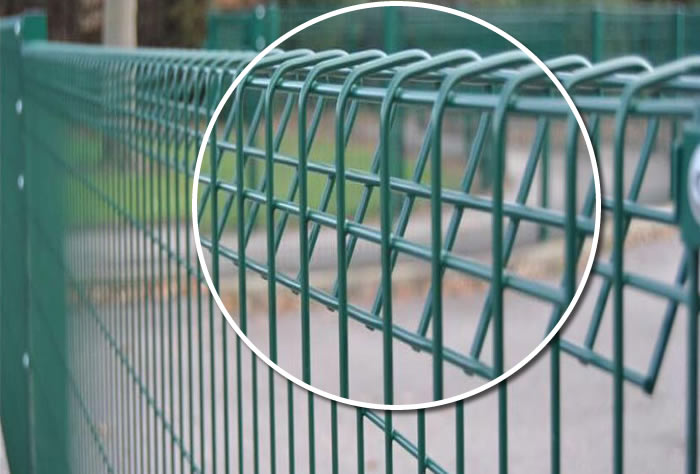

Triangle 3D Fence – Slope Adaptable

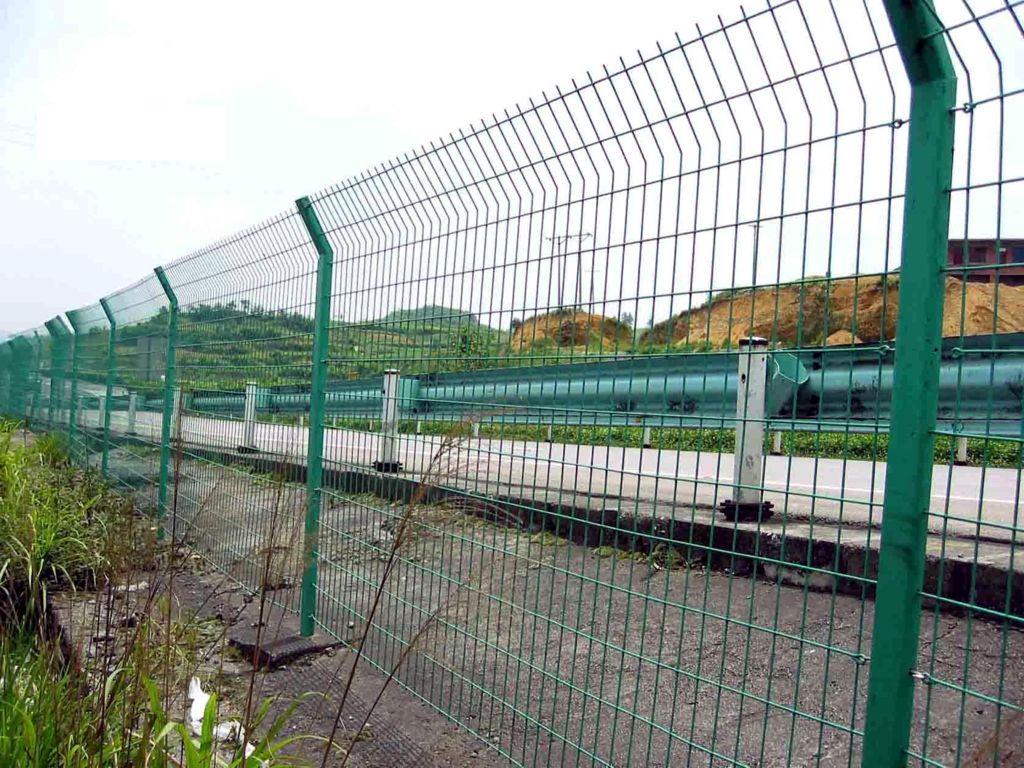

Road Barrier – 3D Welded Panel
FAQ – 3D Welded Mesh Fence
Q: What makes 3D fence different from flat welded panels?
The V‑beam corrugation increases panel rigidity by 30–50%, allowing wider post spacing (up to 2.5m) and reducing total post quantity and installation cost.
Q: What surface treatments are available?
Hot‑dip galvanized (≥55μm), HDG + PVC coated (green/grey), and HDG + polyester powder coated. Custom RAL colours available for volume orders.
Q: Can the panels be installed on sloped ground?
Yes. Panels can be stepped between posts or, for moderate slopes, triangle‑bent panels maintain a continuous line without gaps.
Q: What post types do you supply?
Square tube 40×40, 50×50, 60×60mm and round Ø48mm. Wall thickness 1.5–2.5mm. Post caps and clamp brackets included per panel.
Q: What is the MOQ and lead time?
MOQ is 2 metric tons per size. Lead time 20–40 days depending on order quantity and season.
Q: Can I get a sample before placing a bulk order?
Yes, samples of standard specifications are free. Buyer pays courier freight, deductible from first order.
ANJIA Group – Welded Mesh Fence Manufacturer Since 1996
Hebei Conquer Hardware Wire Mesh Co., Ltd. is a subsidiary of Anjia Group, with over 30 years of production experience. Our 72,000m² facility in Anping, China, integrates wire drawing, galvanizing, automatic welding, PVC/powder coating and packing. We hold ISO 9001:2015, ISO 14001, and all products pass SGS inspection. 3D welded mesh fence is exported to over 80 countries for perimeter security, infrastructure and landscape applications.
