Manual Hydraulic Vamp Embossing Machine
3 year ago

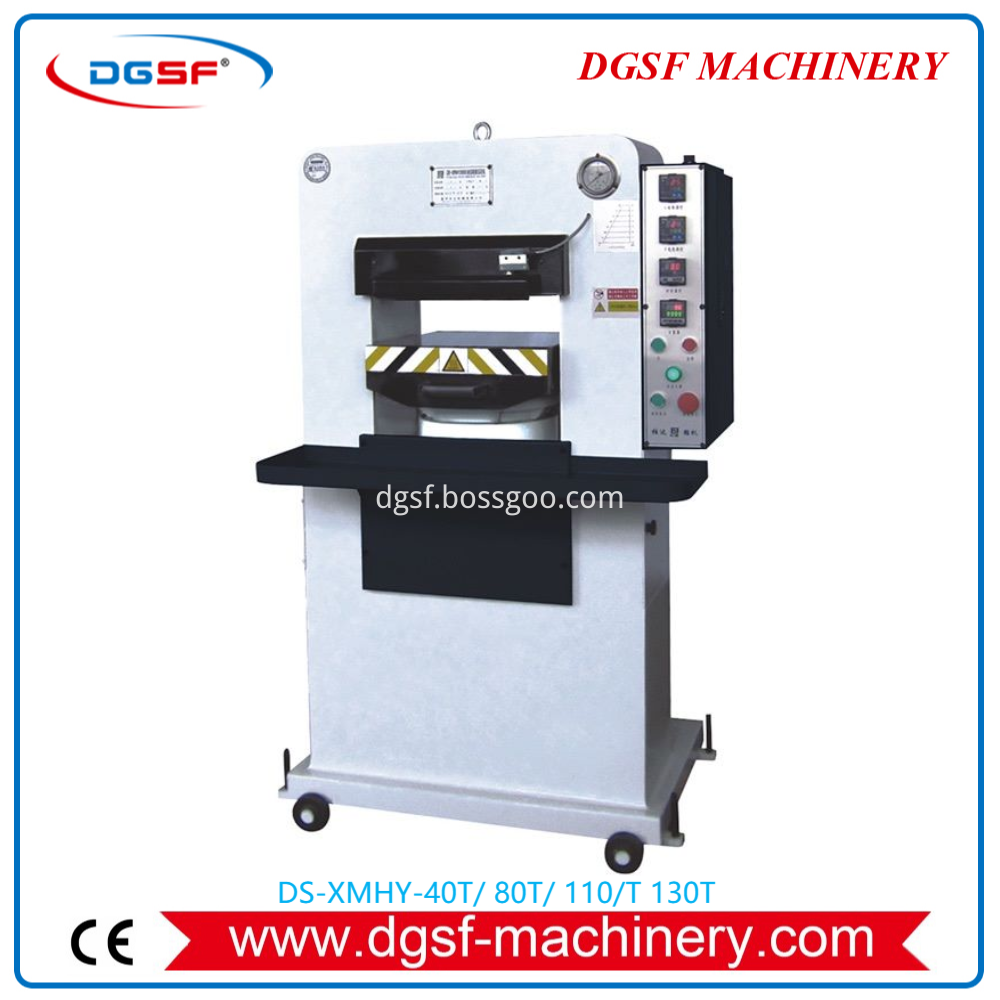

Manual Hydraulic Vamp Embossing Machine Series DS-XMHY-40T/ 80T/ 110/T 130T
Product Description
Characteristics:
◆The machine divides into the specifications (pressures) such as 40tons, 80tons, 110tons and 130tons etc.
◆Drawer-model working table with safety device, makes the operation safe and convenient.
◆This machine is character by excellent performance as large strength, nice embossing quality, quick respondence and long service life.
◆Adding the soleplate with electrothermal function, it can further enhance the embossing speed to increase output.
Model
DS-XMHY3840
DS-XMHY3880
DS-XMHY38110
DS-XMHY38130
Dimensions(L*W*H)
850x900x1500mm
950x920x1500mm
1500x1250x1500mm
1600x1250x1500mm
Packing size(L*W*H)
950x1000x1700mm
1050x1020x1600mm
1600x1300x1550mm
1700x1350x1550mm
Weight
600kgs
800kgs
1200kgs
1300kg
Power
1.5kw
2.2kw
2.2kw
2.2kw
Working table size
340x330mm
380x380mm
500x400mm
500x600mm
Working pressure
40T
80T
110T
130T
Voltage
（3Phases)380V50HZ/220V60HZ
（single phase)220V50HZ
Hydraulic oil
anti-abrade oil
