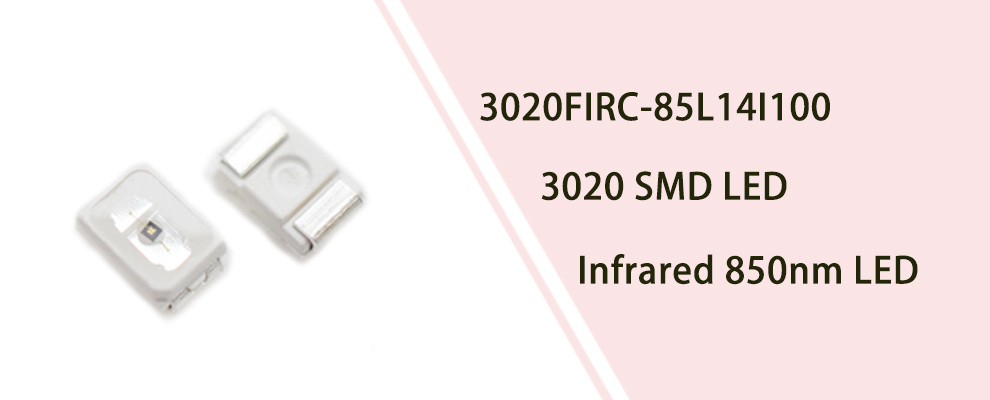

Infrared IR LED 850nm 3020 SMD LED

10 month ago

17 0 

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

9 year

Product details

850nm LED can be packaged inside with different SMD LED. Such as 2835 SMD LED, 3528 SMD LED or 5050 SMD LED ect. In this case, we package it with 3020 SMD LED, which size is 3.0x2.0mm. Compare with 2835 SMD LED, this 3020 led will got smaller package. It's also a PLCC-2 package LED. 850nm IR LED are widely use in kinds of application such as CCTV camera, night vision system ect. With this small size, it will be better to put with different kinds of PCB board and application. If you looking for some small package of 850nm LED, this one won't let you down!

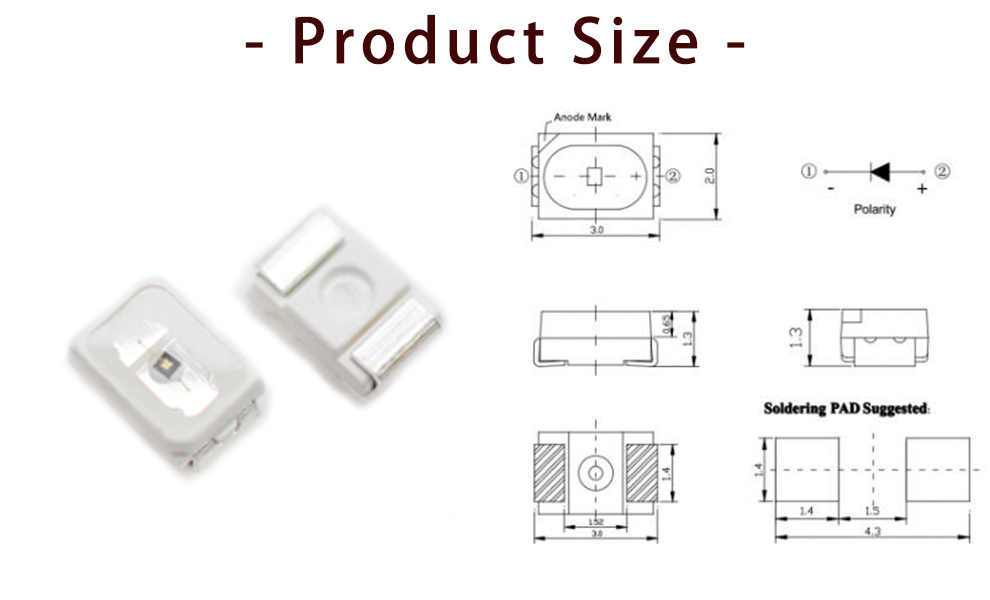

Package size:

Electrical Optical Characteristics(Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.3	1.5	1.6	V	IF=20mA
		1.5	1.7	1.8		IF=100mA
		30		45		IF=100mA
Radiant Intensity	IE	5		10	mw/sr	IF=20mA
		15		25		IF=50mA
		30		45		IF=100mA
Peak Wavelength	λP	850	855	860	nm	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Angle	2q1/2		120		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
