Diffused 3mm Blue LED Blue Diffused Lens

2 month ago

0 0 

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

8 year

Product details

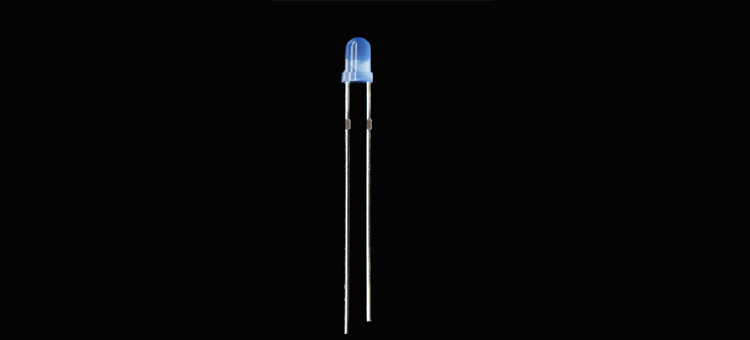

460nm LED is a blue LED. The range of 440nm-480nm wavelength are belong to Blue LED. There have kinds of encapsulation way for the LED chip such as: through-hole LED(including diffused DIP LED, clear lens LED, straw hat LED, bullet top LED, rectangular LED ect), SMD LED(surface mount device), high power SMD LED ect. There also have various name for blue LED, such as deep blue LED, blue LED, water blue LED, pale blue LED, navy blue LED ect. These 3mm blue LED is packaged by diffused round top lens which make this LED got a soft and diffused lens, that's why this 3mm blue diffused LED are so perfect for LED indicator and other LED lighting project.

blue led

- Size: 3mm Diameter 5.3mm High

- Pin length: 27mm

- Color: Blue LED

- Lens type: Blue diffused

- Chip brand:sanan

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Low Power consumption

- Long life-solid state reliability

- Anti UV epoxy resin package

- High temperature resistance

- Dimension Parameters -

3mm UV LED Size

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.

*IR LED, UV LED, Green Through-hole LED, Blue Through-hole LED, Yellow LED ect are also can be packaged with this LED case*

- Emitting Color -

* Colors in the photo was took by camera, please take actual emitting color as standard.

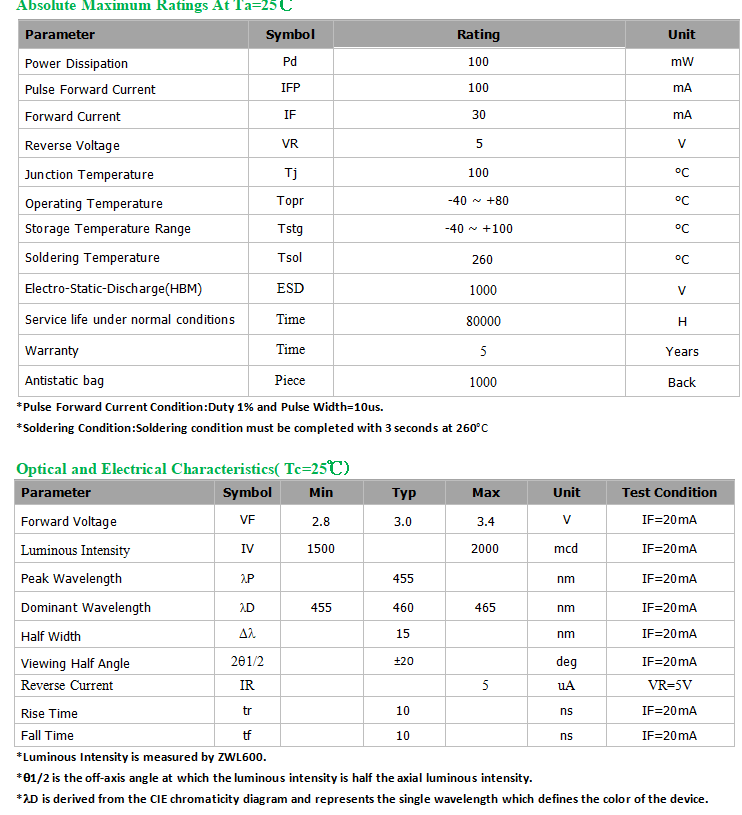

- Electrical Parameters -

- Golden Wire Connection -

- Packing -

- Application -

- Related UV LED -

- Production -

- Attention -

Through-hole LED Use of attention
