Gantry camera

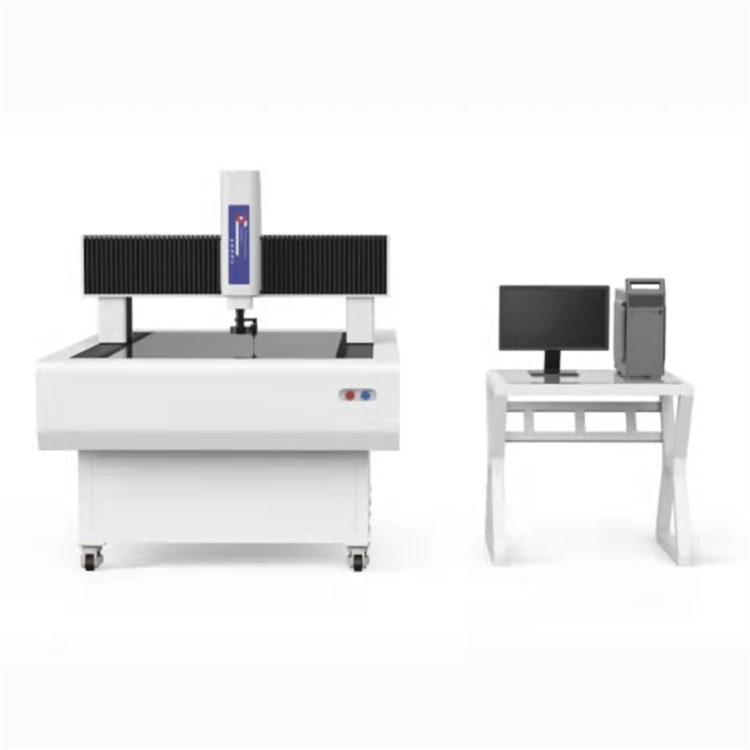

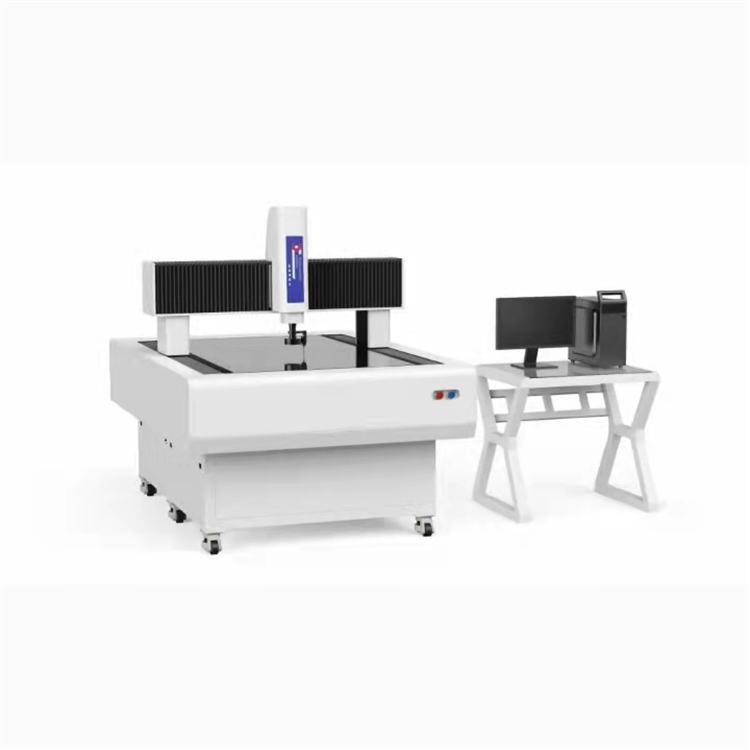

     The gantry image measuring instrument adopts a large range of image measuring machines with triangular balance beam technology to ensure the rigidity mass ratio of the machine and stable accuracy. It is equipped with an automatic zoom lens and professional measurement software to meet the detection needs of various complex products. It is applicable to 2D measurement, including geometric elements such as point, line, circle, rectangle, etc. and length, angle, contour, shape, surface shape of parts. Adding probes can realize 3D measurement.

Guide rail: FY-V parallel precision ball cross guide rail

Advantages: Customized high flat constant cross guide rail

Motor: precision servo integrated generator set

Advantages: high precision, strong adaptability, stable positioning, smooth operation and long service life

Basic measurement functions

1. It can measure geometry, point, line, circle (maximum, minimum and average), arc, spline curve, ellipse, rectangle, quadrilateral, groove, R angle, ring, spacing, distance, point, etc.

2. Construction: center point, extreme point, endpoint, intersection point, two-point connecting line, parallel line, vertical line, tangent line, bisector, centerline, merging, contour segmentation, radius circle drawing, three line inscribed circle, two line radius inscribed circle, etc.

3. Image measurement tools: drawing point, nearest edge point, focus point, circular frame point, best edge point, nearest point, overall extraction, multi segment extraction, texture segmentation, multi segment texture segmentation, electronic caliper, rapid sorting circle, open contour line, maximum closed contour line, and the nearest closed contour line.

4. Geometric tolerance: straightness, roundness, position, parallelism, perpendicularity, inclination, concentricity, etc.

5. Coordinate system: fixture positioning coordinate system, point line, two-point X, two-point Y, three-point, two line, image registration coordinate system; Translate, rotate, and manually adjust the coordinate system.

Programming and automation

1. Tasks can be generated for automatic batch measurement, and automatic and manual interactive operations are supported.

2. The lens can be magnified manually without re correction.

3. The light source realizes automatic control and supports automatic lighting.

4. Support the automatic control of five rings and eight zones of surface light and each segment of contour light.

It can focus automatically and measure height quickly.
