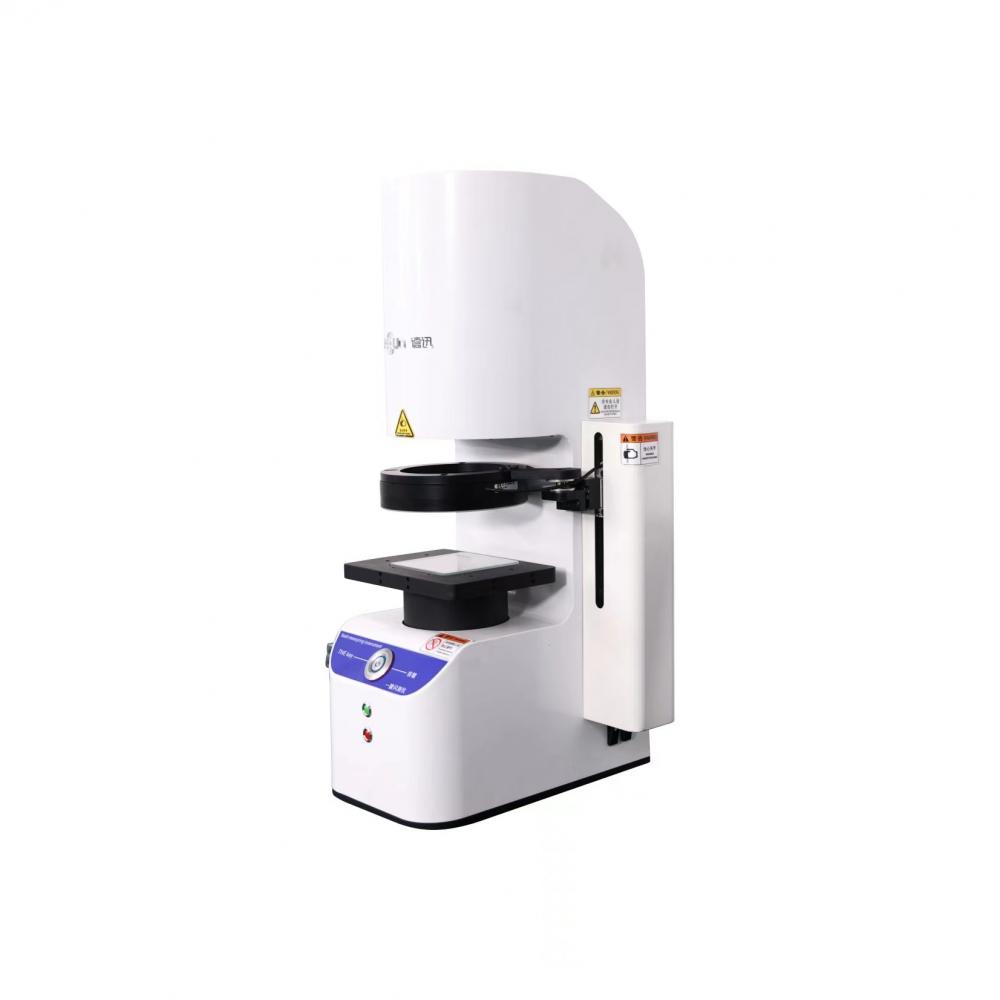

Fast measuring instrument

One button fast optical measuring instrument is a measuring instrument with an excellent performance-price ratio of similar products. It fills the gap between traditional precision measuring instruments and measuring machines. In particular, it can meet the requirements of industrial production for high-performance measurement products.

A precision linear guide rail is adopted to reduce the moving error of the workbench. The images are seamlessly connected by moving the worktable to take photos. During the batch measurement process, the pictures of different images can be perfectly spliced by taking a single image field of view product images.

The accuracy of the measuring machine can reach micrometers. It is impressive that the operation is effortless, even if the operator is unfamiliar with the measurement operation. The measuring software used by the measuring machine Zhuoxin Intelligent professional one-click software has a user-friendly interface operation mode, and the operator can measure complex workpieces after using it for several hours.

One Button Fast Flash Tester

Advantages:

One-click flash test, faster batch

1. Place the product at will, without fixture positioning; the instrument automatically identifies, automatically matches the template, and measures with one key;

2. At most, 512 parts can be measured at the same time;

3. Support CAD drawing import and one essential automatic matching measurement;

4. In CNC mode, batch measurement can be carried out quickly and accurately.

Large field of view, higher efficiency

1. Large lens with field of view up to 190mm~230mm;

2. Support the one-time measurement of large-size workpieces such as the middle frame of the mobile phone.

Accurate calculation, stable and reliable

1. High-resolution lens, 1% sub-pixel image processing, high-precision algorithm analysis;

2. Automatic focusing eliminates the interference of human measurement operation, and the consistency of repeated focusing is high;

3. Automatically identify the measuring parts and obtain uniform and stable measurement results every time.

Easy to operate

1. Anyone can get started quickly without complicated training;

2. Simple operation interface, anyone can easily set and measure;

3. The measurement dimension deviation shall be evaluated immediately on the measurement site, and the statistical analysis, test result report, etc., shall be generated with one click.

Rich functions, automatic report

1. The software is divided into five functional modules: measurement setting, single piece measurement, CNC measurement, automatic measurement and statistical analysis;

2. Up to 80 kinds of extraction and analysis tools are provided, including [feature extraction] tools (such as maximum point, centerline, arc, peak circle, etc.), [auxiliary tools] (such as arbitrary point line circle, fitting straight line, fitting circle, tangent, inscribed circle, etc.), [intelligent annotation] tools, [geometric tolerance] tools, Special 【 Application tools 】 (such as chamfer, fillet, pitch distance, pitch angle, circular diameter cross, slot, thread, spring, seal ring, etc.);

3. Automatically output SPC analysis report, which can output statistical values (such as CA, PPK, CPK, PP, etc.) and control charts (such as mean and range charts, mean and standard deviation charts, median and range charts, single value and moving range charts).
