High Current Heavy Duty Metal Locking Handle Industrical Toggle Switch

2 year ago

83 0 

9 year

Product details

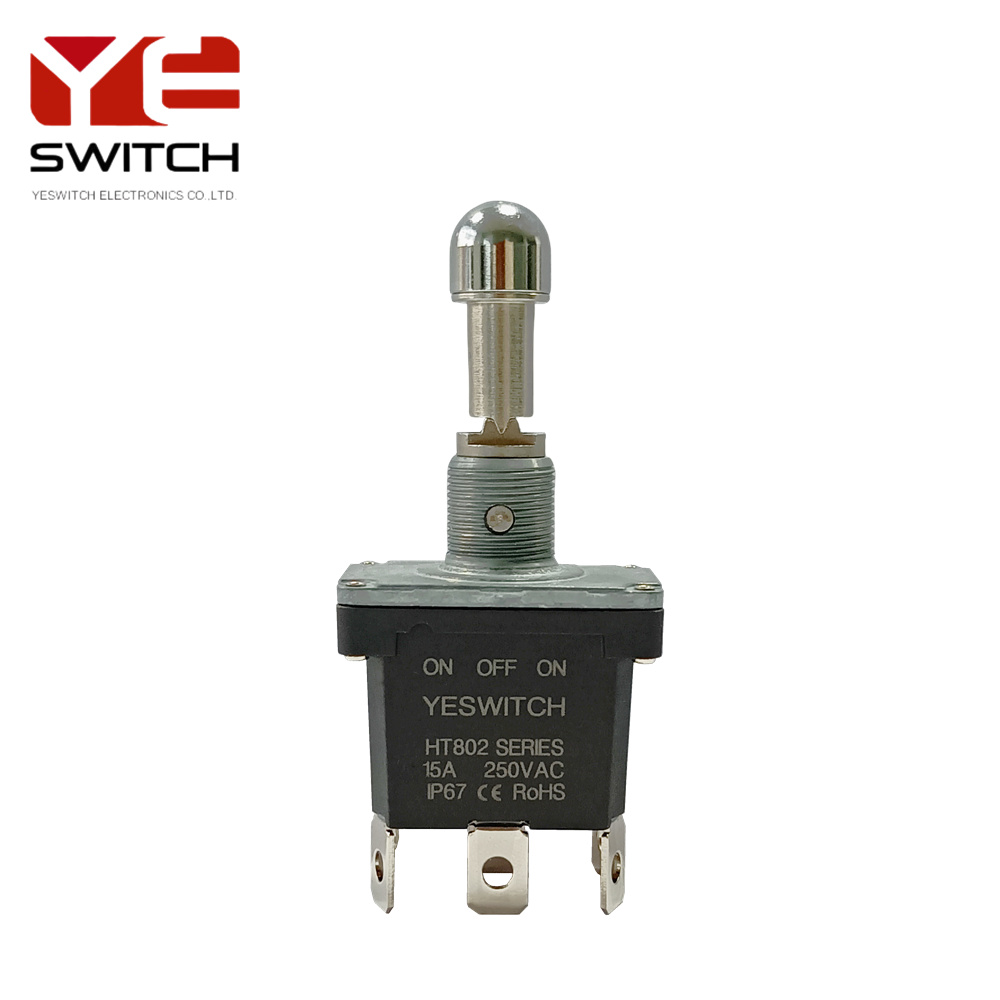

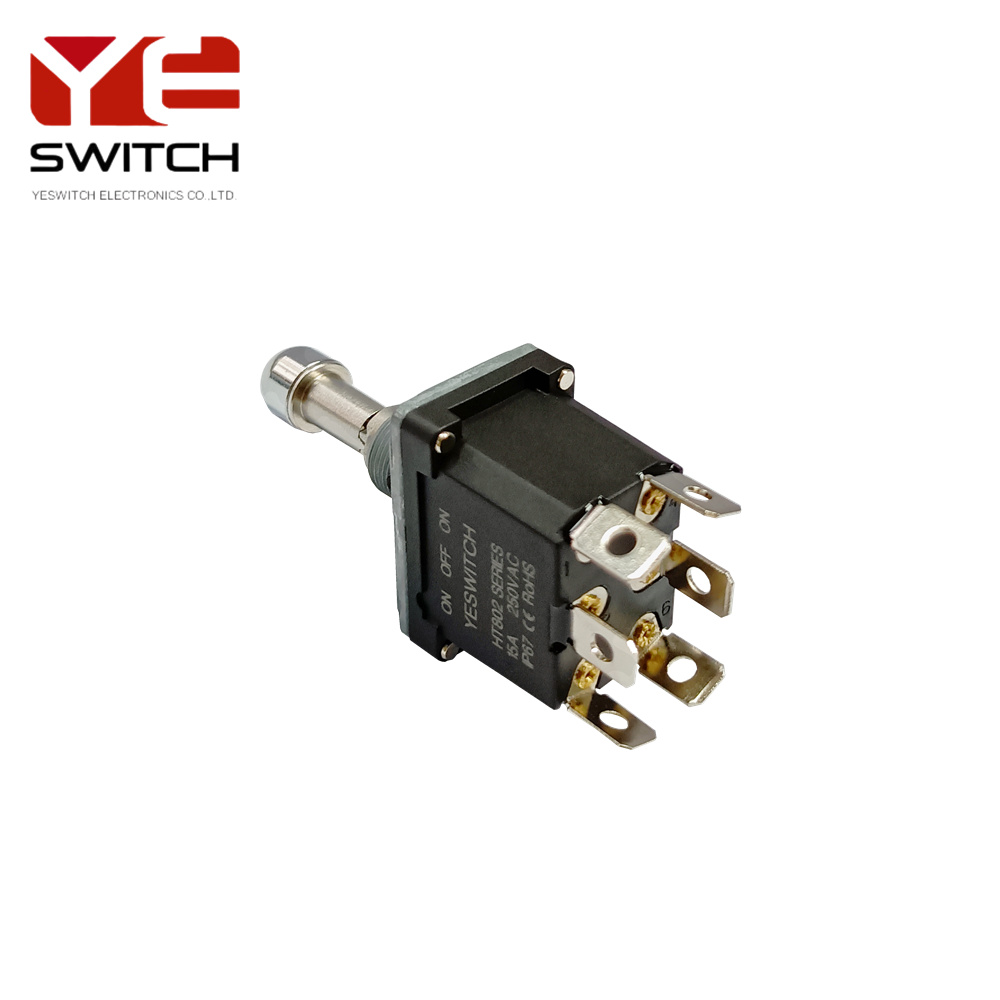

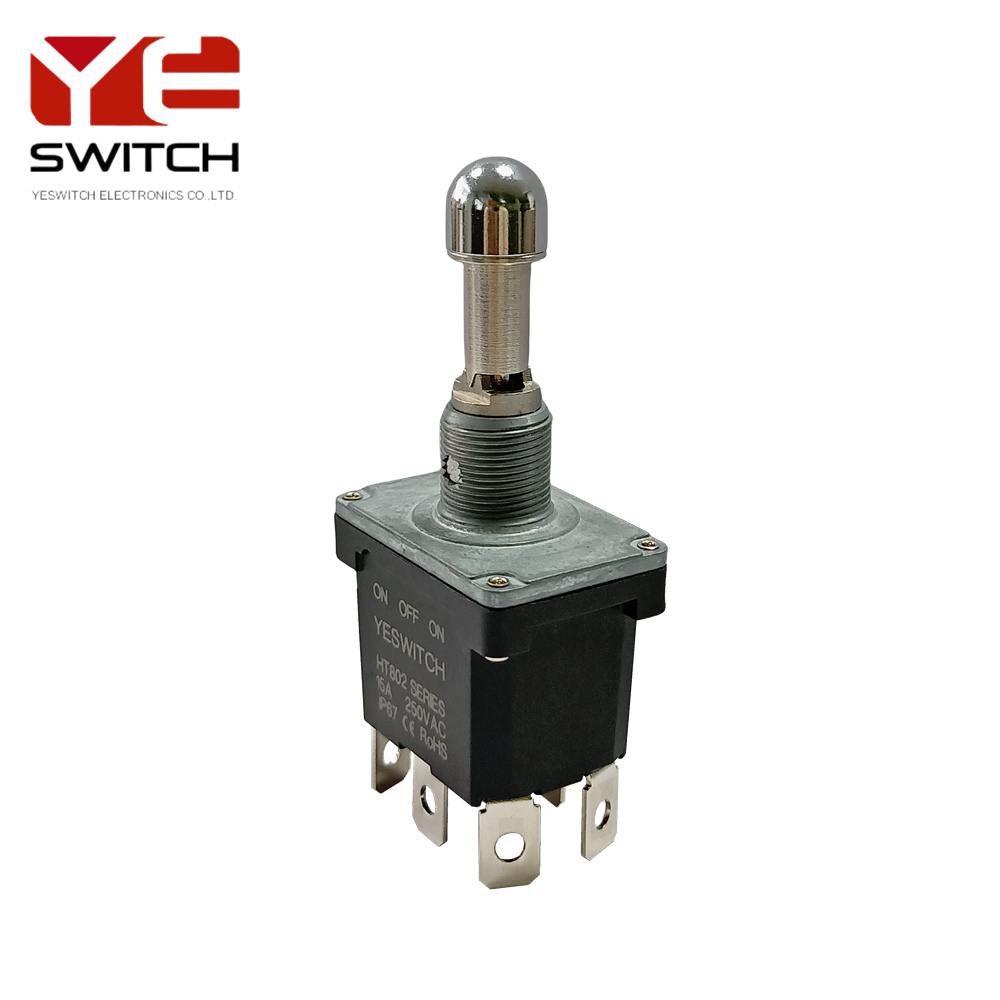

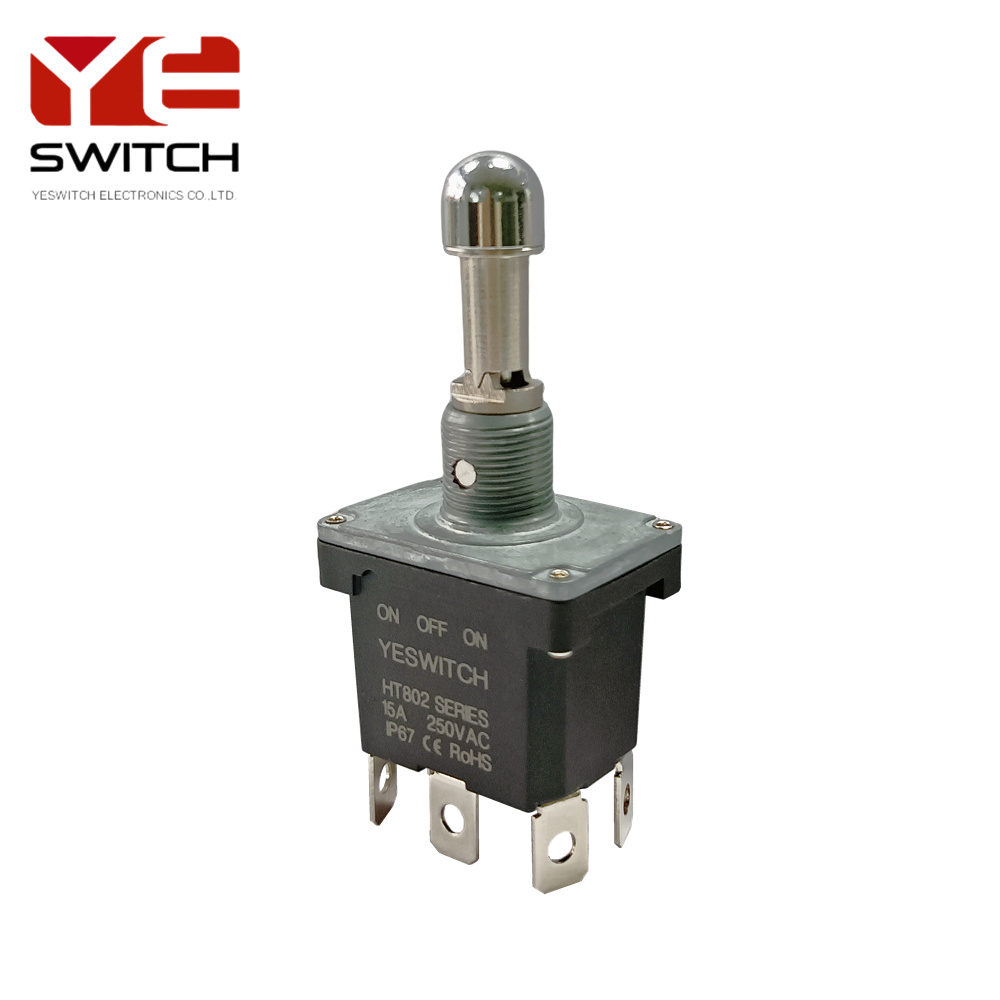

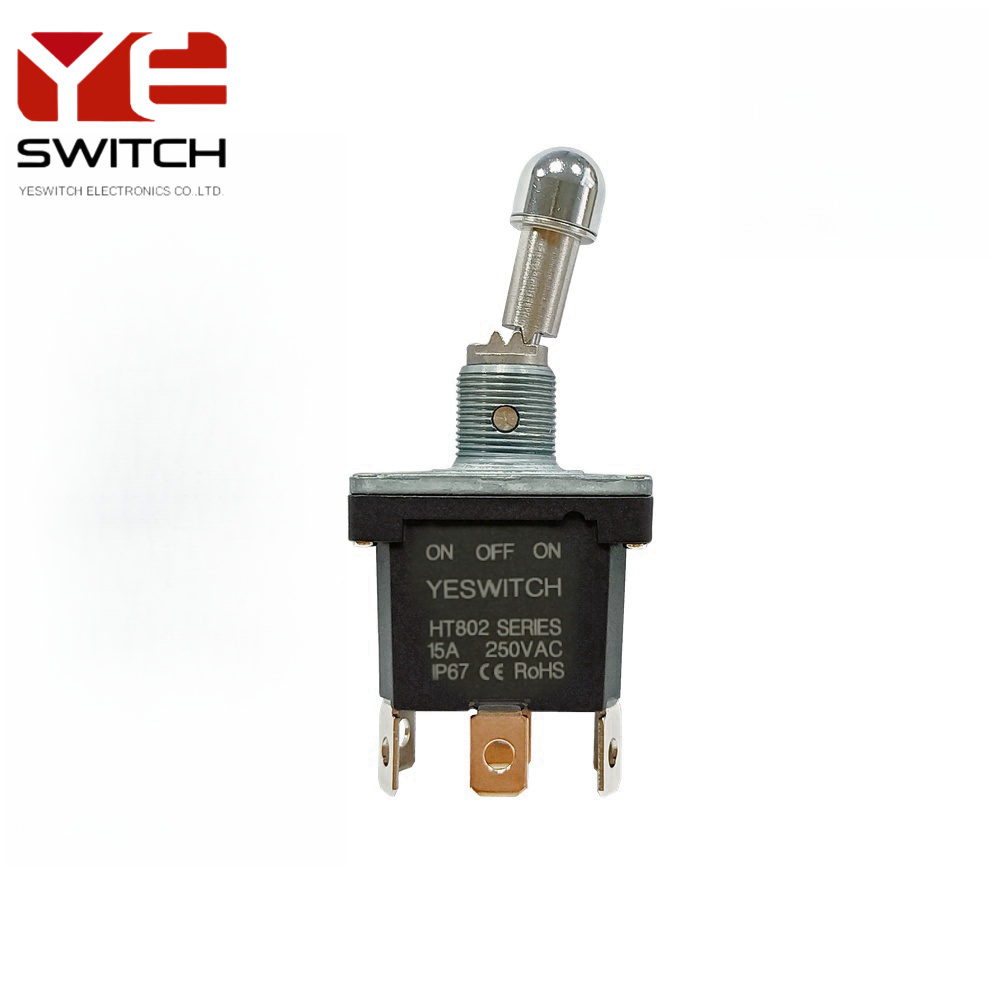

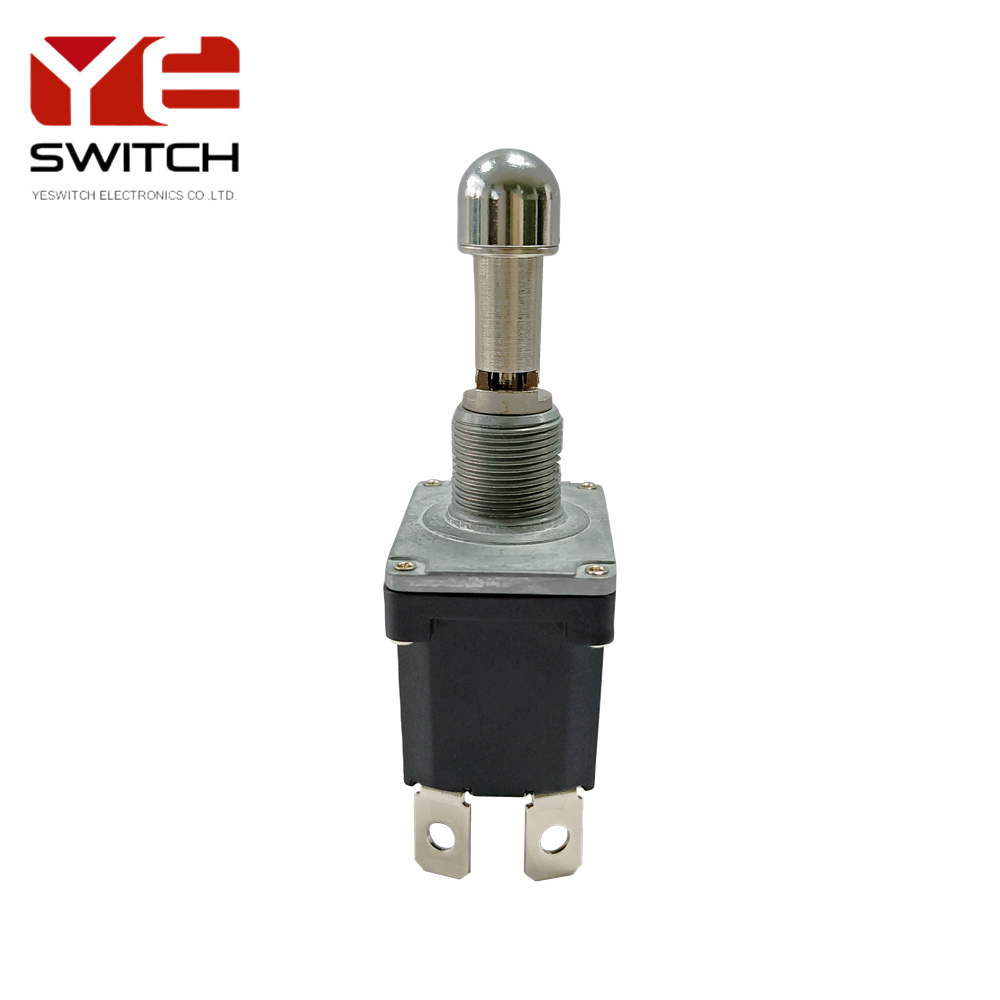

YESWITCH HT802 Series Toggle switches are high-current metal locking handle industrial toggle switches. With its sturdy and durable metal material and unique design, this Toggle Switch ensures stability and reliability in high-intensity working environments. Its Toggle Switch On Off including Toggle Switch On Off function provides users with more operational options, making it suitable for equipment requiring multiple working modes.

Main features:

High-current carrying capacity: The HT802 Series Toggle switches can withstand currents up to 15A, suitable for 28VDC direct current power supplies and 16A at 125/250VAC alternating current power supplies, meeting the demands of various high-power equipment.

Dust and waterproof rating: With an IP68 dust and waterproof rating, the industrial Toggle Switch ensures stable operation in harsh environments, where neither dust nor moisture can cause damage.

Wide temperature range: The high current HT802 Series Toggle switches can operate normally in a wide temperature range from -40 to 85 degrees, making it suitable for various extreme climate conditions and applicable to various outdoor and industrial environments.

Dual ON-OFF-ON function: The unique dual-circuit design supports Toggle Switch On Off including Toggle Switch On Off, allowing the switch to toggle between three different positions, providing users with more operational flexibility and convenience.

Metal locking handle: The sturdy metal locking handle not only increases the durability of the Toggle Switch but also provides a better grip and operational stability, ensuring that it will not loosen or damage during long-term use.

Application areas:

The HT802 Series Toggle switches with Toggle Switch On Off including Toggle Switch On Off function, with its excellent performance and stability, is widely used in equipment such as aerial work platforms and heavy machinery vehicles that require withstanding high currents and high-intensity working environments. In these equipment, the stability and reliability of the Toggle Switch are crucial, and the HT802 is the ideal choice to meet these requirements.

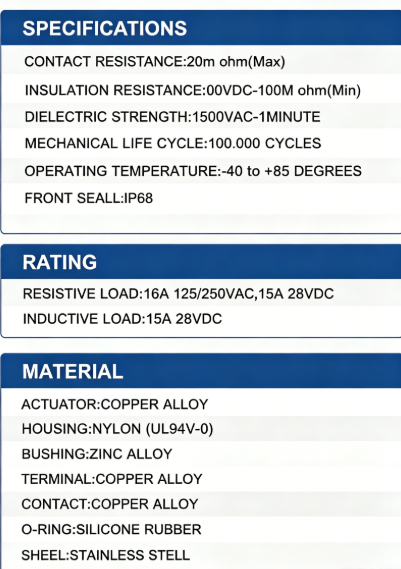

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
