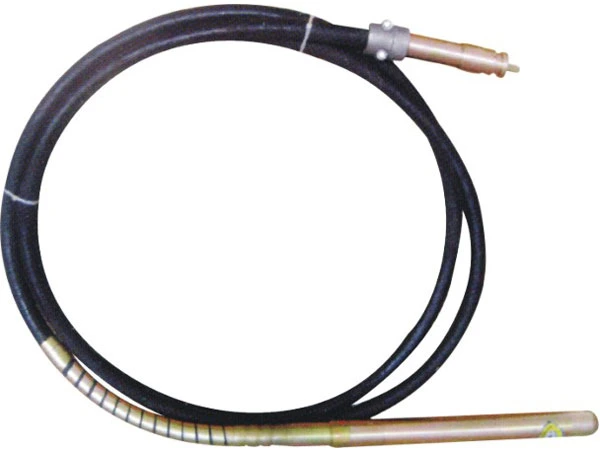

38mm Concrete Vibrator Needle Mini Petrol Engine Concrete Vibrators Shaft1
4 year ago
Basic Info.
Product Description
Product Introduction:
It is widely used in compacting of concrete columns, walls, main beams and pre-cast products in construction projects.
Principle:
The operating part is a hollow cylinder, with built-in eccentric oscillator. Movement of the eccentric oscillator driven by power results in high frequency mechanical vibration of the hole part.
It is put into concrete at work, so as to get a compacting effect after vibration.
Feature:

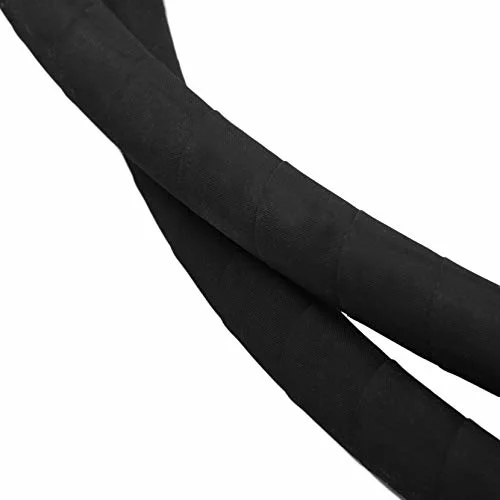

1) Adopts an ordinary plug-in type vibrator and stick with a flexible pipe and flexible shaft
2) Good reliability
3) High power intensity
4) Low noise
5) Long time service life
6)The concrete vibrator shaft can be hexagon connector, dynapac connector and half moon type
Parameter:
Model | JKV25 | JKV28 | JKV32 | JKV35 | JKV38 | JKV45 | JKV50 | JKV60 | JKV70 | |
Dia.of vibrator head(mm) | 25 | 28 | 32 | 35 | 38 | 45 | 50 | 60 | 70 | |
Vibrating Frequency(Hz) | 230 | 230 | 210 | 200 | 200 | 200 | 200 | 200 | 200 | |
Dia.of Flexible Hose (mm) | outside | 24 | 25 | 30 | 30 | 30 | 32 | 36 | 36 | 36 |
inner | 13 | 14 | 16 | 16 | 16 | 18 | 20 | 20 | 20 | |
Dia.of Flexible Shaft(mm) | 8 | 8 | 8 | 10 | 10 | 12 | 13 | 13 | 13 | |
Amplitude(mm) | 1.10 | 1.11 | 1.13 | 1.15 | 1.18 | 1.2 | 1.21 | 1.28 | 1.32 | |
Weight(kg)(6m) | 9.7 | 10 | 10.6 | 14.6 | 15.2 | 17.5 | 21.7 | 22.7 | 24.2 | |
Dimension(mm)(6m) | 77×66×5.5 | 77×66×6 | ||||||||
Hose Length(mm) | 1~12 | |||||||||
Couling | Chinese Type,Japanese Type,Malaysia Type,Australian Type | |||||||||

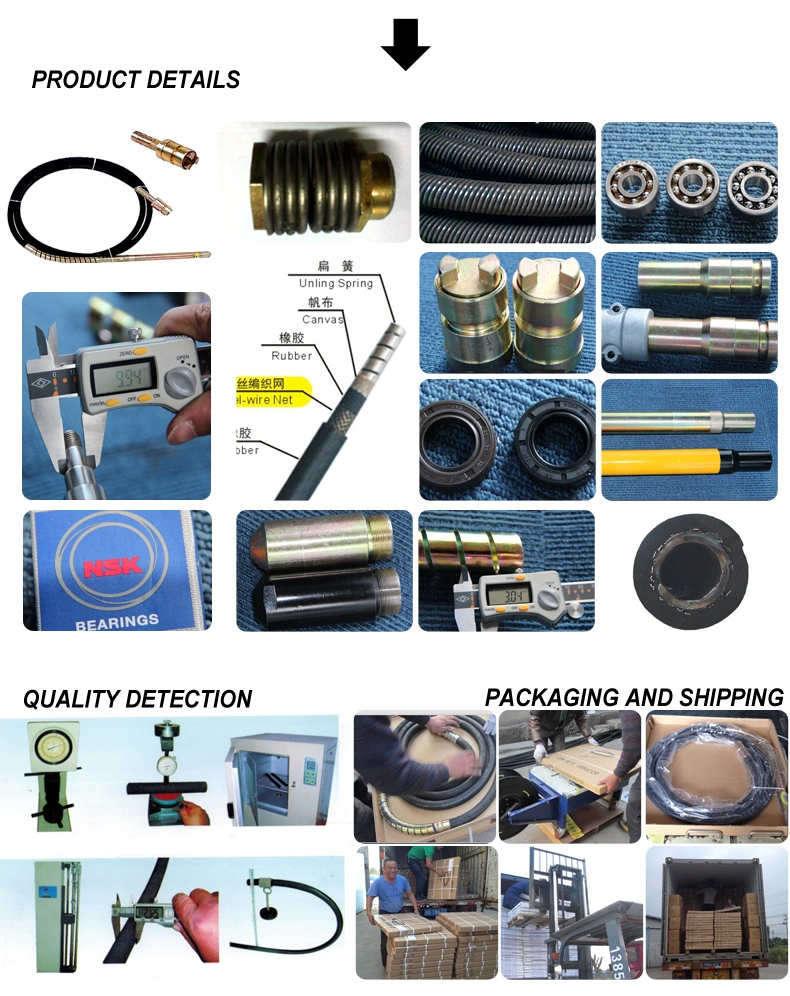

Details
Process:

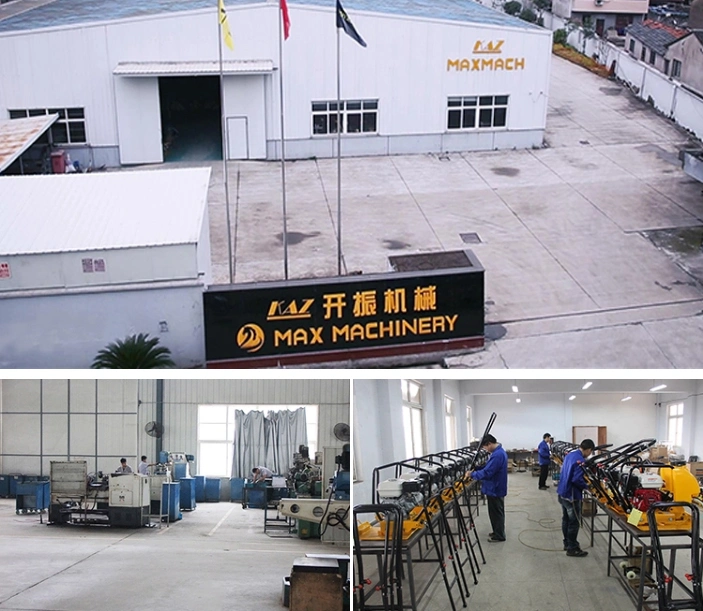

Company Information

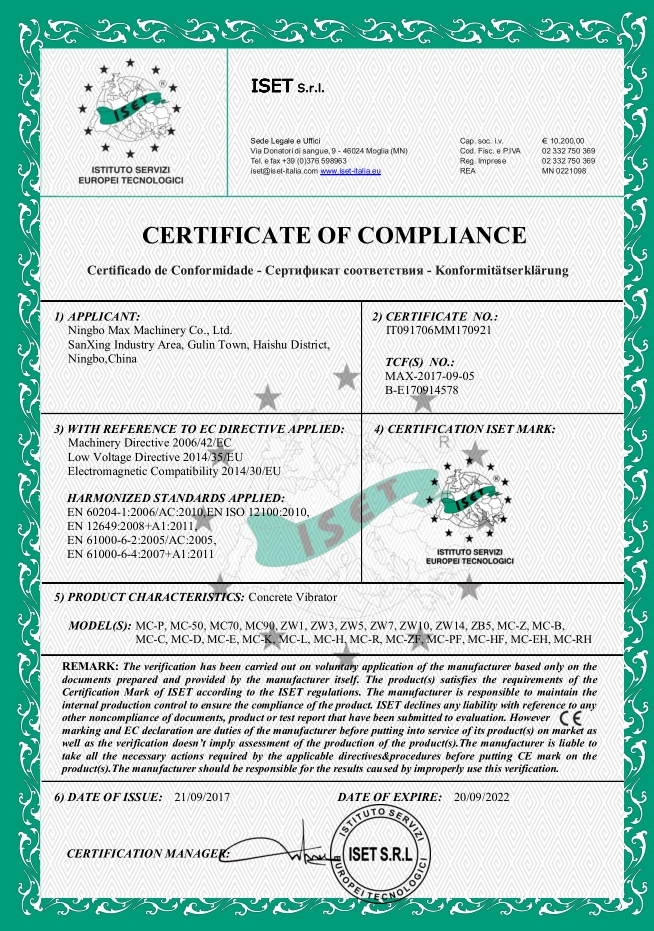

Certification :
