Concrete Vibrator Vibration Motor 30W Single Phase 110V 3600rpm Aluminum Alloy Vibrating Vibrators for Shaker Table (30W)1
3 year ago
Basic Info.
Product Description

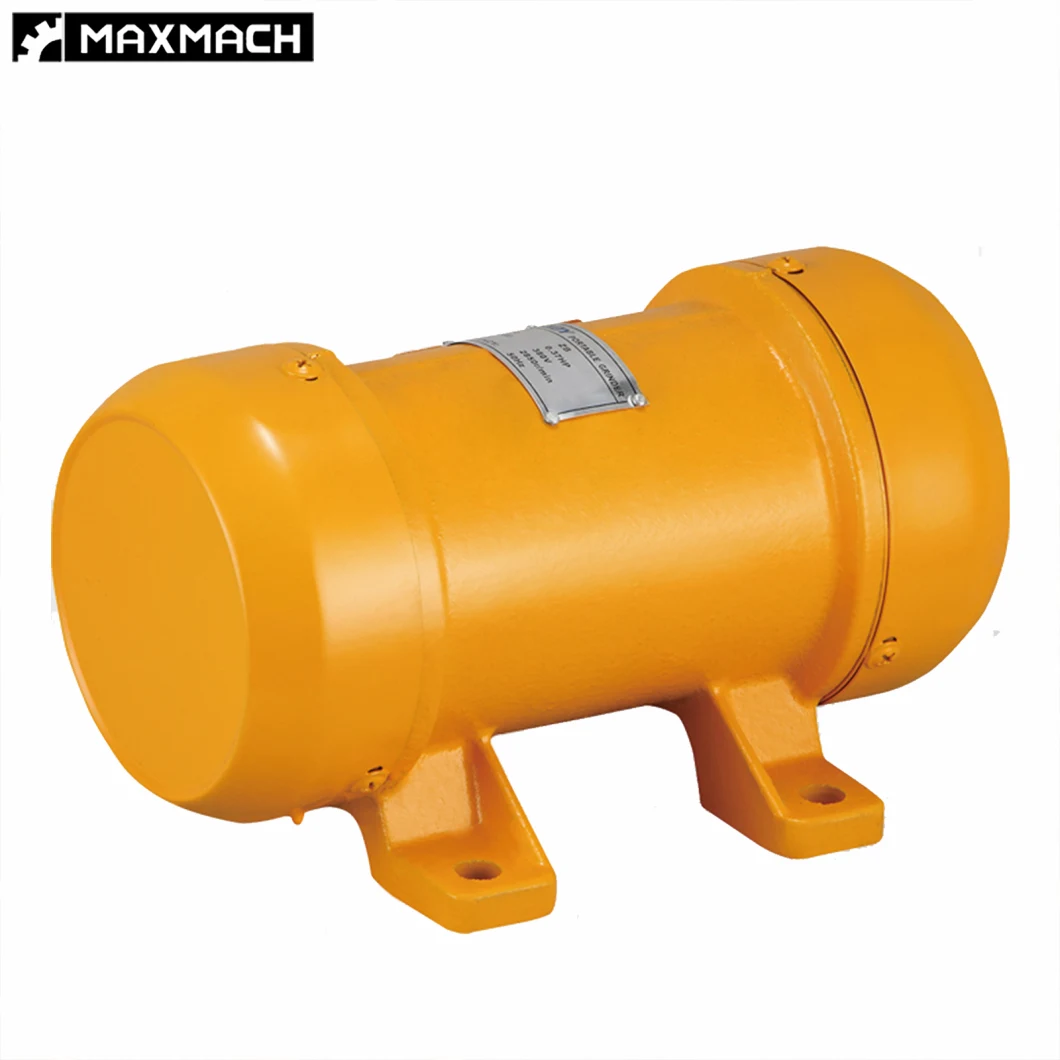

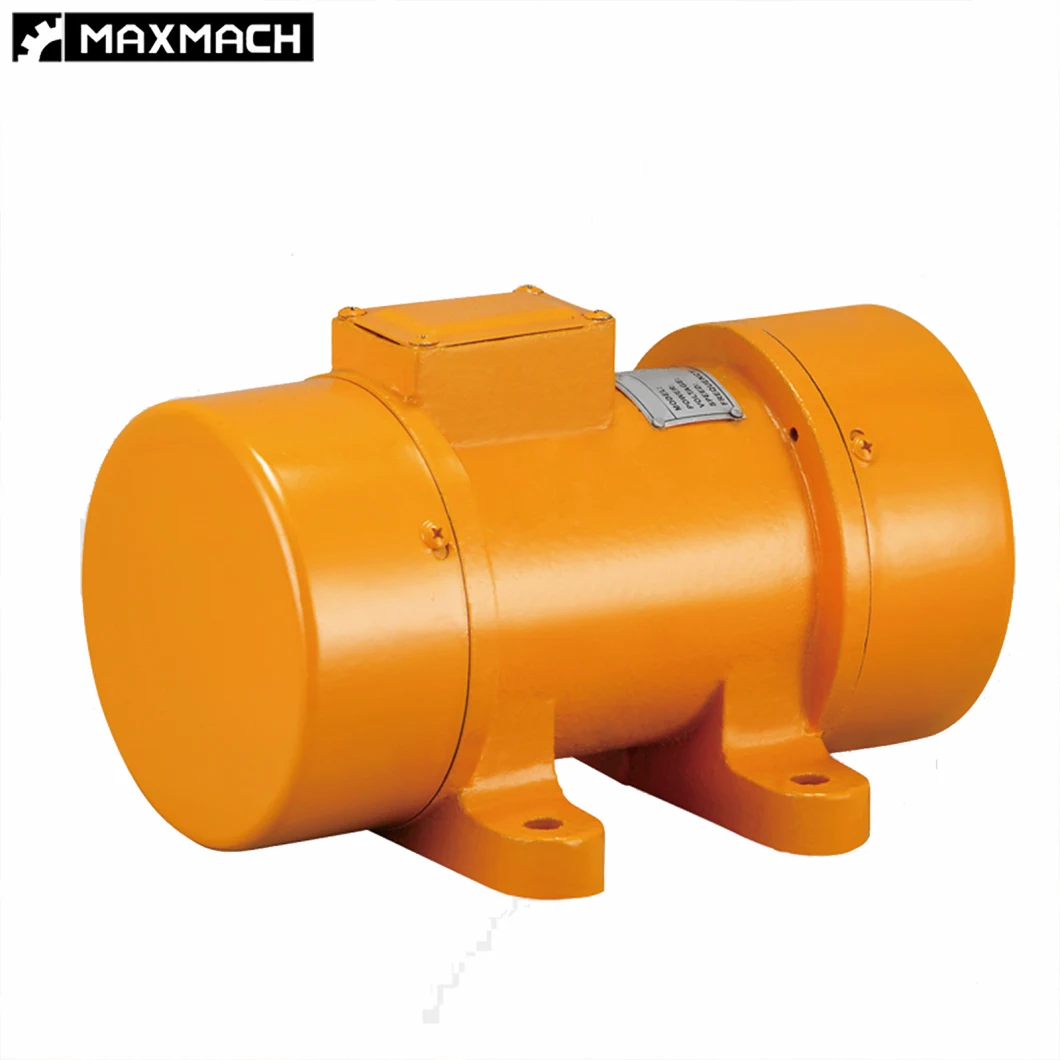

The External concrete vibrator uses of the vibrator are on the vibrating table,brick making machine, and vibrating screen to provide vibrating motion. It also cancomes with a base plate. It is commonly seen on moderm construction sites. Where it is primarily used to consolidate the face of freshly-poured concrete foundation as well as compact the surface of pre-cast concrete .
The winding is made by the copper wire absolutely, nodular cast iron used for the housings of high power units, which can the equipment durable, increase the capacity of the integral equipment to handle the material.
Features:
1. Attachment concrete vibrator is made up of rotor axles of single phase, three-phase Asynchronous motor installed eccentric blocks matching with motor power on Both sides.
2. The complete machine has performances of full closing and high strength, convenient To dismantle, install and maintain. Quad rubber cable consists of electric Wire.
3. The husk of a complete machine is fully made of aluminum alloy with lightness And high power. The caps of two ends are directly pieced together tightly with three Long bolts, which are fairly fastened.
Specification:
| ITEM | External vibrator | ||||
| MODEL | ZW-35 | ZW-50 | ZW-70 | ZW-90 | ZW-100 |
| Power (KW) | 0.75KW | 1.1KW | 1.5KW | 2.2KW | 3.0KW |
| Rotary Speed (RPM) | 2840 | 2840 | 2840 | 2840 | 2840 |
| Centrifugal Force | 350 | 500 | 700 | 980 | 1100 |
| Voltage (V) | 220, 42 or 380 | 220, 42 or 380 | 220, 42 or 380 | 220, 42 or 380 | 42 or 380 |
| Vibration Frequency (HZ) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Install Size / Dia (mm) | 105*140*125 / Φ13 | 140*160*150 / Φ15 | 140*160*150 / Φ15 | 160*185*175 / Φ17 | 160*200*190 / Φ17 |
| Winding | Copper Wire | Copper Wire | Copper Wire | Copper Wire | Copper Wire |
| Net Weight (KG) | 12 | 15 | 19.5 | 25.5 | 35 |
| Gross Weight (KG) | 12.6 | 16 | 21 | 27 | 37 |
| Packing size (CM) | 33*29*23 | 42*23*36 | 42*23*36 | 48.5*26*28 | 56*26*32cm |
| Packing Way | Carton | Carton | Carton | Carton | Carton |
