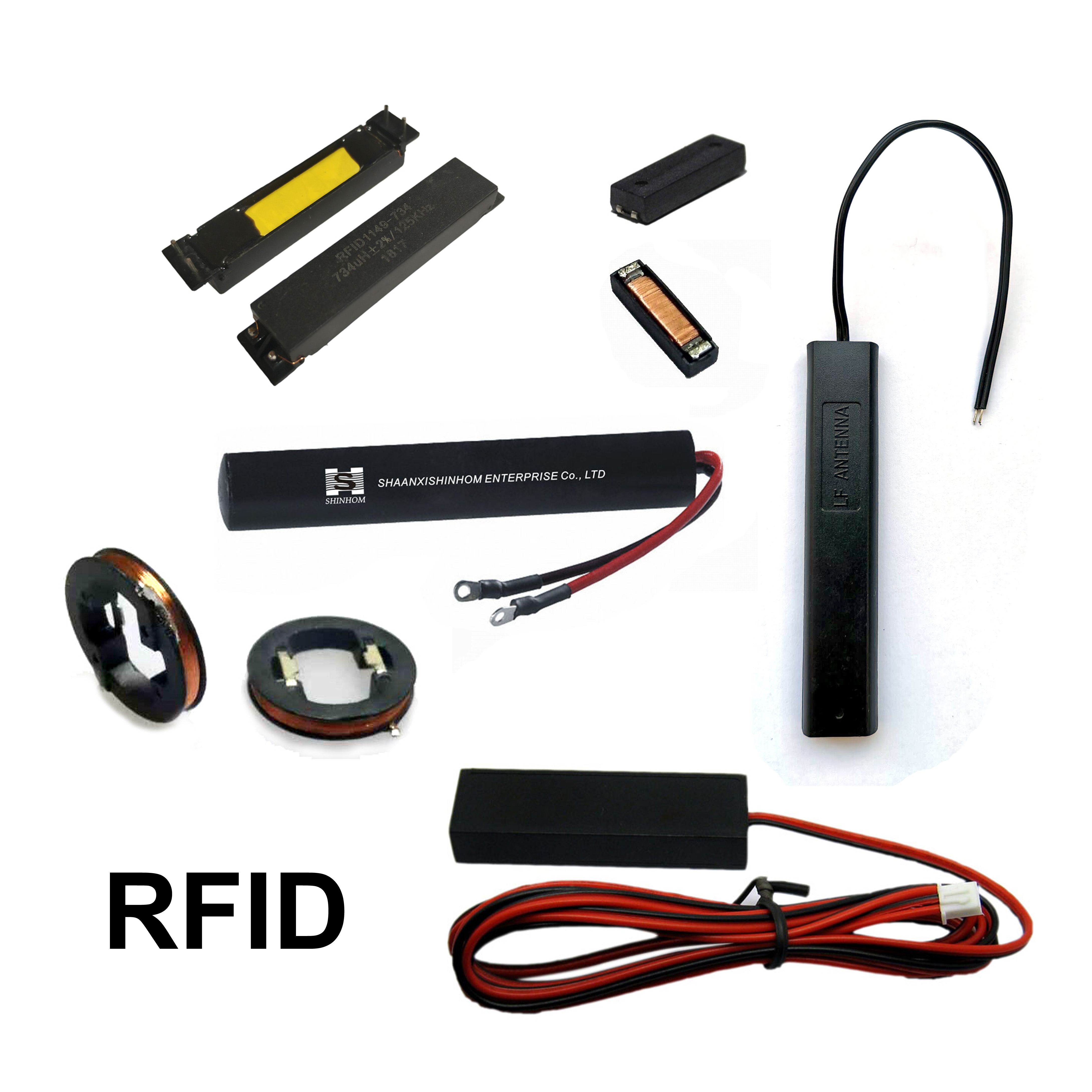

RFID & NFC Transponder Coil

6 month ago

18 0 

2 year

Product details

Low-frequency Receiving Antenna

When deploying ‌nfc transponder coil‌ solutions in automotive environments (windshield surface/instrument panel/trunk), avoid metal-surfaced areas to maintain ‌High Frequency Inductor‌-grade signal integrity. The ‌RFID&NFC Transponder Coil‌ sensing distance depends on:

・Vehicle shielding effectiveness (‌nfc transponder coil‌ EMI resistance)

・Non-metallic cavity dimensions (‌High Frequency Inductor‌ spatial requirements)

・Temperature-compensated ‌RFID&NFC Transponder Coil‌ positioning

Technical Specifications

‌Resonant Stability‌
・125KHz±1.5%@25℃ (‌RFID&NFC Transponder Coil‌ baseline)
・134.2KHz±3%@-40℃ (‌nfc transponder coil‌ cold-start performance)
‌Power Handling‌
・2.8A Max @30% duty cycle (‌High Frequency Inductor‌ current rating)
‌Environmental Compliance‌
・-40℃ to +85℃ operation (‌RFID&NFC Transponder Coil‌ automotive validation)
・-40℃ to +105℃ storage (‌nfc transponder coil‌ material endurance)

Series in this family

Product Series	Inductance(mH)	Q	Impedance(Ω)	Capacitance(nF)
RFID0803C	1.0-18.52	30-35	-	-
RFID1103	1.97-10.0	15-17	34-145	-
RFID1103C	1.97-10.0	15-17	34-145	-
RFID113528	1.0-7.2	30	-	-
RFID1149	0.16-0.5	125	-	-
RFID13020A	0.16-0.5	125	-	3.3-10.0
RFID0716A	0.16-0.5	125	-	3.3-10.0
RFID8213	0.16-0.5	125	-	3.3-10.0
RFID8516A	0.16-0.5	125	-	3.3-10.0
EFID9514A	0.16-0.5	125	-	3.3-10.0
RFID1244	1.0-7.2	12.9-15.3	52-333	-
RFID1724	2.38-2.6	18	80-88	-

Ferrtx is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our RFID NFC Transponder Coil RFID products.
