Product details

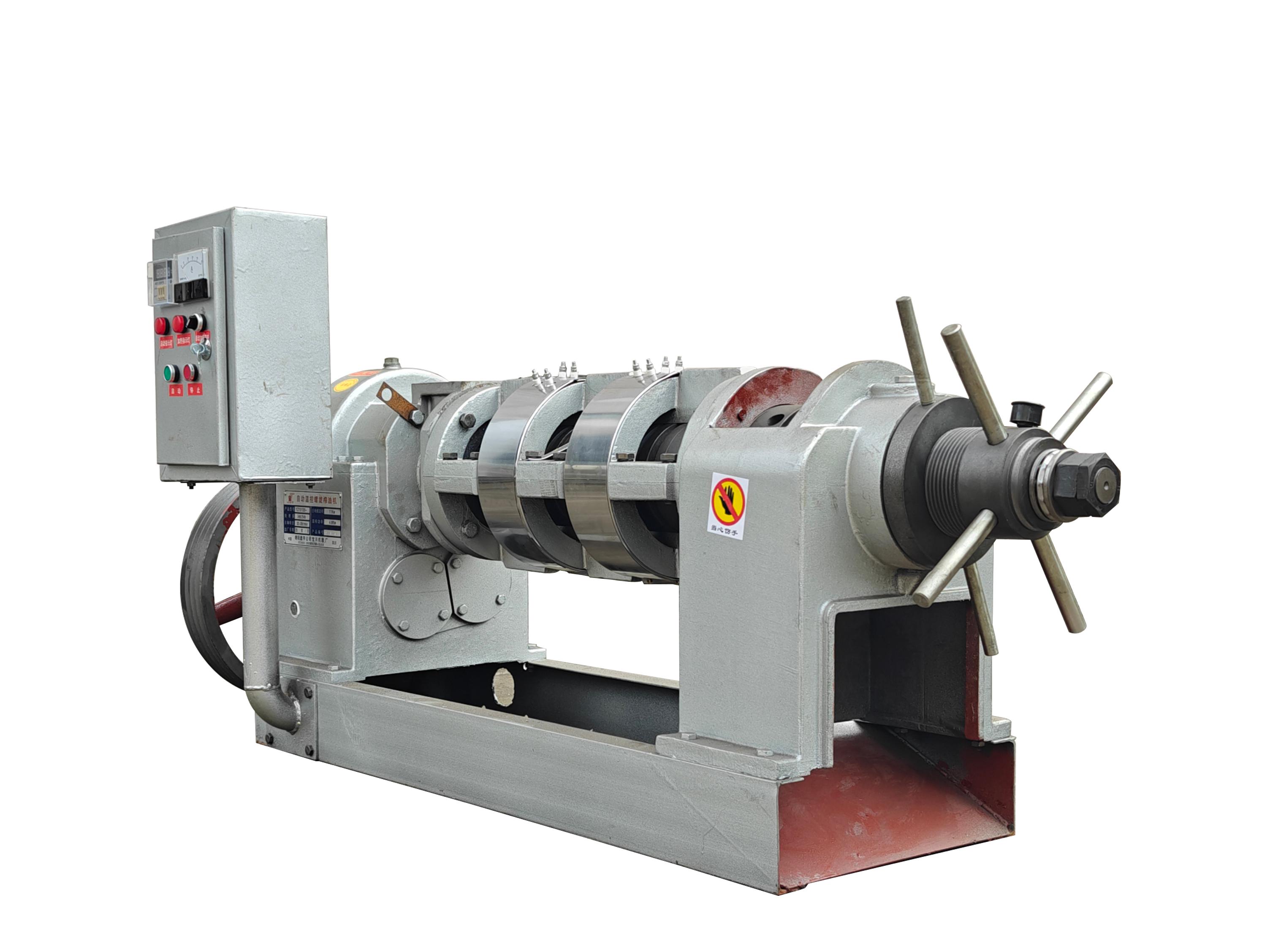

120 model palm oil press

Palm Oil Press Introduction

Equipment Type: Mainly divided into single screw palm oil press and double screw palm oil press.

Single screw palm oil press:

1. Applicable scenarios: Applicable to small palm oil presses with a processing capacity of 300-500 kg/hour.

2. Structure and principle: It is composed of a feed hopper, a gear box, a screw and other components, and the oil is squeezed out by the continuous squeezing of the screw.

3. Features: Scientific design, small footprint, low investment cost, excellent equipment material and long service life.

Double screw palm oil press:

1. Applicable scenarios: Applicable to large, medium and small palm oil presses with a processing capacity of 1-120 tons/hour.

2. Structure and principle: It is composed of a double shaft box, a pressing cage, a screw and other parts, and uses two screws running in opposite directions to generate continuous extrusion force to squeeze out the oil.

‌3. Features‌: good pressing effect, high oil yield, hydraulic control system intelligently controls the pressing process, the equipment is made of cast steel, and the quality is guaranteed.

‌Equipment details‌: multiple processing capacity options, dual power system, hydraulic double screw design, and high-strength martensitic stainless steel.

The selection of palm oil press should be matched according to the scale, processing capacity and specific needs of the oil mill to achieve the best pressing effect and economic benefits‌

cooking oil pressing machine，oil expeller machine price，expeller oil press machine，commercial oil expeller machine

Technical Parameters

1. Screw speed: 32 -38r/min

2. Power: Electric motor Y160M-4 (11kw 1460r/min)

3. Dimensions (mm): Length x Width x Height = 1850x570x1185 (excluding motor base)

4. Single machine weight: 650kg

5. Performance index: refers to the performance index in the following table that can be achieved by using hot pressing method (pressing once) for continuous production of medium-quality raw materials with reasonable processes such as cleaning, shelling (separation), crushing (rolling), steaming and frying, and normal operation.

Name	24-hour processing capacity t/24h	1 hour processing capacity Kg/h (approximate value)	Residual oil rate of dry cake (%)
Rapeseed	＞6t	250 kg	＜8
Cotton seeds	＞5.5t	200~230 kg	<7.5
Soybean	＞5.5t	230 kg	＜7
Peanut kernels	＞6t	230 kg	＜8

Note: Due to different pressing habits and raw materials in different regions, the actual results may differ from the parameters in the above table. This is normal. For example, for the raw pressing method (cold pressing), the amount of milk will be reduced by half for each additional pressing.
