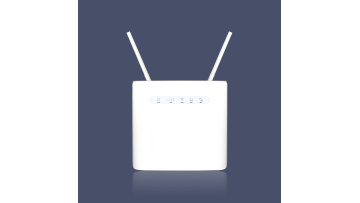

C16-4G WiFi6 CPE Built-in battery
3 month ago


Main Chipset
|
MT7628
|
Flash
|
8MB
|
RAM
|
64MB DDR
|
WIFI
|
2.4GHz 2T2R MIMO 300Mbps
|
4G LTE
|
Quectel EC200A, 3GPP Release 9, CAT4 modem
|
SIM Card
|
1 x SIM/USIM Slot, 1.8V / 3.0V 2FF USIM
|
Ethernet
|
4 x RJ45 10/100Mbps Ethernet Port, Adaptive, Auto MDX (1 WAN + 4 LAN)
|
USB
|
1 x USB 2.0 Host Port (For Debug Purpose Only)
|
Power Supply
|
1 x Power Adapter: Power Input 100V-240V AC 50/60Hz, Power Output 12V/1A DC Power
|
|
1 x Standard Power Input Jack, 12VDC
|
Power Button
|
Power ON/OFF Switch Button
|
Reset
|
1 x Pin-hole Reset Button. Long press 3-second to activate factory settings restore
|
WPS
|
1 x WPS Button
|
LED Indicators
|
1 x Power LED indicator
|
|
1 x WPS/WLAN LED indicator
|
|
1 x LAN LED Indicator
|
|
1 x LTE Internet LED indicator
|
|
4 x Cellular Signal Strength LED Indicator
|
Dimensions
|
170mm (L) x 55mm (W) x 154mm (H)
|
Weight
|
Approx. 390g
|
Operating Temperature
|
-20°C ~ +60°C
|
Storage Temperature
|
-25°C ~ +70°C
|
Operating Humidity
|
5% ~ 95% (Non-condensing)
|
