Product details

Copper aluminum substrate laser cutting machines are specifically designed for high-precision cutting of metal circuit boards. They are primarily used for precision cutting of copperaluminum substrates, PCB circuit boards, and ceramic circuit boards with thicknesses ranging from 2-6mm. By integrating fiber lasers and high-precision CNC systems, these machines enable efficient, non-contact cutting with smooth, burr-free edges and minimal deformation, meeting the high-precision, high-quality processing demands of industries such as electronics, hardware, and LED.

Advantages of Copper/Aluminum Substrate Laser Cutting Machines

Next-generation laser technology with high-brightness anti-back reflection design enhances processing efficiency for highly reflective materials like copper and aluminum.

High repeat positioning accuracy, equipped with a high-resolution CCD positioning system and linear guides, ensures smooth, flat edges without mechanical stress.

Capable of precision processes including laser cutting, drilling, marking, and grooving for PCB substrates.

Optional features: dual workstations, visual positioning, automated loading/unloading systems, vacuum adsorption fixtures, dust separation modules, and pipeline dust removal systems.

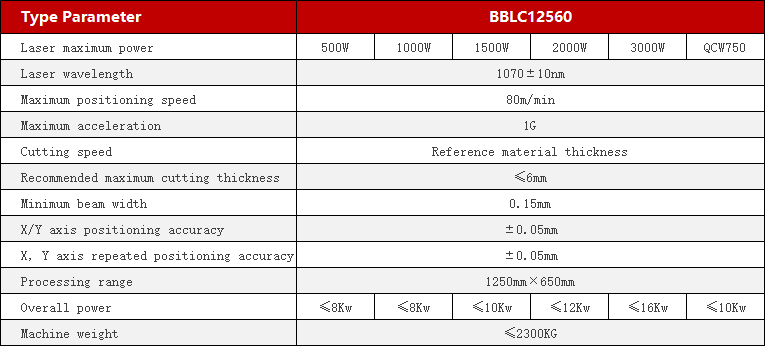

Parameters of Copper/Aluminum Substrate Laser Cutting Machines

Applications of Copper/Aluminum Substrate Laser Cutting Machines

Laser cutting machines widely used in industries such as 3C electronics, automotive, semiconductors, aerospace, medical, and industrial manufacturing, including:

Precision cutting and drilling of PCB circuit boards, aluminum/copper substrates, copper-clad substrates, ceramic substrates (silicon nitride, zirconia).

LED heat dissipation substrates, COF (chip-on-film), 5G copper foil antennas, battery connectors, and various metal plates.

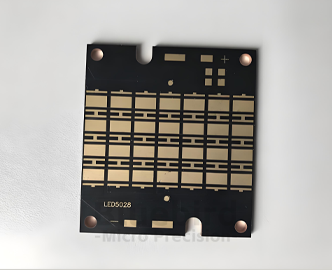

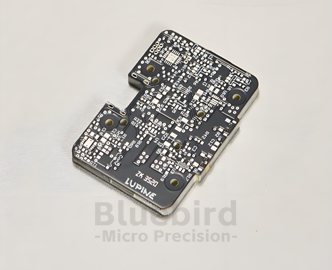

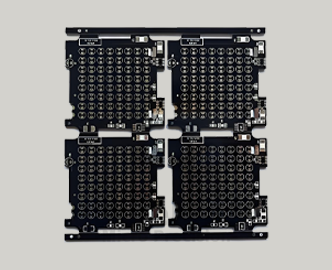

Sample Showcase of Laser-Cut Substrates

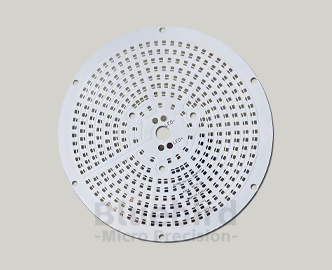

Lamp thermoelectric separation copper substrate
