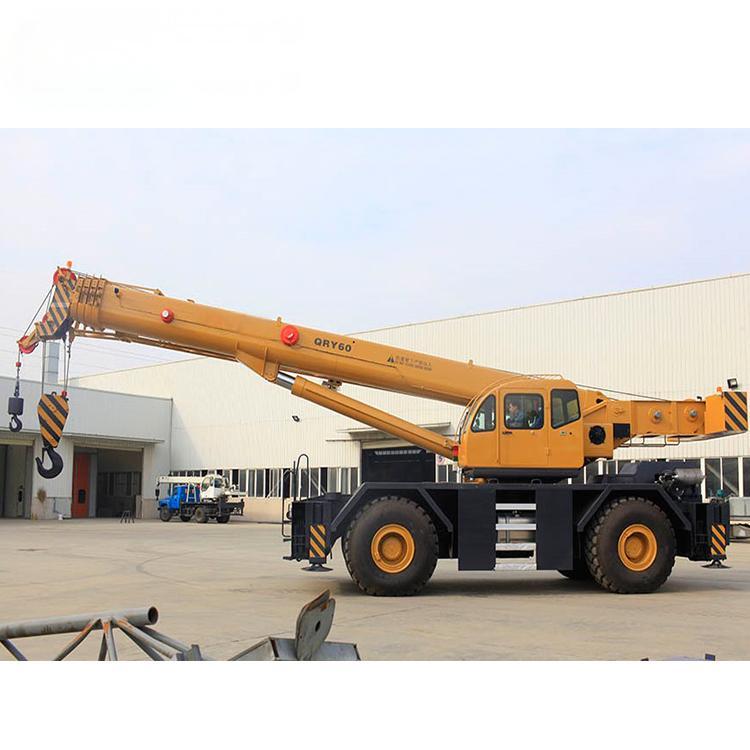

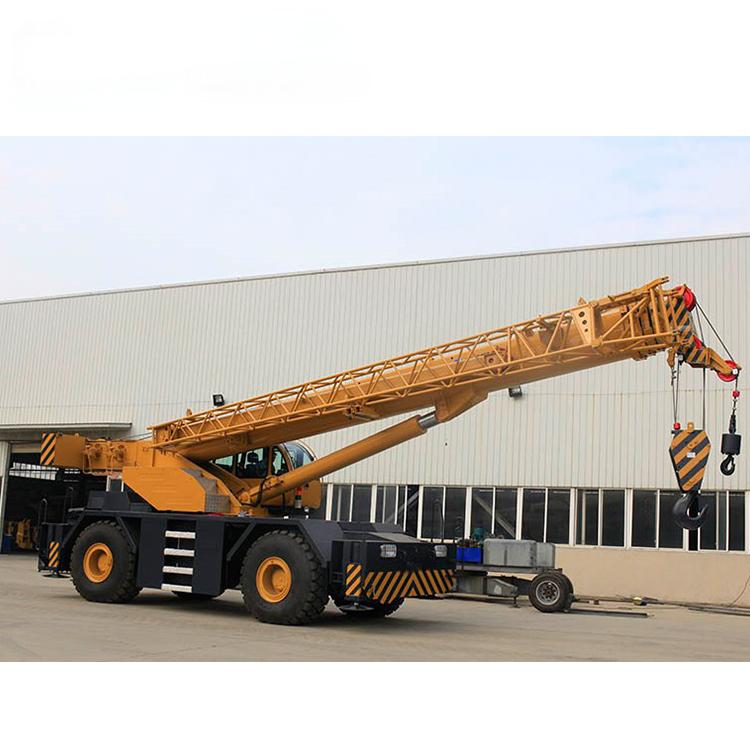

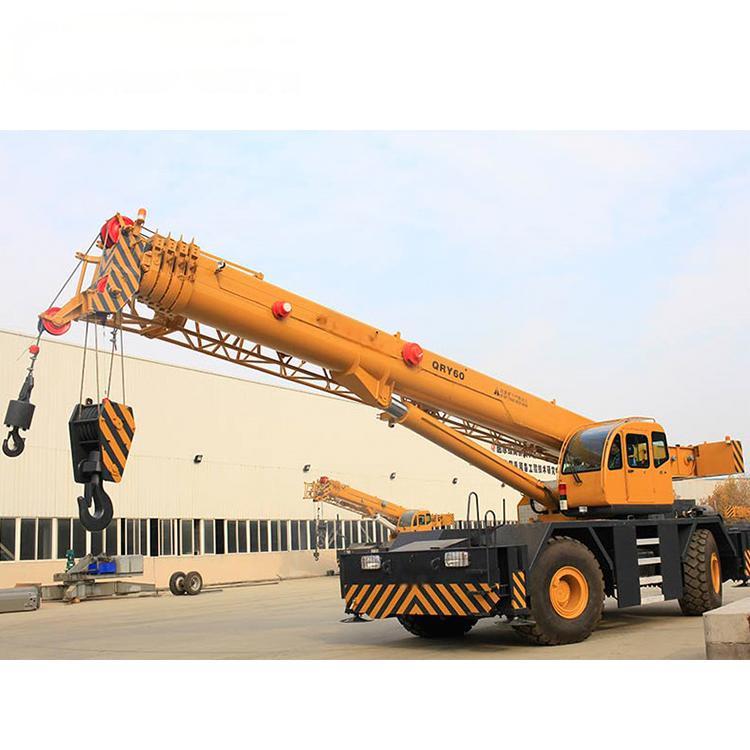

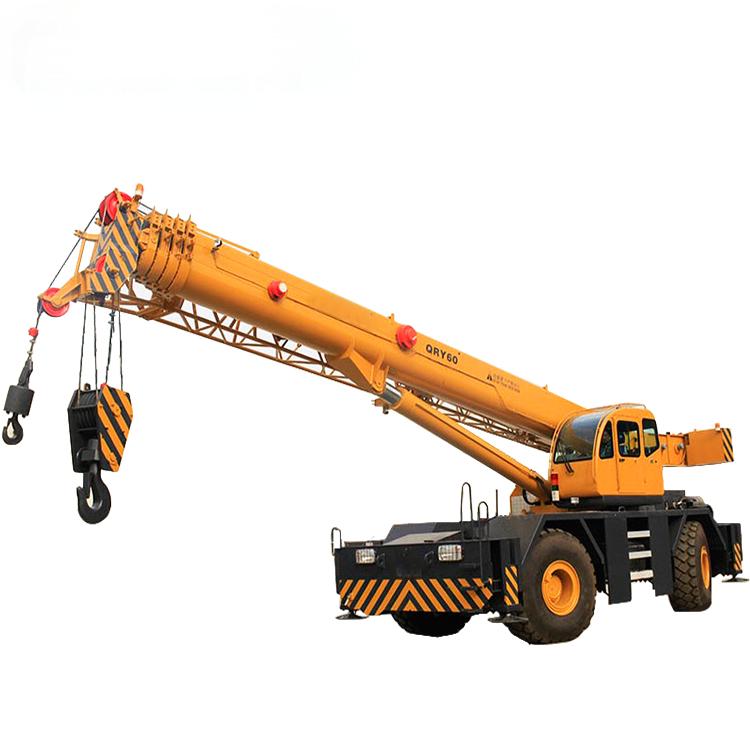

60 Ton Rough Terrain Crane
3 week ago|

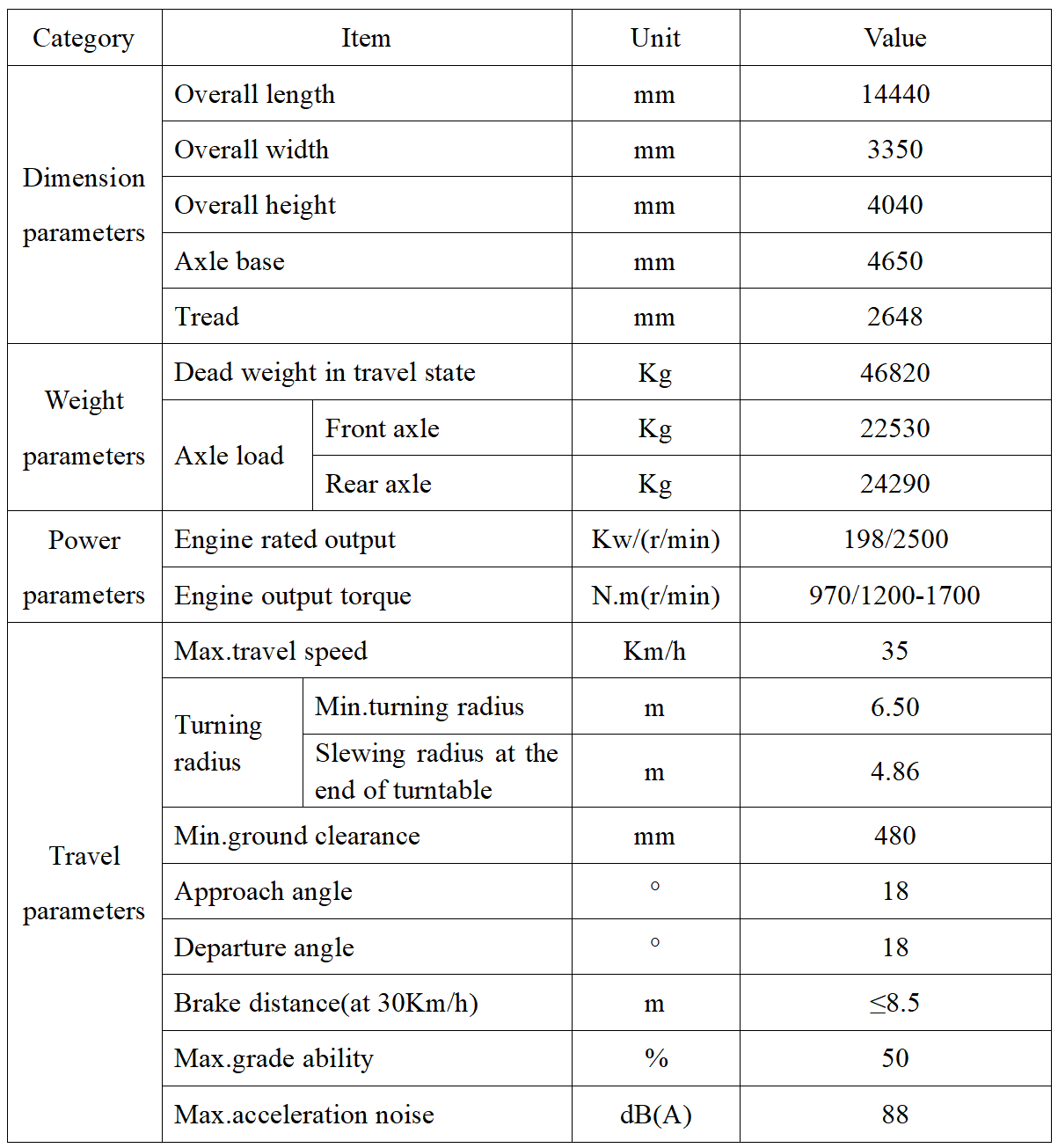

Category |
Item |
Unit |
Value |
||
|
Dimension parameters |
Overall length |
mm |
14440 |
||
|
Overall width |
mm |
3350 |
|||
|
Overall height |
mm |
4040 |
|||
|
Axle base |
mm |
4650 |
|||
|
Tread |
mm |
2648 |
|||
|
Weight parameters |
Dead weight in travel state |
Kg |
46820 |
||
|
Axle load |
Front axle |
Kg |
22530 |
||
|
Rear axle |
Kg |
24290 |
|||
|
Power parameters |
Engine rated output |
Kw/(r/min) |
198/2500 |
||
|
Engine output torque |
N.m(r/min) |
970/1200-1700 |
|||
|
Travel parameters |
Max.travel speed |
Km/h |
35 |
||
|
Turning radius |
Min.turning radius |
m |
6.50 |
||
|
Slewing radius at the end of turntable |
m |
4.86 |
|||
|
Min.ground clearance |
mm |
480 |
|||
|
Approach angle |
° |
18 |
|||
|
Departure angle |
° |
18 |
|||
|
Brake distance(at 30Km/h) |
m |
≤8.5 |
|||
|
Max.grade ability |
% |
50 |
|||
|
Max.acceleration noise |
dB(A) |
88 |
|||
|

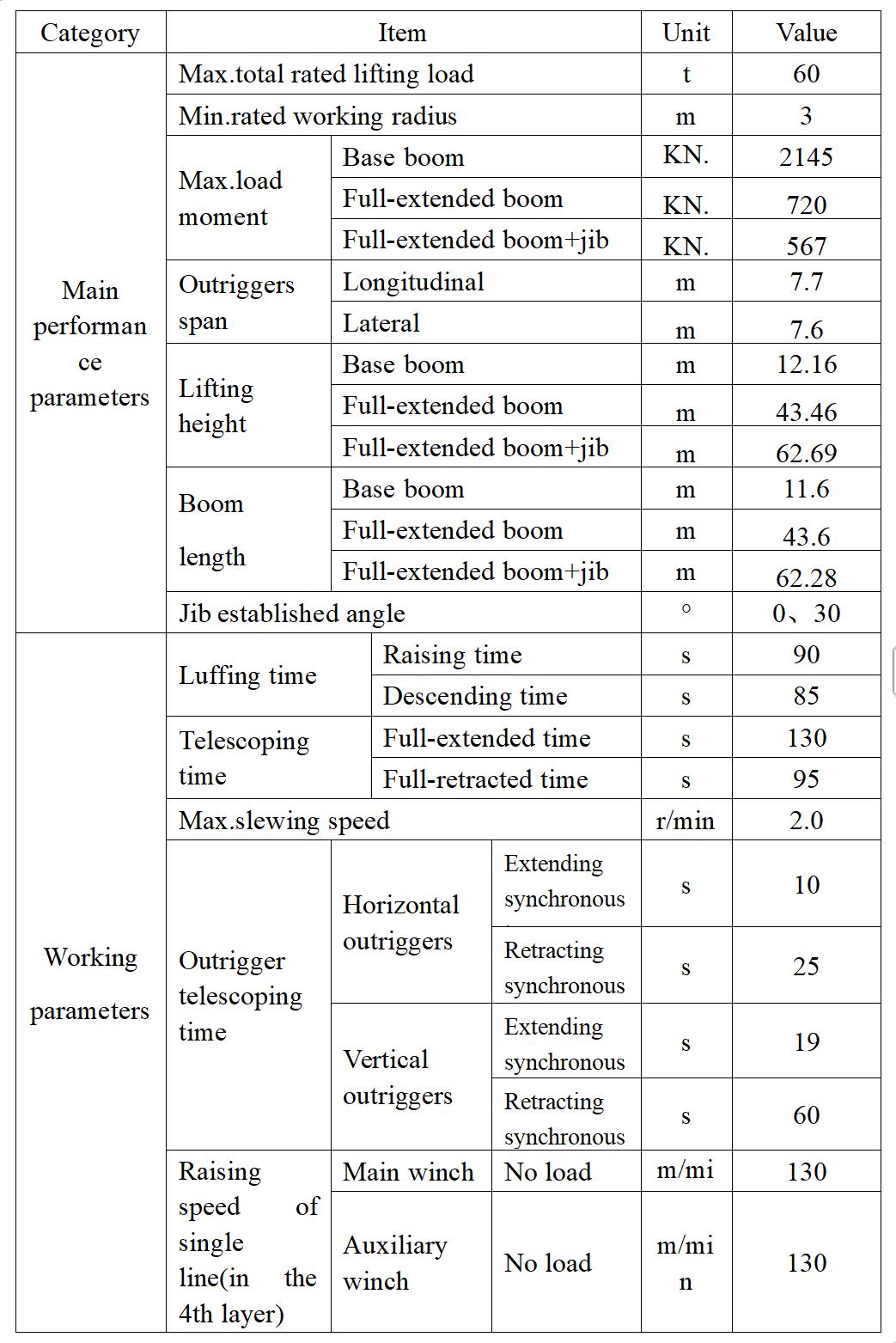

Category |
Item |
Unit |
Value |
|||
|
Main performance parameters |
Max.total rated lifting load |
t |
60 |
|||
|
Min.rated working radius |
m |
3 |
||||
|
Max.load moment |
Base boom |
KN.m |
2145 |
|||
|
Full-extended boom |
KN.m |
720 |
||||
|
Full-extended boom+jib |
KN.m |
567 |
||||
|
Outriggers span |
Longitudinal |
m |
7.7 |
|||
|
Lateral |
m |
7.6 |
||||
|
Lifting height |
Base boom |
m |
12.16 |
|||
|
Full-extended boom |
m |
43.46 |
||||
|
Full-extended boom+jib |
m |
62.69 |
||||
|
Boom length |
Base boom |
m |
11.6 |
|||
|
Full-extended boom |
m |
43.6 |
||||
|
Full-extended boom+jib |
m |
62.28 |
||||
|
Jib established angle |
° |
0、30 |
||||
|
Working parameters |
Luffing time |
Raising time |
s |
90 |
||
|
Descending time |
s |
85 |
||||
|
Telescoping time |
Full-extended time |
s |
130 |
|||
|
Full-retracted time |
s |
95 |
||||
|
Max.slewing speed |
r/min |
2.0 |
||||
|
Outrigger telescoping time |
Horizontal outriggers |
Extending synchronously |
s |
10 |
||
|
Retracting synchronously |
s |
25 |
||||
|
Vertical outriggers |
Extending synchronously |
s |
19 |
|||
|
Retracting synchronously |
s |
60 |
||||
|
Raising speed of single line(in the 4th layer) |
Main winch |
No load |
m/min |
130 |
||
|
Auxiliary winch |
No load |
m/min |
130 |
|||
| Item | unit | RT10 | RT20 | RT30 | RT35 | RT50 | RT55 | RT60 | RT75 | RT80 | RT100 | RT130 | RT160 |
| Max.toal rated lifting load | t | 10 | 20 | 30 | 35 | 50 | 55 | 60 | 75 | 80 | 35 | 130 | 160 |
| Min.working radius | m | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Engine power | Kw | 89 | 140 | 169 | 169 | 198 | 198 | 198 | 198 | 228 | 228 | 228 | 228 |
| Max.travel speed | Km/h | 50 | 40 | 40 | 40 | 40 | 40 | 35 | 40 | 38 | 38 | 35 | 35 |
| Base boom length | m | 7.9-24.6 | 9.9-31.2 | 9.9-31.2 | 10-31.5 | 10.25-32 | 9.6-35 | 11.6-43.6 | 10.23-37 | 12-46 | 12.5-46.5 | 13.2-50 | 13.5-50.5 |
| Jib length | m | 7.3 | 15 | 8.4-15 | 9.0-15 | 10.5-18.5 | 9.35-16.05 | 10.5-18.5 | 10.5-18.5 | 12.5-22.5 | 12.5-22.5 | ||
| Max.lifting height | m | 24.2 | 30.7 | 36 | 46 | 47.6 | 51 | 62.69 | 52.6 | 63.5 | 65 | 72 | 73 |
| Max.working radius | m | 20 | 28 | 29 | 30.05 | 30 | 31.49 | 37 | 32.8 | 38 | 38.4 | 44 | 44.5 |

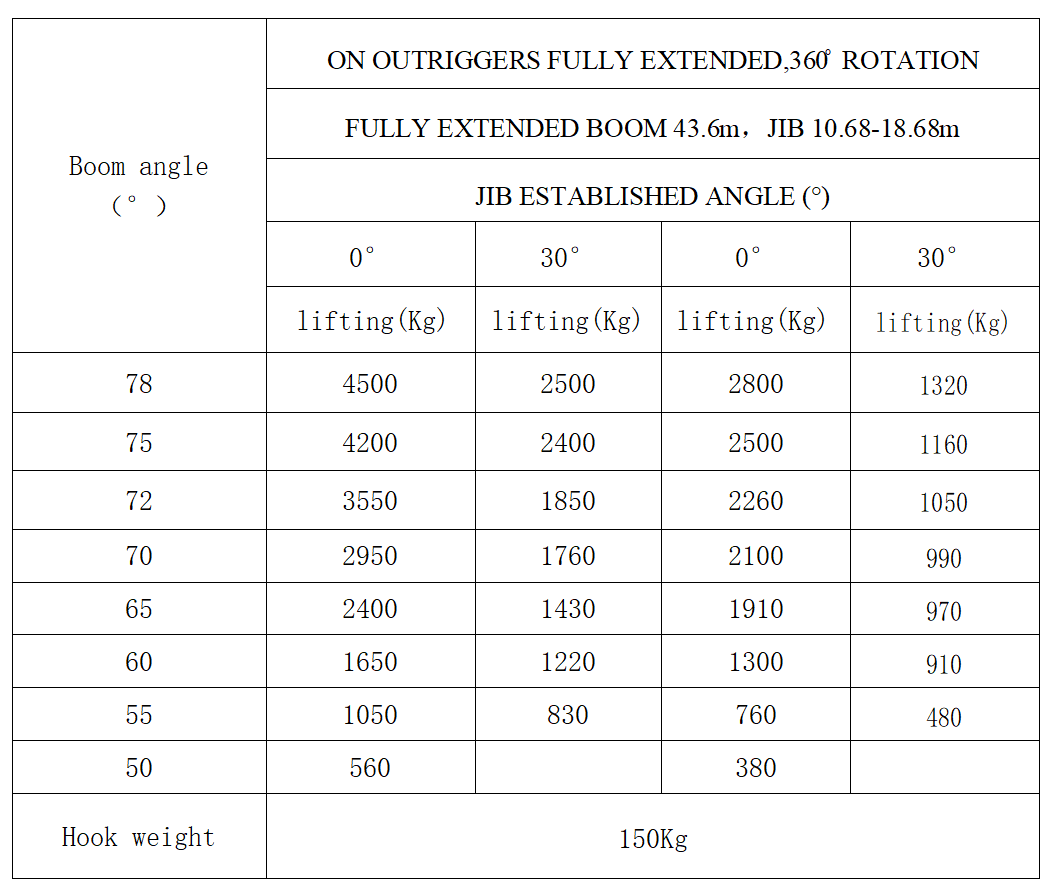

Working Range Chart
In modern engineering construction and industrial production, crane as an important heavy equipment, its performance and reliability directly affect the efficiency and safety of operation. RT60 crane with its excellent performance and a wide range of application scenarios, has become the preferred equipment for many enterprises to carry out heavy lifting operations. The following is a detailed explanation of its main advantages:
High performance: Meet heavy lifting requirements
The RT60 crane has a powerful lifting capacity with a rated lifting weight of 60 tons, which can easily handle a variety of heavy lifting tasks. Whether it is the lifting of large building components or the handling of heavy equipment, the RT60 ensures the efficient completion of the job. Its advanced system and efficient transmission device ensure the smooth and accurate lifting process, which greatly improves the working efficiency.
Stable and reliable: Ensure efficient operation
Using high-quality materials and advanced manufacturing processes, the RT60 crane offers excellent stability and reliability. Its robust structural design and precision mechanical components ensure the high efficiency and durability of the equipment in long-term operation, reducing the probability of failure. The advanced fault diagnosis system can monitor the operating status of the equipment in real time, find and eliminate potential problems in time, and further improve the reliability and service life of the equipment.
Strong flexibility: adapt to narrow working environment
The RT60 crane has a small turning radius and excellent rotation ability, allowing it to operate flexibly even in narrow operating environments. This flexibility makes it easy to cope with a variety of complex work scenarios, whether it is the narrow space of an urban construction site or the limited area inside an industrial plant, showing excellent adaptability. The all-wheel steering system supports a variety of steering modes, further increasing the maneuverability of the equipment and ensuring efficient operation in difficult terrain.
Easy to control: improve work efficiency
Equipped with advanced control system and intuitive operation interface, the operation process of the RT60 crane is easy to understand. Operators can quickly learn how to use the equipment, thereby improving work efficiency and reducing safety risks caused by improper operation. The cabin design is user-friendly and equipped with a high output heating and air conditioning system, providing a comfortable working environment for the operator.
High security: multiple protection measures
The RT60 crane is equipped with multiple safety protection devices that can effectively prevent the equipment from being overloaded or operating out of range during the operation, thus ensuring the safety and reliability of the operation.
