6.3Ton Truck Mounted Crane

5 month ago
4 0
Product details
Economic advantages of small truck crane

Small truck crane not only has many advantages in operation and use, its economy is also very significant. Compared with large cranes, the acquisition cost of small truck cranes is relatively low. This is an important consideration for some small and medium-sized enterprises and self-employed people. The lower acquisition cost means that users can obtain a reliable lifting equipment within a limited budget, thereby improving work efficiency and competitiveness. The operating costs of small truck cranes are also relatively low. It is usually equipped with efficient hydraulic systems and energy efficient engines, which can minimize fuel consumption while ensuring performance. Due to its small size, repair and maintenance costs are also relatively low. In the process of use, the flexibility and efficiency of small truck cranes can also help users save time and labor costs. For example, in construction sites, it can quickly complete material lifting tasks, reducing the waiting time of construction personnel, thereby improving the overall construction efficiency. In short, the economic advantages of small truck cranes make it a very cost-effective lifting equipment, suitable for users of all sizes.
We independently design and manufacture the following four major product categories:Lifting Machinery: Truck crane, folding boom and straight boom truck-mounted crane, spider crane, rough-terrain crane, and fast-erecting tower crane.

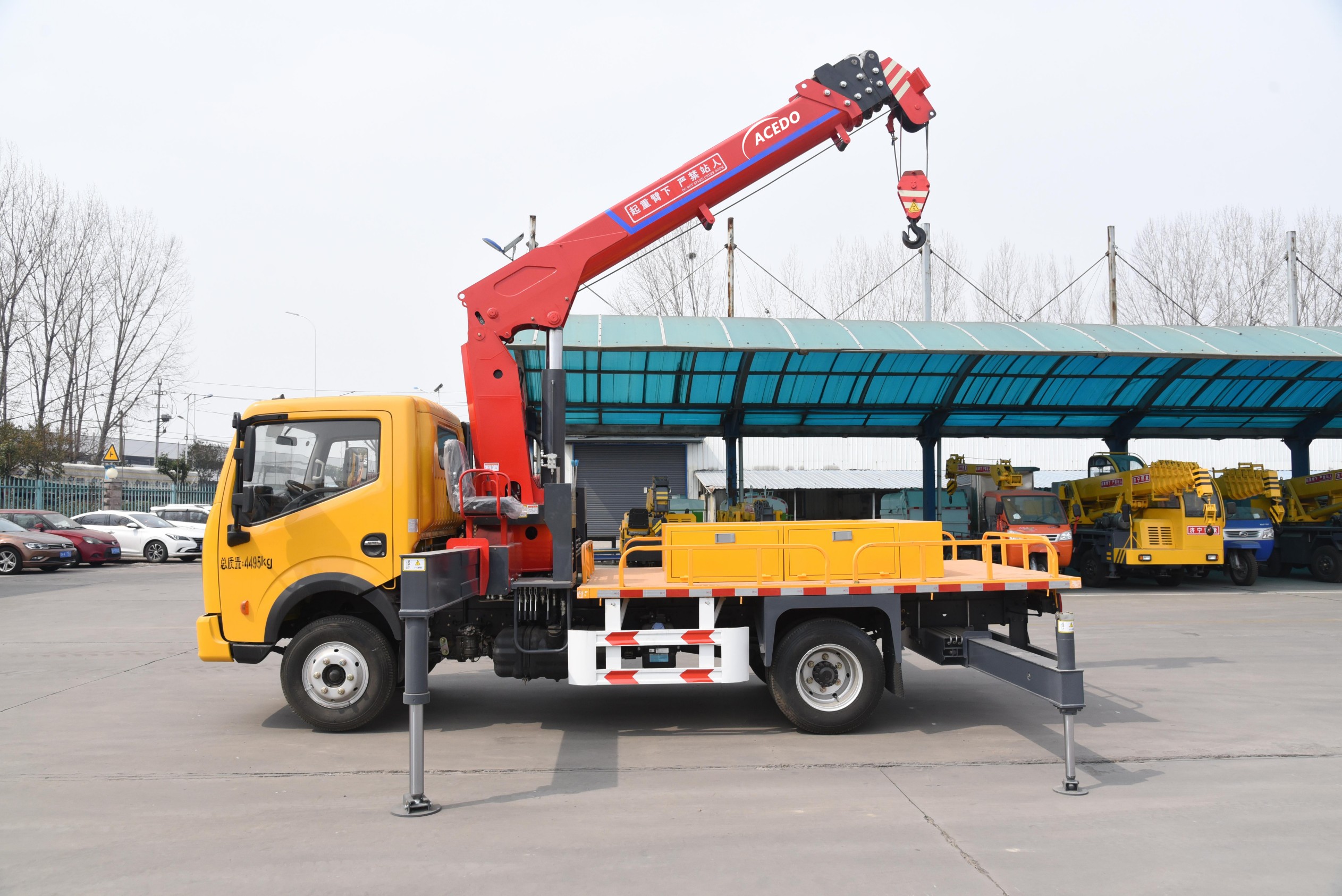

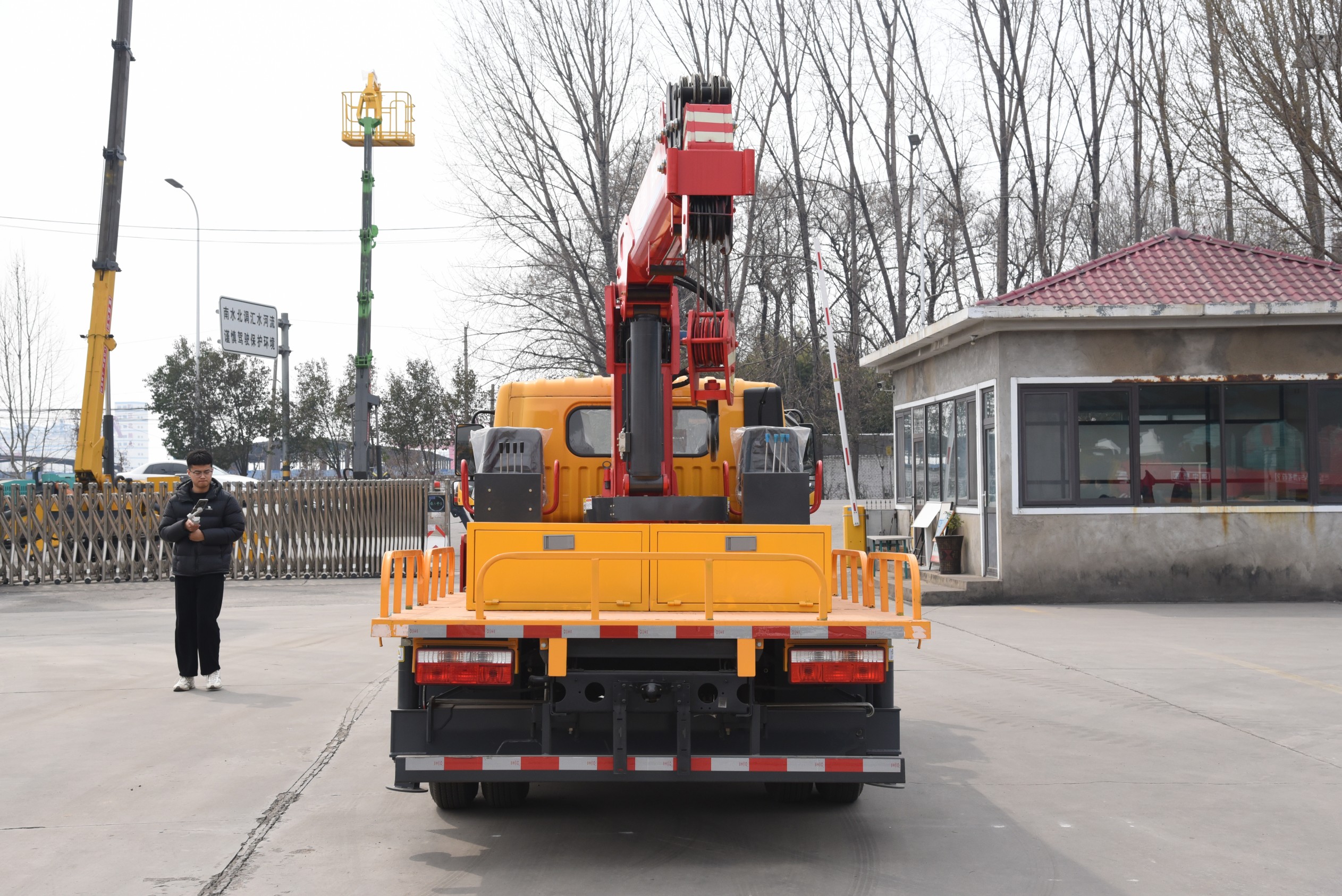

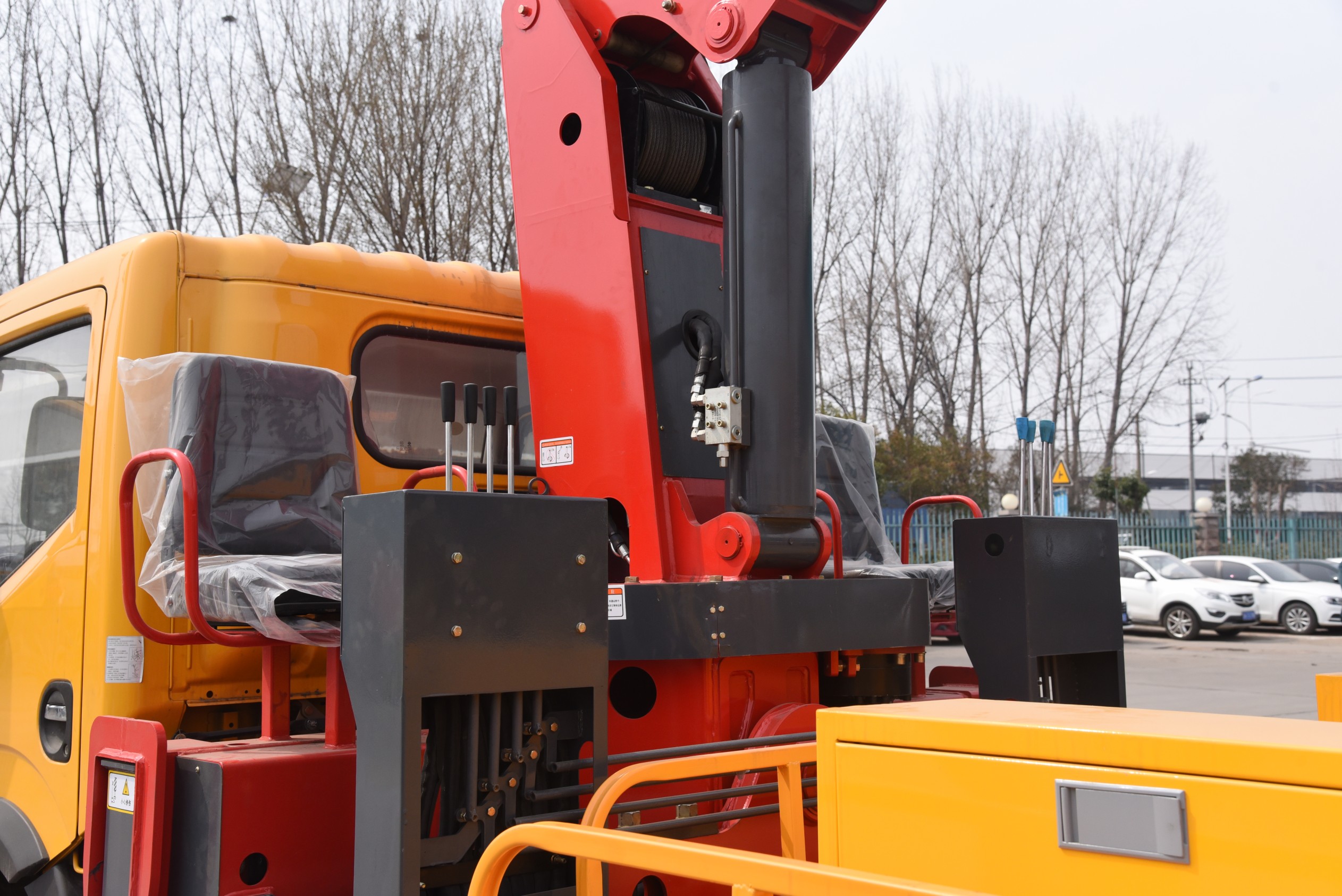

6.3Ton Truck-Mounted Crane

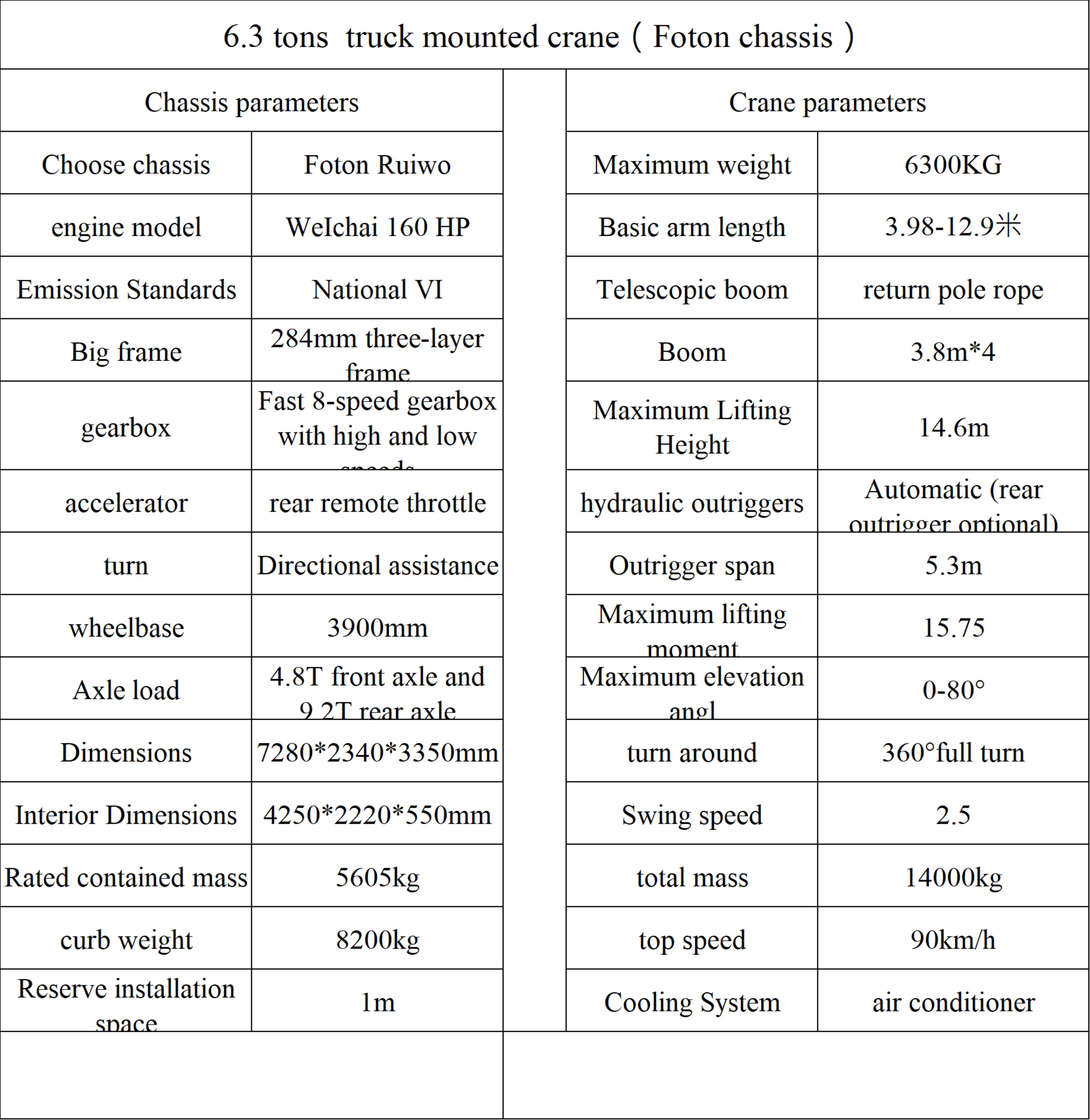

6.3 tons  truck mounted crane(Foton chassis)
Chassis parameters   Crane parameters
Choose chassis Foton Ruiwo Maximum weight 6300KG
engine model WeIchai 160 HP Basic arm length 3.98-12.9米
Emission Standards National VI Telescopic boom return pole rope
Big frame 284mm three-layer frame Boom 3.8m*4
gearbox Fast 8-speed gearbox with high and low speeds Maximum Lifting Height 14.6m

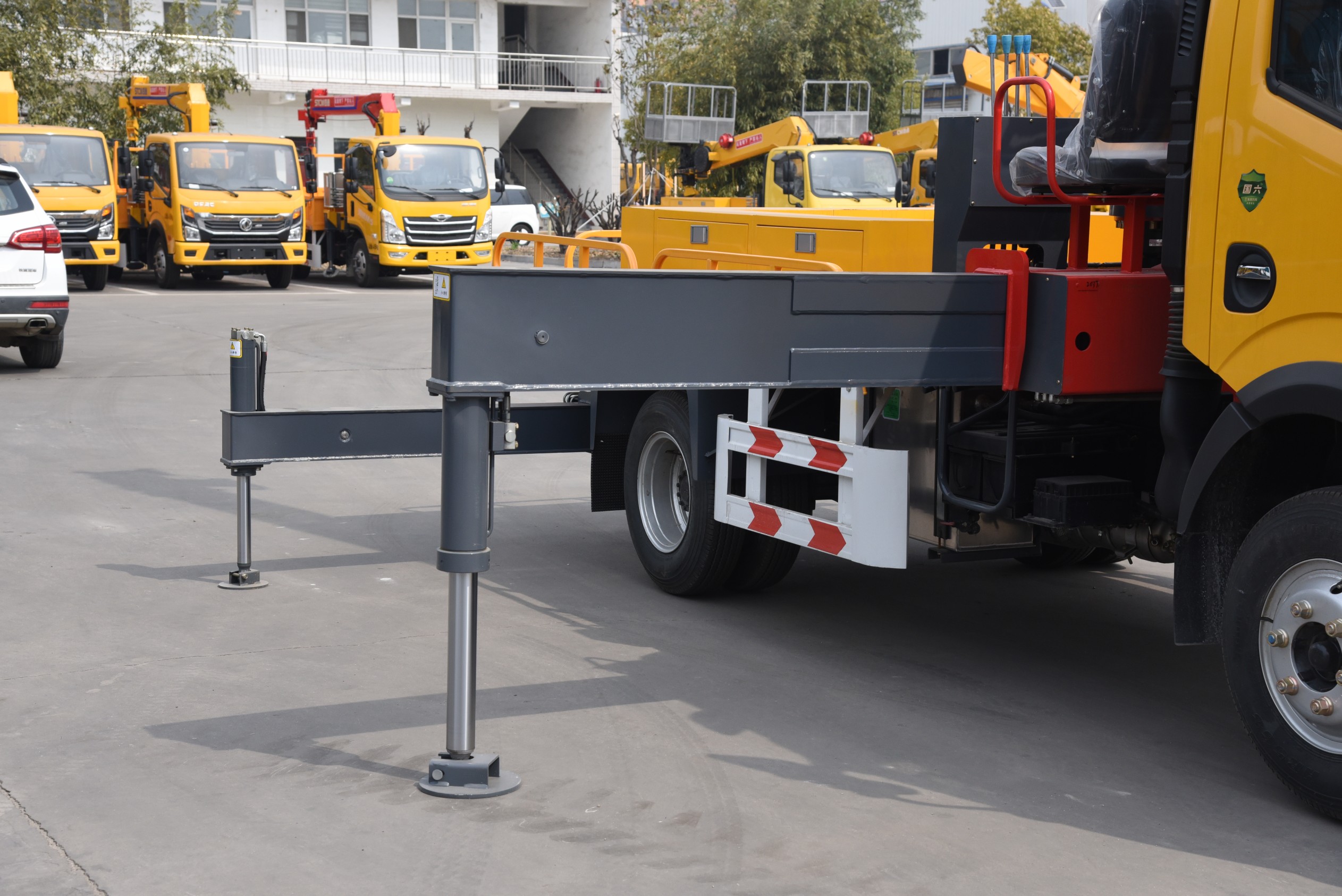

accelerator rear remote throttle hydraulic outriggers Automatic (rear outrigger optional)
turn Directional assistance Outrigger span 5.3m
wheelbase 3900mm Maximum lifting moment 15.75
Axle load 4.8T front axle and 9.2T rear axle Maximum elevation angl 0-80°
Dimensions 7280*2340*3350mm turn around 360°full turn
Interior Dimensions 4250*2220*550mm Swing speed 2.5
Rated contained mass 5605kg total mass 14000kg
curb weight 8200kg top speed 90km/h
Reserve installation space 1m Cooling System air conditioner



6.3t6.3t6.3t6.3t
