Product details

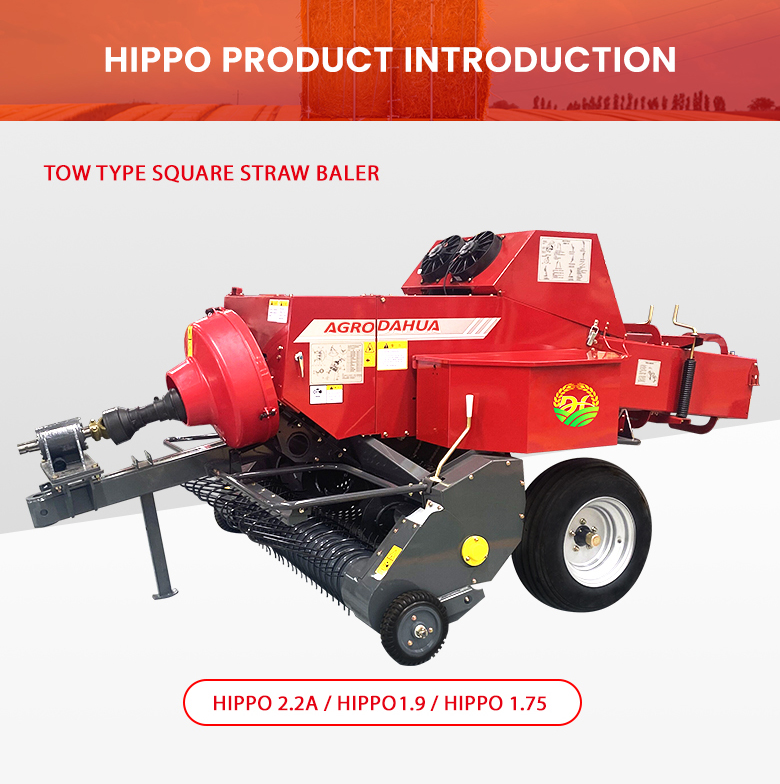

HIPPO 2.2A

Equipped with picking function to meet different market demands

The screw feeder adopts the from of double screw and four fork in the middle of feeding.

The feeding fork adopts the crank connecting rod mechanism in the connecting rod mechanism, which is simple, reliable, and flexible;

The rope knotter adopts an imported D-type knotter, which is structurally reliable and has a high tying rate.

The length of the hay bundle can be adjusted between 310-1300mm to meet different market demands.

Product parameters

Project	unit	Design value
Model	/	2.2A
Width of pickup	mm	2200
Pickup structure form	/	Spring tine cultivator
Knotter form	/	D model
Number of knotters	piece	2
Compression chamber section dimensions	mm	457*356
Matched power	KW	≥37
First trouble-free average effort:>4000 bundles Oty per feed：>2.5kg/time

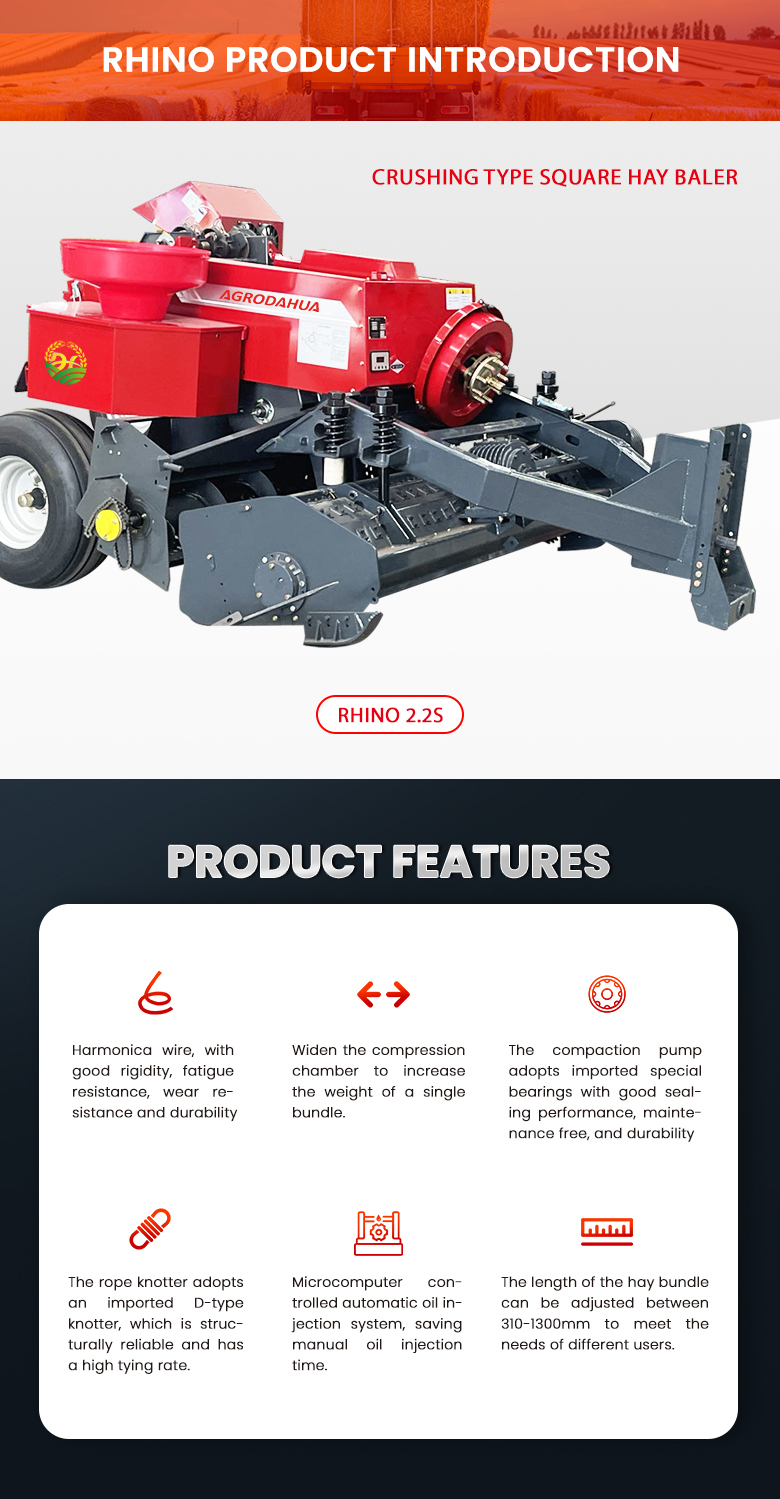

RHINO 2.5

Can be equipped with a crusher, double crushing, more powerful

Can be equipped with dust removal device, clean and dust-free, efficient and environmentally friendly

RHINO baler capable of crushing and packaging straw

Crushing type square hay baler

Product parameters

Dimensions (length x width x height)	5910×2670×1750mm	matched power	≥70KW
Crush wide width	2200mm	productivity	200-300bundle/Every hour
Number of knotters	2 of them	Straw bundle drop resistance rate	≥95%
Number of knotters	≥98%	Compression chamber section dimensions	482mm×360mm
Bale density	120-180kg/m³	Rule bale rate	≥95%
