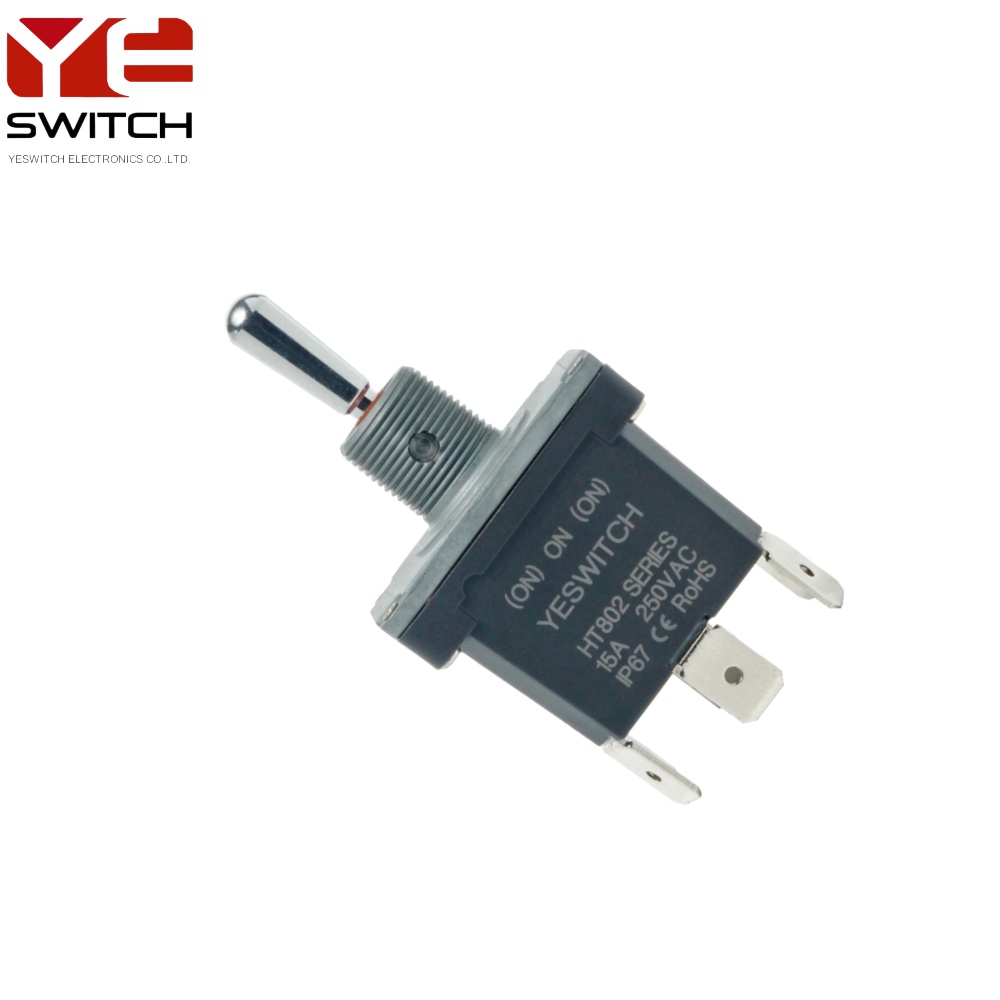

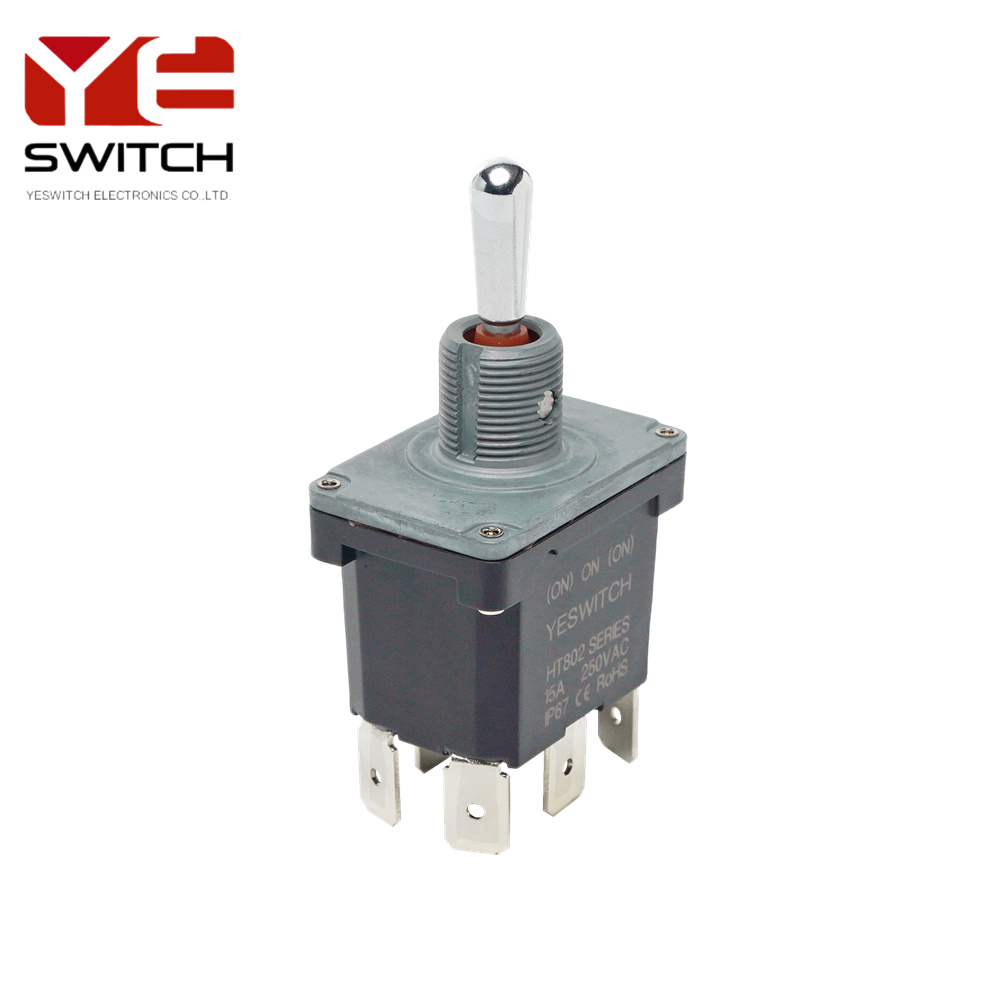

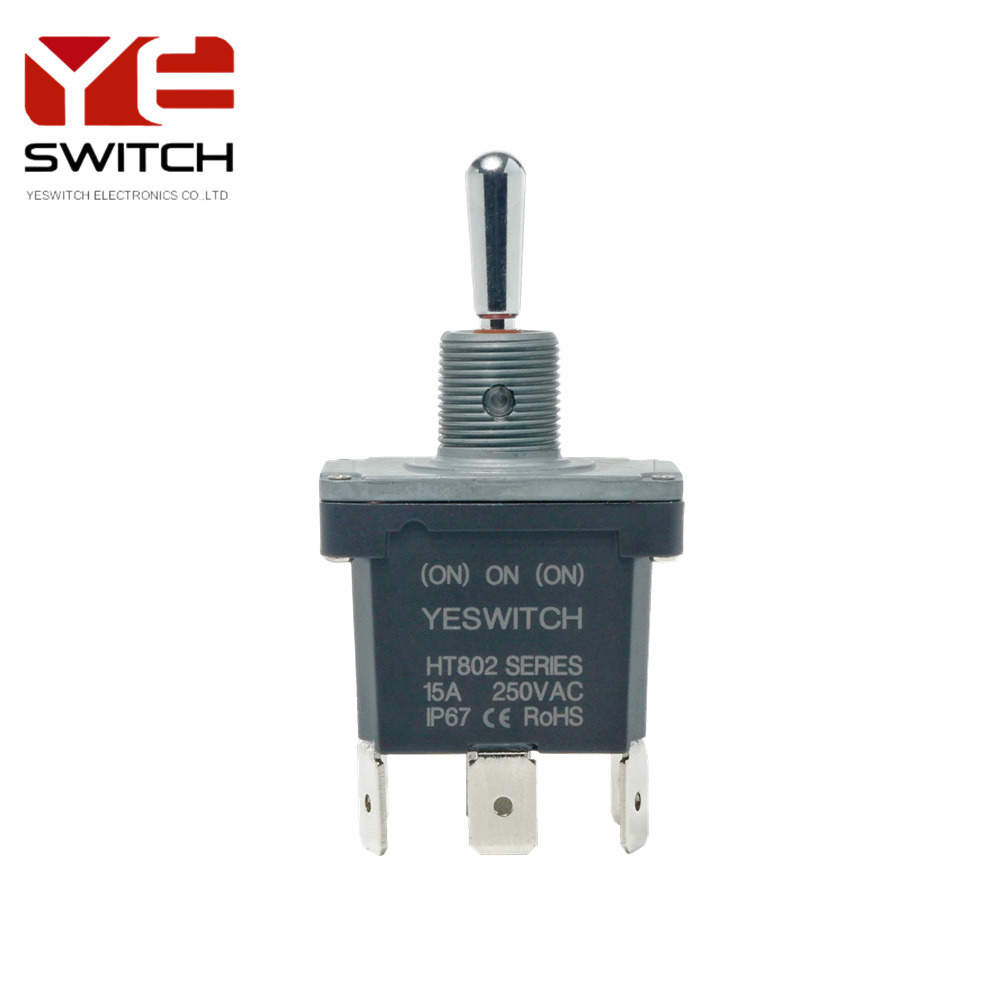

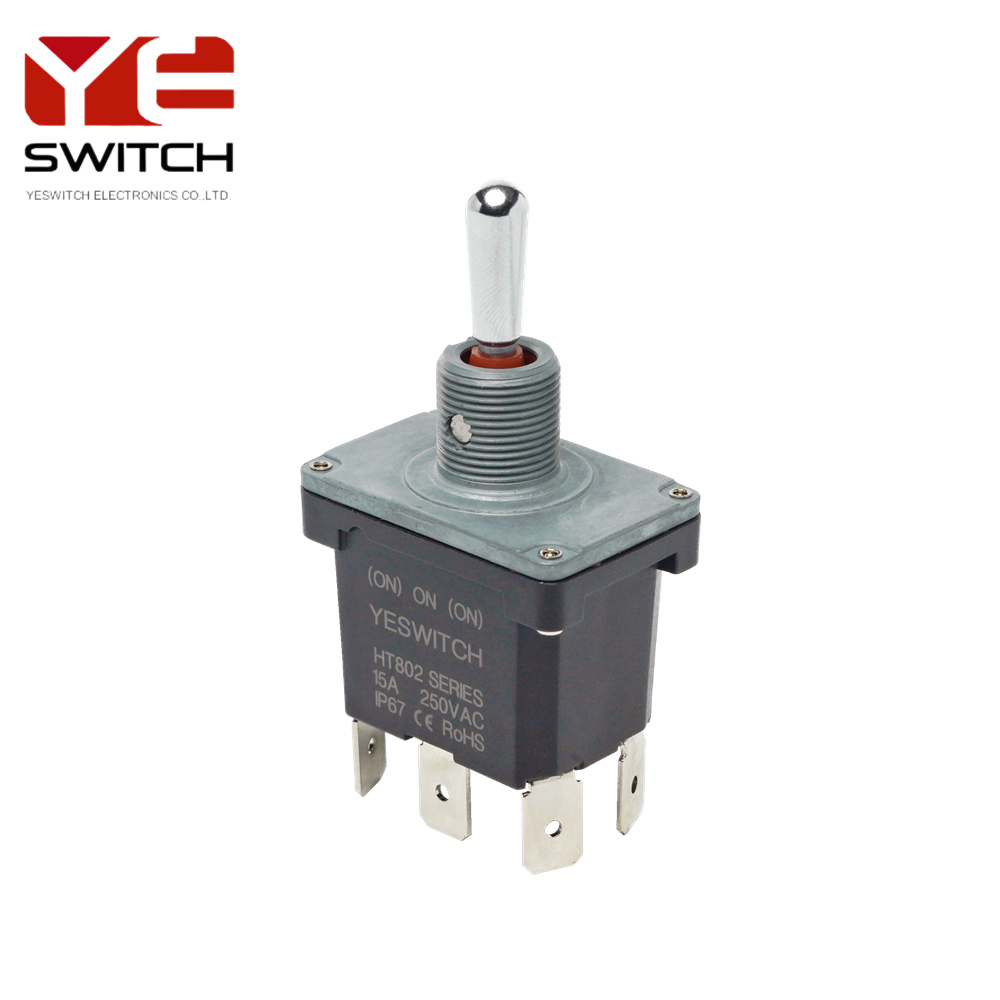

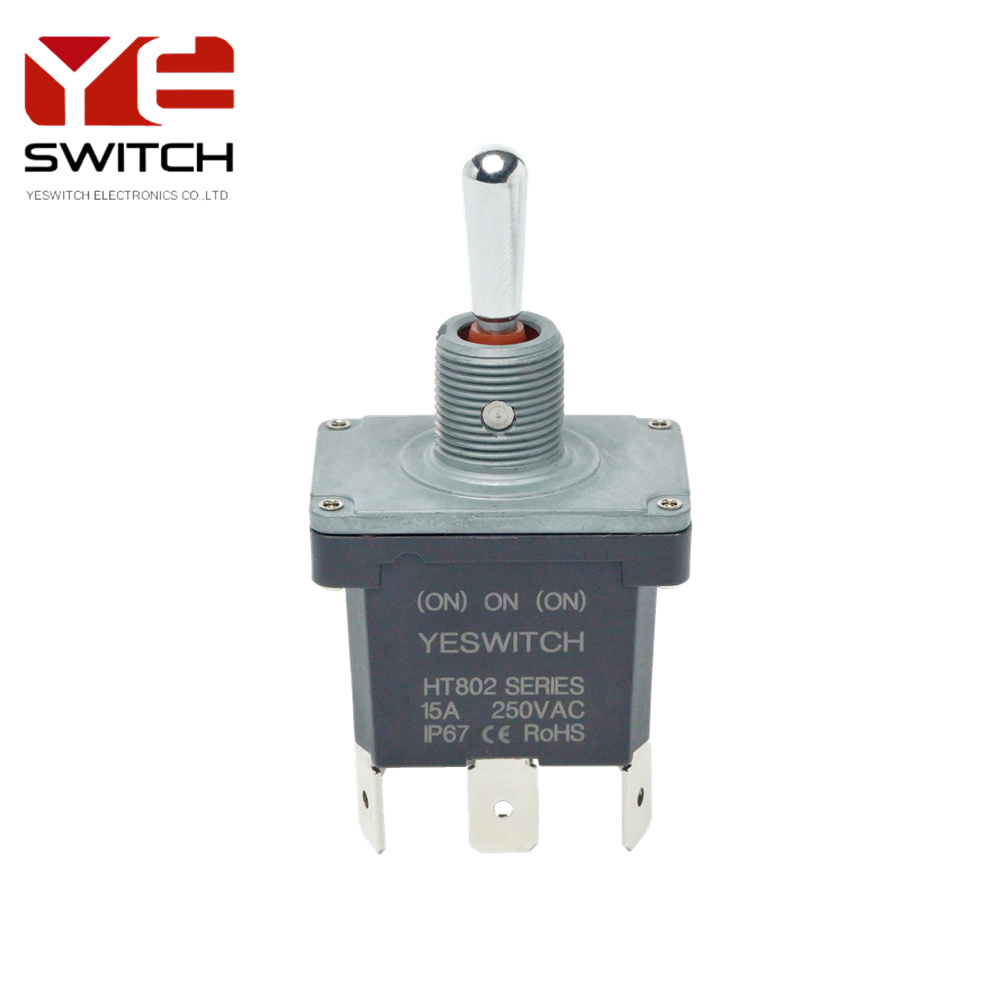

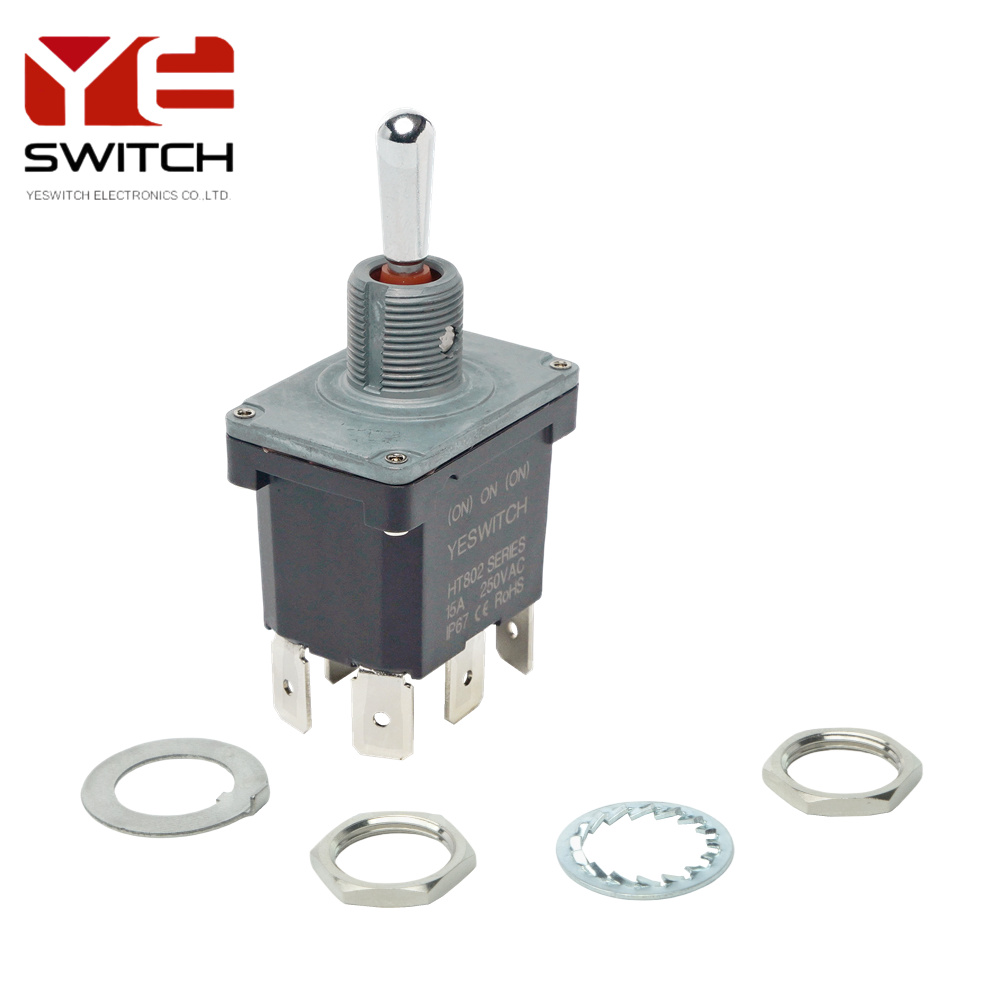

Round Metal Handle Industrial Toggle Switch DP3T

The YESWITCH HT802 series is a robust high-performance toggle switch designed for demanding industrial and heavy machinery applications.Engineered to deliver reliability in extreme conditions,this industrial toggle switch combines rugged construction with advanced electrical capabilities,making it ideal for critical control systems such as overhead crane remote controllers,aerial work platform (AWP) controls,joysticks,and industrial automation equipment.

Key Features

Dual-Pole (ON)-ON-(ON) Functionality

3-position toggle switch with dual-pole operation,providing two independent circuits.

Center-off configuration:Allows momentary or maintained switching between two ON positions(e.g.,forward/reverse or up/down controls).

Suitable for bidirectional control and complex logic operations in machinery.

High Current Capacity

Rated at 15A 28VDC,capable of handling high inrush currents typical in heavy-duty motors,solenoids,and actuators.

Copper alloy contacts ensure low resistance,minimal arcing,and extended service life.

Rugged Construction

Metal Actuator (Round Lever):Durable copper alloy lever with a polished finish for corrosion resistance and tactile operation in harsh environments.

Zine Alloy Housing: High-impact,flame-retardant thermoplastic housing rated for IP68 protection,ensuring dustproof and waterproof performance even when submerged.

Terminal Type

PC Quick-Connect Terminals:Pre-insulated,solderless terminals for fast wiring and secure connections.

Design Advantages

IP68 Protection

Sealed against dust ingress and high-pressure water jets,making it suitable for outdoor or wet environments(e.g.,construction sites,marine applications).

Ergonomic Actuator

The round metal lever provides a firm grip,even with gloves,and ensures precise switching under high-vibration conditions.

Space-Saving Profile

Compact dimensions enable installation in tight control panels or joystick assemblies.

Typical Applications

Overhead Crane Remote Controllers

Used for directional control (hoist/trolley movement) with reliable switching under high inductive loads.

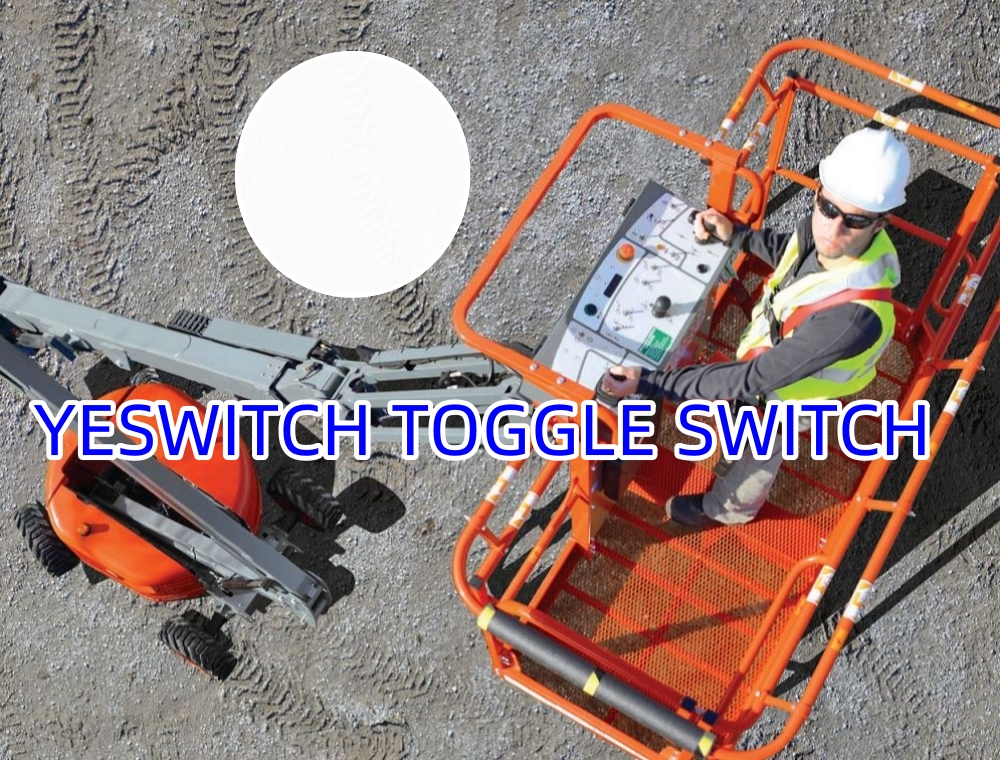

Aerial Work Platforms (AWPs)

Controls lift,tilt,and extension functions in boom lifts and scissor lifts.

Industrial Joysticks

Integrated into hydraulic/pneumatic control systems for material handling equipment.

Heavy Machinery Controllers

Power switching for excavators,forklifts,and agricultural equipment.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
