PA6 Glass Fiber Sheet

2 month ago

6 0 

3 month

Product details

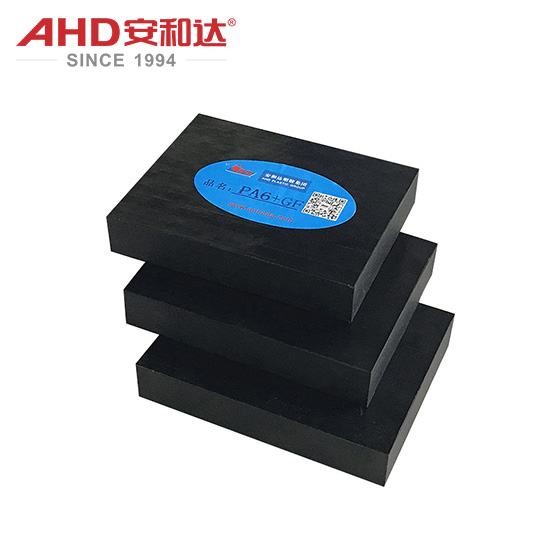

PA6 GF Sheet 30% Glass Fiber Material

PA6 GF Sheet is designed to offer exceptional mechanical properties, making it ideal for a wide range of industrial and commercial applications. The product is manufactured using a precise process that ensures uniform distribution of glass fibers within the polymer matrix, resulting in a material that is both durable and lightweight.

The key features of PA6 30 GF Sheet include excellent tensile strength, high impact resistance, good dimensional stability, and superior thermal resistance. These characteristics make it suitable for use in environments where materials are exposed to extreme temperatures, mechanical stress, or chemical exposure. The inclusion of 30% glass fiber reinforcement significantly enhances the rigidity and load-bearing capacity of the base polyamide 6 material, providing a balance between flexibility and structural integrity.

Performance

Mechanical properties

High strength and rigidity: The glass fiber content (usually 15% -50%) significantly enhances the tensile strength (up to 150-300 MPa) and bending modulus (5-10 GPa) of PA6, approaching the specific strength of aluminum metal.

Impact resistance: The notch impact strength (ISO 179) is in the range of 20-50 kJ/m ², which is superior to unreinforced PA6 and suitable for dynamic load scenarios.

Fatigue resistance: Stable performance under high-frequency cyclic loads, suitable for long-term vibration environments such as gears and bearings.

Thermal performance

Heat resistance: The heat deformation temperature (HDT, 1.82 MPa) can reach 200-220 ° C, and the long-term use temperature is -40 ° C to 120 ° C.

Low thermal expansion coefficient: Glass fiber reduces the linear thermal expansion rate (2-3 × 10 ⁻⁵/° C) and has better dimensional stability than pure PA6.

Chemical and Environmental Tolerance

Chemical resistance: resistant to fuel, lubricants, weak acids and bases, but may swell in strong acid/alkali environments.

Weather resistance: UV stabilizers need to be added to delay outdoor aging, otherwise they are easily degraded by sunlight.

Friction and Wear

Low friction coefficient (0.1-0.3, vs. steel): Excellent self-lubricating properties, suitable for oil-free lubrication conditions.

Wear resistance: PV value (pressure x speed) can reach 3 MPa · m/s, suitable for sliding parts.

Electrical Performance

Insulation: Volume resistivity>10 Ω· cm, but glass fiber may cause anisotropic conductivity.

pa6 nylon sheet gf

PA6 Sheet GF advantages

Lightweight alternative metal: density of 1.3-1.5 g/cm ³, 50% lighter than aluminum alloy, reducing the inertia of moving parts.
Convenient processing: CNC machining, drilling, and tapping are possible without the need for complex molds (compared to injection molded parts).
Noise reduction and vibration reduction: Polymer structures absorb vibrations and reduce equipment noise (such as gearboxes).
Economy: Lower cost compared to metals (such as stainless steel) and special engineering plastics (such as PEEK).

Scope of application

Temperature range: -40 ° C to 120 ° C (short-term peak of 150 ° C).
Load conditions: Medium to high mechanical stress, moderate wear environment, avoid long-term acid-base contact.
