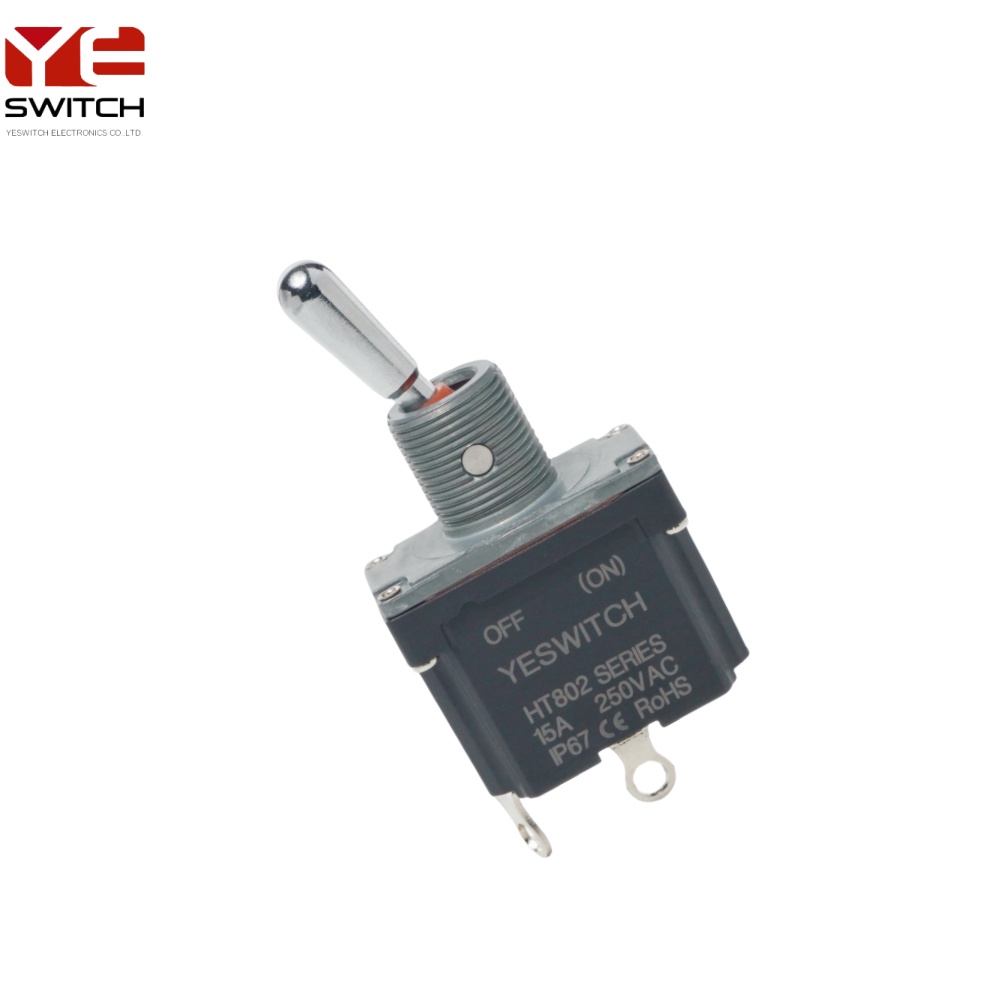

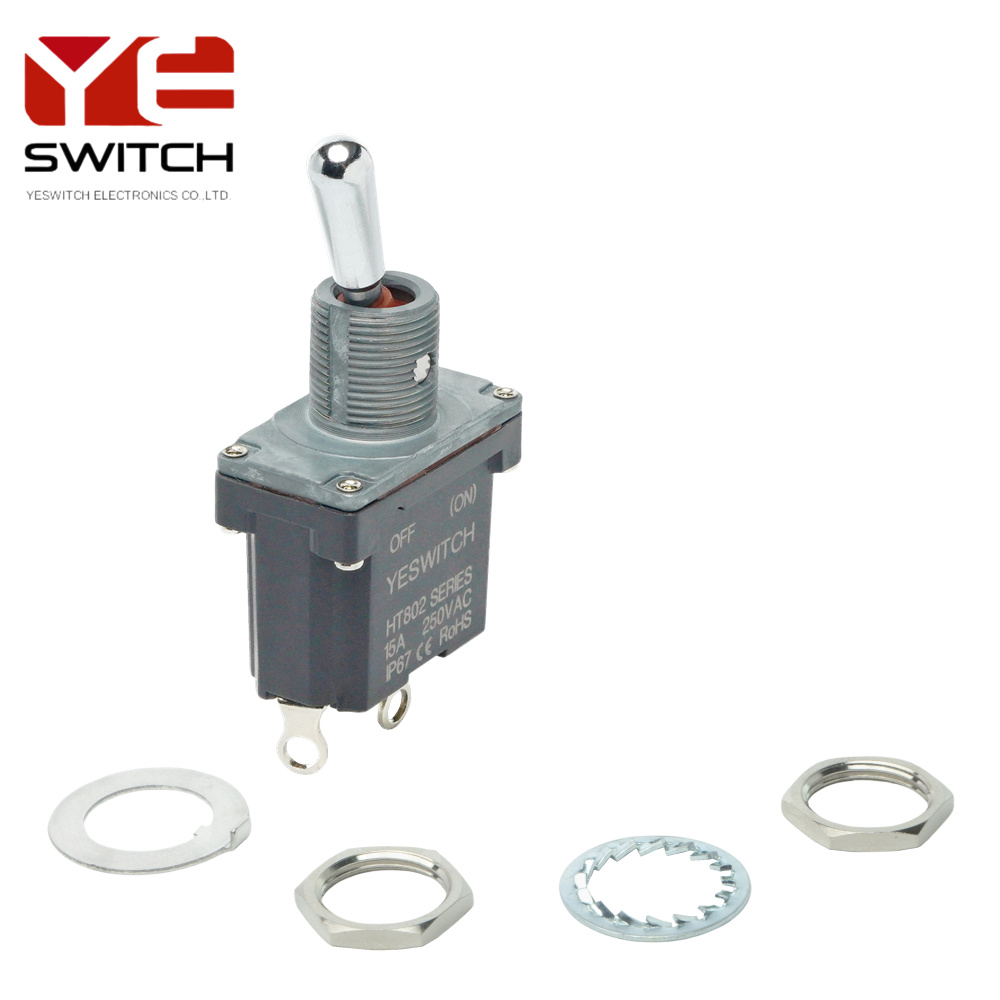

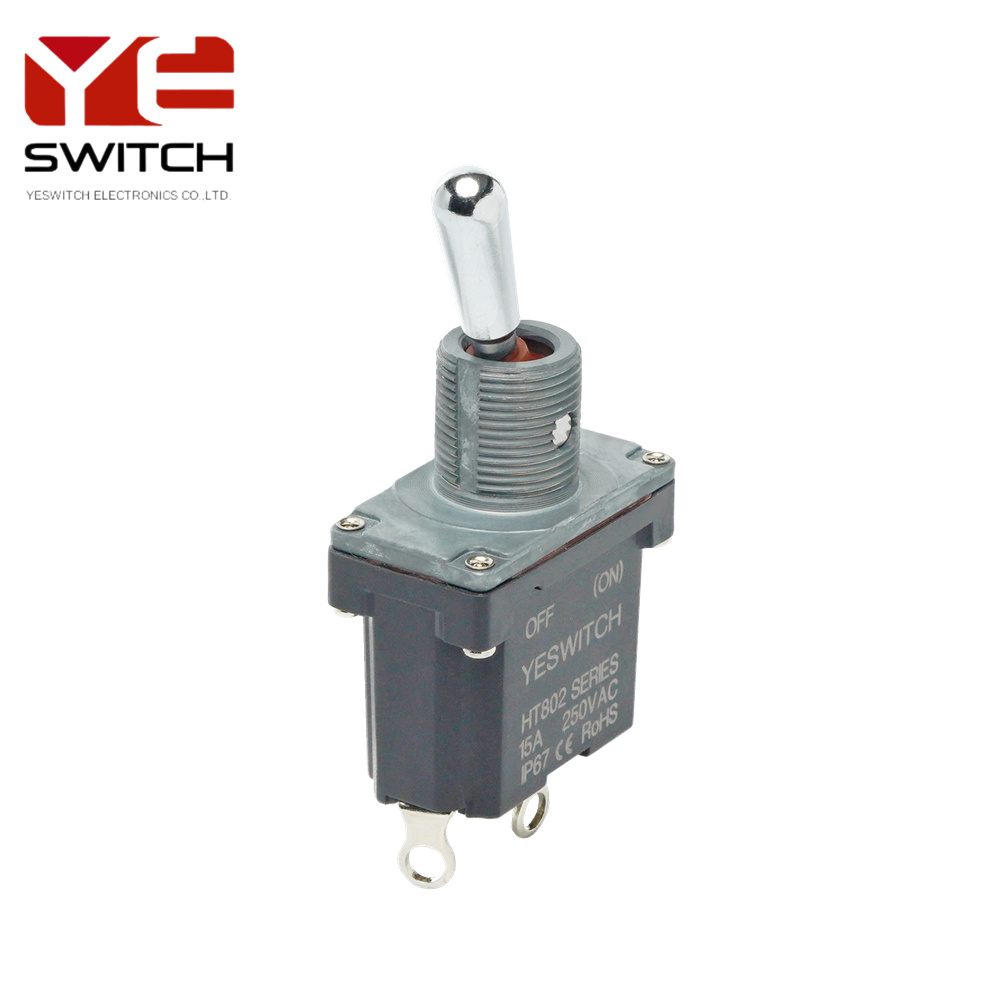

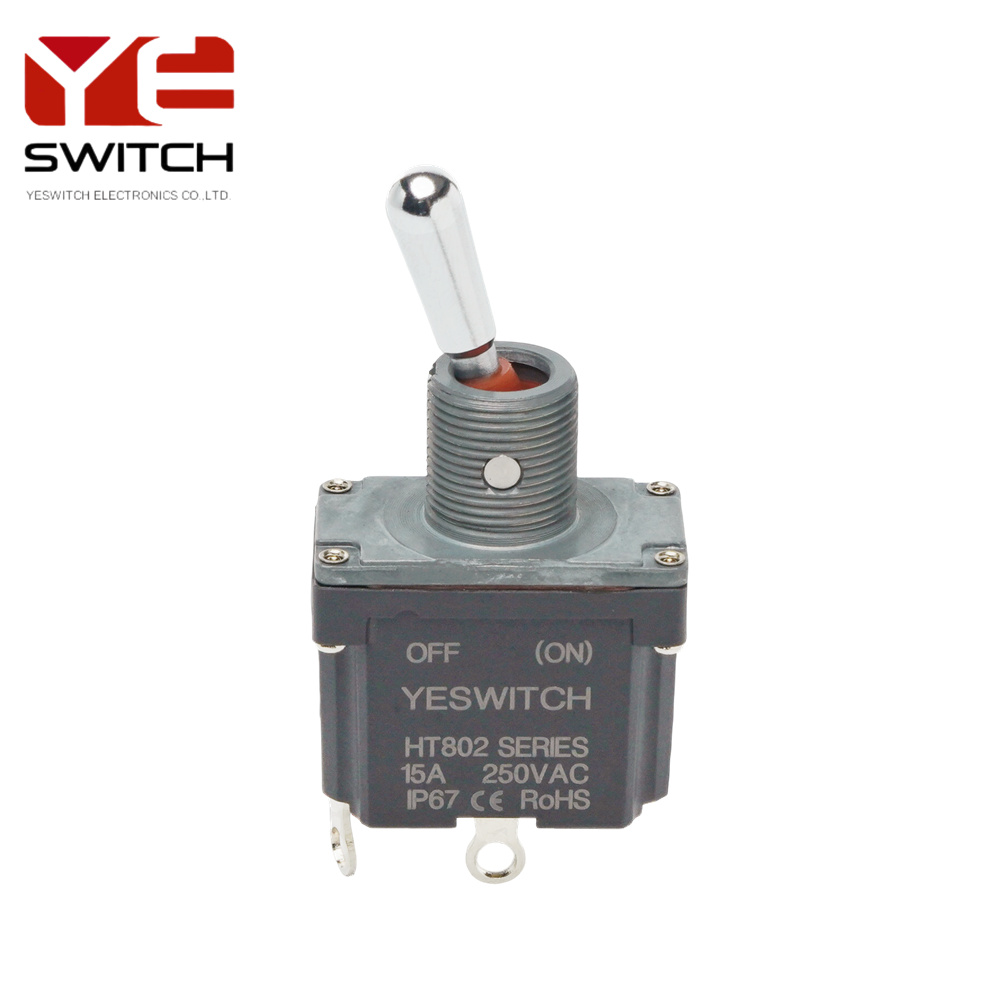

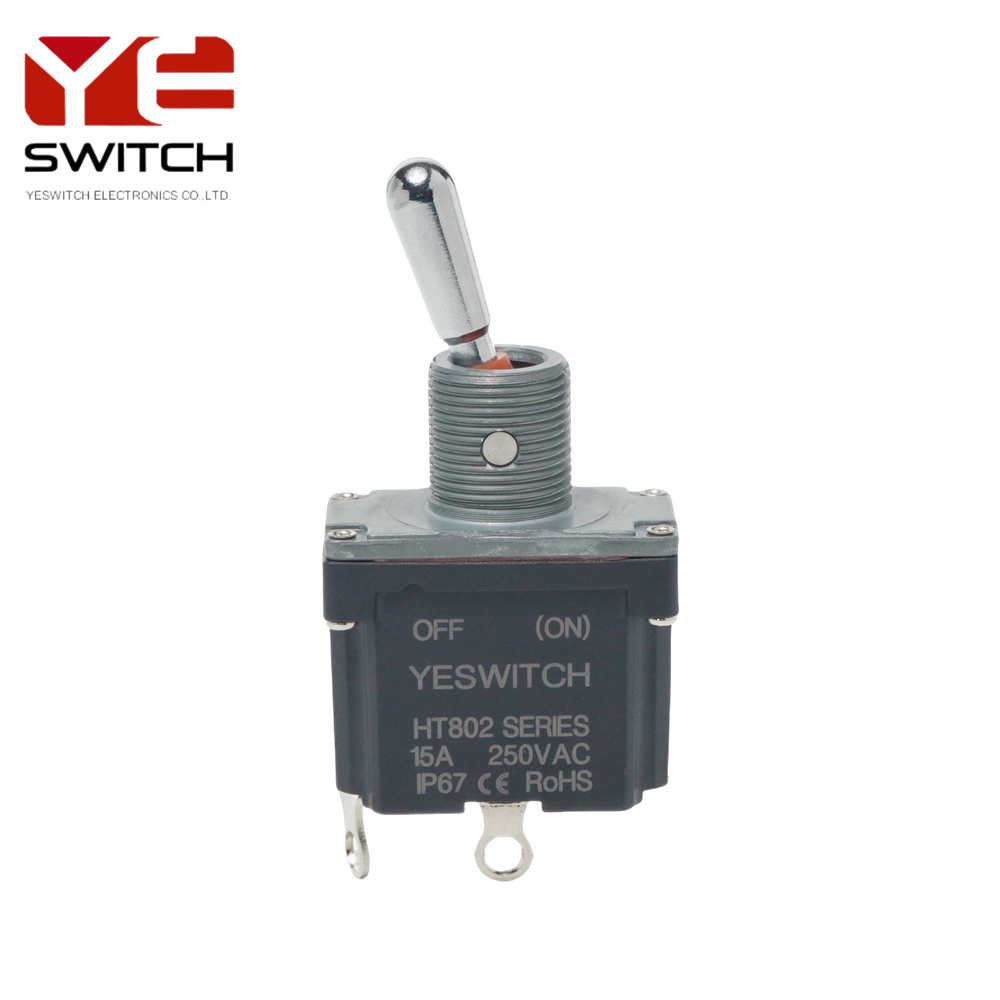

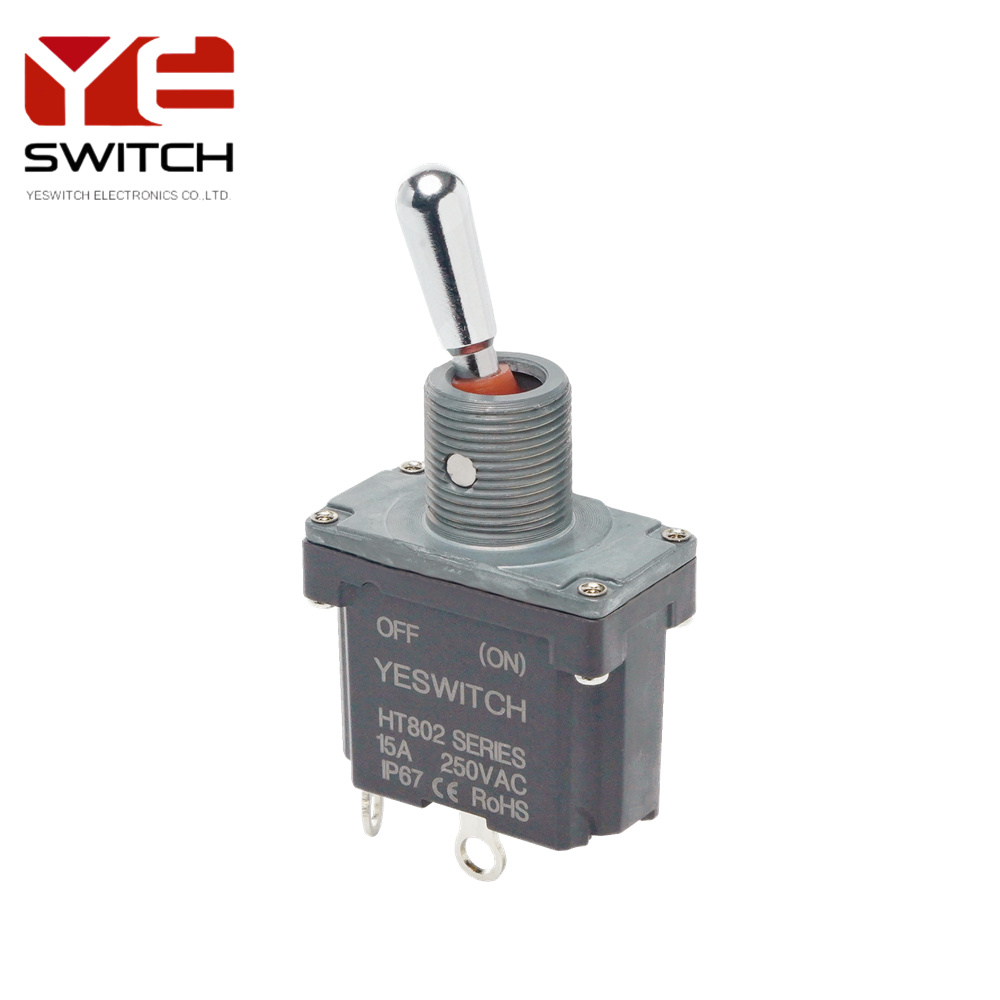

Heavy-Duty Metal Handle Toggle Switch Solder Terminal

The YESWITCH HT802 Series industrial toggle switch is a robust and high-performance high current toggle switch and IP68 waterproof toggle switch, a professional ON-OFF toggle switch designed specifically for demanding applications in heavy-duty machinery, including aerial work platforms, road rollers, bulldozers, and other industrial equipment. Engineered to withstand harsh environments, this switch boasts excellent waterproof performance and large current carrying capacity, combining durability, reliability, and user-friendly operation. As a qualified product from a professional toggle switches manufacturer located in China, it serves as an ideal choice for critical control functions in construction, agriculture, and material handling industries.

Key Features

Heavy-Duty Construction

Round Metal Handle:Forged from high-strength copper alloy with a corrosion-resistant finish,the ergonomic handle ensures long-lasting durability and tactile operation,even in rugged conditions.

12V28V ToggleSwitch SPST OFF-(ON) Momentary ToggleSwitch Action

Single-Pole,Single-Throw (SPST) Configuration:Simplifies wiring and integration into electrical systems.

Momentary OFF-(ON) Function:The toggle switch returns to the OFF position when released,enhancing safety for applications requiring temporary activation (e.g.,horn signals,emergency stops).

High-Current Capacity

Rated for Heavy Loads:Capable of handling up to 16A at 125/250VAC or 15A at 28VDC,making it suitable for controlling motors,lights,and hydraulic systems in heavy machinery.

Copper-Alloy Contacts:Ensures low resistance,minimal arcing,and extended service life even under frequent switching cycles.

Secure Solder Terminals

Solder Lug Connections:Robust solder terminals provide a reliable and vibration-resistant electrical connection,critical for machinery subjected to constant motion.

Environmental Resistance

IP68 Protection:Sealed against dust ingress and water jets,ensuring functionality in wet or dusty worksites.

Wide Temperature Range:Operates reliably in temperatures from -40 to +85 degrees,suitable for extreme climates.

Applications

The HT802 Series industrial toggle switch is tailored for heavy-duty equipment requiring dependable switching solutions:

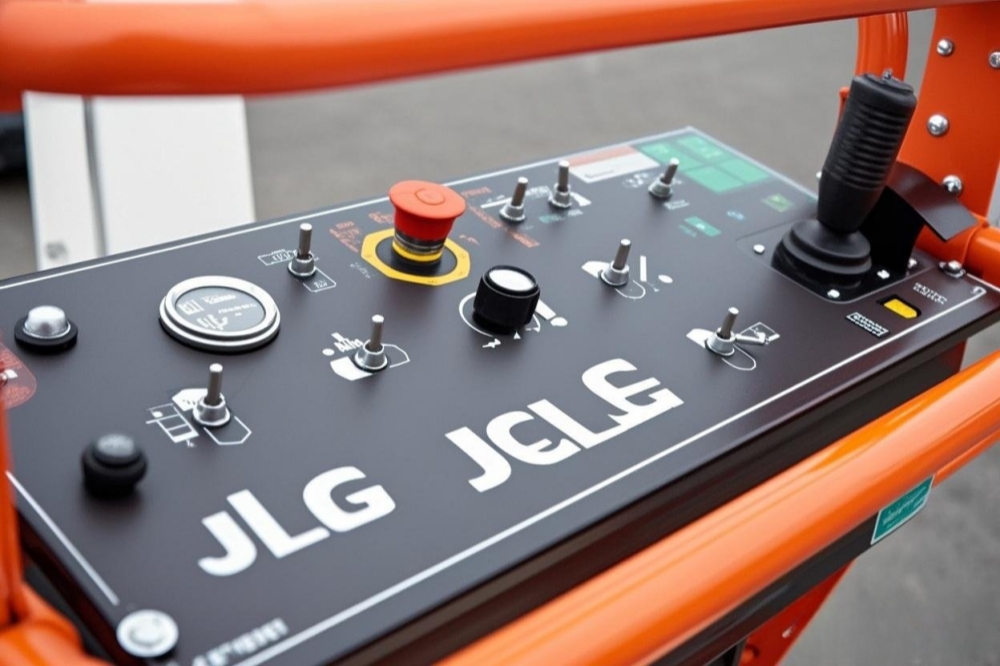

Aerial Work Platforms:Control lift functions,emergency stop systems,or lighting.

Road Rollers & Bulldozers:Activate hydraulic circuits,engine starters,or warning alarms.

Agricultural Machinery:Operate PTO systems,sprayers,or irrigation pumps.

Material Handling:Manage conveyor belts,hoists,or crane controls.

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL

SPST Heavy Duty Toggle Switch Metal Handle SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

SPST Toggle Switch Metal Handle Heavy Duty RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC
