AC Line Reactor for Electrical Systems: Enhancing Power Quality and System Reliability
AC Line Reactors, also known as ac line reactor or input choke for vfd, are critical Inverter Components in modern electrical systems, designed to mitigate harmonic distortions, stabilize voltage fluctuations, and improve power factor correction. These reactors are integral to inverter component and frequency inverter (VFD), ensuring efficient energy flow and protecting downstream equipment from power quality issues. This guide explores their technologies, applications, and transformative benefits in industrial, commercial, and renewable energy systems.
What is an AC Line Reactor?

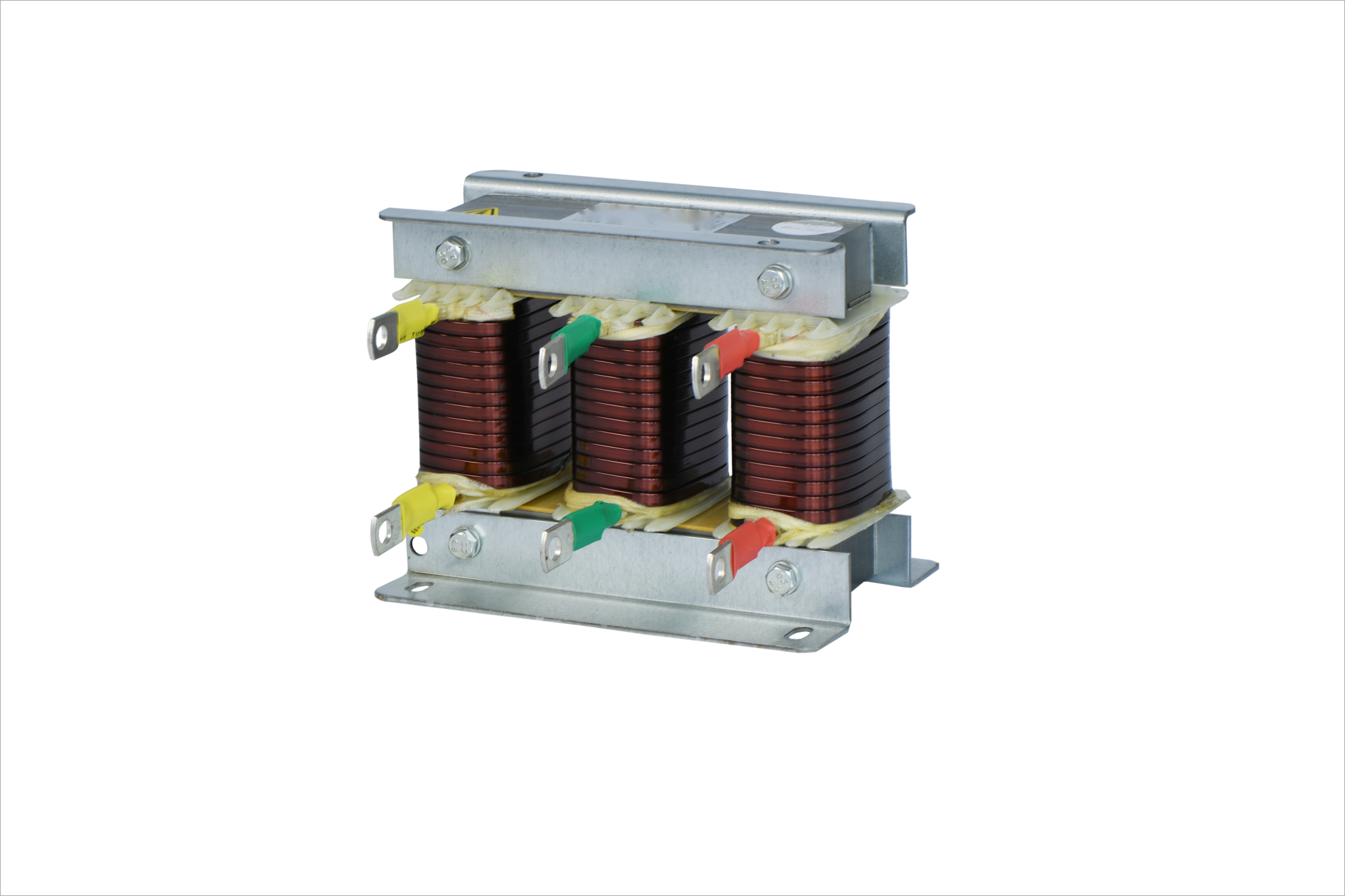

An AC Line Reactor(AC Reactor) is an inductive device installed between the power supply and connected equipment (e.g., VFDs, motors, or transformers). It consists of wound coils that generate a magnetic field to oppose rapid changes in current, effectively filtering harmonics, stabilizing voltage, and reducing power losses. By integrating this component, engineers ensure clean power delivery, prolong equipment lifespan, and comply with electromagnetic compatibility (EMC) standards.
What is an AC Line Reactor?
An AC Line Reactor is an inductive device installed between the power supply and connected equipment (e.g., VFDs, motors, or transformers). It consists of wound coils that generate a magnetic field to oppose rapid changes in current, effectively filtering harmonics, stabilizing voltage, and reducing power losses. By integrating this component, engineers ensure clean power delivery, prolong equipment lifespan, and comply with electromagnetic compatibility (EMC) standards.
Key Functions
- Harmonic Filtering:
Attenuates high-frequency harmonics (e.g., 5th, 7th, 11th) generated by VFD rectifiers, ensuring compliance with IEEE 519 and IEC 61000-2-4 standards. - Voltage Stabilization:
Smooths input current ripples caused by PWM switching in VFDs, reducing stress on capacitors and rectifiers. - Impedance Matching:
Increases line impedance to limit current harmonics and improve power factor. - Surge Protection:
Absorbs voltage spikes from grid disturbances (e.g., lightning, motor regeneration).
Types of AC Line Reactors
1. Standard AC Reactor
- Purpose: General-purpose harmonic suppression and power conditioning.
- Design Features:
- Core Material: Laminated silicon steel for low-frequency harmonic attenuation.
- Impedance Rating: Typically 3–5% to balance harmonic reduction and voltage drop.
- Applications:
- Industrial motors in pumps, conveyors, and compressors.
- HVAC systems requiring grid compliance.
2. Line Choke for VFD (Specialized Reactor)
- Purpose: Tailored to address VFD-specific power quality challenges.
- Design Features:
- Dual-Winding Configuration: Provides both common-mode and differential-mode noise filtering.
- High-Frequency Damping: Ferrite cores suppress EMI in PWM-driven systems.
- Applications:
- High-power drives in steel mills, cranes, and mining equipment.
- Systems with long cable runs (>50 meters) to mitigate voltage reflection.
-
3. AC Line Reactor with EMI Filtering
- Purpose: Combines harmonic suppression with advanced EMI filtering.
- Design Features:
- Integrated Capacitors: LC circuits for broadband noise attenuation.
- Robust Construction: IP-rated enclosures for harsh environments.
- Applications:
- Food processing equipment with stringent hygiene standards.
- Marine and offshore systems exposed to saltwater corrosion.
