SPST High-Current Toggle Switch with PC Terminal for Cranes

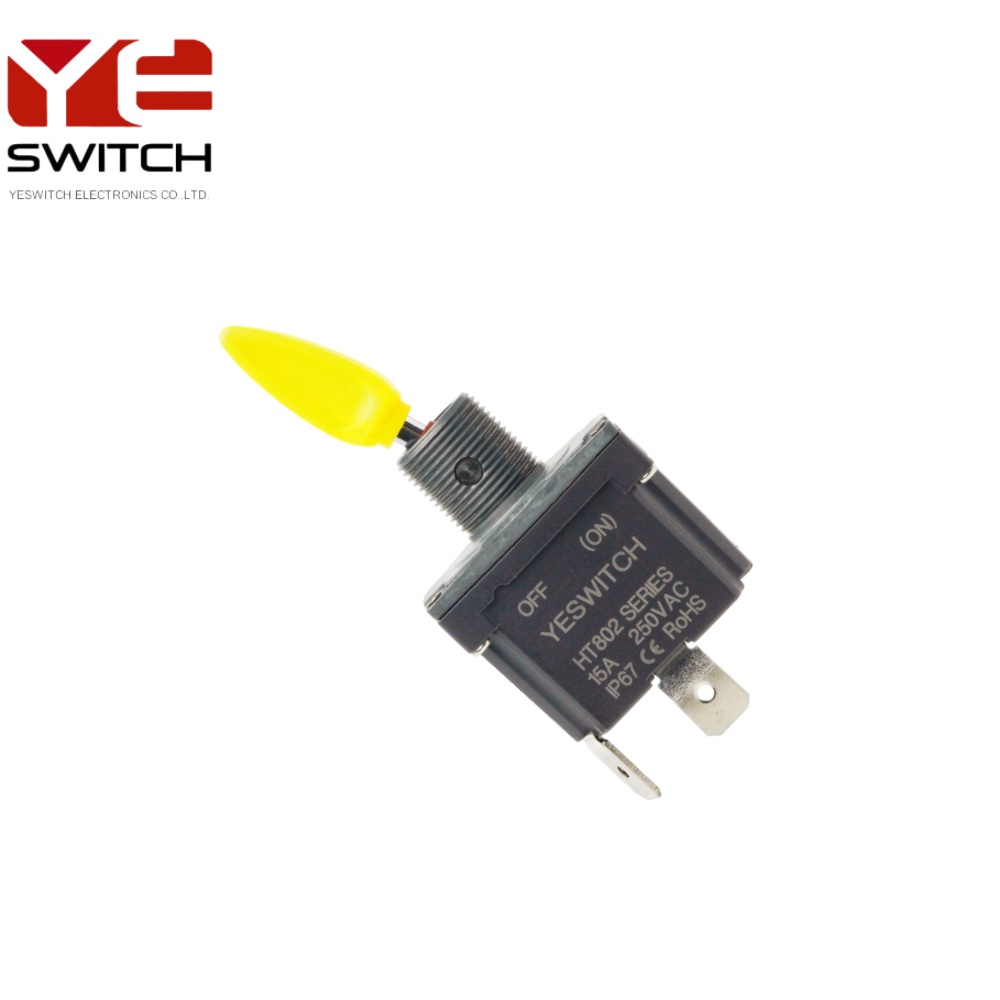

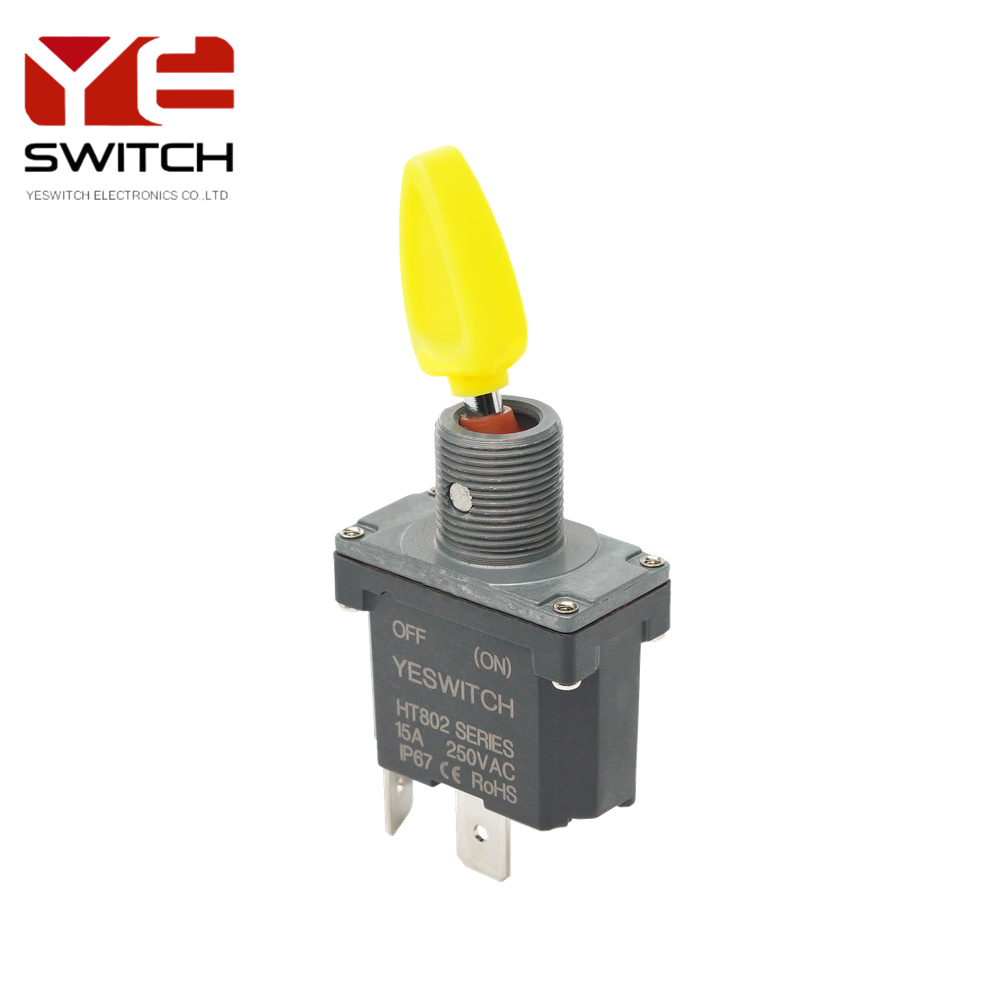

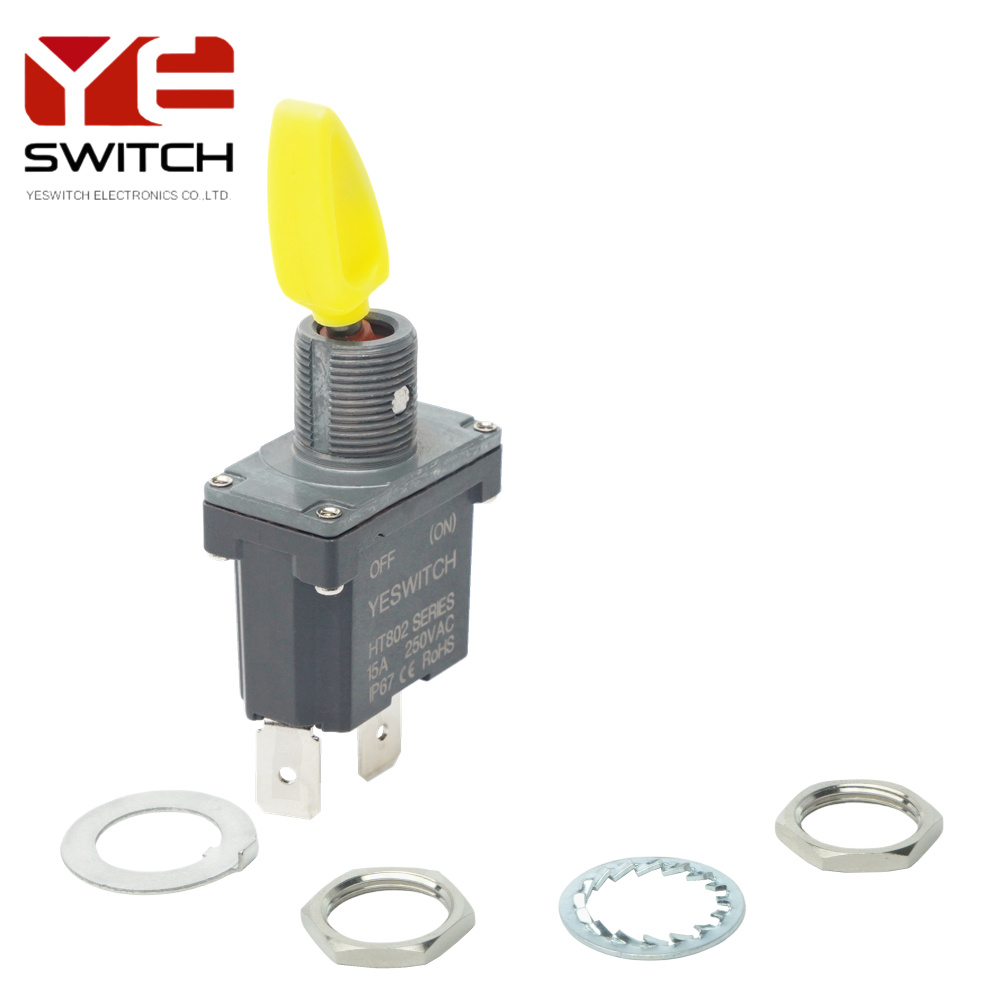

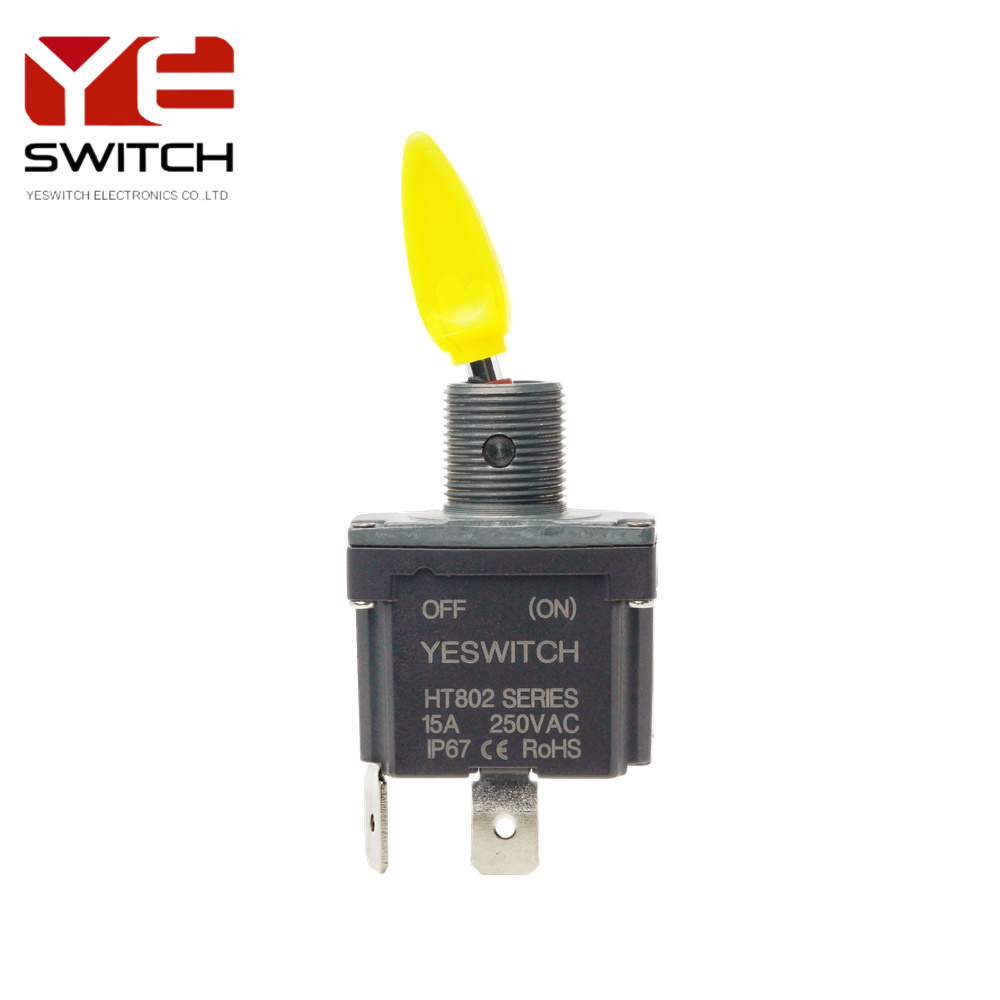

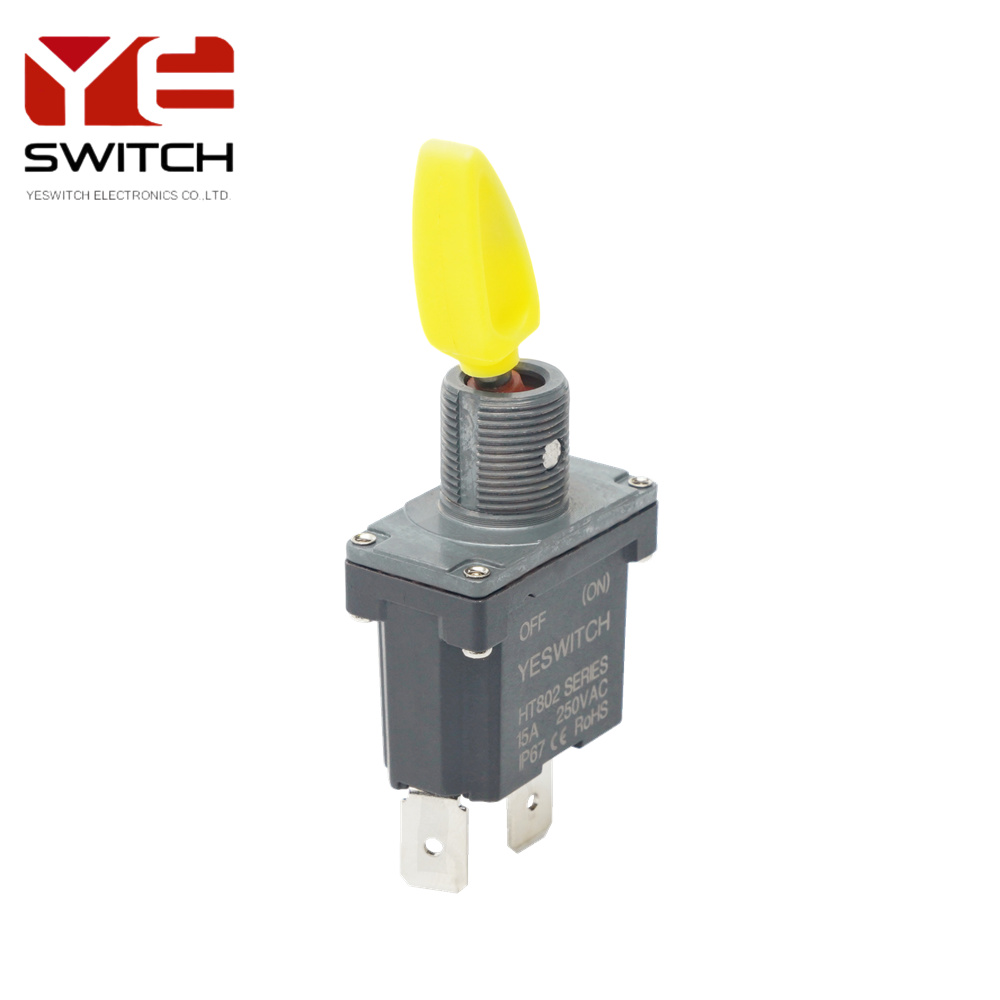

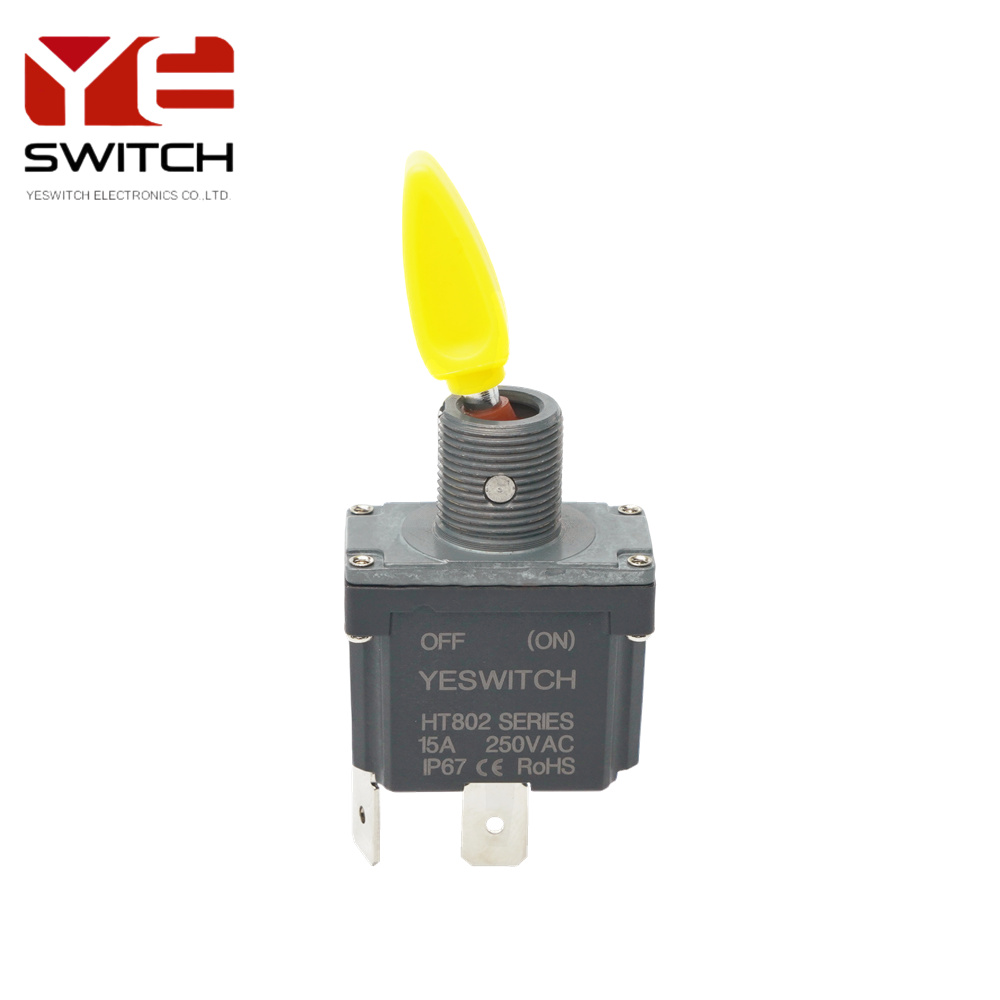

The YESWITCH HT802 Series is a robust,high-performance toggle switch designed for demanding industrial and heavy-duty machinery applications.Engineered with precision,this SPST (Single Pole Single Throw) toggle switch features a momentary OFF-(ON) operation,ensuring reliable control in environments requiring quick activation or interruption of electrical circuits.Its rugged construction,combined with a high-current rating of 16A at 250VAC,makes it ideal for machinery, power tools,agricultural equipment,and other high-load systems.

Design Features

Heavy-Duty Construction:

Reinforced thermoplastic housing and internal components ensure durability in harsh environments, including resistance to vibration, dust, and moisture.

High-Current Capacity:

Rated for 16A at 250VAC,this toggle switch handles heavy electrical loads commonly found in motors,compressors,and industrial machinery.

Ergonomic Yellow Handle:

Bright yellow toggle lever provides quick visual identification in low-light conditions.

Textured grip ensures easy operation,even with gloves.

Secure PC Terminal Connection:

PC terminals enable stable soldering or direct mounting to circuit boards,minimizing loose wiring risks.

Momentary Action:

The OFF-(ON) configuration ensures circuits are only energized when the switch is actively held in the ON position,adding a layer of operational safety.

Applications

Industrial Machinery:CNC machines,presses,conveyor systems.

Power Tools:Drills,saws,grinders.

Agricultural Equipment:Tractors,harvesters,irrigation systems.

HVAC Systems:High-power compressors and fans.

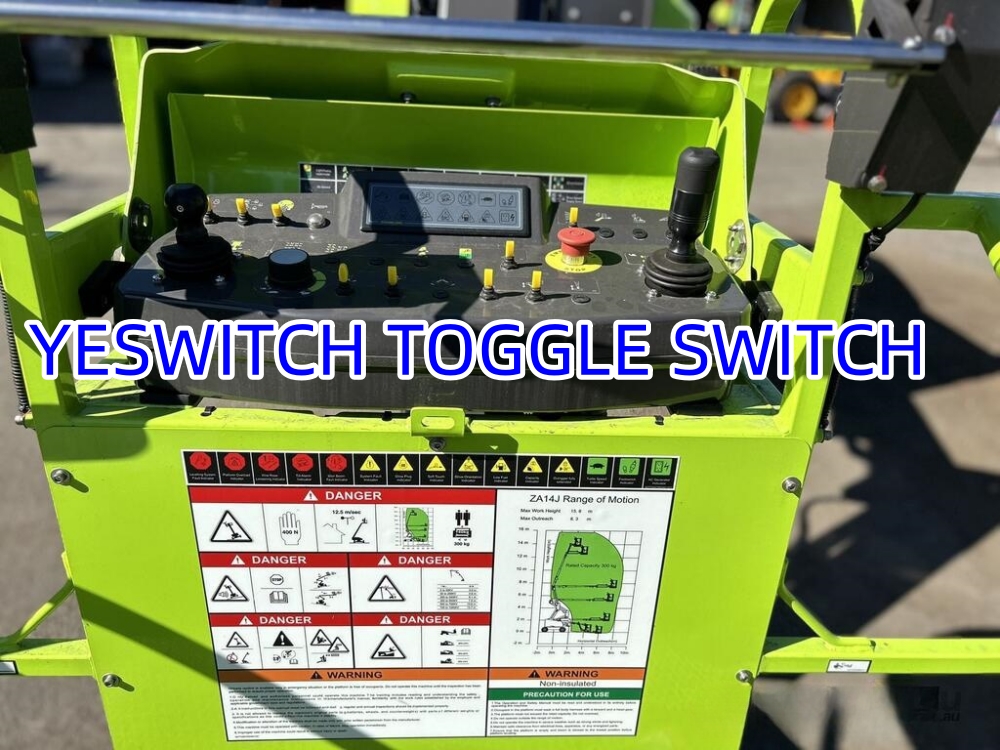

Material Handling:Cranes,forklifts,hoists.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
