Product details

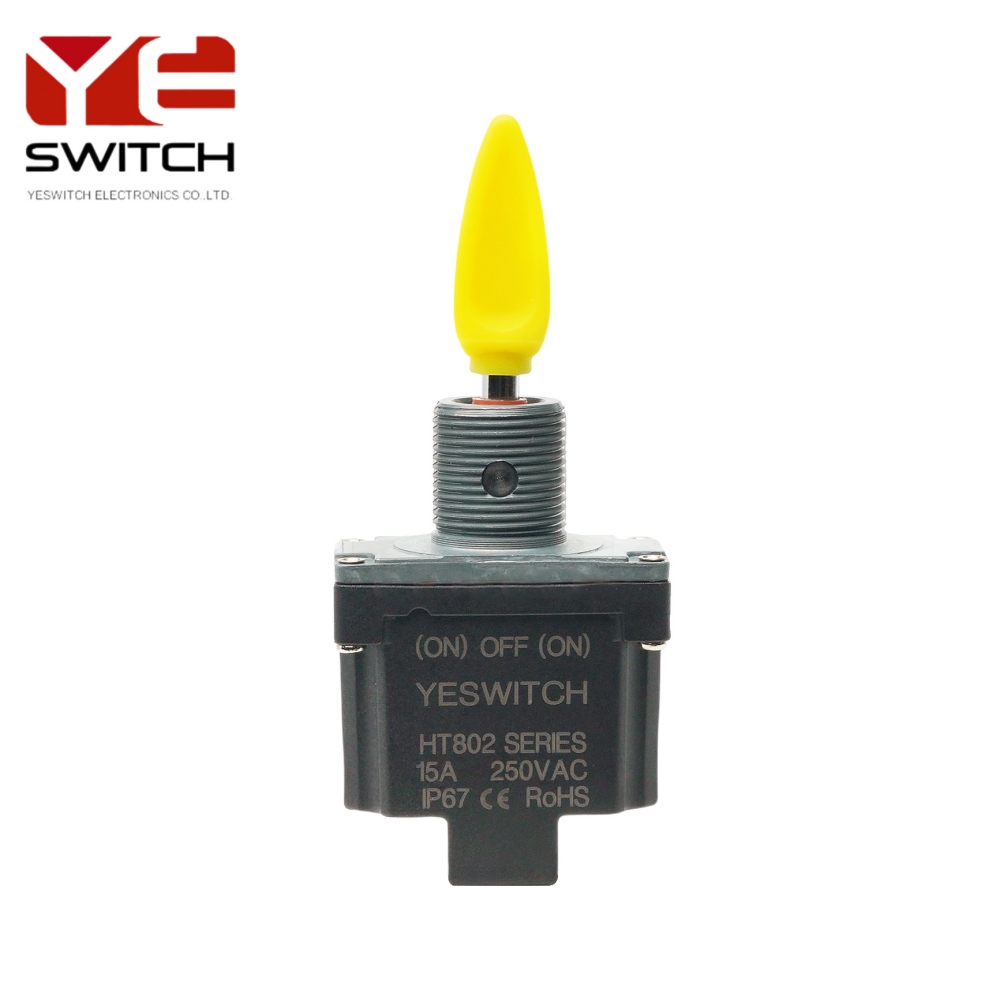

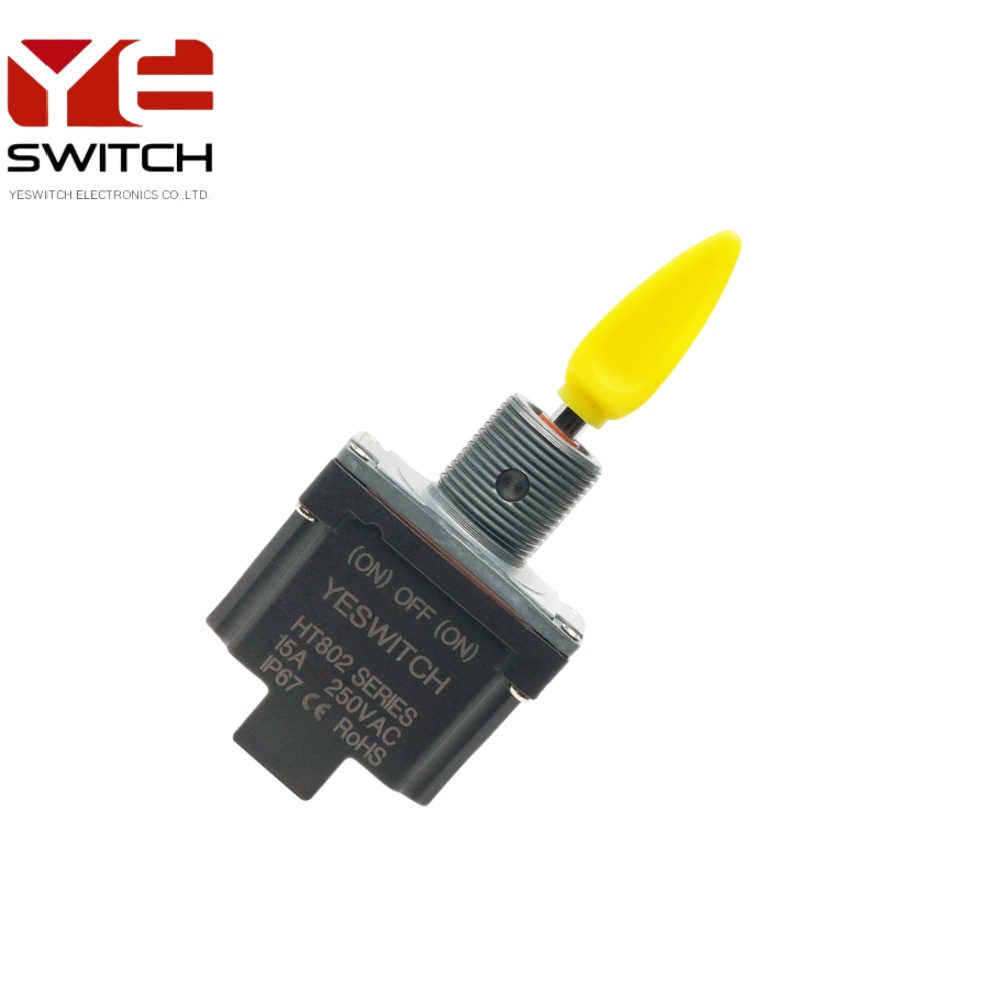

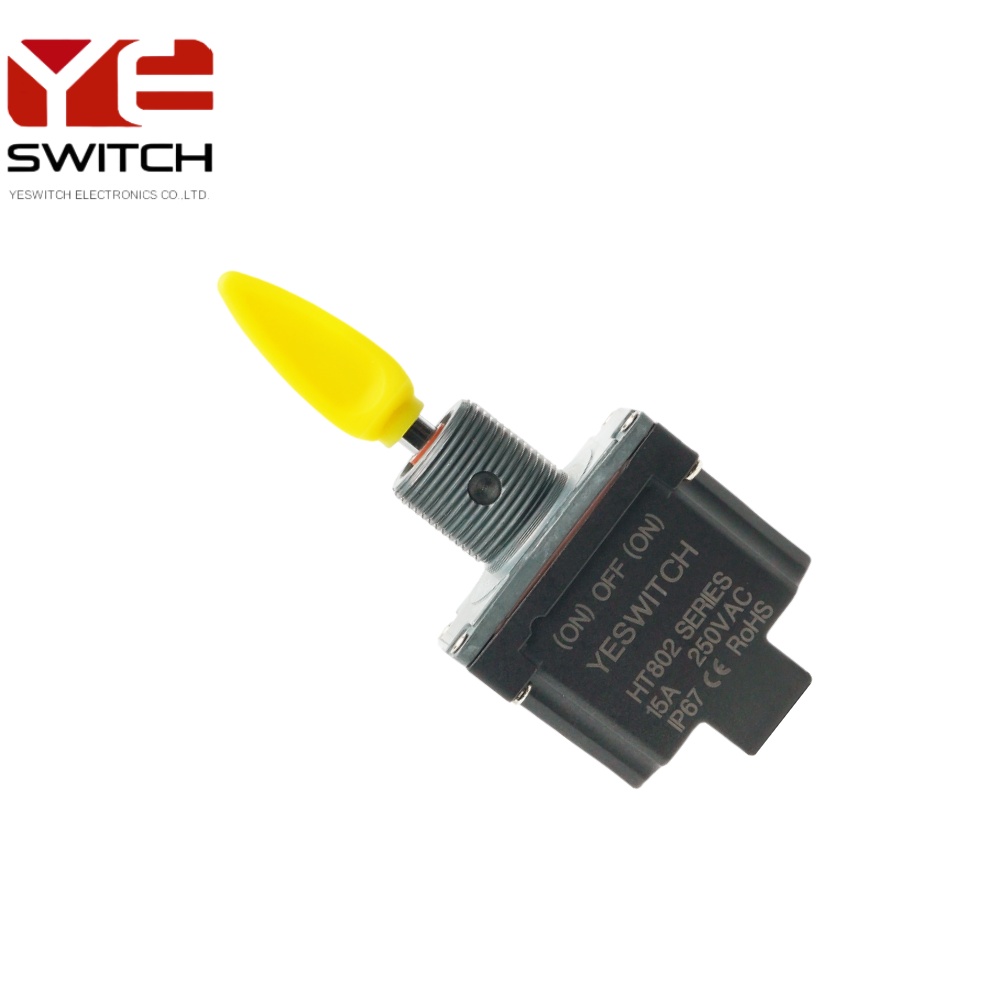

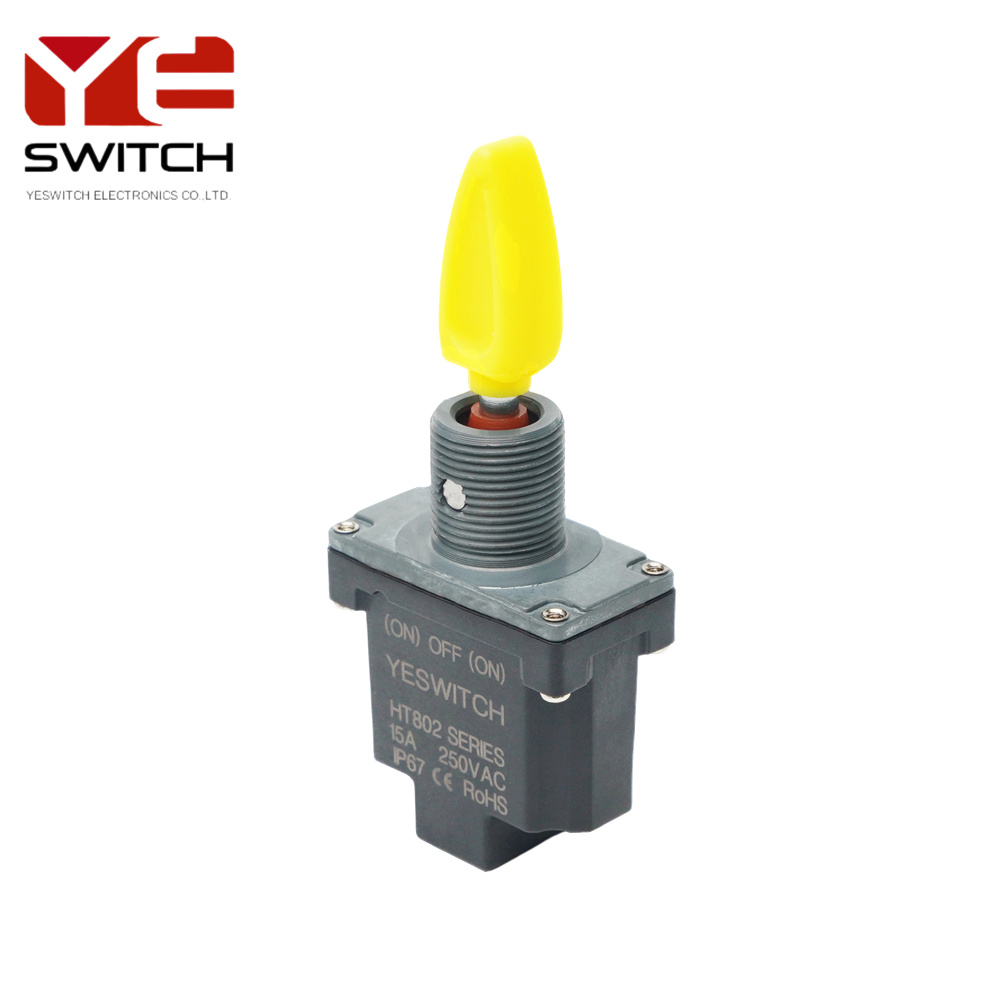

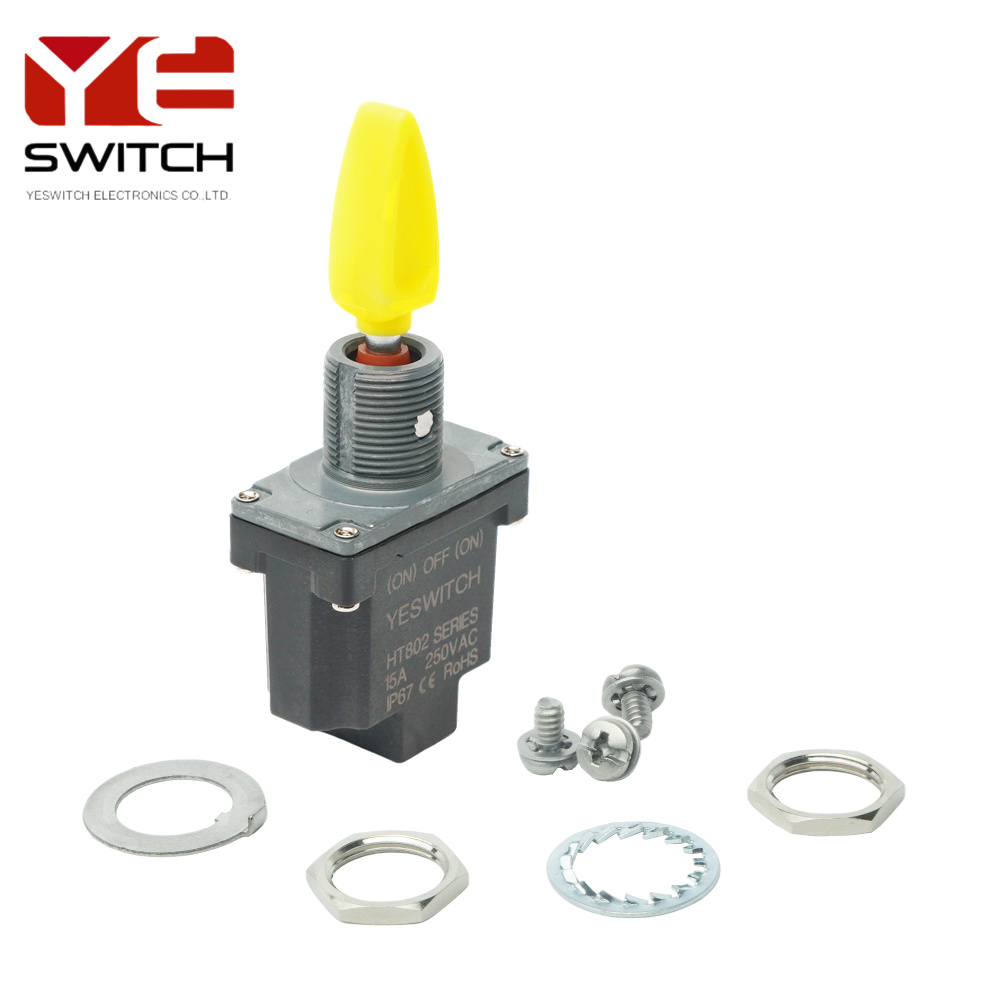

SPDT Momentary Toggle Switch High-Current Screw Terminal

The YESWITCH HT802 Series is a heavy-duty,high-current SPDT (Single Pole Double Throw) toggle switch featuring a momentary (ON)-OFF-(ON) operation mechanism.Designed for demanding industrial environments,this industrial toggle switch automatically springs back to the center OFF position when released,ensuring precise control and safety in critical applications.

Key Features:

High-Current Capacity:Engineered to handle heavy electrical loads,ideal for industrial machinery and equipment.

IP68 Protection:Fully sealed against dust ingress and waterproof up to 1.5 meters for 30 minutes,ensuring reliability in harsh conditions.

Screw Terminals:Robust terminals provide secure,vibration-resistant wire connections.

100,000 Mechanical Cycles:Durable construction guarantees long-term performance even under frequent operation.

High-Visibility Yellow Sleeve Handle:Ergonomically designed with a bright yellow protective sleeve for easy grip and visibility in low-light environments.

Applications:

Widely used in industrial vehicles and equipment requiring rugged,weatherproof switching solutions,including:

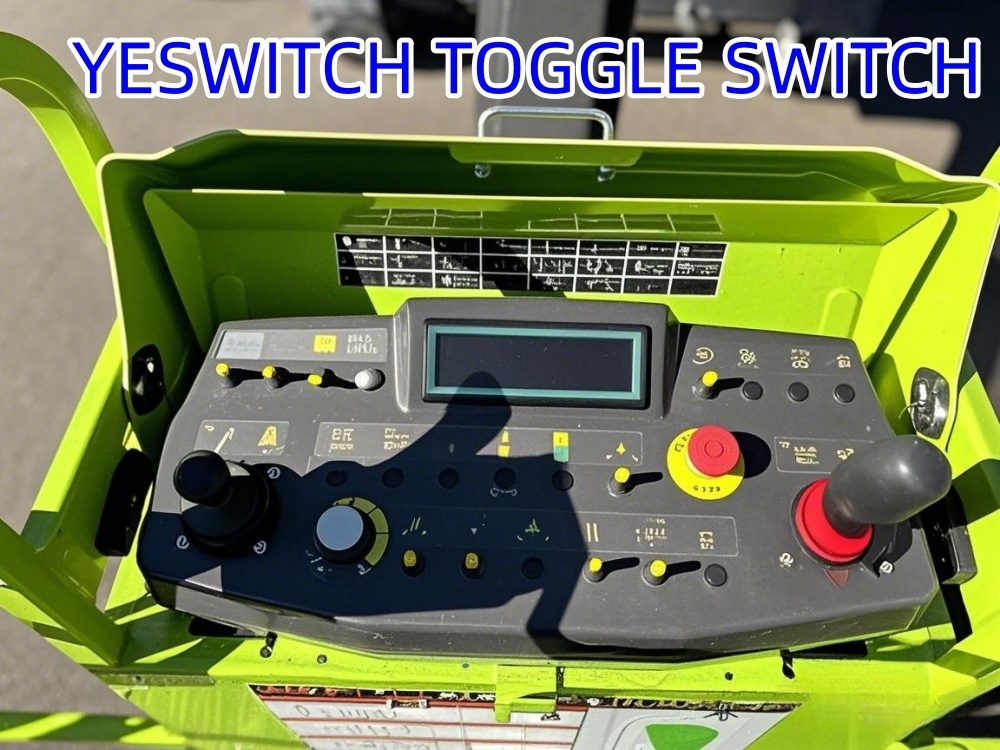

Aerial work platforms

Material handling vehicles (e.g.,forklifts,pallet jacks)

Transport vehicles and construction machinery

Agricultural and marine equipment

This high current industrial toggle switch combines durability,safety,and user-friendly design,making it a top choice for engineers prioritizing reliability in extreme operating conditions.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
