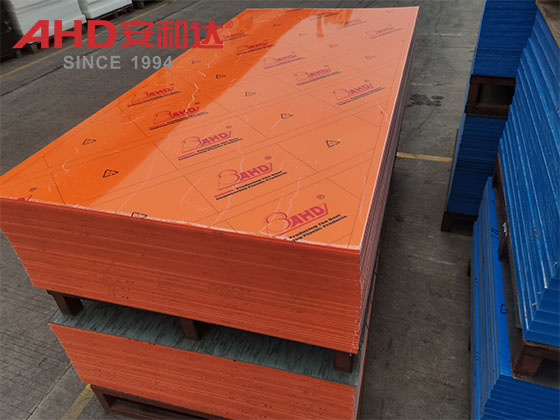

Orange HDPE Sheet Product
Product detailed description
Material: High density polyethylene (HDPE), orange achieved by adding UV resistant colorants and inorganic pigments, in compliance with ISO 1874-1 standard.
Production process: using extrusion or compression molding, with a density of ≥ 0.945 g/cm ³ (ASTM D792), narrow molecular weight distribution, and a crystallinity of up to 80% -90%.
Surface treatment: Available in glossy, matte, or textured finish (anti slip R10 level, DIN 51130 standard).
Standard size:
Thickness: 1mm~300mm
Width: 1000mm~2000mm
Length: 1000mm~3000mm
Performance
Mechanical properties: Tensile strength 25-32 MPa (ASTM D638), flexural modulus 1100-1400 MPa (ASTM D790), impact strength (notch) 8-12 kJ/m ² (toughness maintained at -40 ℃).
Thermal performance: Hot deformation temperature 75-85 ℃ (0.45MPa load, ASTM D648）， The Vicat softening point is 125-135 ℃ (ISO 306), and the short-term temperature resistance can reach 100 ℃.
Chemical resistance: Resistant to strong acids and bases (pH 1-14, 20 ℃ environment), insoluble in organic solvents (ISO 175 testing standard).
Wear resistance: friction coefficient 0.15-0.25 (dry to steel, DIN 53375), wear rate<0.5mm/1000h (verified for mining grade applications).
Aging resistance: containing 2% -5% carbon black and HALS light stabilizer, passing the 2000 hour QUV accelerated aging test (ISO 4892-3), with an outdoor life of more than 10 years.
Environmental safety: Compliant with RoHS 2.0, REACH regulations, FDA 21 CFR 177.1520 food contact certification, NSF/ANSI 51 drinking water safety standards.
Core advantages
Excellent weather resistance: UV and ozone resistant, suitable for long-term outdoor exposure environments, color stability Δ E<2.0 (ISO 105-B02 test).
Lightweight and High Strength: The density is only 0.945-0.965 g/cm ³, which is more than 50% lighter than metal, but its mechanical properties are close to engineering plastics.
Convenient processing: Supports CNC machining (recommended cutting speed of 200-400m/min), hot forming (120-160 ℃), and welding (hot air welding/extrusion welding with a strength of ≥ 90% of the base material).
Health and safety: No heavy metal precipitation, passed microbial inhibition testing (JIS L 0920), suitable for the food and medical fields.
Economic durability: Long service life, maintenance free, and lower overall cost compared to stainless steel and fiberglass.
Scope of application
Industrial equipment
Chemical anti-corrosion: electroplating tank lining (resistant to 30% sulfuric acid/hydrochloric acid), acid mist purifier guide plate, chemical pipeline flange gasket (PN16 pressure rating).
Logistics system: Automated sorting line wear-resistant slide, heavy-duty pallet pad (dynamic load ≥ 1.5 tons).
Municipal Administration and Architecture
Water conservancy engineering: river bank protection anti-collision board (EN 14389 sound barrier standard), sewage treatment plant scraper guide rail.
Transportation facilities: Tunnel escape route signage (reflective grade Class R2), subway shock-absorbing pads (vibration attenuation rate ≥ 35dB).
Food and Medical
Food processing: Meat cutting table (antibacterial certification), beer fermentation tank insulation layer (thermal conductivity coefficient 0.42 W/m · K).
Packaging machinery: conveyor belt side guide rail (low friction design), filling machine star wheel pad (wear resistance PV value>0.3 MPa · m/s).
Special fields
Energy industry: Low radiation cable trays for nuclear power plants (10 CFR 20 standard), solar bracket bases (wind pressure resistance of 2.4kPa).
Ship and Aviation: Anti slip decks for lifeboats (SOLAS certified), unmanned aerial vehicle take-off and landing platforms (suitable for extreme environments ranging from -40 ℃ to 60 ℃).
high density polyethylene orange sheet
