High-Current Toggle Switch SPST (OFF)-ON Solder Terminal For Heavy-Duty Machinery

3 week ago

0 0 

7 year

Product details

Reliable SPST Toggle Switch Solder Terminal For Heavy Equipment

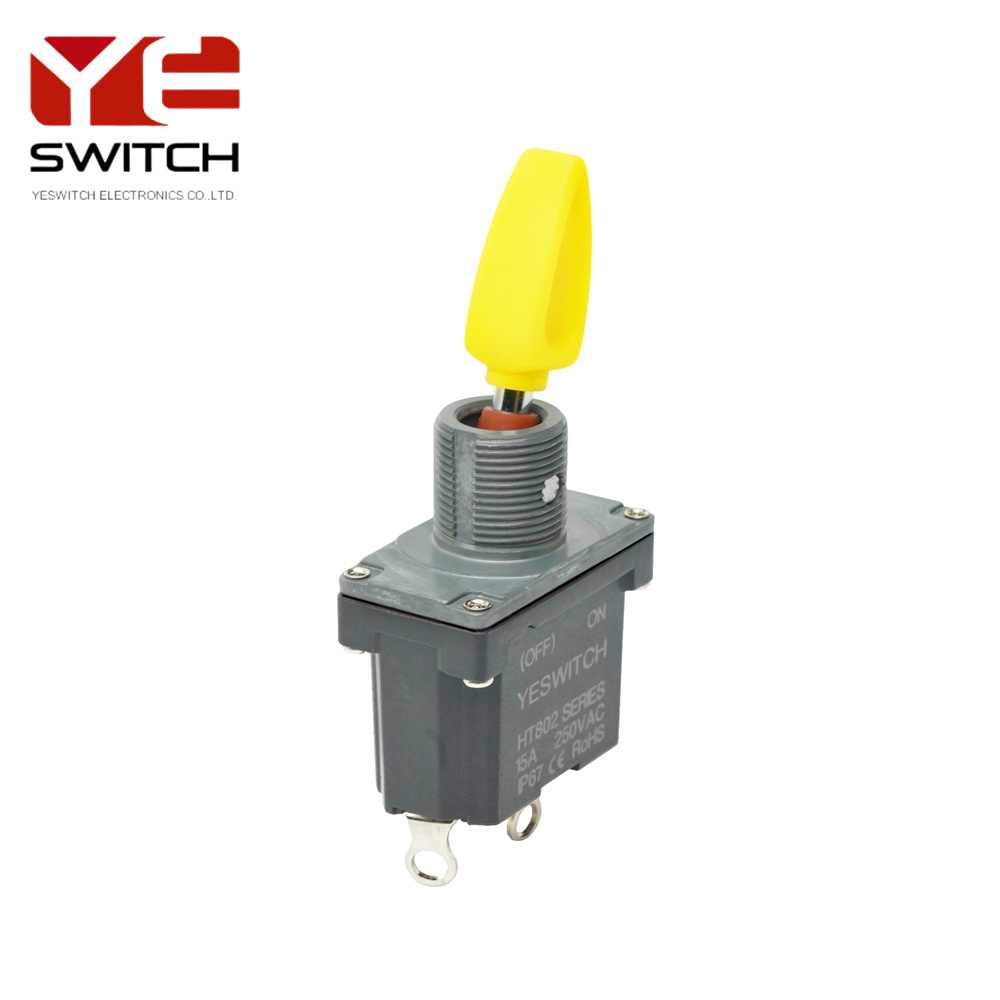

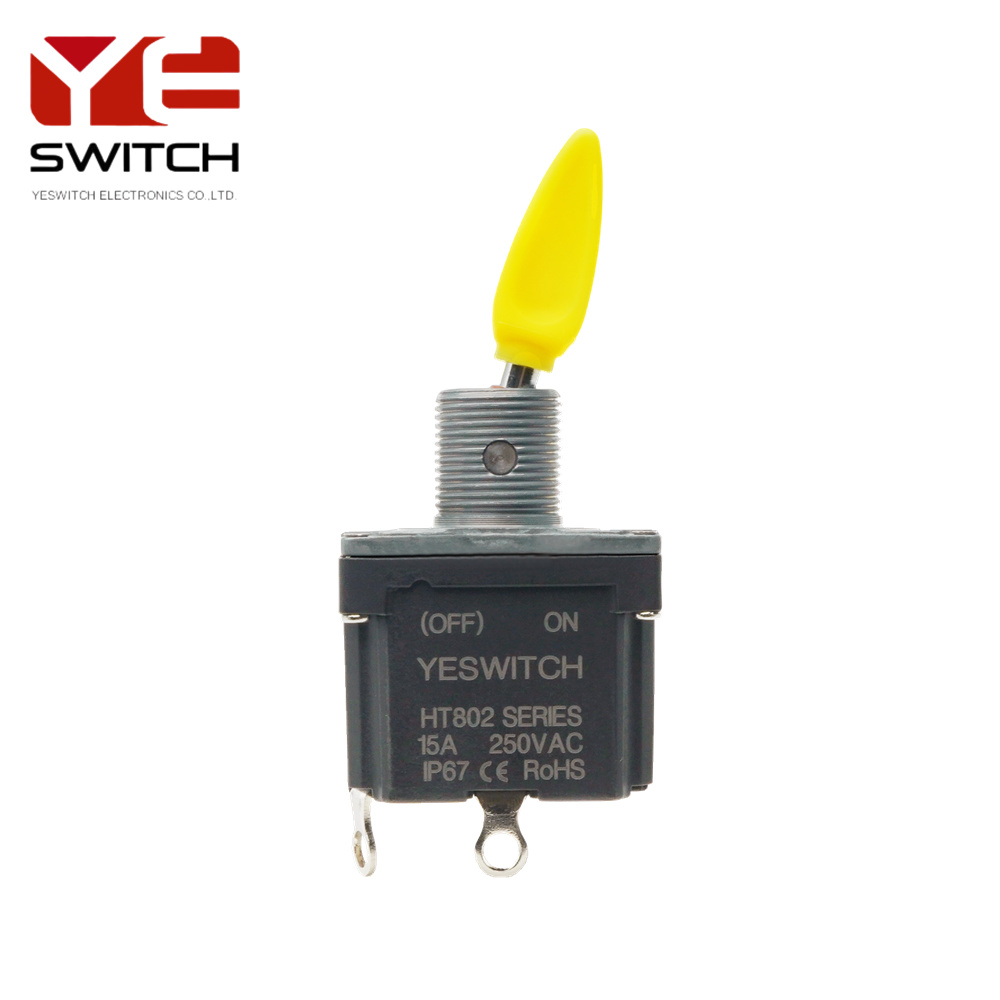

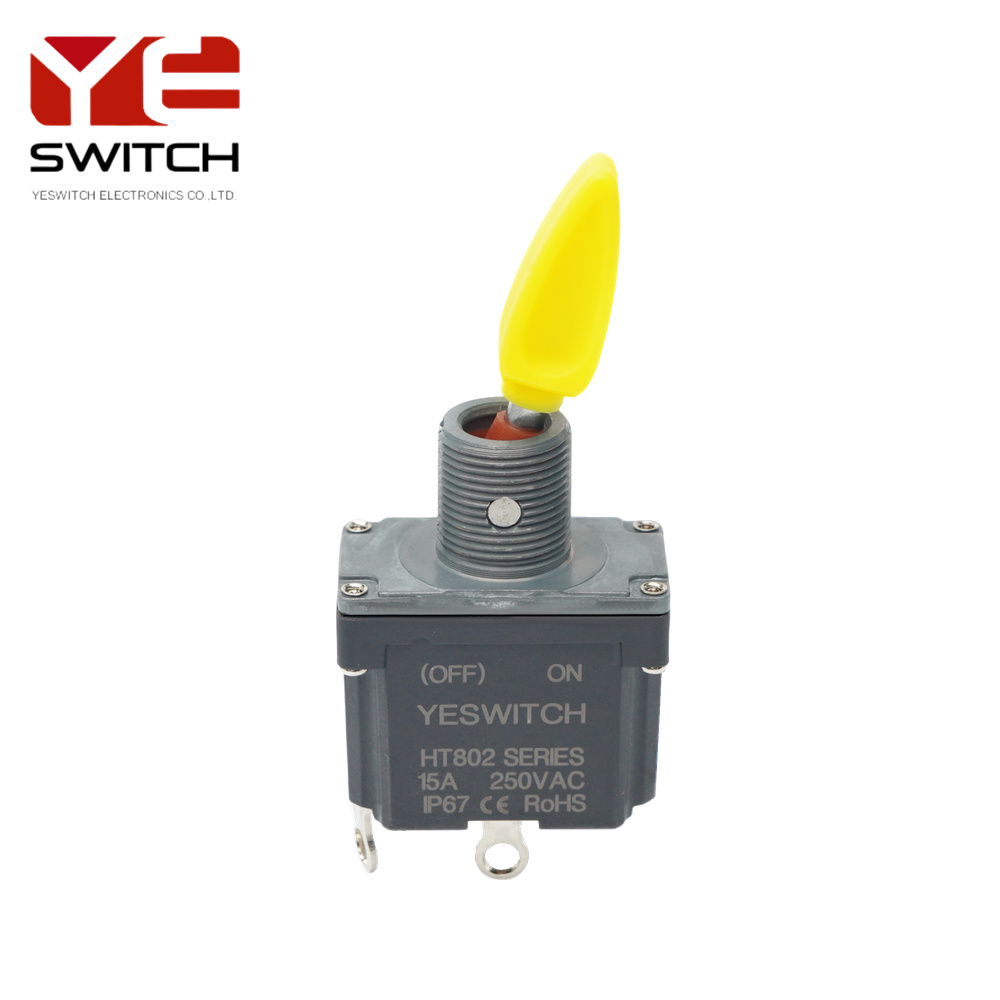

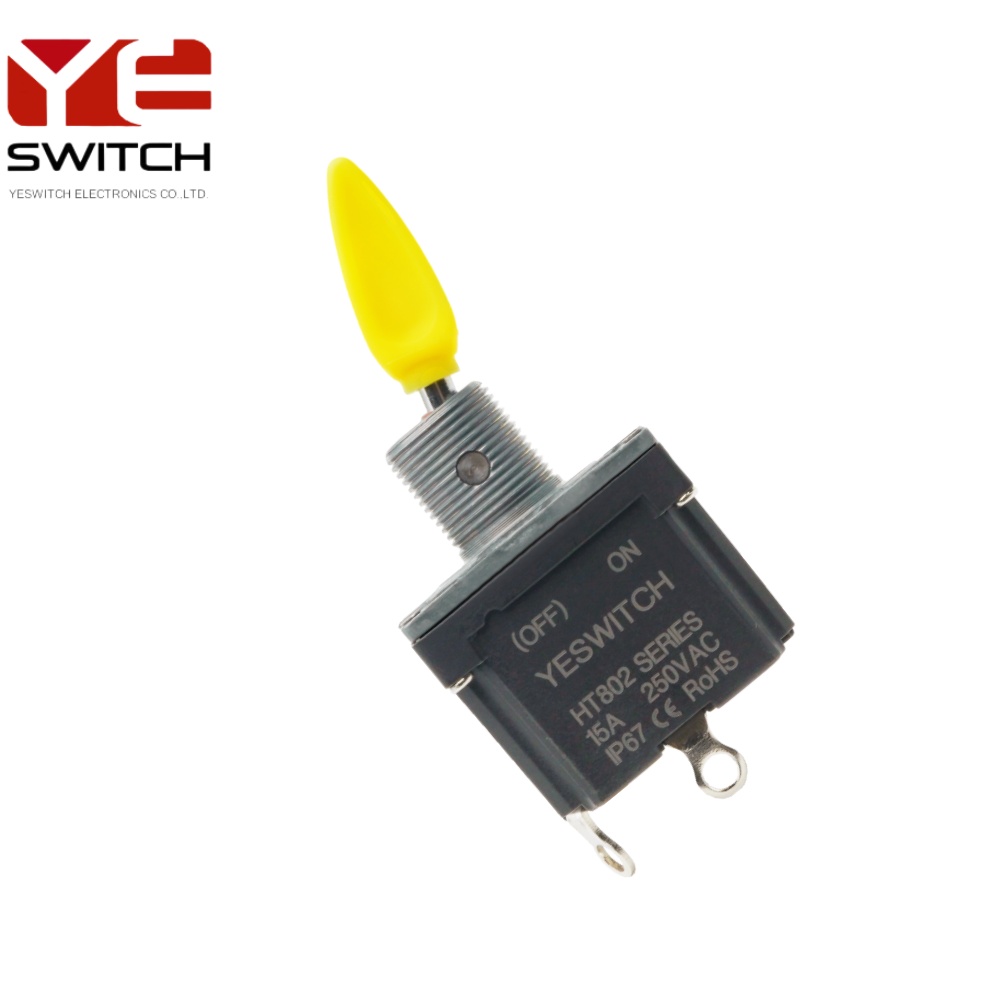

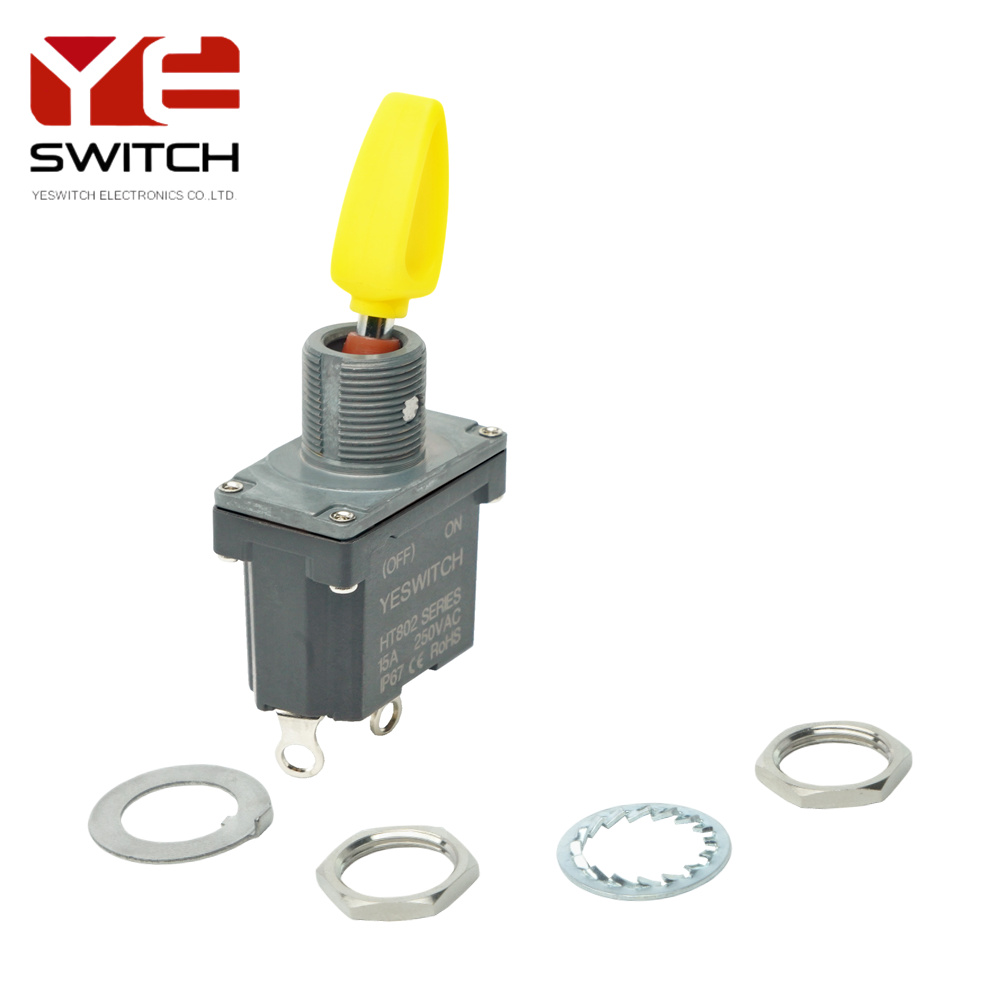

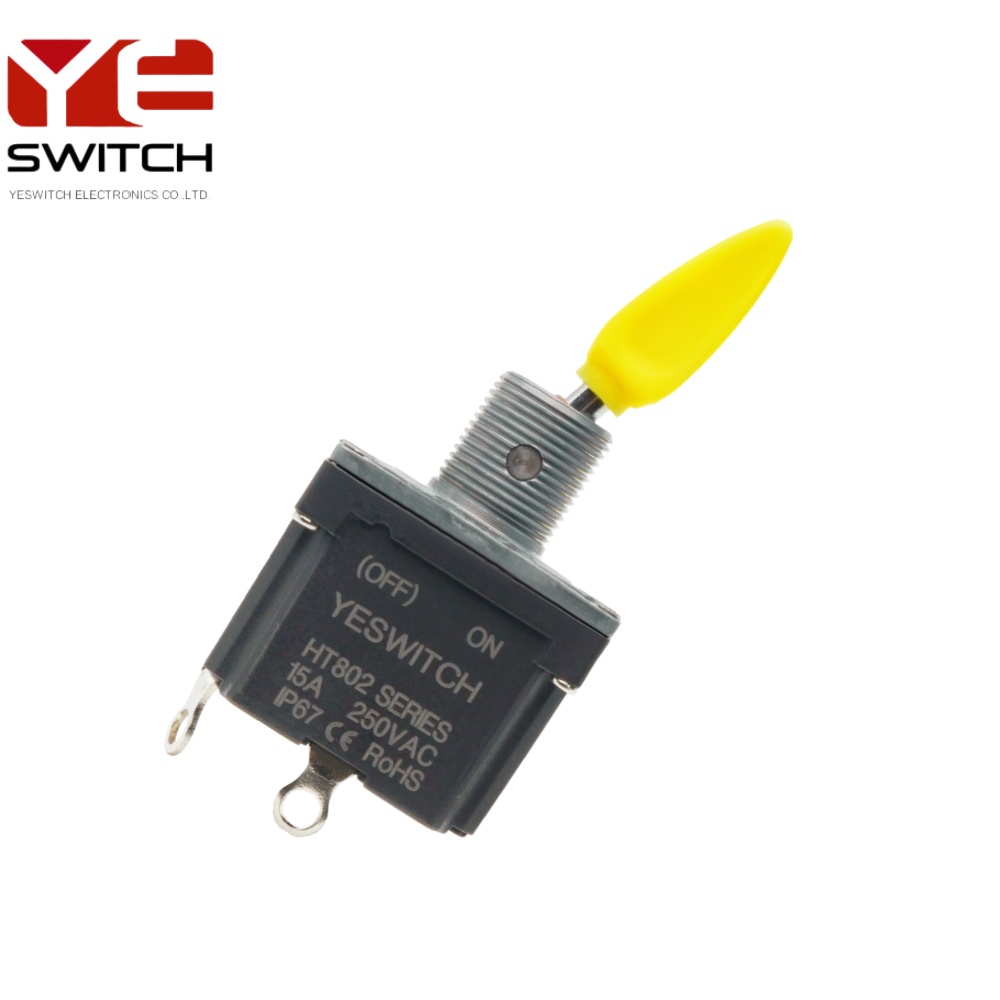

The YESWITCH HT802 series industrial toggle switch is a heavy-duty,high-current toggle switch engineered for rigorous industrial applications,particularly suited for aerial work platforms and other machinery requiring robust electrical control.Designed to withstand extreme temperatures,dust,moisture,and mechanical stress,this switch ensures reliable performance in the most demanding environments.

Key Features

(OFF)-ON SPST Functionality

Utilizes a Single Pole Single Throw (SPST) configuration with a simple "OFF-ON" two-position operation,ideal for straightforward circuit control or quick start-stop functions.The center-OFF design minimizes accidental activation,enhancing operational safety.

High-Current Capacity

Rated for 15A at 28VDC,the HT802 series delivers stable power management for high-load equipment,ensuring durability even under frequent switching cycles.

Solder Terminals

Equipped with solder terminals for secure and vibration-resistant electrical connections. This design eliminates risks of loosening,making it ideal for applications exposed to prolonged vibration or mechanical shock (e.g.,aerial platforms).

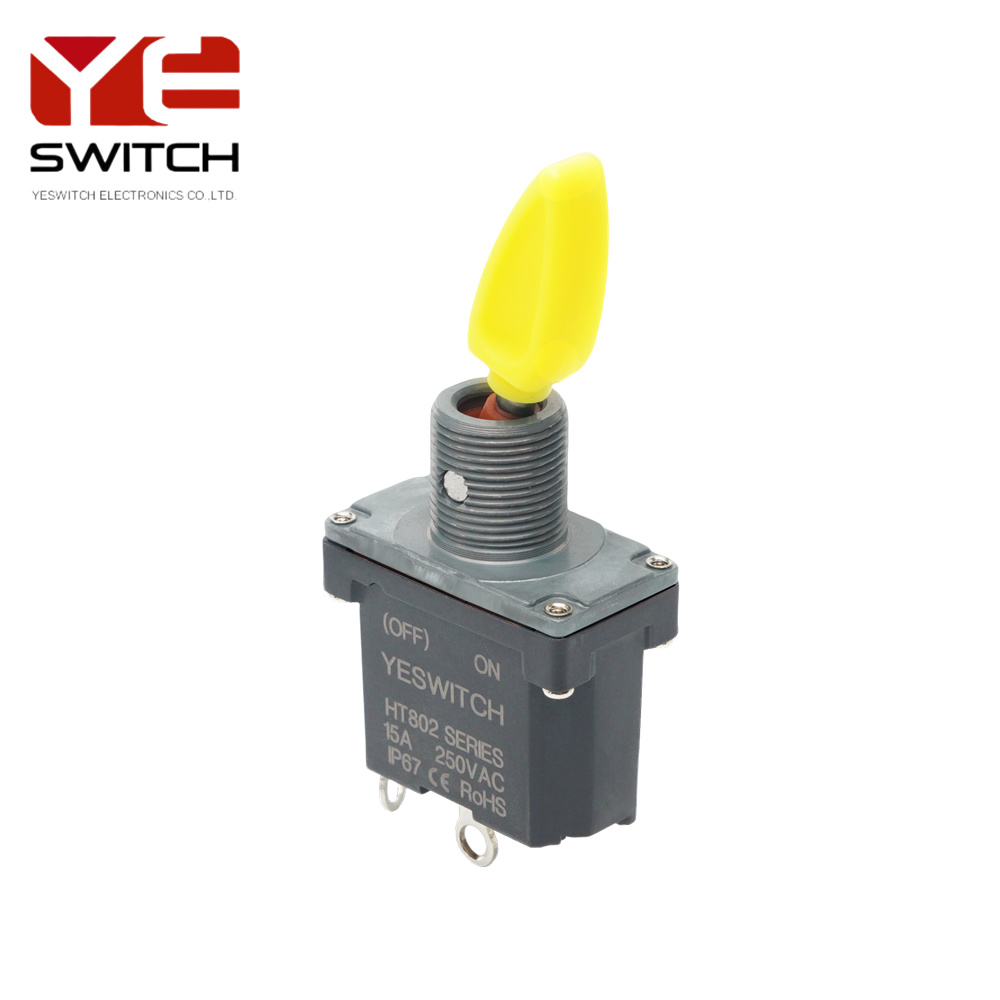

Yellow Booted Handle

Features a highly visible yellow handle with a protective rubber boot,offering excellent grip and impact resistance.The bright color ensures quick identification in complex workspaces,while the boot enhances durability and operator comfort.

IP68 Protection

Fully sealed construction with IP68 certification, providing complete resistance to dust ingress and water immersion (up to 1.5 meters for 30 minutes).Perfect for outdoor or harsh environments involving rain,mud,or high-pressure washing.

Extended Temperature Range

Operates reliably in extreme temperatures from -40 to 85 degrees,ensuring consistent performance in freezing outdoor conditions or high-heat areas near engines.Resists contact oxidation and material degradation caused by thermal cycling.

Typical Applications

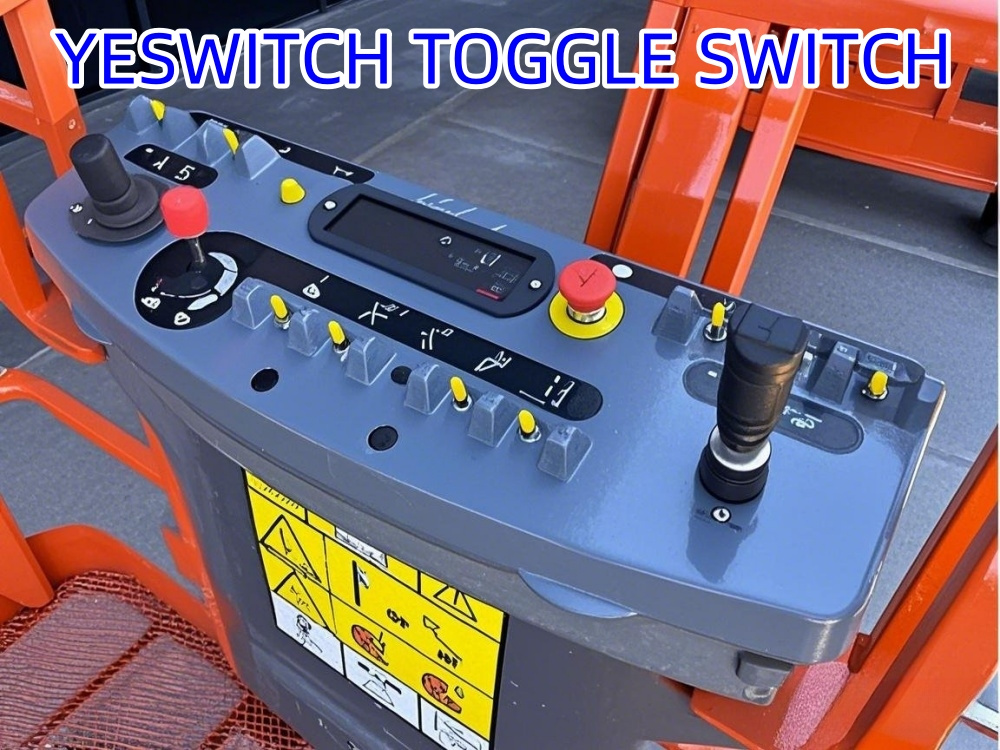

Aerial Work Platforms:Used for lift controls,emergency stop systems,or power switching,ensuring safety and responsiveness during elevated operations.

Construction Machinery:Controls lighting, hydraulic systems,or auxiliary equipment in cranes,excavators,and loaders.

Specialty Vehicles:Power management in fire trucks,mining vehicles,or utility trucks.

Outdoor Industrial Equipment:Automation systems exposed to rain,dust,or temperature extremes.

Product Advantages

Safety:SPST design with a secure OFF position prevents accidental activation.

Durability:IP68 sealing and wide-temperature materials ensure long-term reliability.

Low Maintenance:Solder terminals reduce connection failures;the booted handle resists corrosion and wear.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
