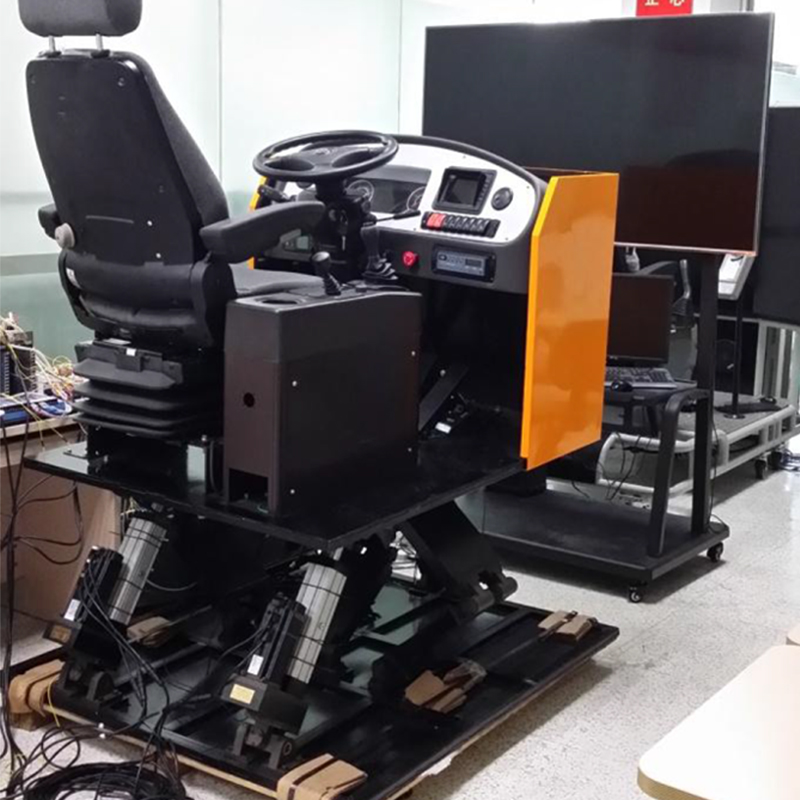

Sports and Flight Test Machine Simulation Equipment Six Degree of Freedom Platform Stewart Platform1
2 month ago
Product details

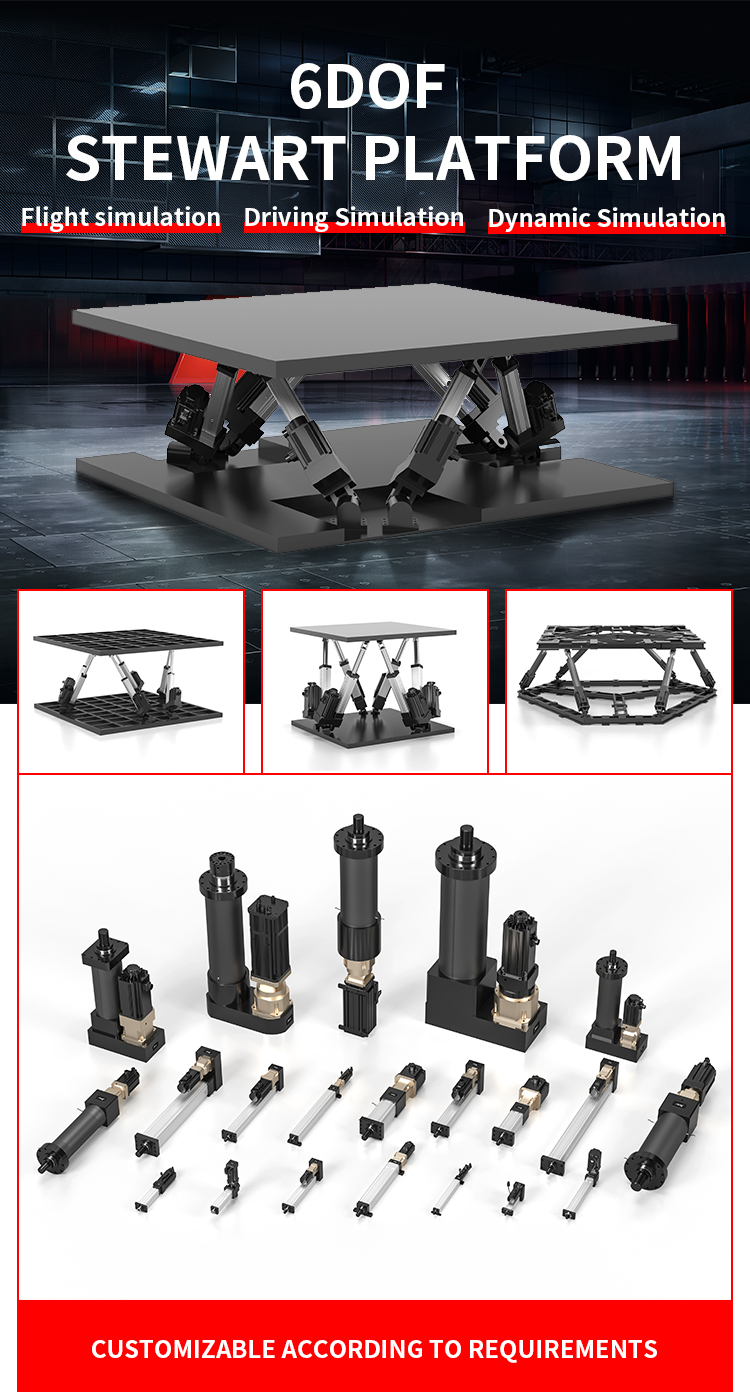

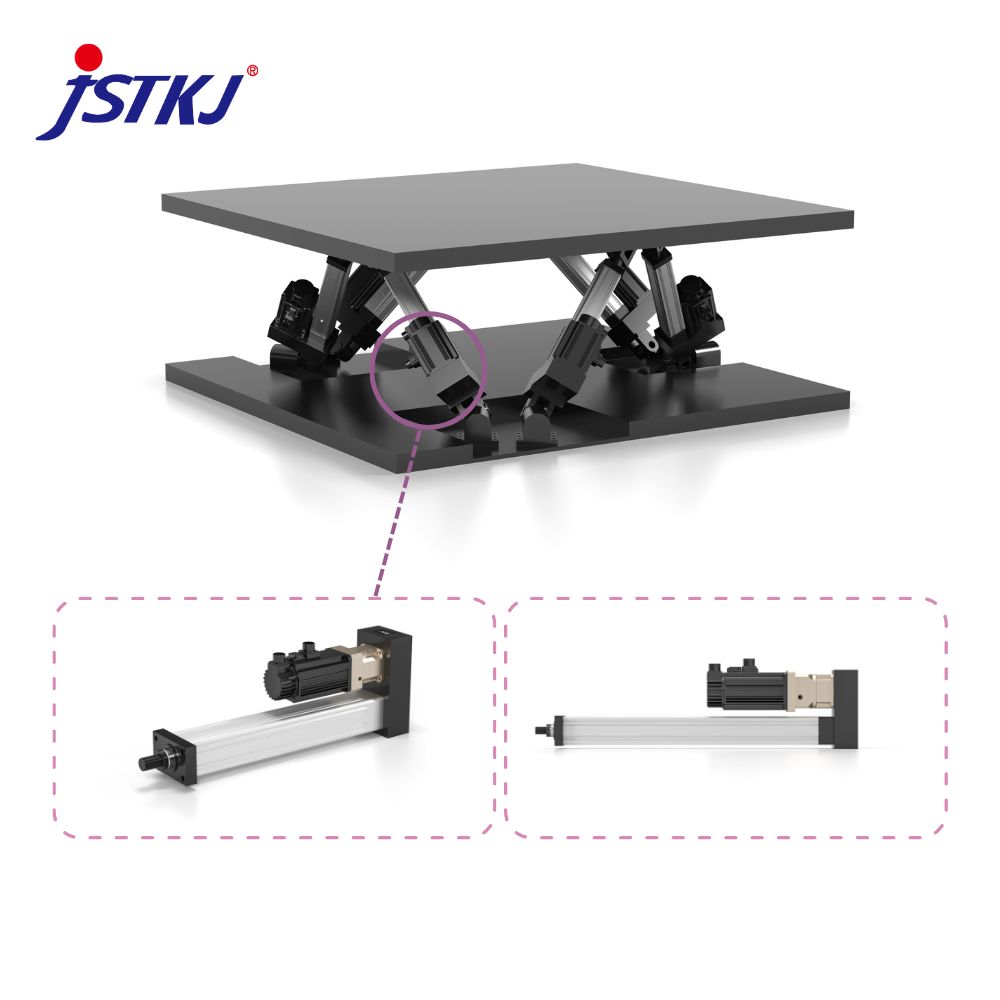

The six-degree-of-freedom (6DOF) platform can simulate various spatial motion postures. The platform system is composed of a 6DOF motion platform adopting Stewart mechanism, a microcontroller, a servo drive system, etc. The lower platform of the 6DOF motion platform is installed on the ground, while the upper platform is the moving platform, supported by six electric cylinders. The moving platform is connected to the electric cylinders via six Hooke joints, and the electric cylinders are connected to the fixed base via six Hooke joints. The six electric cylinders are driven by servo motors. The computer control system calculates the pose-cylinder length, and changes the length of the electric cylinders by driving the servo motors to achieve the six-degree-of-freedom motion of the moving platform, namely three translational motions in the Cartesian coordinate system and rotations around the three coordinate axes.
|
Effective load: 350KG , Total load: 450KG (including the platform's own weight)
|
|
|
|
|||
|
Posture
|
Displacement
|
Speed
|
Acceleration
|
|||
|
Pitch
|
±14°
|
±30°/s
|
±50°/s ²
|
|||
|
Tilt
|
±14°
|
±30°/s
|
±50°/s²
|
|||
|
vertical lift
|
160mm
|
±30°/s
|
0.5g
|
|||

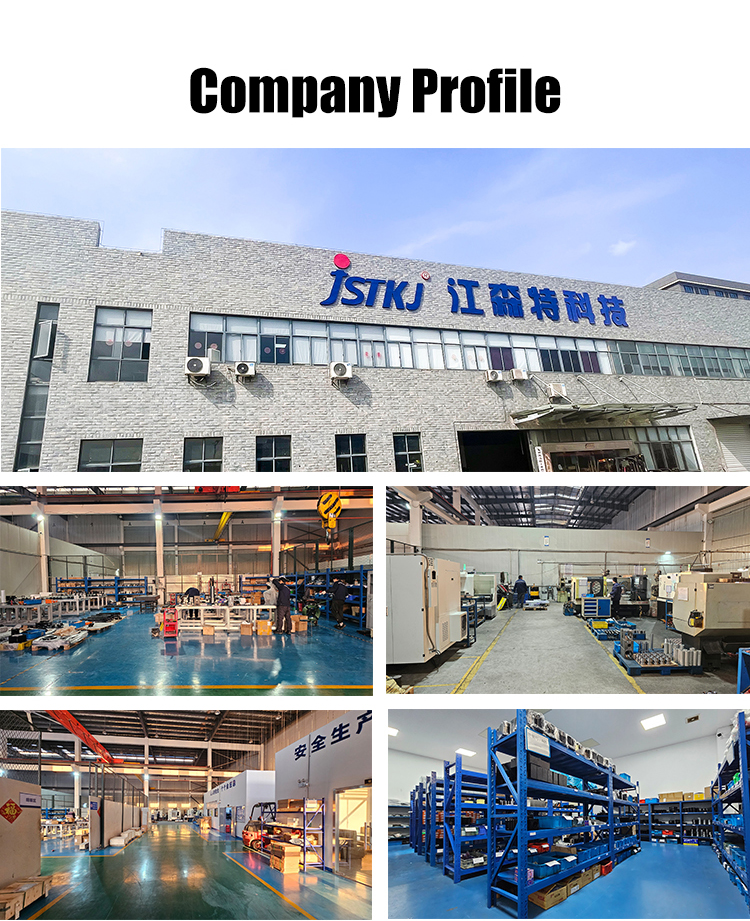

Suzhou Johnson Automation Technology Co., Ltd., founded in 2014, is a cutting-edge company that focuses on the R&D, design, production, and sale of servo electric cylinders and electric control systems.The company is committed to offering customers customized designs tailored to various processes and requirements, optimizing parameters to deliver products
that exhibit both price and quality advantages within the industry. Our goal is to localize imported servo electric cylinders, aiming to lower production costs for businesses and make a contribution to sustainable development.Our strategy focuses on customer demands, aiming to surpass expectations and foster long-lasting, stable partnerships with our clients.
1. who are we? We are based in Jiangsu, China, start from 2014,sell to Northern Europe(30.00%),Southeast Asia(30.00%),North America(20.00%),Mid East(10.00%),South America(10.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? electric cylinder,linear actuator,linear motion module,Six Degrees of Freedom Platform 4. why should you buy from us not from other suppliers? Johnson is an innovative company integrating R&D, design, manufacturing, and sales of electric cylinders and electric control systems.We tailor products to fit specific needs, demonstrating dual advantages of price and quality in the industry. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,EXW； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: null; Language Spoken:English,Chinese,Japanese
