180 degree SMT 4P Needle socket connector

2 month ago

2 0 

4 month

Product details

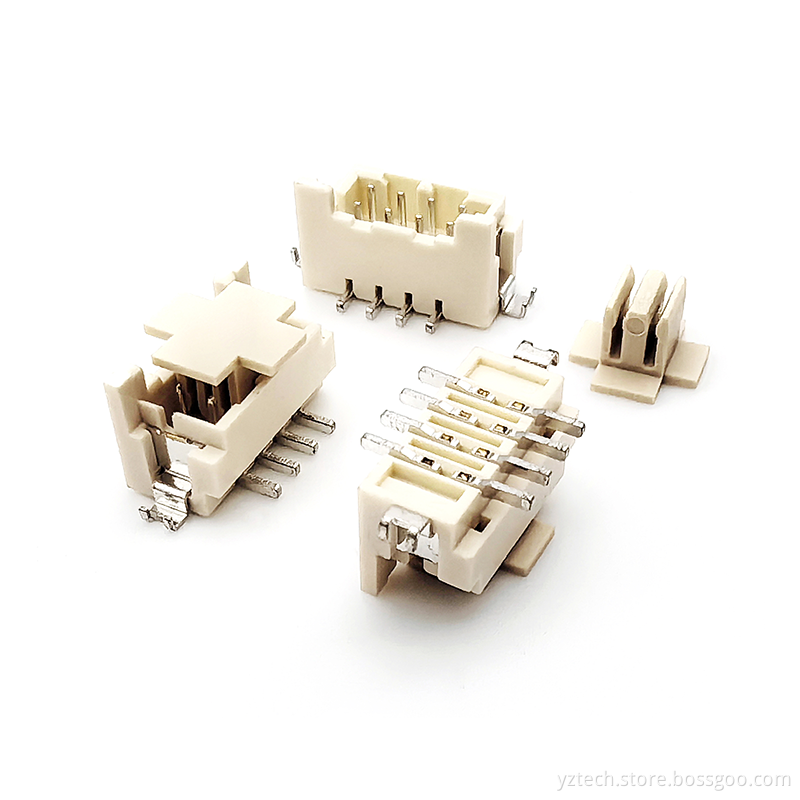

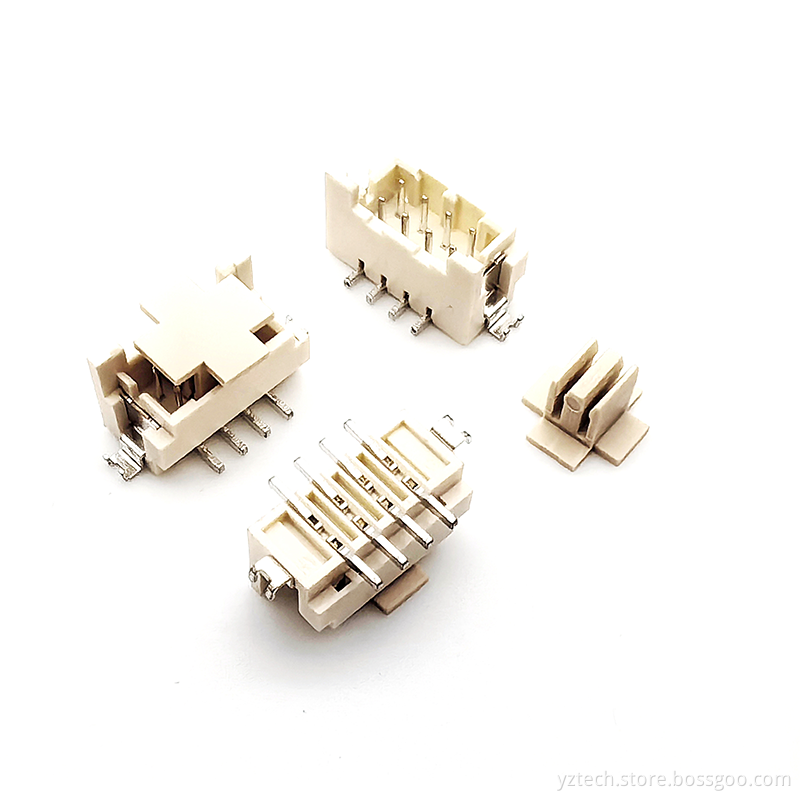

The 180 degree SMT 4P Needle socket connector by yztech offers an efficient vertical connection solution for surface mount technology. As an innovative Wire-to-Board Connectors model, its 180-degree straight-through design (180 degree SMT) is tailored for vertical PCB cabling, with 4-pin configuration for parallel signal and power transmission, ideal for compact scenarios like smart homes and medical devices. The heat-resistant PBT housing (260℃ tolerance, UL94 V0 certified) in white resists UV and industrial dust, meeting wire to board edge connector edge-mount standards for precise PCB pad matching.

Gold-plated phosphor bronze terminals ensure <10mΩ contact resistance for stable 5A current, compatible with board to wire connector long-distance needs. The unique SMT lead design supports automated placement, with 2.5N/pin welding strength for vibration resistance, and integrates idc wire to board connector pre-positioning for wire crimping via insulation displacement without stripping, boosting single-station efficiency by 40%. Compatible with Wire-to-Board Header stacking (2 vertical layers expandable to 8P), it meets multi-channel integration needs.

Whether for internal wiring optimization in small devices or high-density cabling in industrial control boards, this 180-degree SMT 4P needle socket connector stands out with vertical layout advantages and reliable performance in wire-to-board connections.
