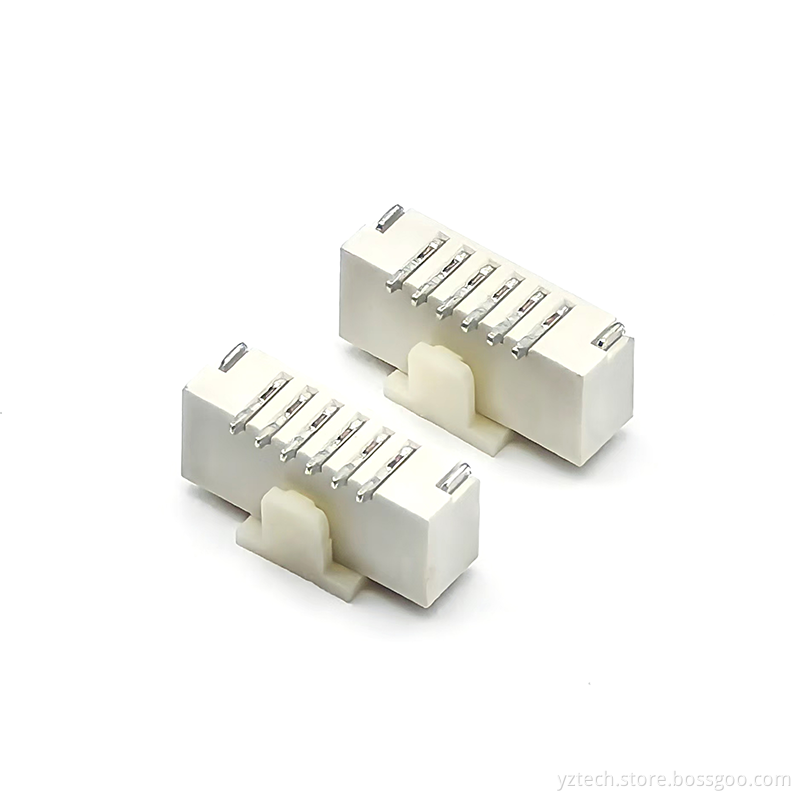

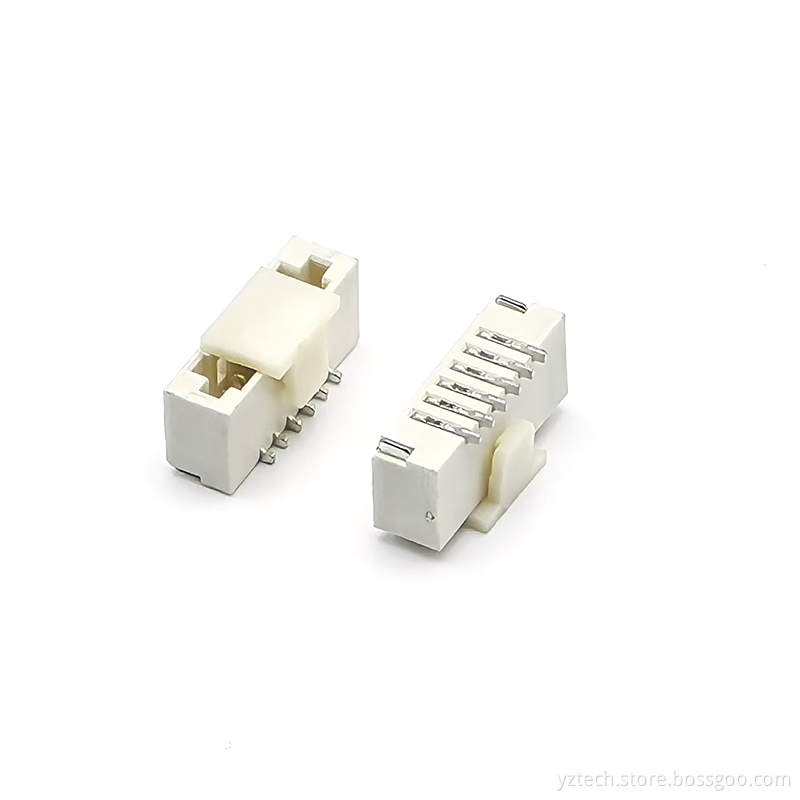

1.0 Vertical Pin Seat Connector

The 1.0 Vertical Pin Seat Connector launched by yztech is a high-quality component for stable connections in LED lighting systems and small electronic devices. Its 1.0mm precise pitch and vertical pin design can efficiently meet the standardized connection requirements of LED Connector, widely used in LED light strips, landscape lighting modules and other scenarios. As a versatile connector, it is compatible with the interface specifications of Standard LED Connector, and can be flexibly matched with 2Pin LED Connector and 3Pin LED Connector to meet the power supply and signal transmission needs of LED devices with different powers.​



The connector shell is made of high-temperature resistant PA66 material, with good insulation performance, and can work stably in the environment of -40℃ to 105℃. Its unique structural design allows it to be used with Wire-to-Board LED Connector to realize reliable docking between wires and PCB boards, and it can also serve as a basic component of LED Module Connector to facilitate the rapid construction of modular lighting systems. Different from the sealed design of some Waterproof LED Connector, this product focuses more on lightweight and easy installation, suitable for LED device connections in indoor dry environments. The internal pins are made of tinned brass, with a contact resistance as low as 7mΩ and a plug-in life of more than 1000 times, ensuring long-term stable current transmission. Whether building the line network of indoor LED lighting or realizing the inter-board connection of small LED modules, this 1.0 vertical pin seat connector stands out as a preferred choice with its precise adaptability and reliable performance.
