1.0 Vertical Pin Seat Connector with Lock

2 month ago

4 0 

4 month

Product details

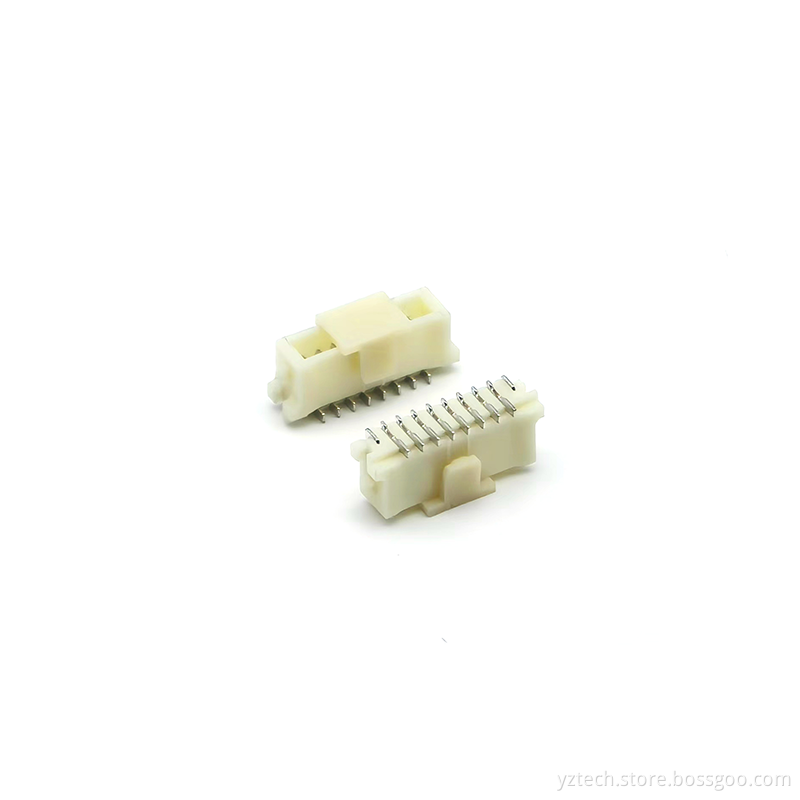

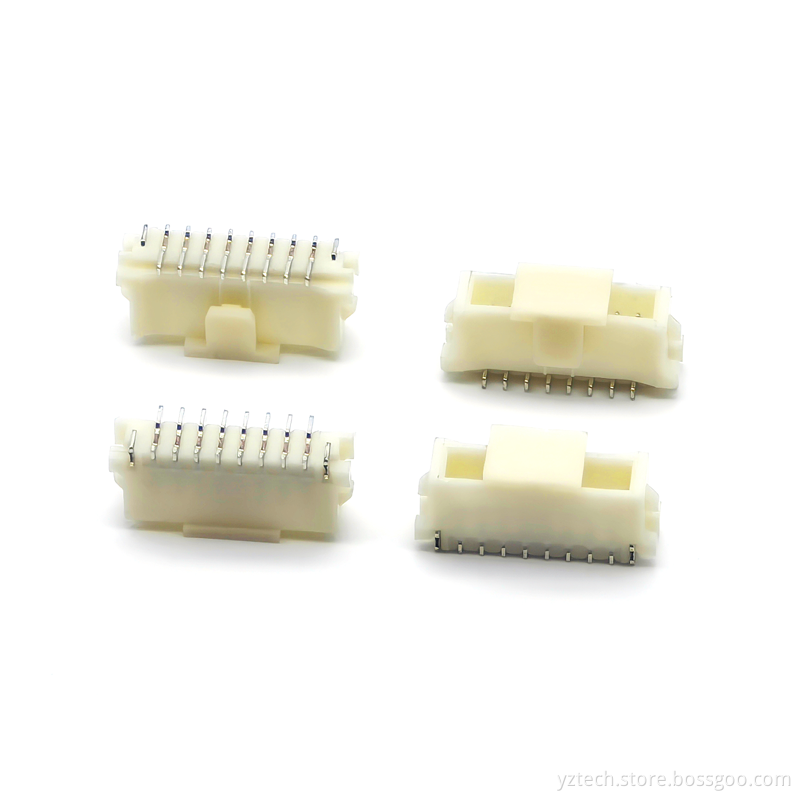

The 1.0 Vertical Pin Seat Connector with Lock by yztech is an upgraded version of the standard vertical pin seat, featuring an added locking structure to provide more stable connection for LED devices and electronic modules. Its 1.0mm pitch precisely fits LED Connector standardized interfaces, widely used in LED emergency lights and smart lighting control modules. As a component complying with Standard LED Connector specifications, it can flexibly combine with 2Pin LED Connector and 3Pin LED Connector to meet power needs of various LED devices.

The locking structure effectively prevents accidental disconnection, ideal for vibrating environments. When used with Wire-to-Board LED Connector, it enhances wire-PCB connection reliability, and also serves as an excellent partner for LED Module Connector to stabilize modular lighting systems. Unlike the sealing feature of Waterproof LED Connector, it focuses more on mechanical locking performance, suitable for indoor dry environments, and can work with Wire-to-Wire LED Connector to expand connection methods. Tin-plated brass pins ensure <6mΩ contact resistance and 1200+ mating cycles, with the lock enduring over 5N pulling force for long-term stable transmission. For LED circuits requiring frequent maintenance or vibration-resistant connections, this locked vertical pin seat connector stands out for reliable locking performance and adaptability.

1.0 Ultra Thin Double Headed Locking Pin Seat Connector
