Product details

The DYGZCONN 3.0mm pitch SMT pin header with a 90-degree angle is designed to make connections on printed circuit boards reliable and straightforward. Right-angle layout helps streamline wiring, save space on compact boards, and make assembly operations easier. Each pin is carefully arranged, ensuring stable signal transmission even after repeated plugging and unplugging. This needle holder can be used in conjunction with 2 pin wire to board connector and 3 pin wire to board connector, providing engineers with flexible choices in different projects.

Made from high-quality materials, this WAFER Header resists corrosion and wear, keeping connections steady over time. It also offers protection similar to a waterproof wire to board connector, standing up to dust and moisture without affecting performance.

This 90-degree SMT needle holder is highly favored by technicians and assembly teams for its practical and durable design. It is very suitable for industrial control panels, communication equipment, and consumer electronics products, especially in situations where space is limited and reliability is important. DYGZCONN upholds its commitment to quality, and this connector provides stable performance, making complex PCB operations easier.

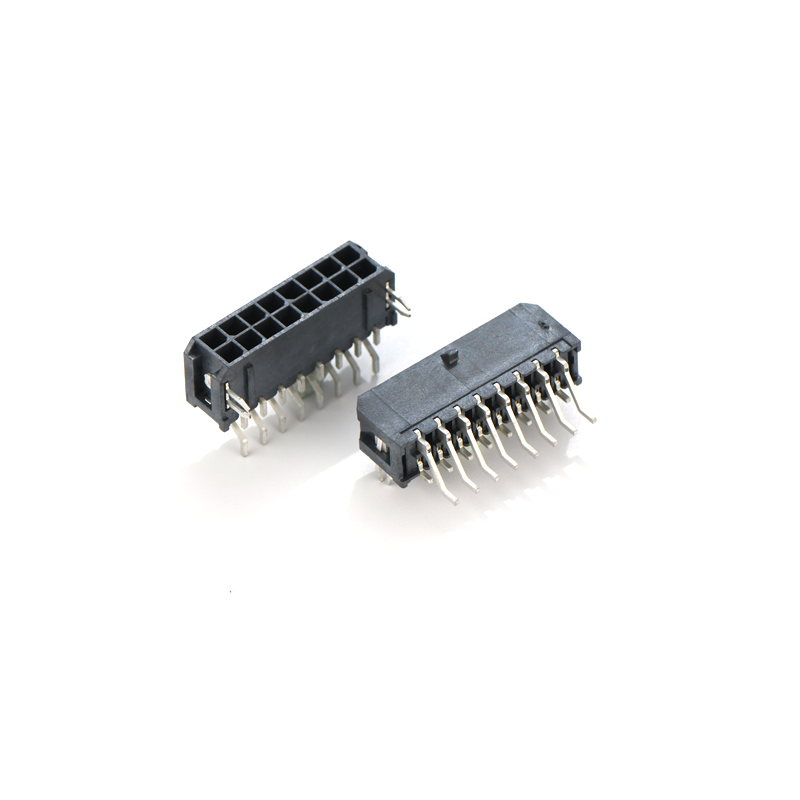

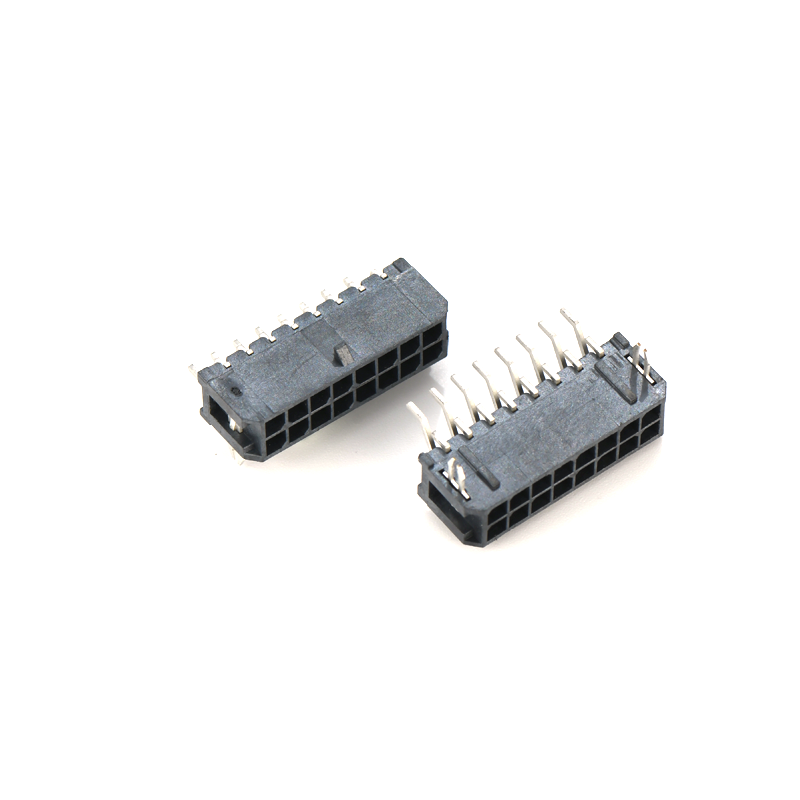

3.0mm Pitch SMT Double Row 90° With Harpoon

Similar Video Recommendation

< >

Dgyzconn Real Scene Video

Custom Mold Making for Connectors Manufacturing Video

Workshop Production Video

Pin Header Production Manufacturing Video

Precision Pin Header Stamping Process Video

Dongguan Yangzhankang working environment

Automatic production of horn products

Dongguan Yangzhankang Electronics Co., Ltd. is comprehensively upgrading its production to be more intelligent and keeping pace with Industry 4.0.
