KY-PPS telescopic braided sleeving
2 month ago
Product details
KY - PPS Telescopic Braided Sleeving
I. Product Description
Made from monofilaments of UL94 V0 - grade PPS (Polyphenylene Sulfide) raw material, the KY - PPS telescopic braided sleeving features high elasticity (expansion ratio up to 1:3 ~ 1:5), facilitating quick insertion of irregular cables or components. It boasts properties like corrosion resistance (resisting acid - alkali solutions with pH 2 - 12, and organic solvents such as ethanol/gasoline), high temperature resistance (wide temperature range of - 70°C ~ 200°C), high wear resistance (tensile strength ≥ 15MPa, wear rate ≤ 0.02mg/cm²), low moisture absorption (≤ 0.05%), and dimensional stability. Ideal for cable protection in harsh environments.
II. Product Applications
Leveraging its core performance, the product is widely used in scenarios with strict requirements for fire resistance, high temperature resistance, and corrosion resistance:
- With a wide temperature resistance of - 70°C ~ 200°C and UL94 V0 flame retardancy, it suits cable protection for high - temperature parts in motor vehicle engine compartments and rails.
- Owing to acid - alkali resistance, low moisture absorption, and dimensional stability, it meets the long - term harsh - environment usage needs in aerospace, communication equipment, and military fields.
III. Technical Parameters
- Material: PPS (Polyphenylene Sulfide)
- Operating Temperature: - 70°C — 200°C (Continuous and Stable Use)
- Melting Point: 285 ± 10°c
- Flammability Rating: UL94 V0 (Vertical flame test, no dripping, self - extinguishing time ≤ 10 seconds)
- Standard Colors: Black, and natural color (PPS raw color, light brown)
- Features: Acid - alkali corrosion resistance, organic solvent resistance, excellent dimensional stability
- ENVIRONMENTAL CERTIFICATION: COMPLIANT WITH THE ROHS 2.0 DIRECTIVE (EU 2011/65/EU)
- Cutting Recommendation: It is recommended to use a hot cutting knife for cutting (to avoid loose wires and ensure a flat cut)

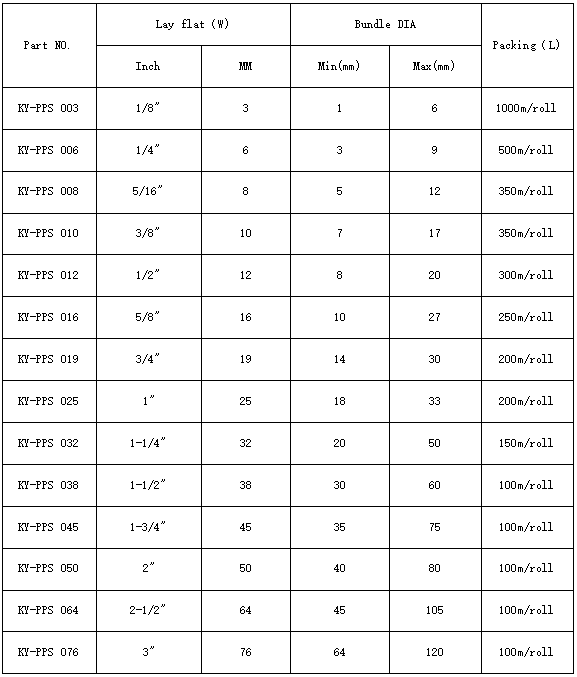

IV. Product Dimensions and Specifications
V. Remarks
1.The folded diameter refers to the lay - flat width of the sleeve. The mesh tube is elastic, and the lay - flat width tolerance is relatively large.
2.Special packaging, special colors, etc., can be customized according to customer needs.
3.Please refer to the sample acknowledgment for the detailed parameters of the product.
VI. Enterprise Strength and Services
(I) Production and Enterprise Background
KEYUACE focuses on the manufacturing of heat - shrinkable, insulating, and other materials, covering multiple industries such as automotive electronics and military. With technical experience, it provides solutions for global customers, emphasizing communication and product adaptability.
(II) Quality and Certification
The factory has passed ISO9001 and ISO4001 audits. Products comply with standards such as ROHS and REACH. They undergo 100% full inspection + 4 - step inspection, and a 1 - year quality guarantee and after - sales service are provided.
(III) Samples and Logistics
1. Sample Policy (Flexible Response)
- In - stock: Shipped within 1 - 2 days;
- Out - of - stock: Sample preparation completed within 3 - 7 days;
- Free of charge (quantity negotiable). Please provide the commonly used international courier (such as TNT, UPS), and freight is payable at destination.
2. Logistics and Distribution (Global Reach)
With a professional team + import - export qualifications, it supports express, sea freight, and air freight, ensuring on - time delivery worldwide.
(IV) Packaging and Selection
1. Packaging Solutions (Diverse Adaptation)
Conventional packaging such as paper rolls and bags is available, and customization is supported to fit storage and transportation.
2. Product Selection (Quick Matching)
The rich product line covers various types of braided sleeving, enabling quick selection to meet the protection needs of different industries.
VII. Reasons to Choose KEYUACE
- Factory Certification: Dual certifications of ISO9001 and ISO4001;
- Product Standards: Comply with international norms such as ROHS and REACH;
- Strict Quality Control: 100% full inspection + 4 - step inspection;
- Reliable After - sales: 1 - year quality guarantee + professional service.
Choose KEYUACE, and use the PPS telescopic braided sleeving + full - link professional service to safeguard cable protection in harsh environments!
