Slitting Machine

3 month ago

17 0 

4 month

Product details

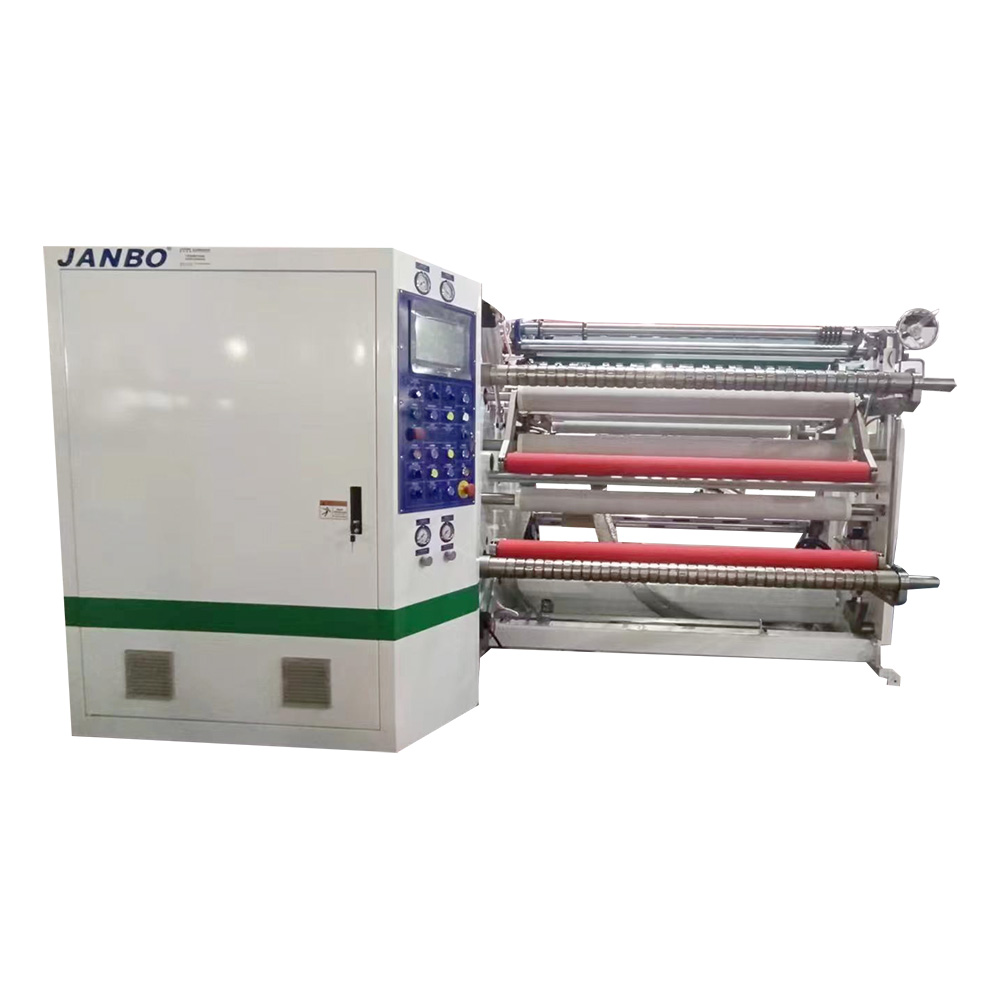

Joint Type Self-adhesive Label Slitting Machine is a specialized equipment designed for the precise and efficient cutting of self-adhesive labels. This machine is ideal for businesses that require high-quality label slitting in various industries such as packaging, logistics, retail, and manufacturing. The Joint Type Adhesive Label Slitting Machine offers a reliable solution for converting large rolls of adhesive material into smaller, usable sizes with accuracy and consistency. Whether you are working with pressure-sensitive labels, thermal transfer labels, or any other type of self-adhesive material, this machine ensures clean and sharp cuts without damaging the backing paper or the adhesive layer. The Self-adhesive Label Slitter Machine is engineered to handle different widths and thicknesses, making it a versatile choice for both small-scale operations and large production lines.

Purpose:
Suitable for various paper strips such as labels, stickers, etc

Machine Width：1.0M/1.3M/1.6M
Max. Unwind O.D:800mm/1000mm
Machine Speed: 300M/min
Min. slitting width: 50mm
Max. Rewinding O.D: 600mm
Rewinding Core l.D: 3"-6"

characteristic

1. 3 motors synchronous drive control system, ensuring high speed operation with stable tension control and aesthetically pleasing finished products.

2. PLC programmable logic controller central system; LED touchscreen interface for tension, slitting length/width, and parameter input.

3. Shaftless conjoined moveable unwinding base (Optional configurations: shaft/shaftless integrated or shaft/shaftless separate type).

4. 3" & 6" unidirectional torque chuck with conical chuck; Electric bilateral chuck actuation; Hydraulic lifting arms loading; Separable paper splice table.

5. Closed-loop tension control system integrated with ultrasonic automatic edge-guiding system.

6. Rewind pressure roller assembly with adjustable pneumatic pressure, suitable for various material slitting/rewinding requirements.
7. German P+F ultrasonic tension automatic calculation and control (including TAP tension control)

8. Quick-change rewind shaft system (air shaft ↔ differental shaft interchangeable).

9 The waste treatment device adopts a fan waste collection.

10. Optional tooling configurations: Pneumatic circular knives, upper/lower circular blade, industrial straight knives (fulfilling diverse material processing needs).

11. Independent rotating finished roll unloading device (equipped with air shaft and packaging).

Integrated dual axis center slitting machine
