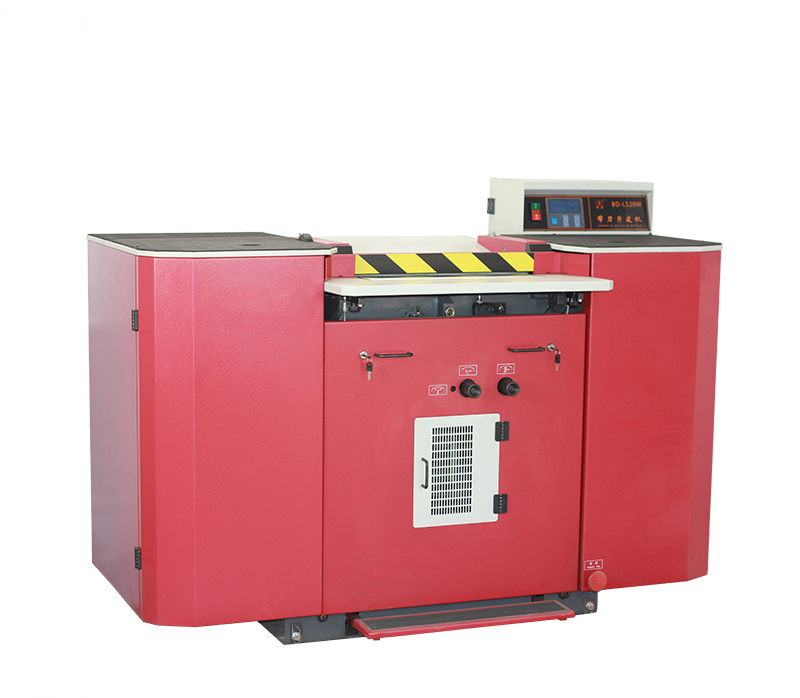

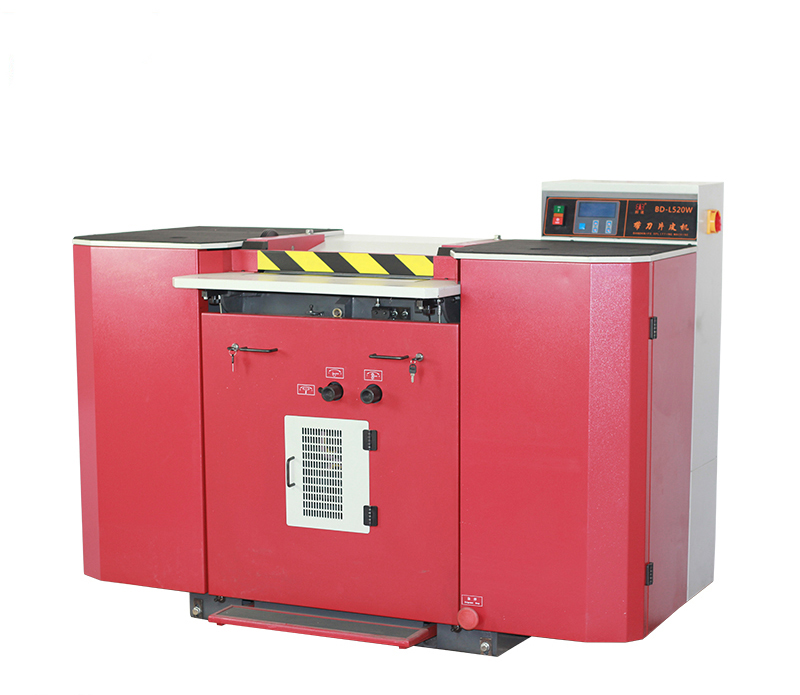

BD-L420W PLC Band Knife Splitting Machine

The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 420mm and the thickness is less than 8mm, according to the required thickness in the industry of leather products. It can adjust the splitting thickness freely, improve the quality of products and strengthen the competitiveness of markets.

BD-L420W PLC BAND KNIFE SPLITTING MACHINE

CHARACTERS

1. Splitting thickness displayed by plc LCD, the infinitely variable adjustment of feeding, accurate number counting function.

2. With automatic feed registration device, no need to adjust cutting tool.

3. Automatic pause system when leather material entangles in and automatic detection system of electronic phase.

4. Freestanding set of dust absorbing and knife grinding dust absorbing device.

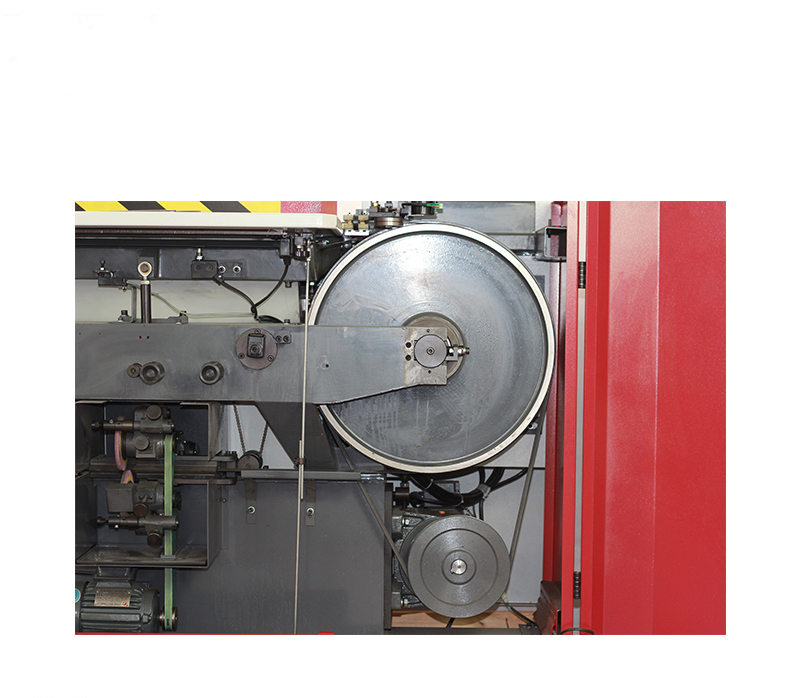

5. The accurate rail makes the movement of flying wheel more reliable, and the replacement of band knife more easily and conveniently.

PARAMETER

Model: BD-L420W

Max width of split：420mm

Max thickness of split：8mm

Min thickness of split：0.15mmwith top bar，0.5mm with top feed roller

Specification of band knife：3570×50×0.8mm

Package size：1780×1130×1500mm

Gross weight / Net weight：810kg/720kg
