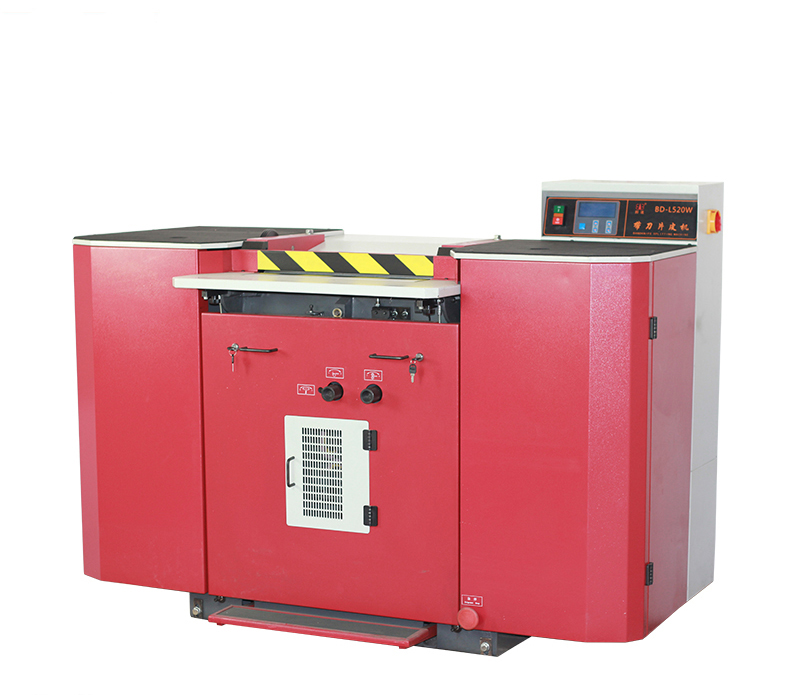

BD-L520W PLC Band Knife Splitting Machine

The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 520mm and the thickness is less than 8mm, according the required thickness in the indusrty of leather products, improve the quality of products and strengthen the competitiveness of markets.

BD-L520W PLC BAND KNIFE SPLITTING MACHINE

CHARACTERS

1. BD-L520W inherits the BD-L620W great function and all advantages.

2. With automatic feed registration device, no need to adjust cutting tool.

3. With function of dropping out when it is splitting.

4. Automatic pause system when leather material entangles in and automatic detection system of electronic phase.

5. Freestanding set of dust absorbing and knife grinding dust absorbing device.

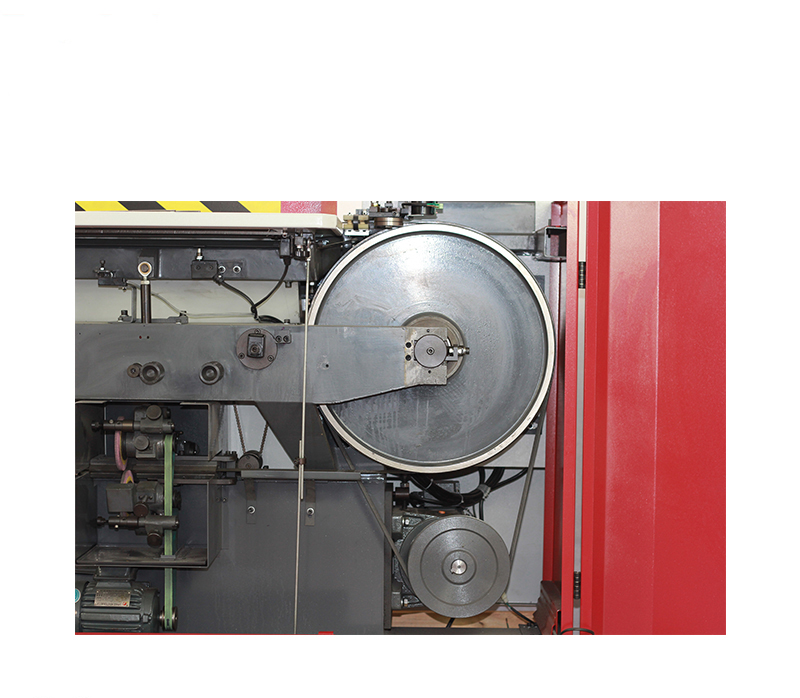

6. The outsize flying wheel makes the operation of band knife more steady andexact.

PARAMETER

Model: BD-L520W

Max width of split：520mm

Max thickness of split：8mm

Min thickness of split：0.15mmwith top bar，0.5mm with top feed roller

Specification of band knife：3810×50×0.8mm

Package size：1900×1500×1130mm
