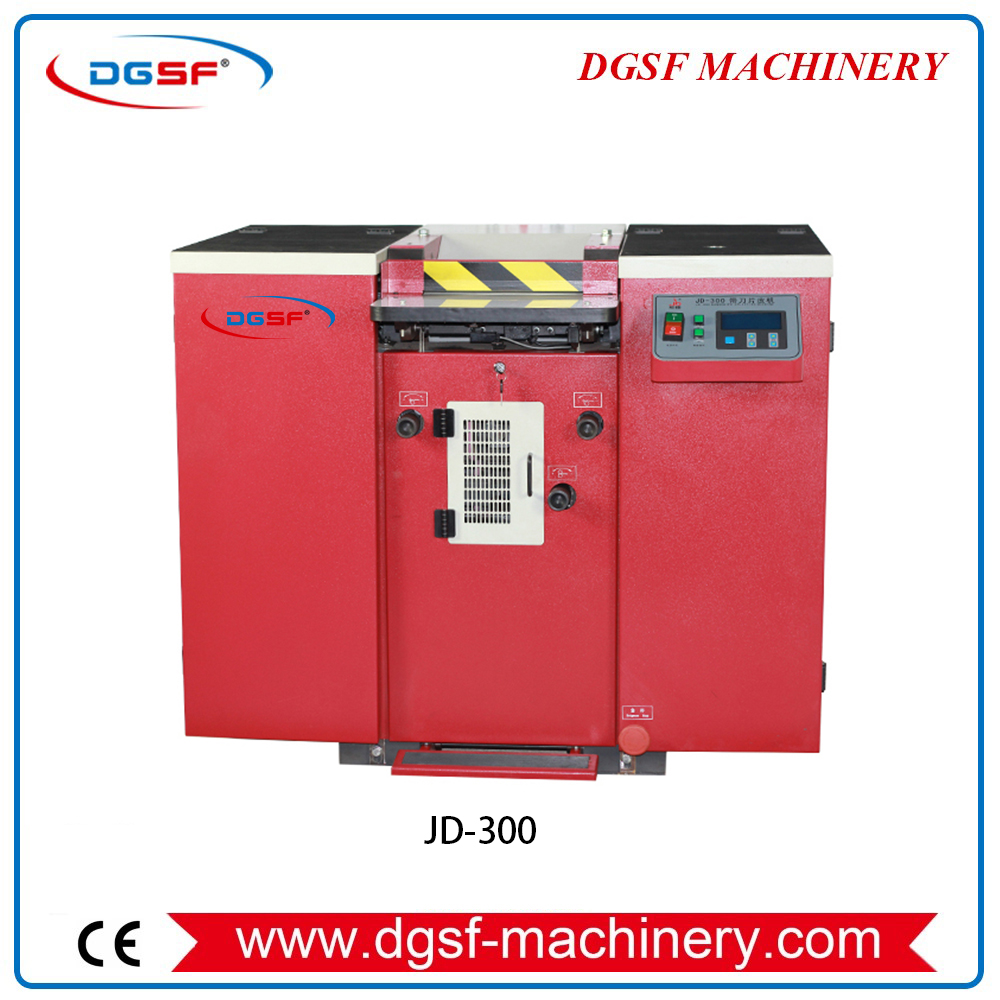

JD-300 PLC band Knife Splitting Machine

The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 300mm, according to the required thickness in the industry of leather products.

JD-300 PLC BAND KNIFE SPLITTING MACHINE

CHARACTERS

1. Splitting thickness displayed by plc LCD, the infinitely variable adjustment of feeding, accurate number counting function.

2. With automatic feed registration device, no need to adjust cutting tool.

3. With function of dropping out when it is splitting.

4. Adjust the clearance of pressure pad and cutting tool automatically to make the splitting precision much higher.

5. Freestanding set of dust absorbing device, automatic detection system of electronic phase.

PARAMETER

Model: JD-300

Maximal width of split: 300mm

Min thickness of cutting: Adopt two feeding rollers 0.6-8mm, Adopt feeding bar 0.2-8mm

Specification of band knife: 2630×50×0.6mm

Motor power: 3.2kW

Package size: 1330×1130×1200mm

Gross weight / Net weight: 580kg/500kg
