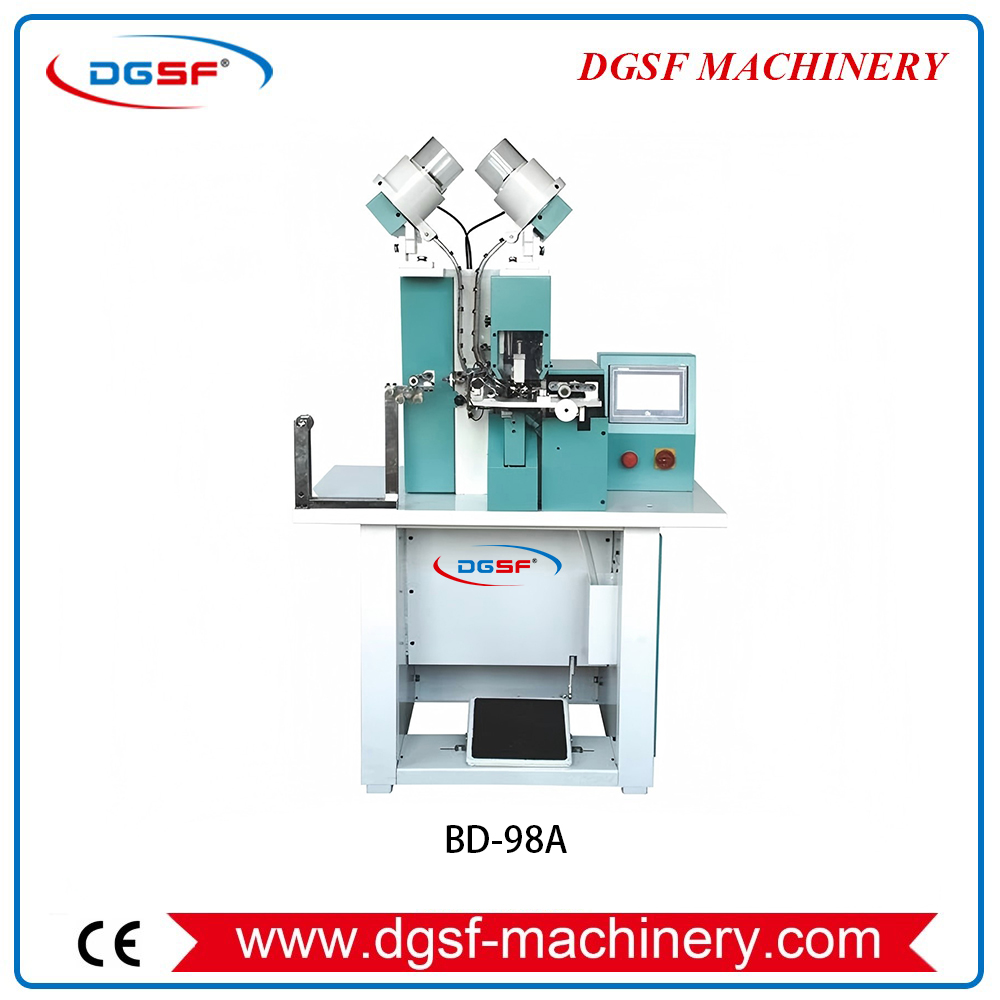

BD-98A  Automatic Punching & Eyeletting Machine

Adopt PLC and touchscreen control,display fault detectionautomatically.It's easy to maintain and user-friendly to operate.
Automatic punching,feeding and riveting eyelets can becompleted at one time.

BD-98A AUTOMATIC PUNCHING & EYELETTING MACHINE

CHARACTERS

Adopt PLC and touchscreen control,display fault detectionautomatically.It's easy to maintain and user-friendly to operate.

Automatic punching,feeding and riveting eyelets can becompleted at one time.

Multiple riveting modes are available: single row,multiple rows,custom mode and segment mode.

1. Single row and multiple-row mode: fill in the X and Y axis datato rivet eyelet in tape or leather belt;

2. Custom mode: after the dislance required for each eyeletis programmed,the eyelet can be riveted;

3. Segment mode: for the entire fabric belt or leather belt,afterprogramming required data and riveting,it can clip by segments.

PARAMETER

Model: BD-98A

Voltage: 220V 50Hz

Power: 0.95kW

Working speed: 120times/min

Nailing size: NO.150-600#

(8mm≥ inner diameter≥3.5mm ; Height≥2.2mm)

Dimension: 1090x770x1530mm
