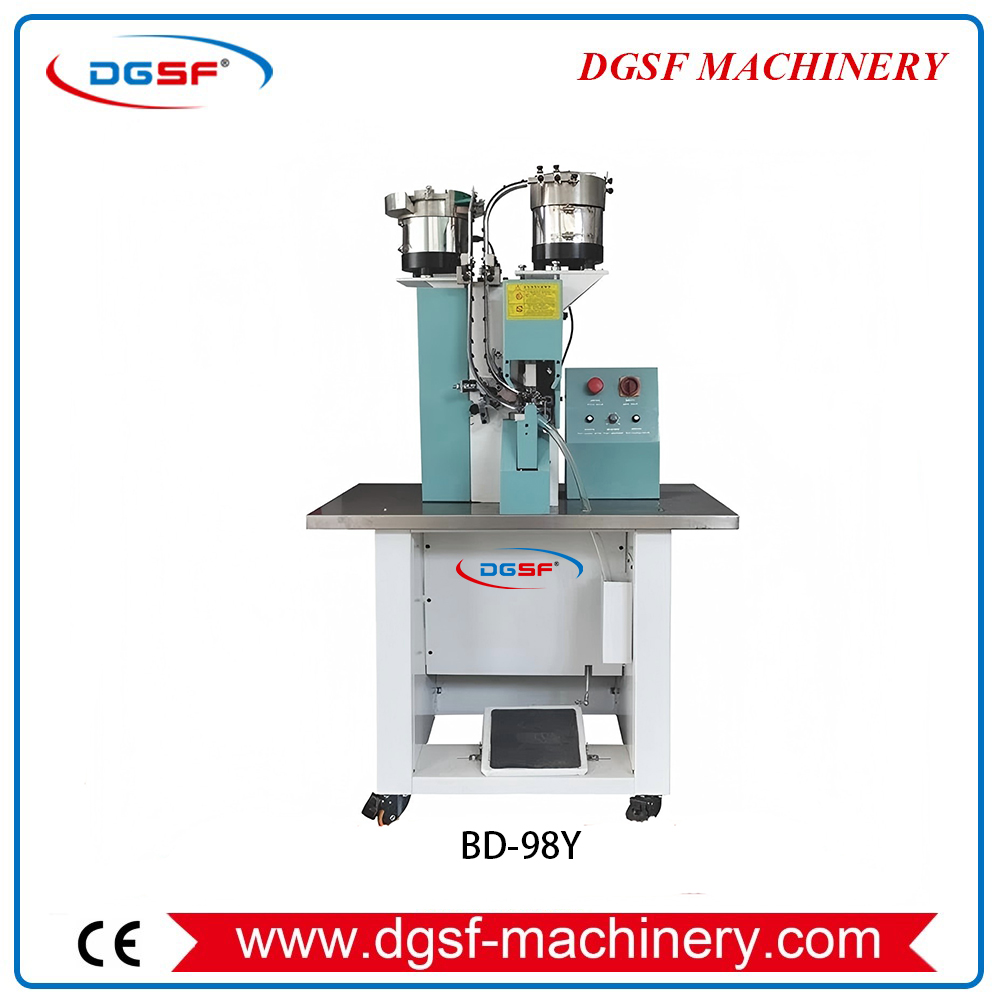

BD-98Y Automatic Punching & Eyeletting Machine

Adopt intelligent control.
Main motor does not start up during standby which is energy saving.
Punching and riveting are completed successively at the same workstation,making the operation simple, fast and accurate,greatly improving the production.

BD-98Y AUTOMATIC PUNCHING & EYELETTING MACHINE

CHARACTERS

Adopt intelligent control.

Main motor does not start up during standby which is energy saving.

Punching and riveting are completed successively at the same workstation,making the operation simple, fast and accurate,greatly improving the production.

Puncher and riveting moulds are made of imported high-strength alloy material which is not easy to wear.

Laser positioning makes riveting easier.

Design of emergency shutdown system provides best safety protection for machine overhaul and maintenance.

PARAMETER

Model: BD-98Y

Voltage: 220V 50Hz

Power: 0.6kW

Working speed: 120times/min

Nailing size: NO.150-600#

(8mm≥ inner diameter≥3.5mm ; Height≥2.2mm)

Dimension: 1000x605x1530mm

Gross weight / Net weight: 280kg/240kg
