IP68 Rated High Current PC Terminal Toggle Switch

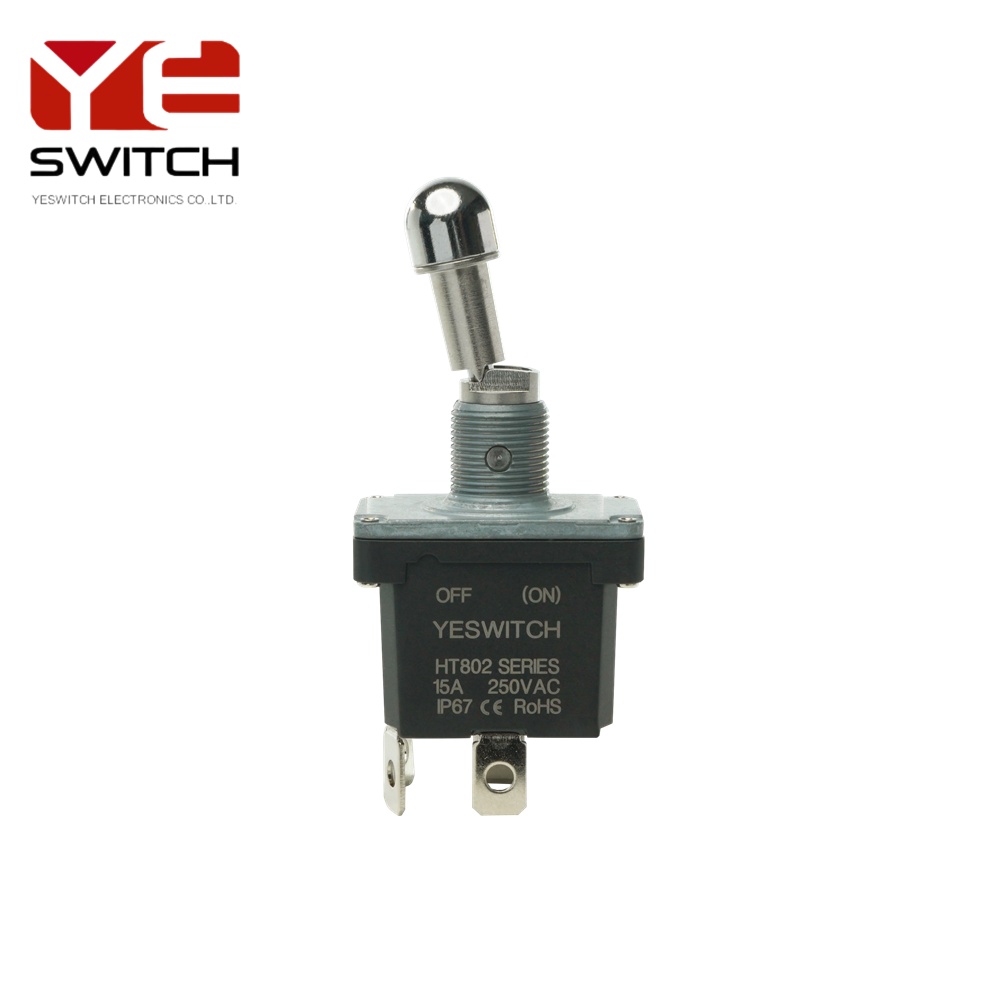

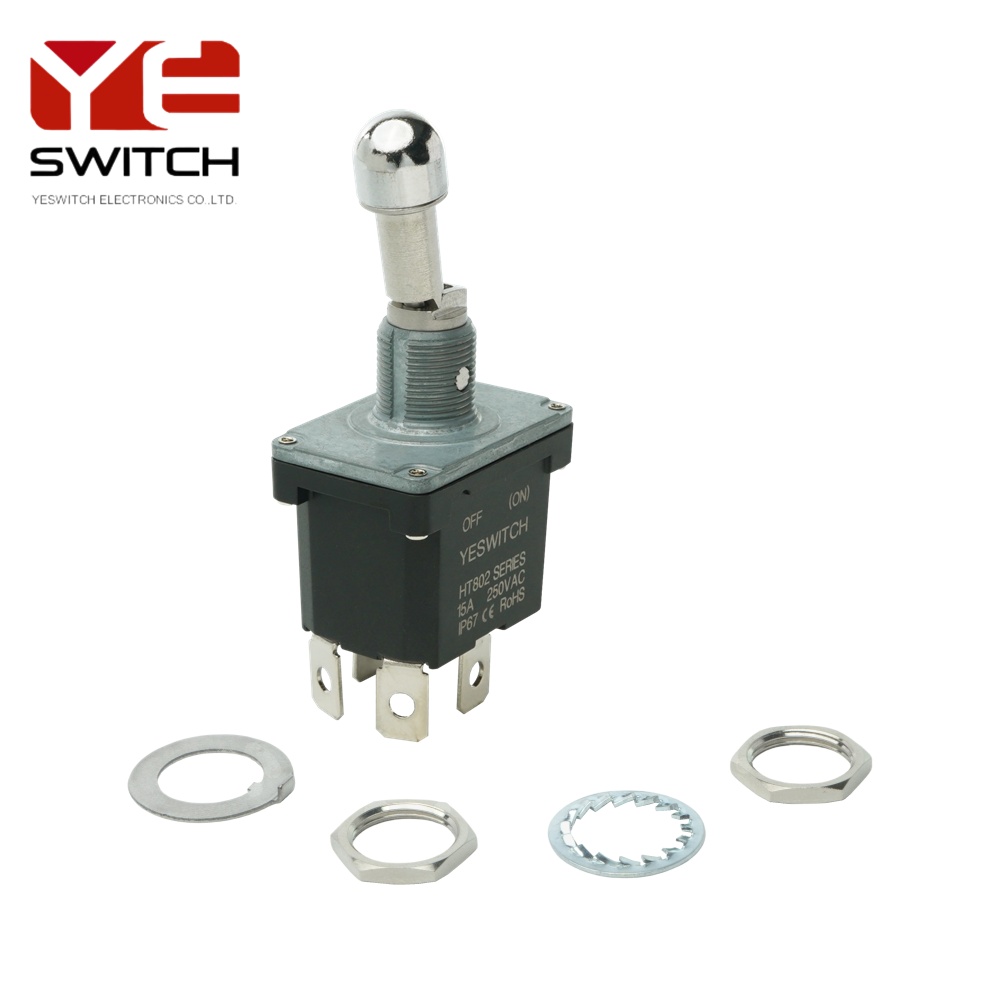

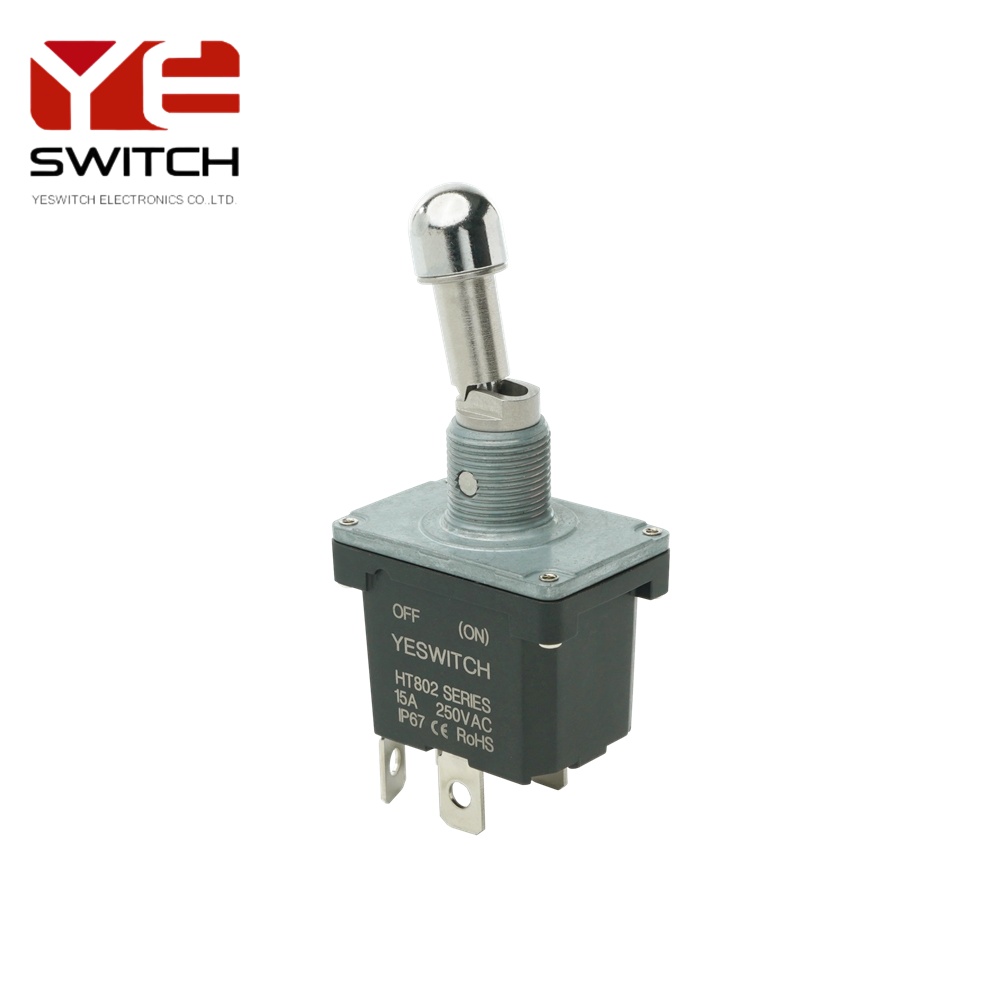

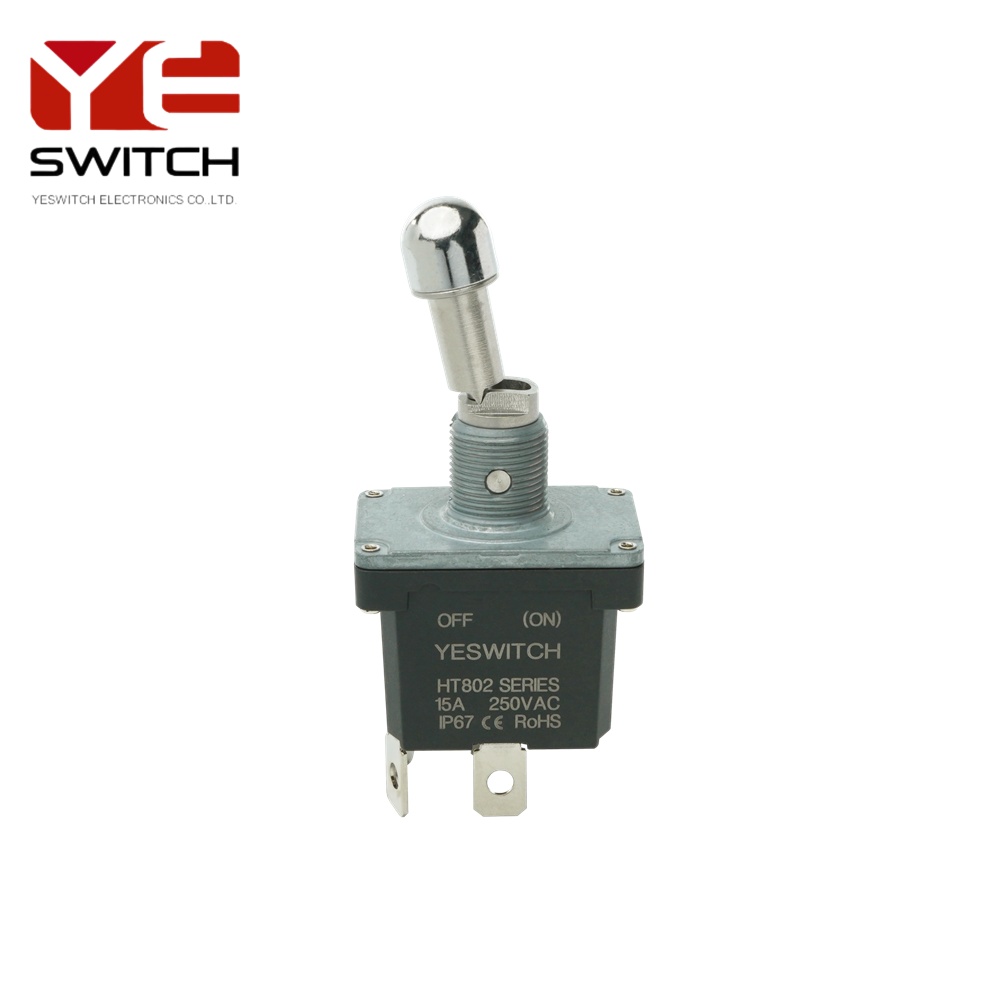

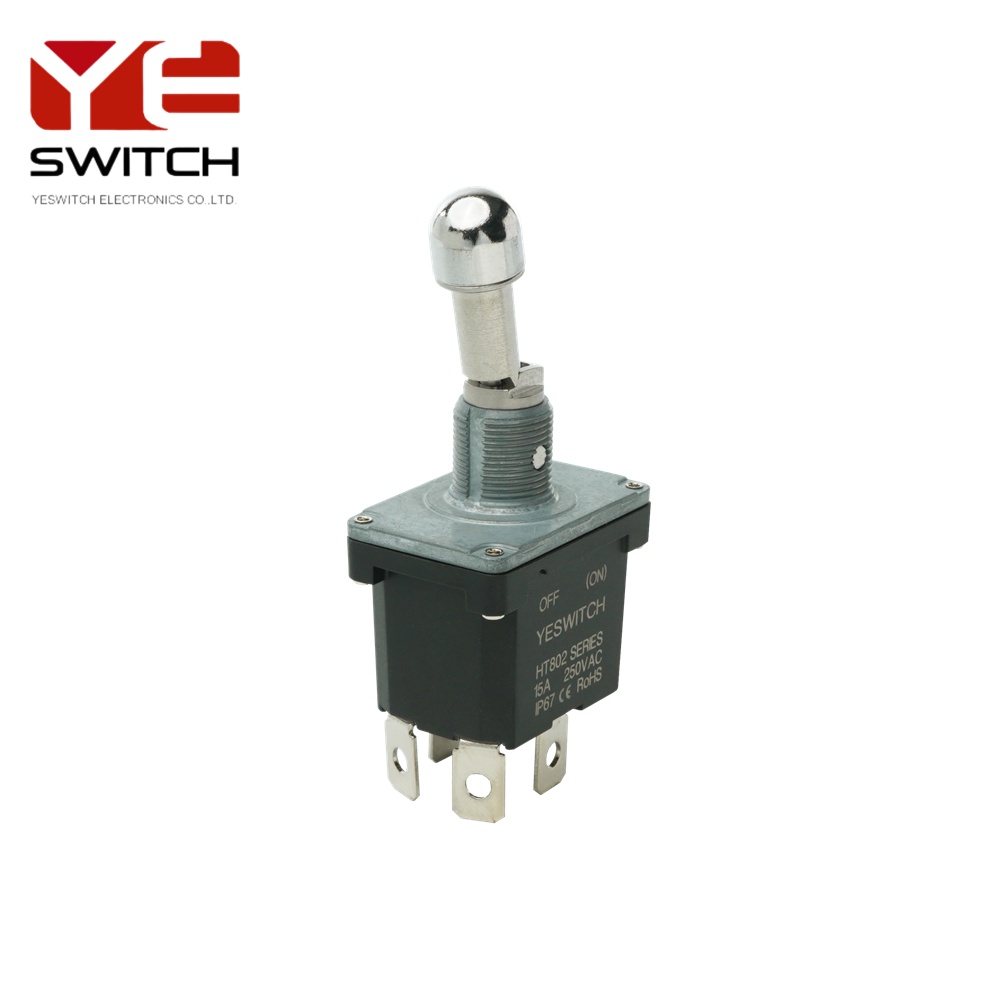

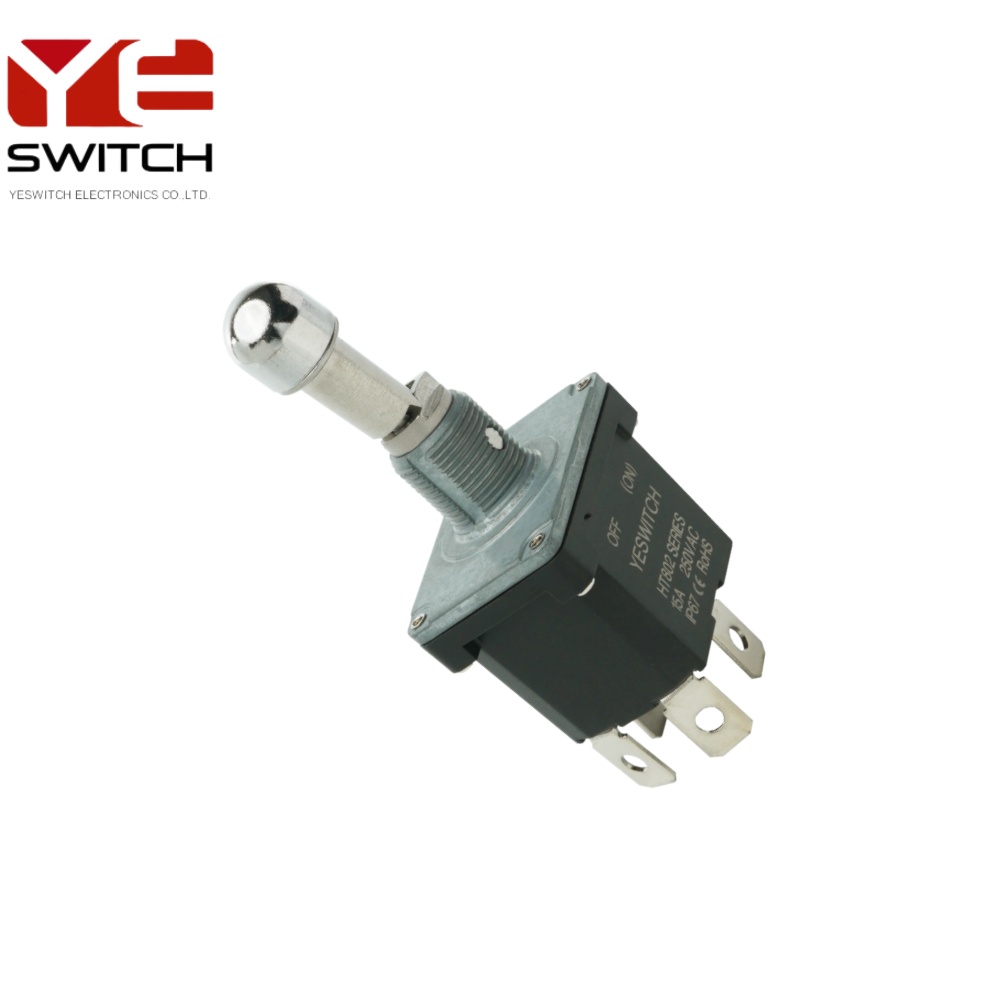

The YESWITCH HT802 Series Toggle switches is a high-reliability industrial toggle switch tailor-made for rigorous harsh working environments. Featured with dual-way OFF-(ON) reset function, sturdy metal lock handle and premium IP68 sealed structure, this professional IP68 Toggle Switch perfectly handles high-current loads, intense vibration and various complex harsh conditions. It is a versatile switching component extensively applied in heavy-duty machinery, aerial work platforms, engineering vehicles and automated industrial equipment.

Core features

Dual-way Independent Control & Reset Function

Designed with dual-circuit independent control structure, the toggle switch supports synchronous and asynchronous operation. It automatically rebounds to the OFF position after triggering to realize safe start and shutdown of mechanical devices. Besides, multiple reset modes including momentary and locked maintained types are optional to satisfy diverse mechanical control logic across different industries.

Military-grade Durable Structure

Equipped with high-strength zinc alloy locking handle with anti-corrosion surface treatment, the switch boasts excellent impact resistance and anti-mistouch performance, allowing operators to control the device even with work gloves. Adopted optimized PC terminals with ultra-low contact resistance, the switch supports plug-and-play wiring and stable 16A high-current transmission for long-term continuous operation.

Super Strong Environmental Adaptability

Adopting full IP68 hermetic sealing technology, the switch realizes all-round dustproof, waterproof and oilproof performance. It can maintain stable working performance under extreme temperatures ranging from -40℃ to 85℃, as well as high-humidity outdoor and marine environments, greatly expanding its applicable scenarios for industrial fields.

Large-capacity electrical performance

16A/250VAC high load capacity,life of more than 100,000 cycles.

Typical application scenarios

Heavy machinery:excavator,crane power switching and safety emergency stop control.

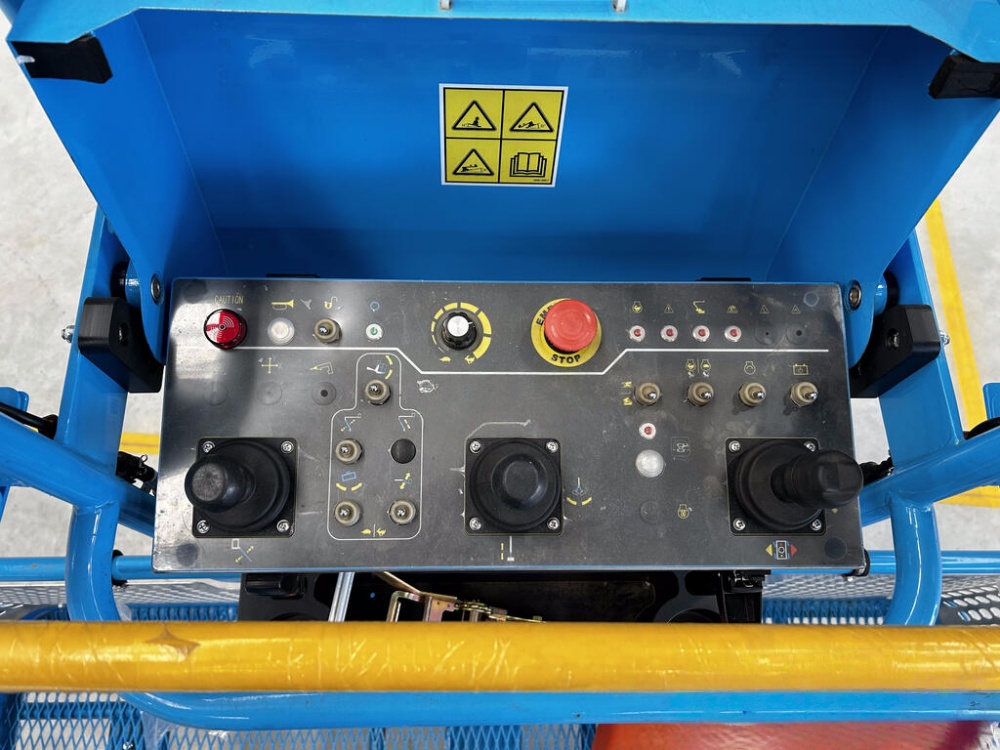

Aerial work platform vehicle:lifting mechanism dual-way interlocking,emergency stop system.

Special vehicles:power distribution and protection circuits for mining trucks and fire trucks.

Industrial automation:equipment emergency power off,mode switching and safety interlocking devices.

YESWITCH HT802 series is centered on high reliability,large current carrying and extreme protection,providing safe circuit control solutions for heavy equipment.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
