Semi automatic rewinding machine

3 month ago
2 0
Product details
In the vast field of adhesive tape processing, various types of machines perform their respective duties and jointly form an efficient production chain. Among them, the Semi automatic Adhesive tape special tape winding machine is undoubtedly an indispensable key link. It works in collaboration with numerous partner machines to inject strong impetus into the production of adhesive tapes. ​

The Tape Slitting Machine is responsible for precisely slitting the wide tape mother roll into rolls of different widths, laying the foundation for subsequent processing. The Tape Cutting Machine can cut the tape into specific lengths as required to meet diverse application scenarios. And our Tape Rewinding Machine, especially this semi-automatic tape dedicated rewinding machine, plays an important "organizer" role throughout the entire process. It can neatly rewind the slitted and cut tape, ensuring the flatness and tightness of the tape roll, greatly enhancing the convenience of subsequent use and packaging. ​

Specialized equipment demonstrates unique advantages for different types of tapes. The Bopp Tape Slitting Machine focuses on the slitting of Bopp tape and ensures the slitting quality with precise technology. The Special Tape Slitting Machine provides professional support for the processing of various special tapes, addressing their specific material and performance requirements. When these slitted tapes need further processing, the Automatic Cutting Machine completes the cutting operation with efficient automated operation, while our semi-automatic tape dedicated rewinding machine can perfectly connect and perform high-quality rewinding of the cut tapes. ​

This semi-automatic tape dedicated rewinding machine combines the flexibility of manual operation with the efficiency of mechanical operation. It can not only meet the production demands of small batches and multiple specifications, but also ensure the rewinding accuracy. Whether it is used in conjunction with the Tape Slitting Machine to process the regular Tape after Slitting, or collaborates with the Special Tape Slitting Machine to process the special tape, it can perform stably, making each roll of tape present excellent quality. In the cooperation with the Tape Cutting Machine and the Automatic Cutting Machine, a smooth production closed loop has been formed, significantly improving the overall production efficiency and bringing tangible benefit improvements to the tape processing enterprises. ​

Semi automtic double shafts adhesive tape rewinding machine
5dd8ff8983c458dd2d93781f030eb7d


Specification
Measurement
L*W*H
N.W. Air Pressure Source Power
1300MM 2600*1700*1500MM 2000KG 0.63mpa 4W 3P 380V/50HZ 5.5kw

Max Rewinding Speed Biggest Rewinding Diameter Biggest Unrewinding Diameter
260M/MIn 200MM 800MM

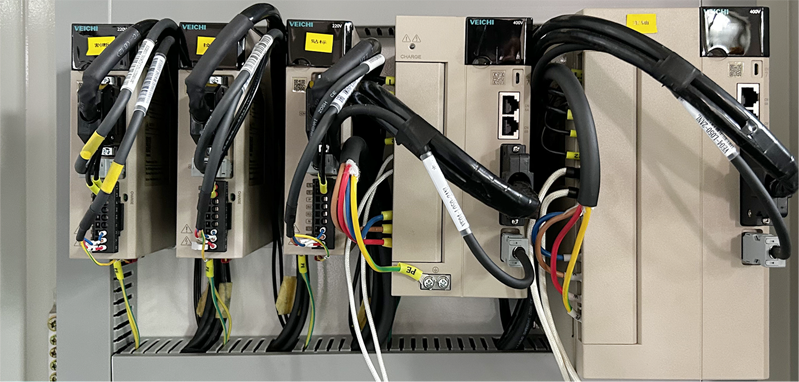

Five servo motor control

5 servo motors control the action from left to right is cutting,  pulling label paper, labeling, rewinding shaft, main drive.

The main drive and rewinding shaft drive adopt two high-power servo motors.

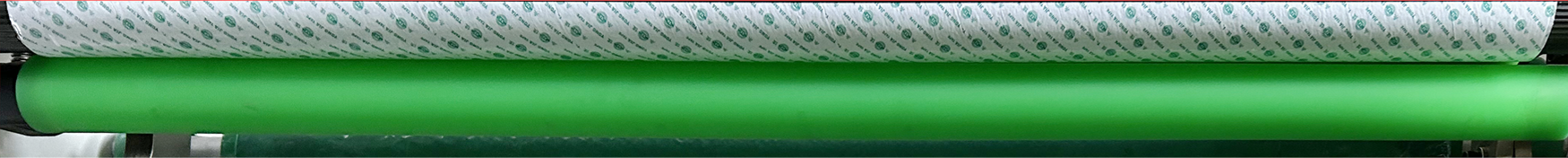

Finished product smoothing function


default name
The silicone roller with moderate hardness can automatically smooth the excess material after the partition.

Compared with manual smoothing, the flatness is higher and the excess bubbles can be extruded.

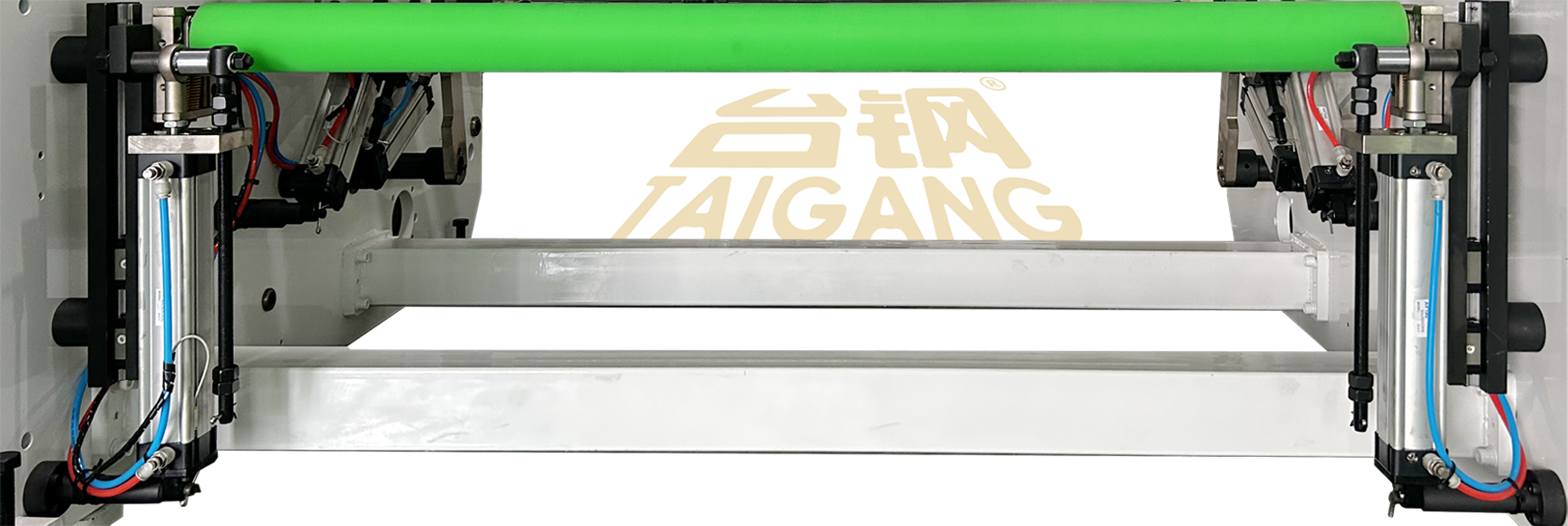

Automatic  smoothing function

Automatic leveling of the base material, using imported airtac air cylinders from Taiwan.

Function: Smoothly attach the cut materials to the paper tube.

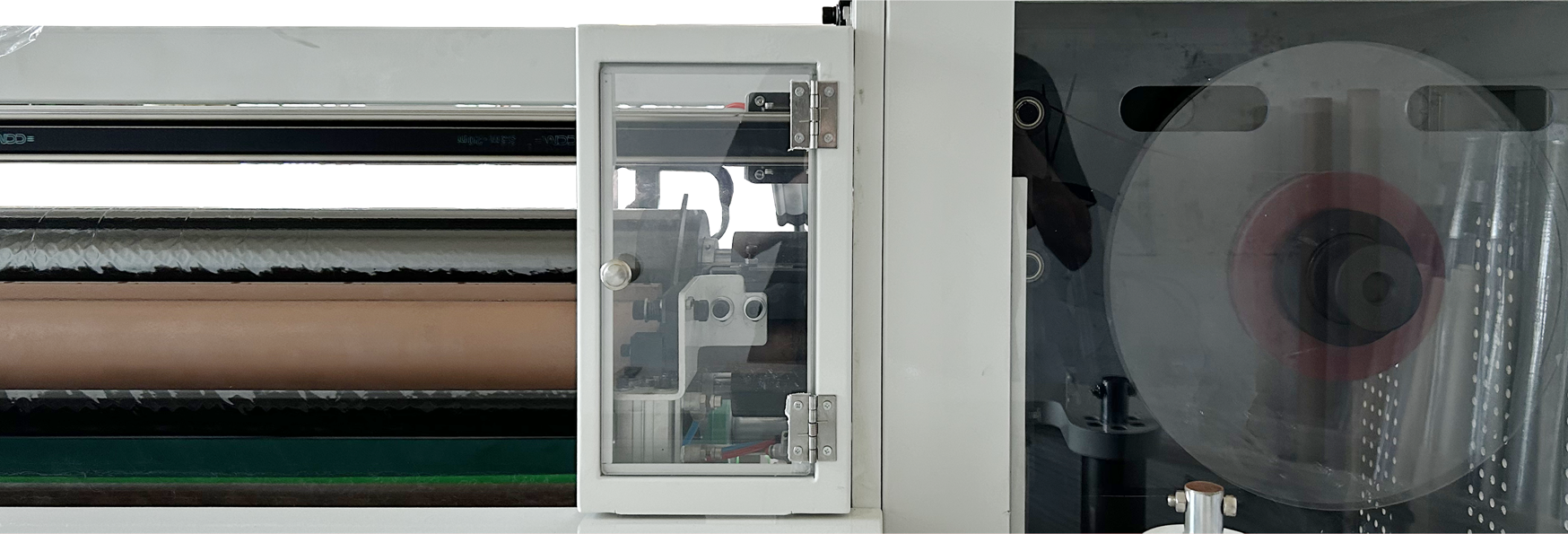

Automatic  labeling function
2222
Labeling position accuracy is ±1mm.

High performance servo module labeling device. Using two sets of highly precise servo modules for control.

Labeling position, labeling accuracy, labeling segment speed can all be set on the touch screen, eliminating manual physical adjustment, simple and safe.

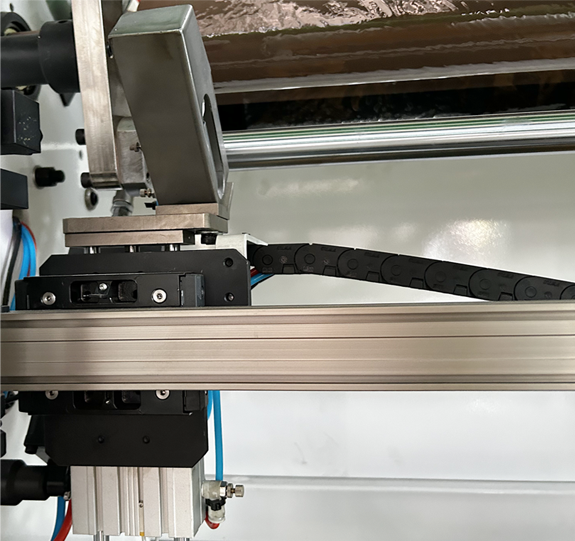

Automatic  cutting function

default name
Adopts high performance servo module cutter device, adopts pull cutting mode.

Cutter position, cutter precision, cutter segment speed, etc., can be set on the
touch screen.

With high precision labeling system, it can produce warp label tape.

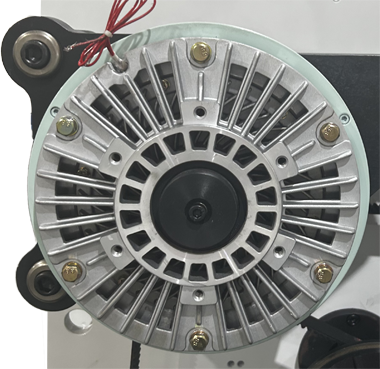

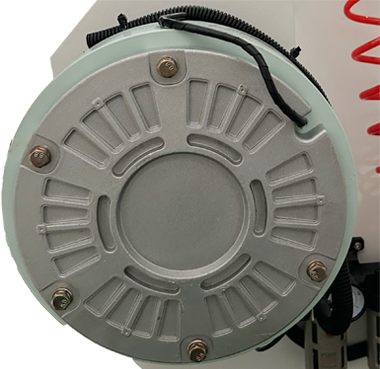

Automatic tension control

23
2

Equipped with 10kg electromagnetic clutch and 10kg electromagnetic brake.

PlC automatically controls the winding tension.

Application:
The machine is mainly suitable for rewinding the material such as BOPP adhesive tape, masking tape, double side tape, kraft paper tape, foam tape, medical tape, duct tape, PET  film,etc.
