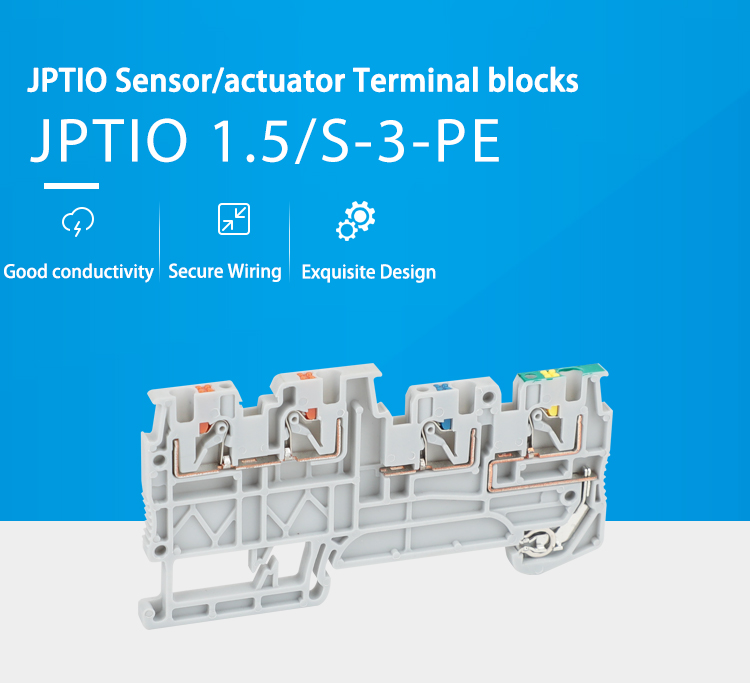

JPTIO1.5/S/3-PE Sensor Actuator Terminal Block

The Push-in direct connection technology make the insertion forces reduced by up to 50 percent and tool-free wiring, enable the conductors to be inserted easily and directly.

Made from engineering flame retardants nylon PA66 with brass screw metal.

• Made from engineering flame retardants nylon PA66 with brass screw metal.

• The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
• The compact design and front connection enable wiring in a confined space.
• In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection.
• With universal foot which can be installed on Din Rail NS 35.
• It can connect two conductors with ease, even large conductor cross sections are not a problem.
• Electric potential distribution can use fixed bridges in the terminal center.
• All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

  Model Number	JPTIO-IN2.5/3(PE)
  Color	Grey, Blue, other color can be customized
  Length/Wide/Height (mm)	L76.7/W3.5/H40.1mm
  Connection method	Push-in connection
  Material	Nylon PA66
  Rated Voltage/Current	250V/20A
  Cross section, solid/soft Cable	0.2-4mm²/0.2-2.5mm²
  Conductor Size	26-16 AWG
  Mounting Type	NS 35/7.5
  Standard	IEC 60947-7-1
  LOGO	Customized logo are supported
  Packing Detail	8.11g/pc, 50PCS/BOX
  Certification	CE/RoHS/CQC/ISO 9001
