JST 4 PE Din Rail Earthing Spring Clamp Terminal Blocks Green Yellow
Terminal Blocks are used to connect, organize, and distribute your wires to different electrical circuits, and accept for more wires to be connected to the same circuits. It is easy operation and use. Ground terminal blocks with a metallic PE foot . The connection between the terminal points and the DIN rail is created automatically once the terminal blocks are snapped on. Open the terminal point with a standard screwdriver. Insert the conductor into the clamping space and remove the screwdriver. The conductor makes contact mechanical.
- High quality combination.
- Ground protection.
- Bright yellow and green.
- Safety measures in case of abnormal equipment defect.

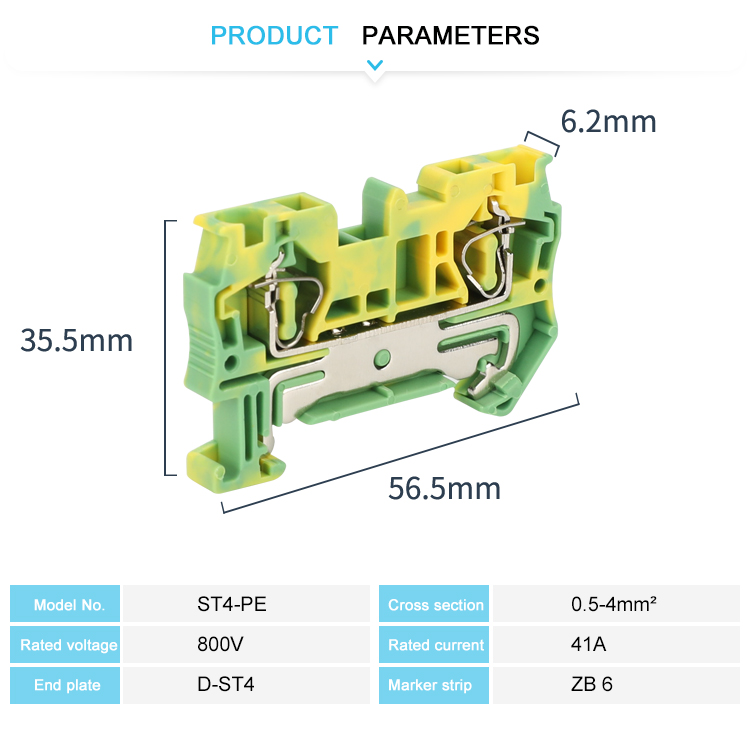

Technical Parameters
|
Model No. |
JST 4-PE |
|
Color |
Yellow/Green, other color can be customized |
|
Length/Height/Wide (mm) |
56.5/35.5/6.2 |
|
Connection method |
Spring-cage connection |
|
Material |
Flame resistant Nylon PA66, Tin plated brass conductor |
|
Rated Voltage/Current |
800V/41A |
|
Cross section, solid/soft Cable |
0.5-6mm² / 0.5-4 mm² |
|
Conductor Size |
20-10 AWG |
|
Mounting Type |
DIN Rail NS 35 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
WonkeDQ, LOGO can be customized |
|
Packing Detail |
12.1g/pc, 50PCS/BOX,2000PCS/CTN |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
