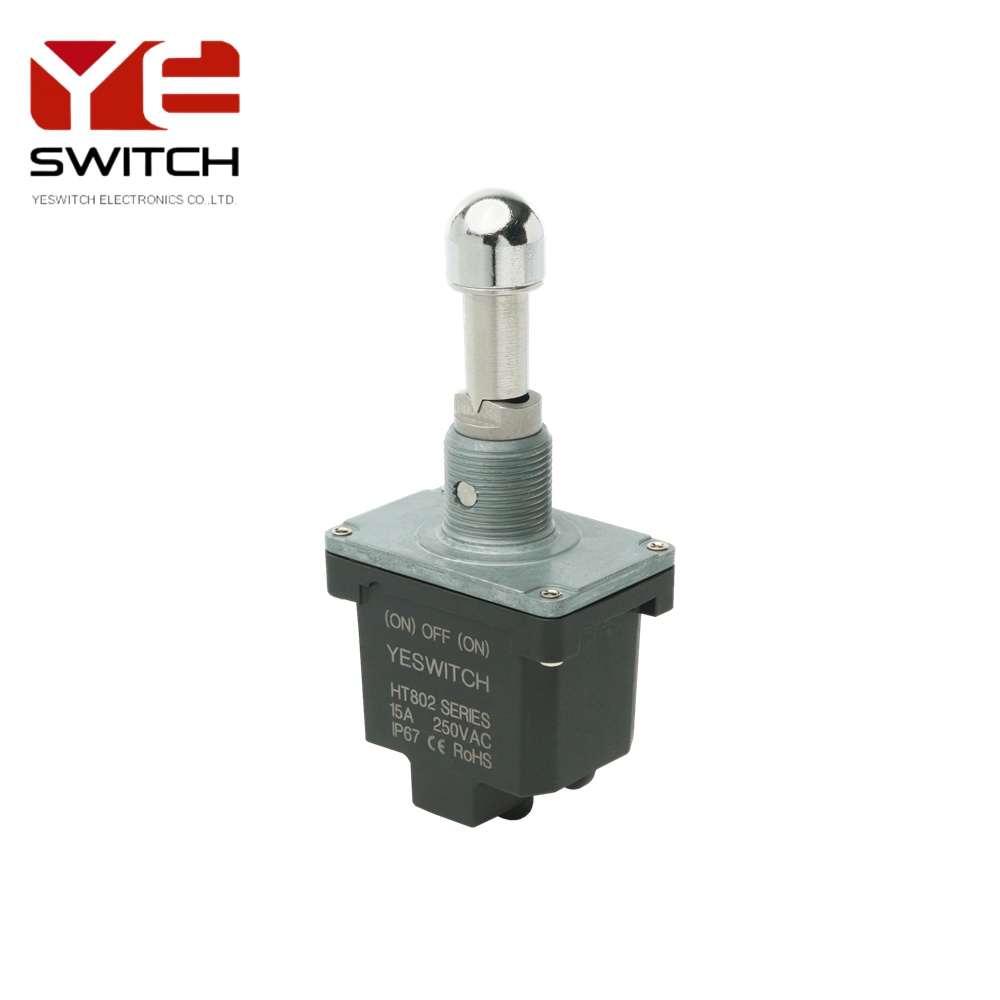

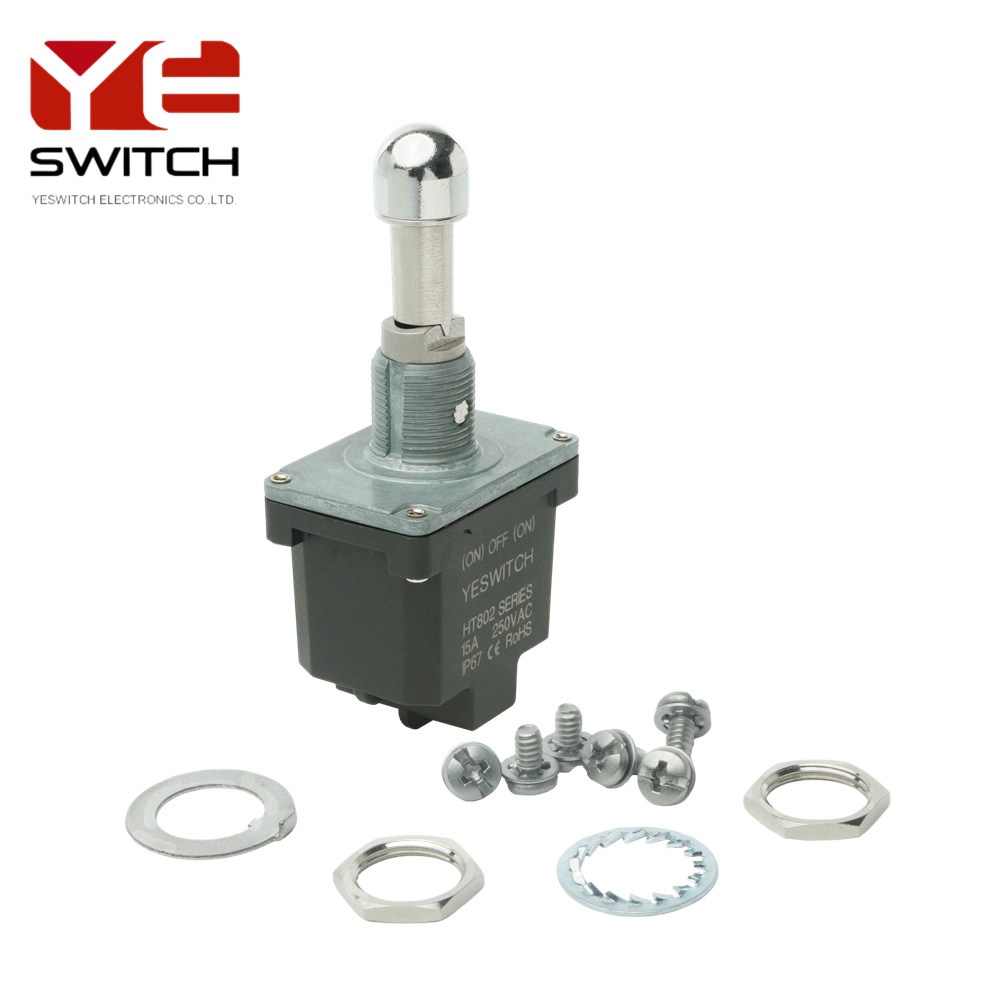

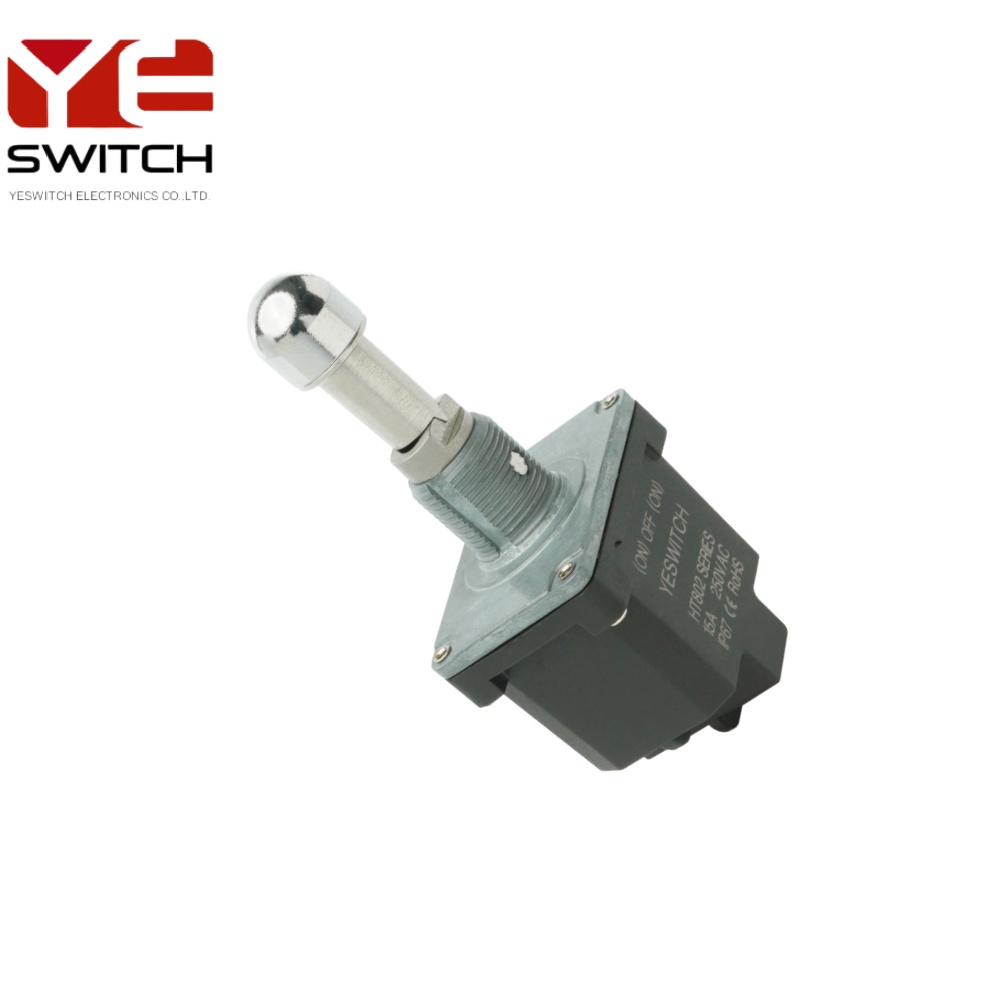

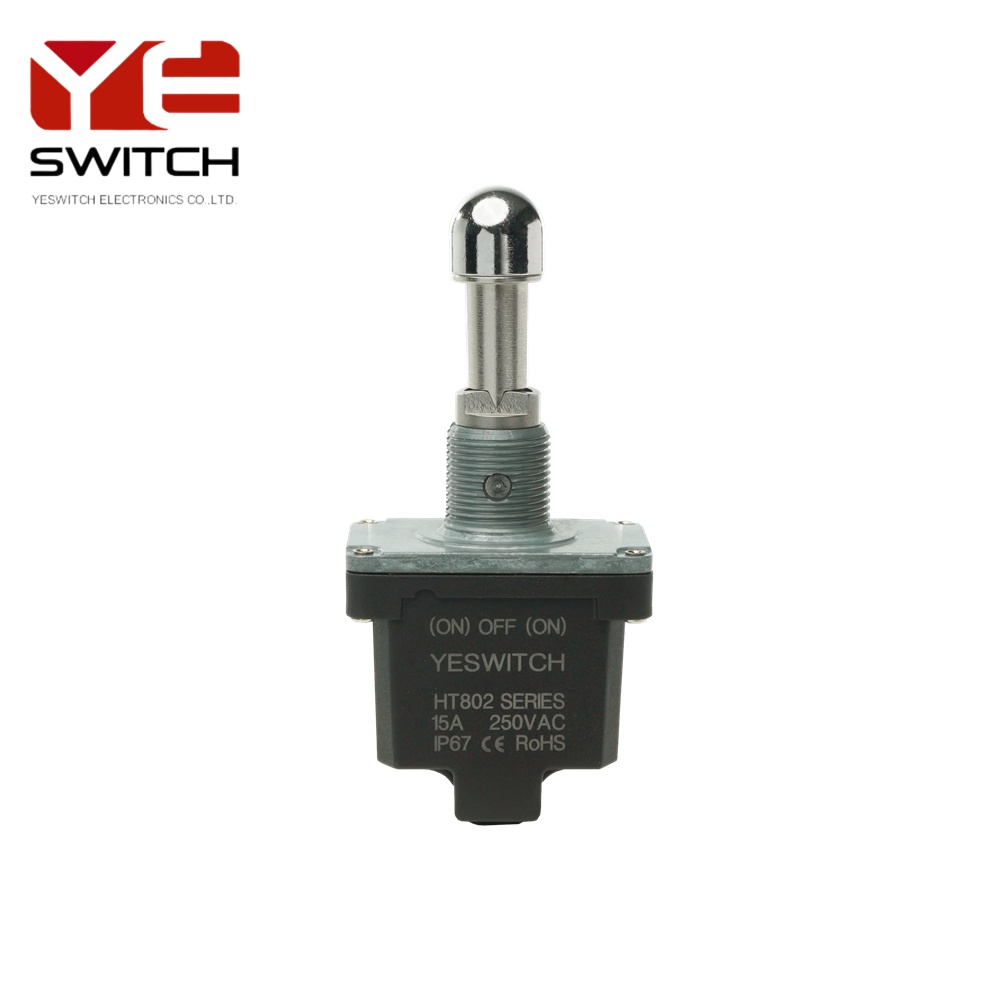

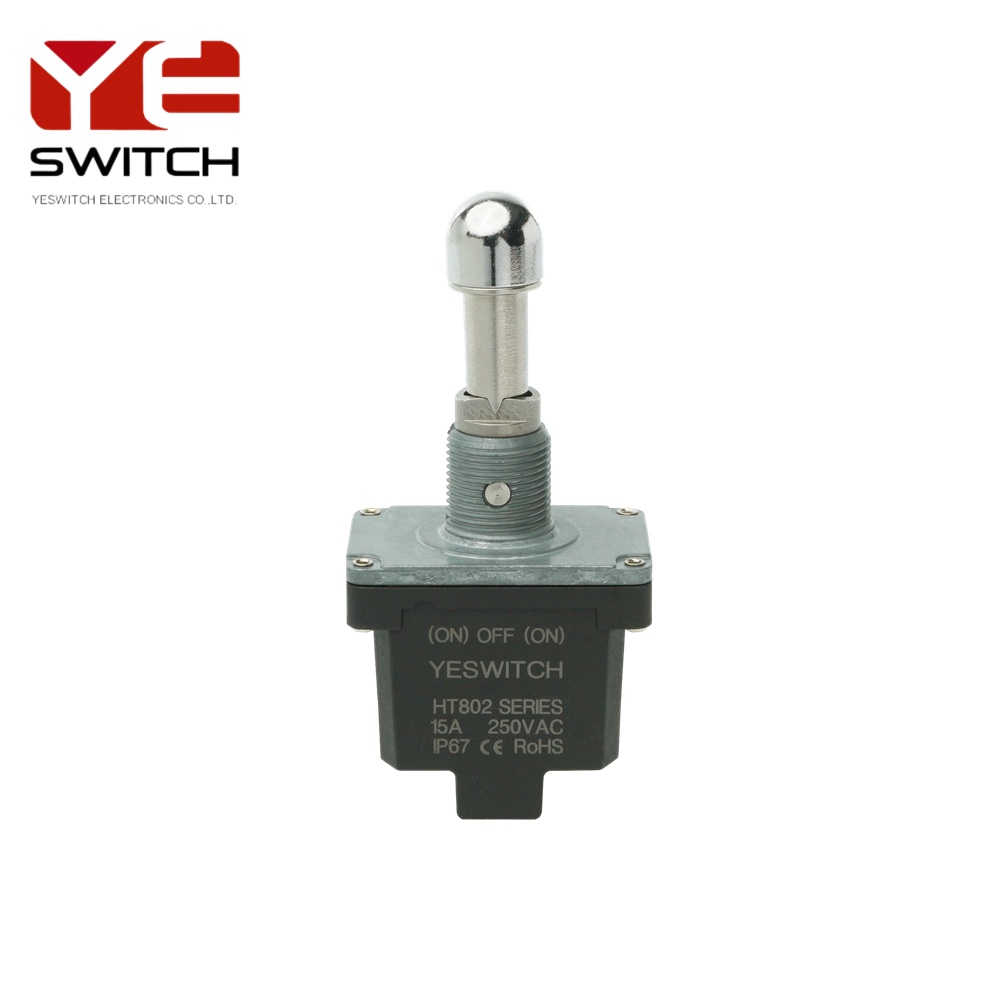

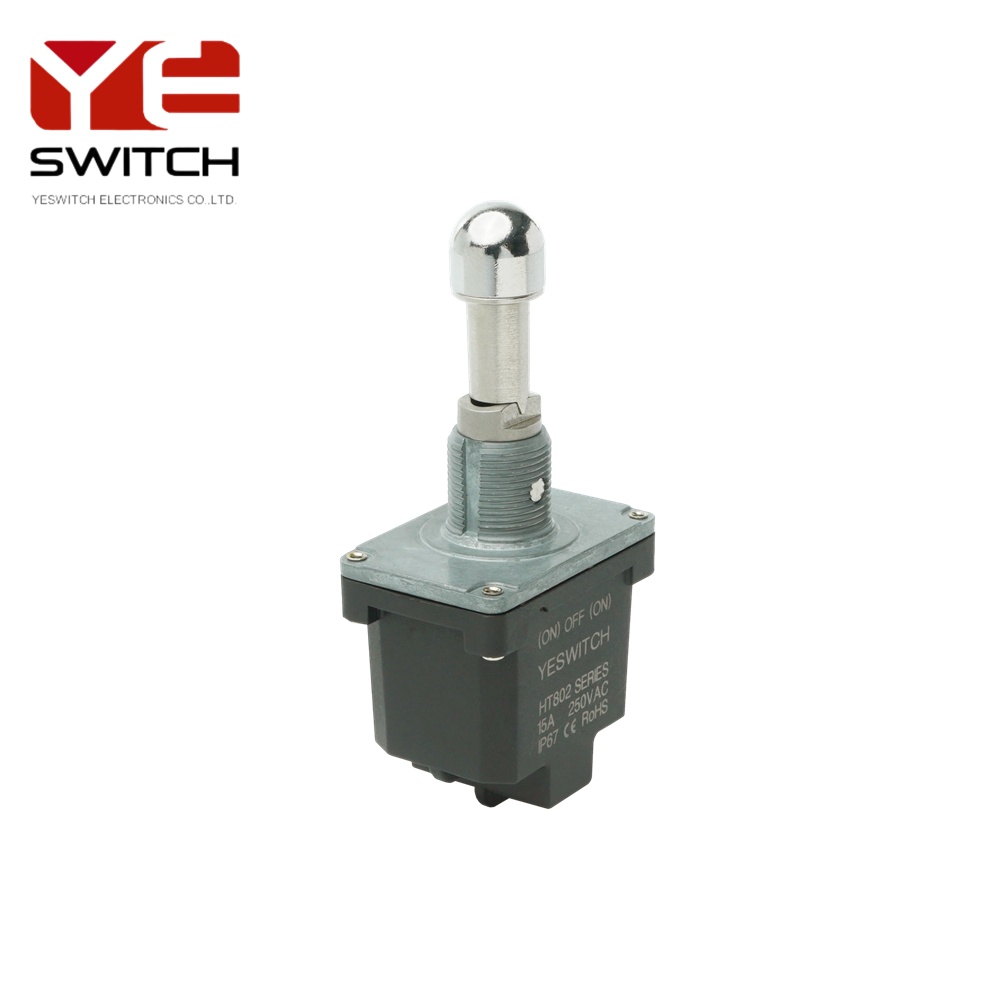

IP68 Industrial 16A Screw Terminal Toggle Switch

YESWITCH HT802 Series high-current toggle switches are high-performance,dual-way reset switches designed specifically for heavy machinery and aerial work platforms.

Key Features

Dual (OFF)-ON-(OFF) reset function

Employing a unique dual-circuit design,toggle switch supports momentary action (conduction when pressed,automatic reset to OFF when released),making it ideal for scenarios requiring brief power on or emergency control.

Two independent control paths simultaneously manage two high-current loads,simplifying system wiring.

Metal Locking Handle

High-strength copper alloy handle: shock- and wear-resistant,suitable for high-vibration industrial environments.

Mechanical locking mechanism:Manually lockable in the ON position (optional locking accessory required) to prevent accidental activation or power outage,enhancing operator safety.

16A High Current Carrying Capacity

Copper alloy contacts:arc-erosion-resistant,supporting 16A/250VAC or 28VDC loads,meeting the high-power demands of heavy machinery.

IP68 Fully Sealed Protection

Silicone sealing ring + corrosion-resistant housing:Dust-proof,waterproof,and oil-resistant,it operates stably in extreme environments ranging from -40 to +85 degrees,making it suitable for outdoor use on aerial work platforms.

Industrial-Grade Installation and Connection

Screw terminal connections:Nickel-plated copper screws provide strong tightening force to prevent loosening.

Typical Applications

Heavy Machinery:Hydraulic system control and engine start/stop for excavators and cranes.

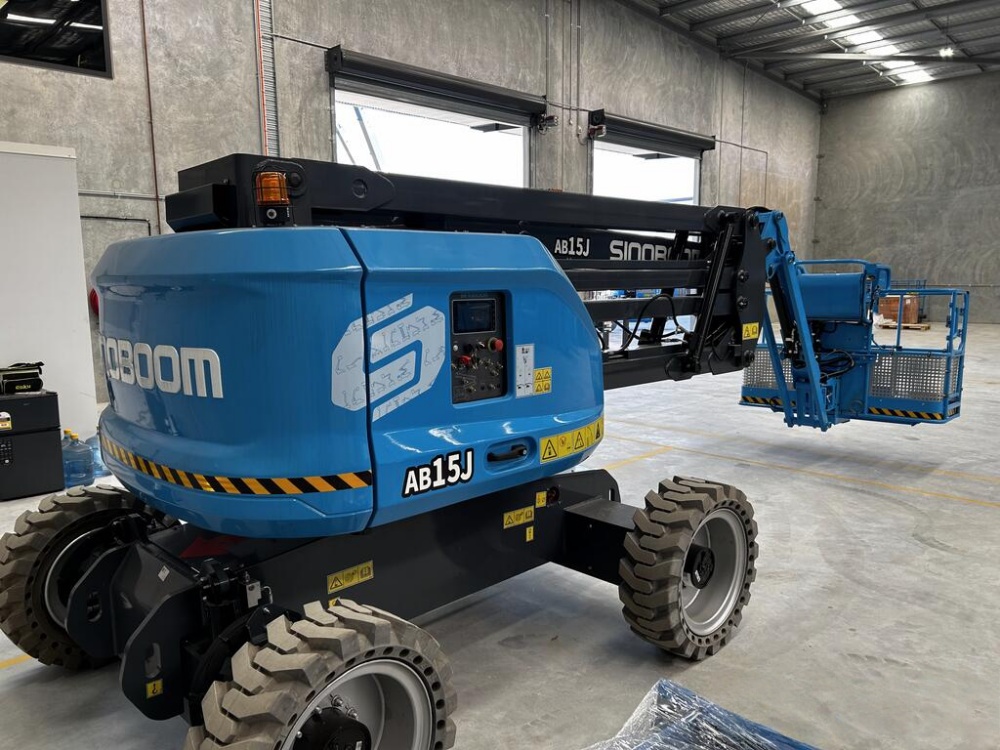

Aerial Work Platforms:Emergency stop for booms and platform lighting.

Other Applications:Marine equipment,mining machinery,and new energy charging stations.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
