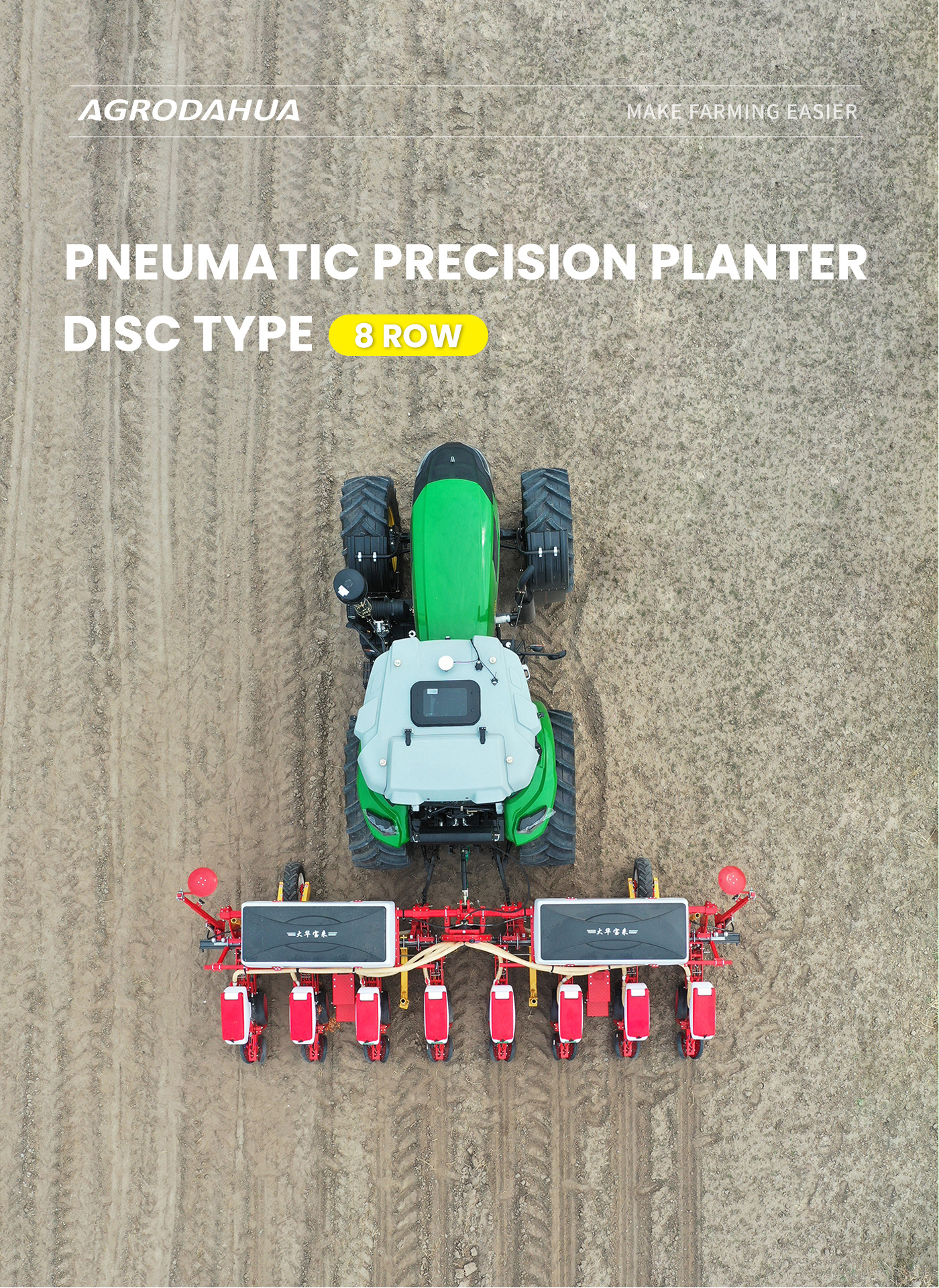

8-row disc pneumatic precision seeder

4 week ago

0 0 

7 year

Product details

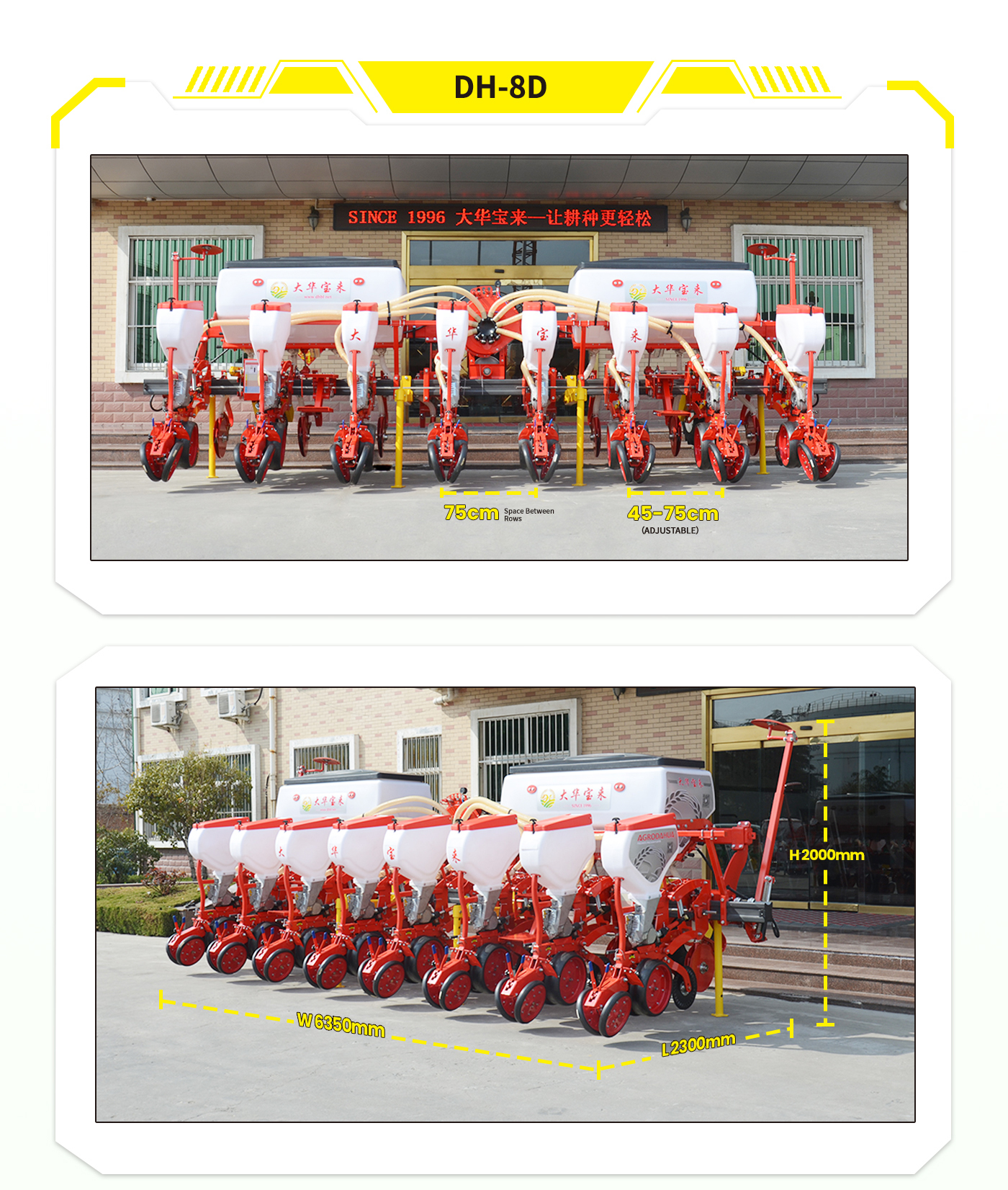

8-row disc-type pneumatic precision seeder with a row spacing of 75cm and an operating width of 600cm. The row spacing can be adjusted within the range of 45-75cm according to agronomic requirements and planting patterns, with the minimum operating width of 360cm and the maximum reaching 600cm. The whole machine is equipped with a hydraulic motor and an imported negative pressure fan. It can be matched with 130-190 horsepower tractors to complete operations such as furrowing, side fertilization, stubble breaking, seeding, earthing up and rolling at one time. It is suitable for no-tillage, reduced-tillage and conventional sowing operations of medium and large-grain hill-drop crops such as corn, soybean, sorghum, sunflower, beet, peanut and chickpea, and is applicable to large-scale farm operations. The front is equipped with a double-disc fertilizing furrow opener, which can effectively cut crop residues to form fertilizer furrows. The bow-shaped spring steel has a profiling function, which better ensures the consistency of fertilization depth. It is equipped with 2 large-capacity fertilizer boxes of 570L, reducing the number of fertilization times. The rear seeding part is configured with original imported pneumatic seed meters, which have the characteristics of good adsorption, high single-seed rate, precise plant spacing, no seed selection and no seed damage. With simultaneous application of seeds and fertilizers, it achieves good seeding effect and high emergence rate, and can operate at a speed of 8-10km/h.

Product Model	UNIT	DH-4D	DH-5D	DH-6D	DH-8D	DH-10D	DH-12D	DH-16D	DH-18D
Total Lenght (L)	mm	2000	2000	2000	2000	2000	3400	3400	3400
Total Width (W)	mm	3000	3600	5900	7700	8500	9000	11000	12000
Total Height (H)	mm	1800	1800	1800	1800	1800	1800	1800	1800
Weight	kg	1200	1350	1500	2600	3100	3300	3800	4100
Matching Power	hp	60~80	80~100	100~120	130~160	150~200	160~220	180~240	200~280
Working Width	cm	160~320	200~350	240~480	320~640	400~800	480~960	640~1440	720~1200
Seed/Fertilizer	rows	4/4	5/5	6/6	8/8	10/10	12/12	16/16	18/18
Row Space	cm	40~75	40~75	40~75	40~75	40~75	40~75	40~70	40~65
Working Depth	mm	0~100	0~100	0~100	0~100	0~100	0~100	0~100	0~100
Fertilizer box capacity	kg	160X2	160X2	200X2	160X4	200X4	200X4	160X6	200X6
Seed box capacity	L	40X4	40X5	40X6	40X8	40X10	40X12	40X16	40X18
