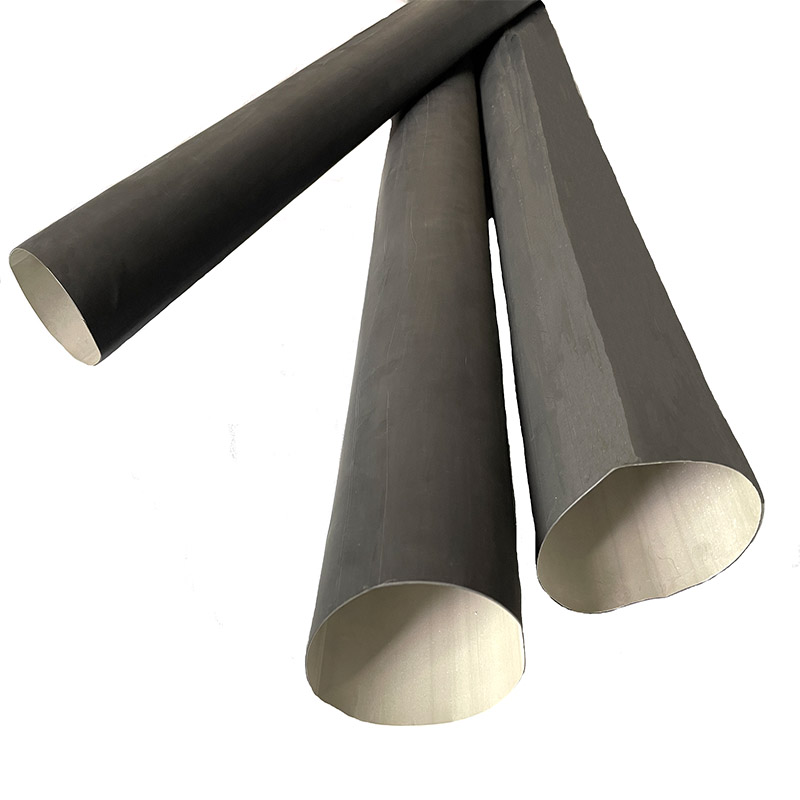

KY-ES Shielding Heat Shrink Tubing

1. Product Overview

• Lighter weight for easier installation.

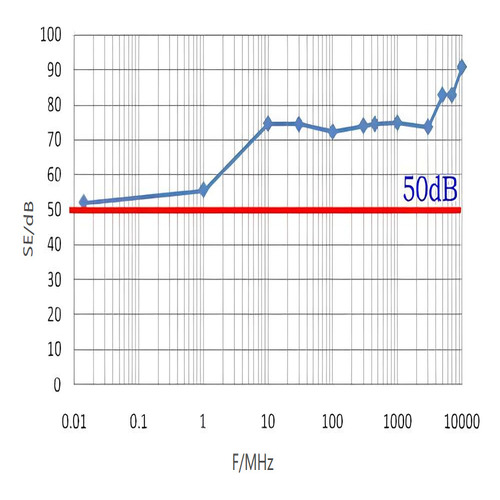

• Broad shielding coverage (14KHz–10GHz) with effectiveness reaching 35dB–70dB (≥50dB after shrinkage).

2. Product Features

(1) High Shielding Effectiveness

• Operates across an ultra-wide frequency range (14kHz–10GHz), meeting strict EMI requirements for electronic devices.
• After cutting and shrinking, shielding effectiveness exceeds 50dB—outperforming standard shielded cables.

(2) Lightweight Design

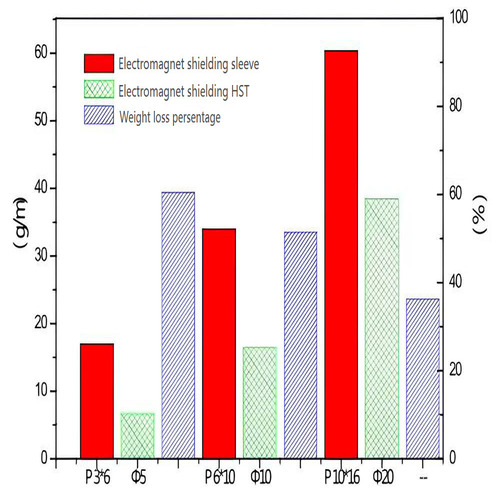

• Weighs 35% less than traditional waveproof sleeves (even over 60% lighter for small diameters).
• Reduces system weight without sacrificing durability, ideal for weight-sensitive applications.

(3) Exceptional Flexibility

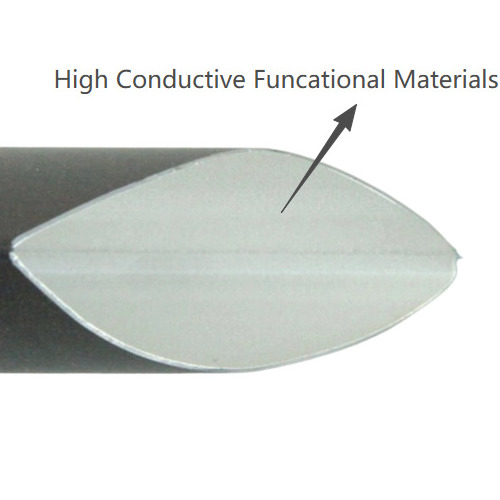

• The polymer-based conductive layer bends freely without damage, making it suitable for dynamic or tight-space installations (e.g., cables in moving machinery).

(4) Easy Installation

• Uses a standard heat gun for quick, uniform shrinking.

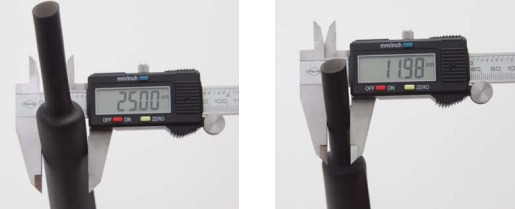

• Available with standard shrinkage (>50%) or high-shrinkage versions (up to 75%) to fit custom needs.

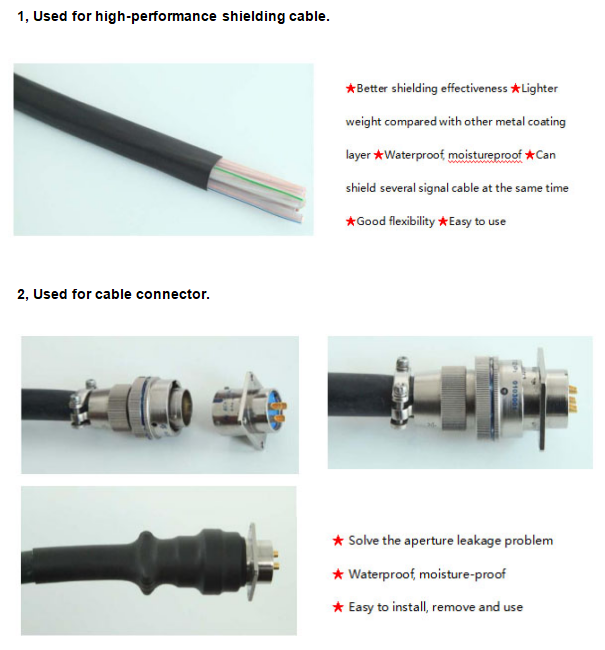

3. Applications

(1) High-Performance Shielding Cables

• Better shielding than metal coatings, with lighter weight for reduced system load.
• Waterproof and moisture-resistant—ideal for harsh environments (e.g., outdoor or industrial settings).
• Shields multiple signal cables simultaneously, simplifying complex wiring.
• Flexible and easy to handle during installation, even in tight spaces.

(2) Cable Connectors

• Prevents signal interference by eliminating “aperture leakage” (gaps that let EMI through).
• Waterproof and moisture-proof to protect connections from environmental damage.
• Simple to install, remove, and reuse for maintenance (no specialized tools needed).

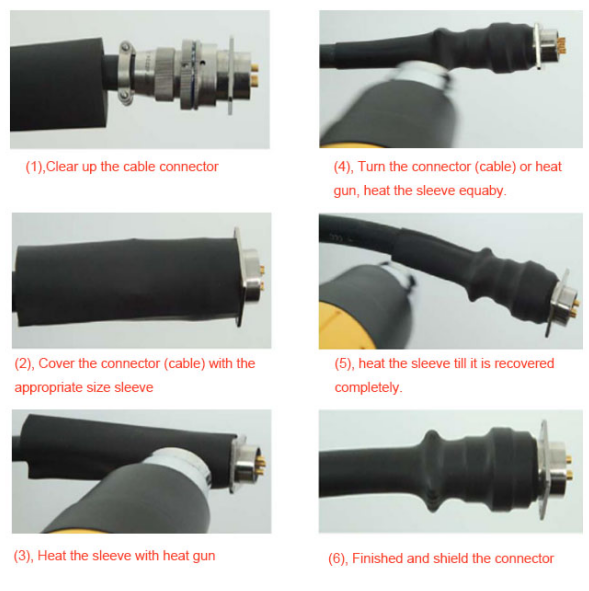

4. How to Use (Step-by-Step Guide)

（1）Clean the Connector

（2）Slide On the Tubing

（3）Heat with a Heat Gun

（4）Rotate for Uniform Heating

（5）Fully Shrink the Tubing

（6）Finish & Shield

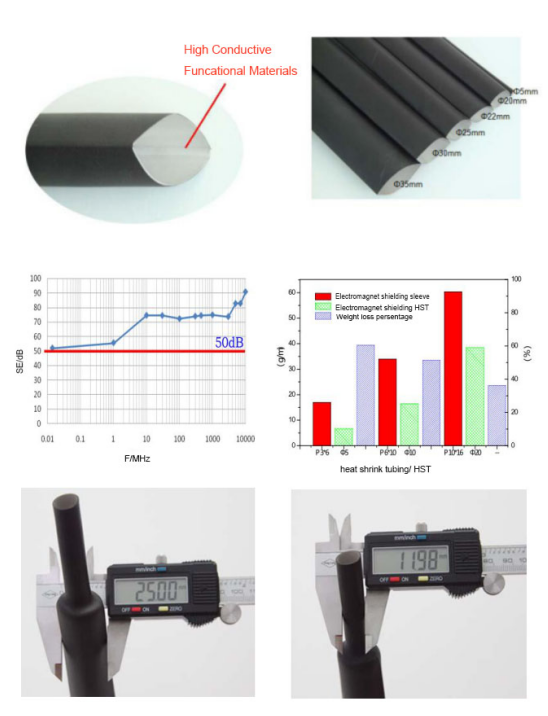

5. Technical Specifications

Key Highlights

• Shielding: Ultra-wide frequency coverage + high effectiveness (≥50dB).
• Durability: Lightweight, flexible, and resistant to water/moisture.
• Ease of Use: Simple heat-gun installation for quick, reliable shielding.
